Used Chuck Flange for sale (5,500)

Condition: used, Chuck flange, flange mount, lathe chuck flange, driving flange -Chuck flange for: three-jaw chuck, four-jaw chuck, face plate -Outer diameter: 210 mm Bsdpfx Afjfghcwjxewt -Inside diameter: 105 mm -Hole circle: Ø 133 mm/M12 -Dimension: Ø 210/H30 mm -Weight: 5 kg

Condition: used, Chuck flange, flange mount, lathe chuck flange, driving flange Bwsdpfxed Rakve Afxot -Chuck flange for: three-jaw chuck, four-jaw chuck, face plate -Outer diameter: 190 mm -Cone: Ø 88 mm -Dimensions: Ø 190/H23 mm -Weight: 3.6 kg

Condition: used, Chuck flange, flange mount, lathe chuck flange, driving flange Bwsded Rakzspfx Afxot -Chuck flange for: three-jaw chuck, four-jaw chuck, face plate -Outer diameter: 213 mm -Inside diameter: 39 mm -Dimensions: Ø 213/H 34 mm -Weight: 7.9 kg

Condition: used, Chuck flange, flange mount, lathe chuck flange, driving flange Bwedpfxsd Rakyj Afxjt -Chuck flange for: three-jaw chuck, four-jaw chuck, face plate -Outer diameter: 212 mm -Cone: Ø 105 mm -Dimensions: Ø 212/H 32 mm -Weight: 5.9 kg

Condition: used, Chuck flange, flange mount, lathe chuck flange, driving flange -Chuck flange: for three-jaw chucks, four-jaw chucks, face plates -Outer: Ø 210 mm Bodpfx Ajf E Ivyofxjwt -Inside: Ø 76 mm -Take: short taper 6, cone Ø 105 mm -Dimension: Ø 210 x 65 mm -Weight: 3.5 kg

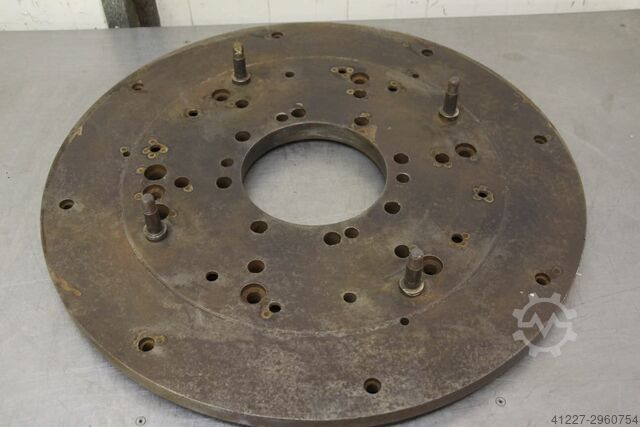

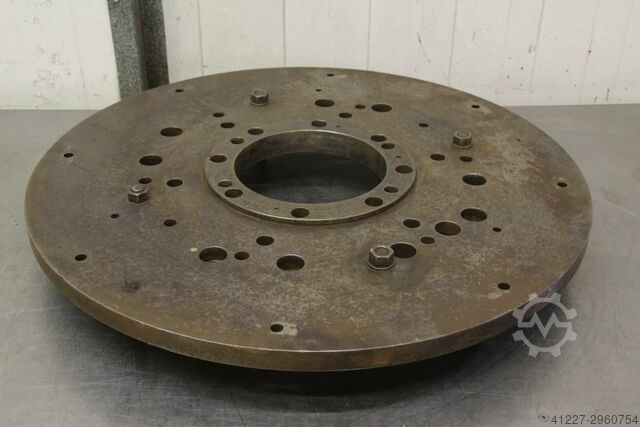

Condition: used, Chuck flange, flange mount, lathe chuck flange, driving flange -Chuck flange for: three-jaw chuck, four-jaw chuck, face plate -Outer: Ø 748 mm -Rezess: 350 mm -Hole circle: Ø 600 mm -Weight: 100 kg Bwjdjc Il Drspfx Afxjt

Condition: used, Chuck flange, flange mount, lathe chuck flange, driving flange -Chuck flange for: three-jaw chuck, four-jaw chuck, face plate -Outer diameter: 250 mm Bjdpfxsd Hcq Us Afxswt -Short taper flange for: bayonet disk mounting DIN 55027 -Cone size: 8 -Hole circle: Ø 171.4 mm -Weight: 11 kg

Condition: used, Flange mount -Chuck flange for: jaw chuck -Outer diameter: 215 mm -Short taper mount for: bayonet disc mounting DIN 55027 -Cone size: 8 -Hole circle: Ø 171.4 mm Bwjdpsd Hcqzjfx Afxjt -Weight: 9 kg

Condition: used, Flange mount Bwjdpfsd Hd Nkex Afxjt -Chuck flange for: jaw chuck -Outer diameter: 270 mm -Short taper mount for: bayonet disc mounting DIN 55027 -Cone size: 8 -Hole circle: Ø 171.4 mm -Weight: 21 kg

Condition: used, Chuck flange, flange mount, lathe chuck flange, driving flange -Chuck flange: for drive heart, three-jaw chuck, four-jaw chuck, face plate -Outside: Ø 305 mm -Short taper: 8 -Number: 1x discs available -Price: per piece Bedschyygjpfx Afxswt -Weight: 15.3 kg

Condition: used, Chuck flange, flange mount, lathe chuck flange, driving flange Bwodpfxechyyie Afxjt -Chuck flange: for drive heart, three-jaw chuck, four-jaw chuck, face plate -Outer: Ø 230 mm -Short taper: 102 mm -Number: 3x discs available -Price: per piece -Weight: 9.7 kg

Condition: used, Chuck flange, flange mount, lathe chuck flange, driving flange Bsdpfxochyykj Afxjwt -Chuck flange: for drive heart, three-jaw chuck, four-jaw chuck, face plate -Outer: Ø 207 mm -Short taper: 6 -Number: 1x discs available -Price: per piece -Weight: 6.8 kg

Condition: used, Chuck flange, flange mount, lathe chuck flange, driving flange Bedpfeb Hd T Sex Afxswt -Chuck flange: for three-jaw chucks, four-jaw chucks, face plates -Outer: Ø 159/200/200 mm -Cone: 82 mm -Hole circle: Ø 105 mm -Number: 3x discs available -Price: complete -Weight: 11.8 kg

Condition: used, Chuck flange, flange mount, lathe chuck flange, driving flange Bwsdpeb Hd T Rjfx Afxjt -Chuck flange: for three-jaw chucks, four-jaw chucks, face plates -Outside: Ø 3x201/1x190 mm -Cone: 82 mm -Hole circle: Ø 105 mm -Number: 2x discs still available -Price: complete -Weight: 11 kg

Condition: used, Chuck flange, flange mount, lathe chuck flange, driving flange Bedpfjb Hd T Uex Afxewt -Chuck flange: for three-jaw chucks, four-jaw chucks, face plates -Outside: Ø 235 mm -Cone: 106 mm -Hole circle: Ø 135 mm -Number: 2x discs available -Price: complete -Weight: 14 kg

Condition: used, Chuck flange, flange mount, lathe chuck flange, driving flange -Chuck flange for: three-jaw chuck, four-jaw chuck, face plate -Outer diameter: 230 mm -Camlock mount: DIN 55029 Bwodsd Hcrhspfx Afxst -Cone size: 6 -Hole circle: Ø 6 x 133.4 mm -Weight: 10 kg

Condition: used, Chuck flange, flange mount, lathe chuck flange, driving flange -Chuck flange for: three-jaw chuck, four-jaw chuck, face plate -Outer diameter: 250 mm -Short taper flange for: bayonet disk mounting DIN 55027 Bodpfod Hcrcox Afxowt -Cone size: 6 -Hole circle: Ø 133.4 mm -Weight: 7 kg

Condition: good (used), Chuck flange, flange mount, lathe chuck flange, driving flange -Chuck flange: for drive heart, three-jaw chuck, four-jaw chuck, face plate -Outer: Ø 217 mm -Short taper: 6 -Number: 1x discs available -Price: per piece Bodochyyfopfx Afxswt -Weight: 7.2 kg

Condition: good (used), Chuck flange, flange mount, lathe chuck flange, driving flange Bedpfxodu Udmj Afxswt -Chuck flange for: three-jaw chuck, four-jaw chuck, face plate -Outer: Ø 190 mm -Admission thread: M74 x 4 -Weight: 4 kg

Condition: used, Chuck flange, flange mount, lathe chuck flange, driver flange -Chuck flange: for three-jaw chuck, four-jaw chuck, face plate Bwedpfx Ajb Hd Ucofxjt -External: O 270 x 110 mm -Inside: O 240 x 81 mm -Mount: Camlock short taper 8 (139 mm) -Bolt circle: O 171 mm -Number: 1x disks available -Price per piece -Weight: 16.6 kg

Condition: like new (used), functionality: fully functional, total height: 125 mm, outer diameter: 610 mm, hole spacing: 180 mm, Samchully 3-Jaw Chuck / HC-24 1x Standard Flange 3 x Soft Jaws 3 x Hard Jaws Bjdpfx Asxzcq Ejfxswt 1 x Wrench 1 x Grease Gun Specifications: Jaw Stroke Diameter: 16 Piston Stroke: 35 Max. Clamping Diameter: 610 Min. Clamping Diameter: 152 Permissible Maximum Input Force: 82 (8362) Maximum Static Clamping Force: 273 (27838) Max. Speed (rpm): 1760 Weight: 223 Moment of Inertia: 12.2 Max. Hydraulic Pressure: 3.2 (32.6) Hydraulic Cylinder (operation): Y-2035R(RE) Working Hard Jaw: HB18B2 KITAGAWA model: N-24

Condition: good (used), Year of construction: 2020, Hydraulic 3-jaw chuck, manufacturer: SCHUNK, type: TFH 500-160, year of manufacture: approx. 2020, in good condition. Includes 2 chuck keys and 3 pairs of jaws. Diameter: 500 mm, height: 150 mm. Bore in the front area of the chuck: diameter 160 x 65 mm, depth. Short taper DIN A 8 in the flange, thread in the chuck for tensioning rod (approx. M 100 x 2). Bodezty Rgopfx Afxowt Weight approx. 180 kg without jaws. The chuck is in good condition. The chuck was previously installed in a MORI SEIKI SL 6 or SL 603.

Condition: new, Year of construction: 2026, The WP600 self-centering three-jaw chuck is a precise and highly durable solution designed for use with welding positioners and welding rotators. Thanks to its advanced construction and wide clamping range, it enables fast and accurate clamping of cylindrical or hexagonal workpieces with considerable weight. It is ideal for professional production and workshop applications where stability and process repeatability are essential. Key Features of the WP600 Chuck High clamping force – up to 1,200 kg, ensuring secure and reliable clamping even for very large workpieces. Clamping range of 300–600 mm – ideal for large-diameter pipes and components. Load capacity of 1,000 kg – designed for heavy workpieces being welded or machined in rotation. Self-centering three-jaw mechanism – ensures precise axial positioning of the workpiece. Versatile applications – suitable for pipes, square and hexagonal profiles, as well as irregularly shaped workpieces. Construction and Technology The WP600 is equipped with three robust self-centering jaws made of tool steel with increased wear resistance. The jaws are synchronized by a precision mechanical system, ensuring stable and accurate clamping. The Ø360 mm central through-hole allows long pipes to pass through the chuck, significantly expanding its range of applications in welding and assembly processes. Precision and Operating Efficiency The WP600 chuck reduces workpiece setup time for welding or machining while ensuring high positioning accuracy. The repeatability and precision of clamping directly contribute to the quality of welds and machining operations. It is an ideal solution for facilities requiring efficient integration with welding rotators and the highest possible production quality. Applications The WP600 chuck is perfectly suited for use with welding rotators and welding positioners. It is designed for clamping large and heavy workpieces, including: Pipes Flanges Tanks Frames Specialized structural components It is particularly suitable for structural steel fabrication, the power industry, tank manufacturing, and companies performing circumferential welding and precision assembly. Bwjdpfxjzwmtis Afxst Technical Specifications Specification Value Model WP-600 Maximum clamping force 1,200 kg Maximum load capacity 1,000 kg Through-hole diameter Ø360 mm Clamping range Ø300–600 mm

Condition: new, Year of construction: 2026, The WP500 self-centering three-jaw chuck is a professional clamping component designed for use with welding positioners and welding rotators in industrial environments. Thanks to its wide clamping range and robust construction, it provides fast, safe, and precise clamping of pipes and workpieces with various shapes. It is an ideal solution for facilities requiring high reliability in welding and machining processes. Key Features of the WP500 Chuck Wide clamping range – securely clamps workpieces with diameters from 200 to 500 mm. High clamping force – up to 800 kg, ensuring stability even when clamping heavy and irregular components. Maximum load capacity of 600 kg – designed for handling large components for rotational welding or machining. Self-centering three-jaw mechanism – ensures precise alignment of the workpiece with the rotational axis of the welding positioner. Versatile applications – suitable for clamping pipes, sleeves, square profiles, and hexagonal profiles. Construction and Technology The WP500 chuck has been designed for operation in demanding industrial environments. It features a reinforced mechanical system with three self-centering jaws that move synchronously toward and away from the center axis. The jaws are made of hardened steel, providing high wear resistance and ensuring long service life. The Ø235 mm through-hole allows workpieces such as pipes to pass through the chuck, expanding the technological capabilities of the positioner. Precision and Operating Efficiency The WP500 chuck mechanism enables rapid workpiece clamping while maintaining precise axial alignment. This significantly reduces setup time and improves the repeatability of production processes. Bwjdpfx Afozwmrxsxot Secure clamping directly contributes to the quality of the weld or machining operation by preventing workpiece movement and errors caused by inaccurate positioning. Applications The WP500 chuck is designed for use with welding positioners, welding rotators, and other welding turning devices used in both serial and custom production. It is particularly recommended for welding: Pipes Flanges Tanks Frames Non-standard components requiring precise axial clamping It is ideally suited for heavy industry, structural steel fabrication, power generation, and tank manufacturing. Technical Specifications Specification Value Model WP-500 Maximum clamping force 800 kg Maximum load capacity 600 kg Through-hole diameter Ø235 mm Clamping range Ø200–500 mm

Condition: reconditioned (used), overall weight: 30 kg, chuck outer diameter: 200 mm, three-jaw chuck diameter: 200 mm, short taper mount: 6 mm, through hole: 45 mm, Three-jaw power chuck without step-jaw cheeks Bwjdpozrmzpjfx Afxjt Manufacturer FORKARDT KTNCV 200-45, Three-jaw power chuck; the listed price applies to 1 three-jaw chuck. ----- Jaw stroke is achieved via clamping cylinder and draw tube. Chuck No. 1485270 with through-hole clamping. ----- Required cylindrical flange mounting according to DIN 55027 Short taper, taper size: KK6 ----- Three-jaw power chuck with quick-change system also suitable for reversible base jaws, type: FGB 200 ----- Jaw interface: Base jaw type: helical gear; Designation → Size: FGB200, SGB200 ----- Draw tube connection M52 x 2 mm Cylindrical mounting for spindle flange ø 170 x 6 mm Mounting hole circle for 3x cap screws approx. 135 mm ----- The chuck is in like-new condition. Weight without clamping jaws approx. 25 kg ----- Delivery without base and top jaws *We are available for any questions. *Shipping costs abroad upon request.
