Used Elumatec Mgs 73 for sale (109)

Year of construction: 1993, condition: excellent (used), Maximale Positionierlänge: 2600-3000 mm Anschlag- und Mess-System mit E 255-Steuerung für die Schnittlängenpositionieru Zum Anbau an alle 1-Kopf-Sägen (Recht) Hnjdefibfnspfx Ad Dew

Condition: excellent (used), Milling and copying machine Elumatec type KF 78/60 shipping EU - 300 euro Hnsdpfx Adovi R Ave Djw

Year of construction: 2016, condition: good (used), functionality: fully functional, machine/vehicle number: 6280028128, Machine is provided "free loaded truck". No dismantling and loading costs! TECHNICAL DETAILS Max. profile cutting width: 320 x 160 mm Min. profile cutting width (depending on gripper position): 30 x 10 mm Raw material system Length of the raw bar system: 7,600 mm Finished part system Finished part length: 3,500–4,600 mm Kurt cell Kurt cell (50-150/150-350): optional Feed system Shortest raw bar length: 1,500 mm Swing arm selection: 5 (option 9) Support plate: 10 (over 120 mm 5) Infeed Servo drive: linear Gripper adjustment electric: Y/Z Gripper guide: standard Remnant piece measurement: optional Remnant piece processing: fully automatic Processing station Number of axes: 5 Milling spindles: 8 (can be prepared) Saw Number of axes: 3 Saw blades (diameter): Ø 550 mm, optional Ø 650 mm Saw angle: 22.5°–157.5° (swivel) Notch cuts: standard (from above) Outfeed chip carriage Number of axes: 1 Outfeed conveyor Lifting station: yes Swing selection: 5 Width of outfeed conveyor: 4,000 mm MACHINE DETAILS Dimensions: 20 x 3 x 4 m Weight: 8.8 t Connection power: 39 kW Operating voltage: 3/N/PE 400 V EQUIPMENT - Feed magazine - Loading transport - Processing station with milling unit, saw unit and clamping blocks - Unloading transport of profiles (removal gripper) and unloading conveyor - Acoustic protection cabin - Control panel on the soundproof cabin Hedpfxovvu S Ie Ad Donw - Control cabinet - Fencing and protective doors

Condition: excellent (used), Year of construction: 2015, AUTOMATIC TWO-HEAD SAW ELUMATEC DG 244 + E580 -5 YEAR 2015 Hnsdpfx Aswltqaod Djw

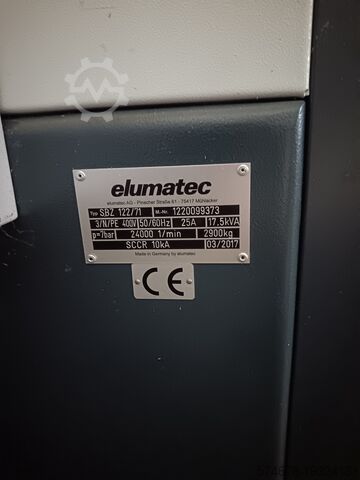

Year of construction: 2017, condition: excellent (used), machine/vehicle number: 1220099373, Designed for economic and efficient machining of aluminum, PVC and thin-walled steel profiles All operations, such as routing, drilling and tapping, are performed while the profile bar is stationary to protect the profile surfaces A rotation unit (rotating mechanism) integrated into the spindle makes it possible to adjust the rotating angle of the head 0°, -90°, -180° and -270° Better machining results thanks to the intelligent control technology Fast positioning of the machining unit with up to 120 m/min thanks to dynamic servo drives Tapping without compensation chuck Automatic clamp recognition and clamp positioning Ergonomic operation thanks to the advanced inclined bed Automatic tool changer with four tool tray positions (without tools) Automatic tool changer for an angle head State-of-the-art 3-axis controller The absolute rotary encoder system means no axis homing is required Automatic clamp recognition and positioning prevents collisions Power torque routing motor with enclosed speed control for short spindle start-up and braking times. Certified, drive-integrated safety functions Hsdewq Didepfx Ad Dsnw Low power consumption thanks to the intelligent control technology DC link coupling in the axis drives for greater energy efficiency Uninterruptible power supply (UPS) Windows operating system 18.5" panel PC, i5 processor, USB ports and network connection Simple, stress-free program entry with eluCam on the operating panel, even during operation Remote online maintenance

Condition: excellent (used), Year of construction: 2024, operating hours: 193 h, functionality: fully functional, travel distance X-axis: 7,200 mm, travel distance Y-axis: 480 mm, travel distance Z-axis: 340 mm, cutting width (max.): 335 mm, workpiece length (max.): 6,000 mm, milling spindle speed (max.): 6,000 rpm, section length (max.): 6,000 mm, TECHNICAL DETAILS - Profile Milling Machine Processing length: 7,200 mm Number of axes: 4 Control: eluCAM graphical, Windows XP user interface Workstations: 2 independently operating stations Turret tool changer: 8 tools, servo motor driven Tool holder: BT 30 Disc mill diameter: 180 mm Tool length: 150 mm (from point of attachment) Travel distances Travel X-axis: 7,200 mm (without end-face processing), 7,080 mm (with end-face processing) Travel Y-axis: 480 mm Travel Z-axis: 340 mm Rapid traverse X-axis: 60 m/min Rapid traverse Y-/Z-axis: 30 m/min Positioning accuracy: ±0.1 mm/m Spindle Milling spindle speed: 1 to 6,000 rpm Milling spindle power: 6.0 kW Supply Air connection: min. 7 bar Air consumption: 100 l/min Electric connection: 400 V, 3~, 50 Hz, 35 A EQUIPMENT Hjdpjwprmzefx Ad Denw two independent workstations with light barrier and camera system Non-swiveling inclined milling head for 2 tools, Er20A, up to 18,000 rpm Inclined milling head swiveling 4 × 90°, Er20, up to 22,000 rpm Inclined milling head non-swiveling for steel, Er20A, 1,554 rpm Fixed saw head i=1:1, for D=300 mm saw blade, suitable for 90° cross cuts Carbide saw blade Z=100, D=300 mm, cutting width 3.2 mm Tool holder i=1:3.86 for 18,000 min⁻¹, ER25 Cooling/lubricating unit for steel processing Disc milling holder BT30, D=16 mm Disc cutter D=92 × 6 mm, Z=14, D=16 mm, carbide teeth TECHNICAL DETAILS - Double Mitre Saw Max. cutting length: 6,000 mm Min. cutting length at 90°: 335 mm Min. cutting length at 45°: 335 mm Saw blade diameter: 420 mm Cutting angle (rotation): pneumatically adjustable 90° and 45° inside, intermediate angles and 22.5° acute manually adjustable with digital display Cutting angle (tilt): pneumatically adjustable 90° and 45° inside Saw direction: saw blades move from bottom to top Control Control type: E580/1 Length adjustment: automatic with positioning control Saw blade tilt: pneumatically automatic between 90° and 45° Positioning accuracy: ±0.1 mm/m Positioning: pneumatic locking Operating system: Windows Saw unit Speed: 2,800 rpm Power per motor: 4,000 W (5.5 HP) Saw blade cooling: available Air consumption per cycle without cooling: 40 l Air consumption per cycle with cooling: 64 l Supply Electric connection: 230/400 V, 3-phase, 50 Hz Air connection: 7 bar Dimensions and Weight Length: 7,550 mm Width: 1,600 mm Height: 1,450 mm Weight: 1,750 kg EQUIPMENT Automatically closing protective covers Electronic positioning of the heads with +/- 0.1 mm/m accuracy Digital angle display for manually adjustable special angles Pneumatically adjustable saw blade rotational and tilt angles Operation via Windows control with 8.4" display and handwheel Cooling system for saw blades included Saw unit with bottom feed for optimal cutting force

Condition: excellent (used), Year of construction: 1999, Table saw Elumatec TS 161 Saw blade diameter 280 mm Saw blade speed 3,200 1/min. Electrical connection 230/400 V, 3~, 50 Hz Power output 1.05 kW Hjdpfjui Iuwjx Ad Denw Length 650 mm, depth 750 mm, height 1,300 mm, weight 130 kg

Condition: excellent (used), Shipping EU 300euro Hnodpfxel Sklgo Ad Dsw

Condition: excellent (used), Year of construction: 2022, functionality: fully functional, machine/vehicle number: 12200991016, rotational speed (min.): 24,000 rpm, overall weight: 1,635 kg, tool weight: 2,900 g, input voltage: 400 V, For economical and efficient machining of aluminium, plastic and thin-walled steel profiles All machining processes such as milling, drilling and thread cutting take place on a stationary profile, protecting the profile surface Improved work results thanks to the use of intelligent control technology Fast positioning of the machining unit at up to 60 m/min thanks to the use of dynamic servo drives Thread cutting without compensating chuck Automatic clamp recognition and positioning Automatic tool magazine with four tool shelves (without tools) Modern, 3-axis control Ergonomic work thanks to the use of a modern inclined bed No need for a reference movement of the axes thanks to the use of absolute encoder-based systems Collision avoidance thanks to automatic clamp recognition and positioning Power-Torque milling motor with closed speed control ensures short start-up and deceleration times spindle Certified, drive-integrated safety functions Low power consumption thanks to intelligent control technology Increased energy efficiency thanks to the connection of axis drives between circuits Uninterruptible power supply (UPS) Windows operating system 15.6" Panel PC, i3 processor, USB ports and network interface Easy and convenient program entry via eluCam on the operator panel, even during machining Remote online maintenance Machine equipment Air-cooled 8 kW milling spindle, S1 Cabin for operator protection Four horizontal pneumatic clamps for clamping the material Material stop, left side HSK-F63 tool holder Minimum quantity lubrication High-performance coolant Manual control panel Depth gauge Options Hedpfx Adjwgmyqe Dsnw Tools Tool holders Automatic tool magazine for up to four standard tools Automatic tool magazine for angle head Rotating head HSK-F63 angle for two tools Green-line cooling unit for control cabinet with reduced energy consumption Barcode scanner Protective cabin, optionally with all-round closure Four clamps as standard. Expandable to eight clamps Right reference material stop for placing workpieces with overlength processing Additional stop for overlength processing on the left Length measurement on both sides Double clamp and additional accessories upon request Panel PC 18.5", i5 processor Panel PC 21.6", i7 processor Note holder Sound-absorbing hood Chip disposal using chip trays
