Used Gildemeister Ctx 600 E for sale (237)

Condition: used, Year of construction: 1995, Machine in parts for sale spare parts ..... CNC lathe, make GILDEMEISTER Type: CTX 600, year 1995 Forkardt chuck 315 mm, Dodpfx Ajnximueffsur tool turret Tailstock, steady rest Headstock Guide covers and sheets Motors Machine in individual parts for sale ..... Please ask what you need and we will send you an offer.

Condition: used, Year of construction: 2003, Technical data: Swing diameter: 680 mm Distance between centers: 1000 mm Speed: 2800 rpm Chuck: ø300 mm Dimensions, approx.: 5560 x 2400 x 2130 mm Weight, approx.: 10,000 kg Equipment: - Control: Heidenhain CNC Pilot 4290 Djdsyfnqgspfx Affjur - 12-position turret VDM 40 - C-axis

Condition: excellent (used), Year of construction: 1998, turning diameter over cross slide: 600 mm, For sale: CNC Lathe GILDEMEISTER CTX600E V3 with live tooling. TECHNICAL AND VISUAL CONDITION: Very Good Type: CNC Lathe Manufacturer: GILDEMEISTER Model: CTX600E V3 Control system: Heidenhain 3190 Country of origin: Germany Year of manufacture: 1998 Machine specifications: - Turret: 12 stations for VDI-50 tool holders (6 driven stations) - Max spindle speed: 3,600 rpm - C-axis - Live tooling - Hydraulic tailstock - Tool measurement probe - Max turning diameter X-axis = 600 mm - Max turning length Z-axis = 1,000 mm - Coolant system - 400 mm three-jaw hydraulic chuck - Chip conveyor - Complete programming manual Dedjxy Tfdepfx Affour - Mechanical and electrical documentation - Machine weight: 9 tons - Loading onto truck included in the price The machine has undergone a full inspection. 100% operational. Connected and ready for work. Stal-Com has been engaged in the sale, service, and training on CNC machines from the DMG group for 19 years. We specialize in all Gildemeister lathe models and Deckel Maho machining centers. All machines undergo a thorough technical inspection. Our machines are purchased not only by customers from Poland, but also from across Europe and parts of Asia. Each machine can be inspected under production conditions, as we also perform subcontract machining. After purchase, we provide operator training and can assist with setting up part production at the customer’s site. We maintain long-term partnerships with many companies, supplying additional machine tools as needed.

Condition: excellent (used), Year of construction: 1995, Centre height: 330 mm Centre distance: 2000 mm Working area: Max. turning diameter over bed cover: 650 mm Max. turning diameter over cross slide: 360 mm Main spindle: Spindle diameter in front bearing: 140 mm Spindle bore: 107 mm Main drive: 58.5 kW 2-stage speed range: 4 – 750 rpm / 750 – 3060 rpm Feed drive: Rapid traverse X/Z axis: 10/10 m/min Turret: Number of tool stations: 12 Of which driven tool stations: 6 Tool shank holder: VDI 50 mm Dimensions / Weight: Dusdpfx Afox Sx Htofjr Required floor space (L x W x H): approx. 6400 x 2150 x 2000 mm Weight: 9400 kg Accessories / Special Features: • CNC path control HEIDENHAIN TurnPlus EP 90 with color display • Spindle orientation, C-axis • 12-position turret, VDI 50, including 6 driven tool stations in turret, manufacturer SAUTER, DIN 5482 B 20x17, max. speed 3000 rpm • Hydraulic 3-jaw chuck Ø 315 mm with various clamping jaws • Hydraulic tailstock with drag device • Hydraulic quill actuation • Extraction unit, manufacturer LTA • Various tool holders VDI 50 • CE-compliant In 08/2025, GILDEMEISTER service replaced the following parts: 1 servo motor, 1 AC servo controller inverter power module for 2 axes, 1 Simodrive power module, 1 line-commutated return module, 1 control insert for 1 axis, 1 controller module for 2 axes inverter servo drive, 1 Simodrive power module for 1 axis motor. Total repair cost: EUR 17,000.00 net Important note: On this very well-maintained CNC turning and milling center GILDEMEISTER CTX 600-2000 (year 1995), the positioning of the C-axis does not function and the driven milling unit rotates but does not engage. Otherwise, the machine is in perfect condition. A demonstration under power is possible at any time by prior appointment. Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel

Condition: used, Year of construction: 1998, operating hours: 10,463 h, turning diameter over cross slide: 455 mm, turning length: 1,000 mm, turning diameter: 680 mm, spindle bore: 107 mm, travel distance Z-axis: 1,000 mm, Equipment: documentation/manual, Gildemeister CTX600E Heidenhain CNC Pilot 3190 control Between centers (TDC): 1000 mm Turning diameter over bed: Ø 680 mm Turning diameter over cross slide: Ø 455 mm X-axis travel: 320 mm Z-axis travel: 1097 mm Turret: 12 positions Driven tools: Yes Tool holder: VDI 50 C-axis: Yes Main spindle power: approx. 30 kW Spindle speed range: 4 – 2800 rpm Spindle bore: Ø 107 mm Max. chuck diameter: 500 mm X-axis feed force: 8 kN Z-axis feed force: 15 kN Rapid traverse X: 24 m/min Rapid traverse Z: 30 m/min Tailstock Quill diameter: 120 mm Quill stroke: 120 mm Taper: MK5 (6) Quill force: 14 kN Dimensions & weight Weight: approx. 9,000 kg Duodpoyl Sa Ssfx Affjr Length: 4300 mm Width without guard: 2000 mm Width with guard: 2450 mm Height: 2200 mm Note: The information on this page has been obtained and compiled to the best of our knowledge and belief, but accuracy cannot be guaranteed. Accordingly, it does not constitute a representation or contract and we recommend verifying all relevant details. Financial information VAT/margin: VAT: The shown price is excluding VAT (VAT deductible for businesses).

Condition: ready for operation (used), Year of construction: 2007, operating hours: 3,395 h, travel distance X-axis: 380 mm, travel distance Z-axis: 1,100 mm, controller manufacturer: SIEMENS, controller model: 840D, number of axes: 2, This 3-axis Gildemeister CTX 620 linear was manufactured in 2007. A horizontal turning machine, it includes tool holders and a tail stock. Consider the opportunity to buy this Gildemeister CTX 620 linear horizontal turning machine. Contact us for more information. Siemens 840D with shopturnSpindle with integrated motorTailstockChip conveyorSpray gunAutomatic doorHollow clamping cylinder SMW 121 mmSMW Autoblok 400 BHD-FL ø 118 hollow Additional equipment Dedpfx Afjx Stlqjfsur • Tool holders (as shown in pictures) will follow • Tailstock will follow Technical Specification Counter Spindle No Driven Tools No

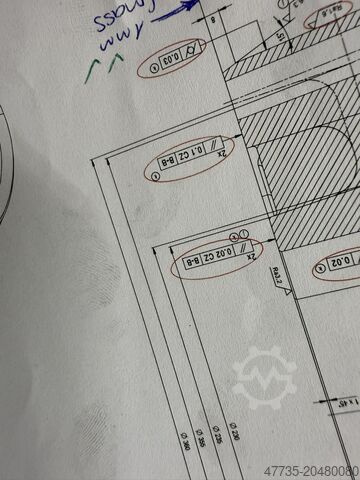

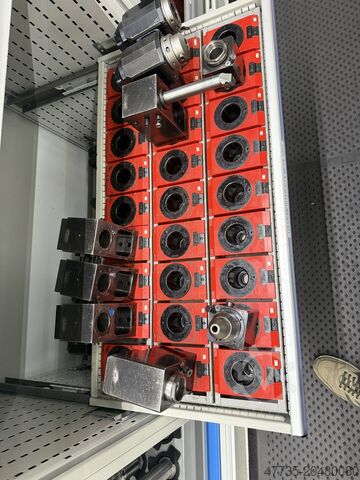

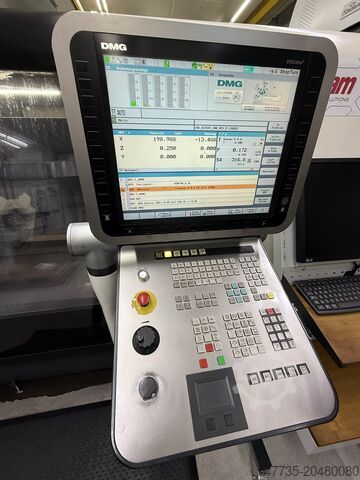

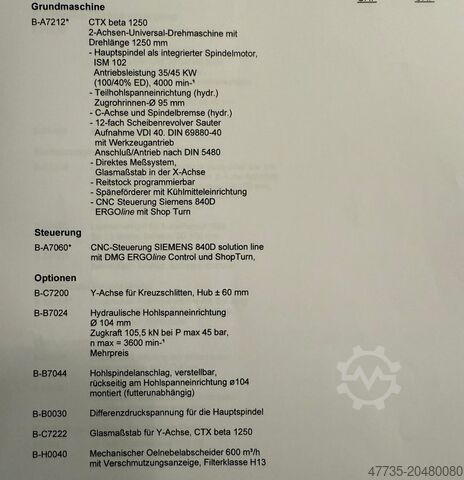

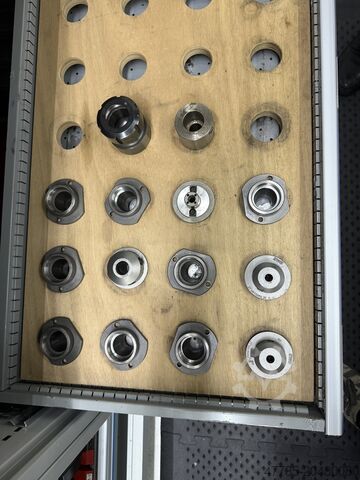

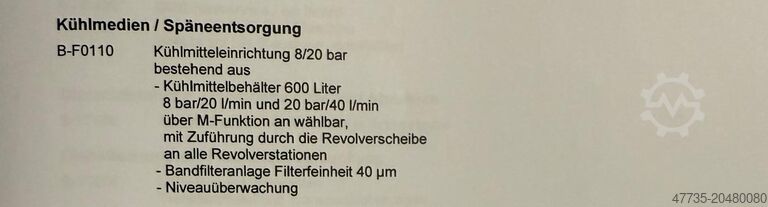

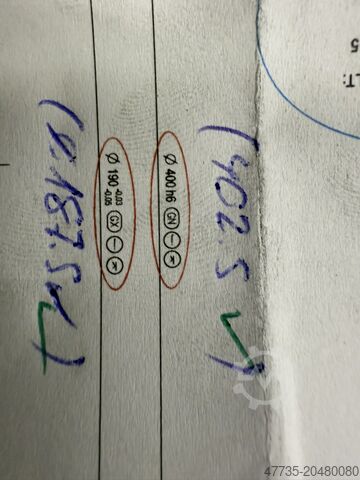

Condition: good (used), Year of construction: 2011, GILDEMEISTER CNC Twin-Spindle Turning Center Type: CTX beta 1250 4 A Machine No.: 00700000211 Year of Manufacture: 2011 Control: CNC contouring control including 19" TFT Siemens Sinumerik 840 D sl solution line with ERGOline control and with ShopTurn 3 G Power-on time: 41,378 h Program runtime: 24,814 h Technical data and equipment available upon request Dedpswcxlwsfx Affjur

Condition: used, Year of construction: 2007, Technical details: turning diameter: 325 mm turning length: 600 mm total power requirement: 35 kW spindle drive: 25 kW spindle turning speed range: 5000 U/min speeds of tool: 4500 U/min rapid traverse X-axis: 60 m/min Dsdovgb Epopfx Affeur diverse toolholders: VDI 40 rapid traverse Z-axis: 45 m/min weight of the machine ca.: 6,5 t dimensions of the machine ca.: 3,5 x 2,5 x 2,1 m Machine with SIEMENS 840 D control power line with shopturn - C and Y-axis, driven tools - bar loader IRCO ILS-RBK - coolant device with coolant throough revolving head - Revolver - counter spindle - chip conveyor - collet clamping - part catcher *

Condition: excellent (used), Year of construction: 2010, operating hours: 3,624 h, functionality: fully functional, travel distance X-axis: 398 mm, travel distance Z-axis: 1,250 mm, rotational speed (max.): 3,000 rpm, We offer in good condition Gildemeister NEF 600 with Heidenhain control, please note customer removes 3-jaw chuck. Machine will be sold without 3-jaw chuck. Technical Data: Turning diameter: 600mm Turning length: 1190mm Dujdpjxrg S Iofx Affer Main spindle: Speed range – main spindle: 0 – 3,000 rpm Drive power – main spindle: 39.4 / 27.5 kW Max. torque: 430 Nm Spindle diameter at front bearing: 100 mm Spindle bore: 90mm Max. bar diameter: 75mm Turret: Number of tool stations: 12 pos - VDI 40 Travel: X-axis: 398mm Z-axis: 1250mm Tailstock: Tailstock travel: 1150mm

Condition: good (used), Year of construction: 2007, Machine is in good working condition. Machine come without automatic line. Marked equipement with red not come.. Dsdjxf Iamepfx Affjur Some accesories and machine equipement are also available. More specs of the machine, check last two pictures.

Condition: used, Year of construction: 2003, max. Spindle speed 5000 U/min. travel -x axis 160 mm travel -z axis 450 mm numbers of turret head positions 12 tool taper VDI 30 Control Heidenhain iT Plus Dimensions (L x W x H) 4,5 x 2,5 x 2,5 m weight of the machine 3700 kg CNC Turning- and Milling Center | DMG GILDEMEISTER - CTX 310 Additional equipment: - C-Axis Dujdov Ehawjpfx Affor The machine is in good condition. Please refer to further technical details in the attachement of the offer. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: CTX310 | CTX-310

Condition: good (used), Year of construction: 2003, Main spindle: Speed range - main spindle max. 6,000 min/-1 Drive power - main spindle 16 kW Max. torque 155 Nm C-axis 360 ° Tool turret: Number of tool positions 12 pos. Number of driven tool stations 12 pos. Speed range - driven tools max. 5,000 min -1 Drive power - driven Tools 10 kW Tool holder (VDI 30) Tool shaft 20 x 20 mm Travel paths: x-axis 160 mm z-axis 450 mm Feed rates: Rapid traverse X: 60 m/min Rapid traverse Z: 45 m/min Duedpfx Afsv Drigefer Feed force X: 2.5 kN Feed force Z: 4 kN Rapid traverse C: 200 1/min Max. torque C: 155 Nm Total power requirement Machine weight approx. 3.7 t Space requirement approx. 4.5 x 2.5 x 2.5 m Heidenhain control Hollow clamping cylinder C-axis and tool drive a Chip conveyor Oil and emulsion mist separator with electrostatic filter

Condition: new, Year of construction: 2024, Protective disc made of safety glass for a Gildemeister CTX Beta 500 V4, item unused, new and in original packaging. Dsdjyx U Slspfx Affjur

Condition: used, Year of construction: 2003, turning diameter max. 246 mm turning length 600 mm control 840 D Powerline Siemens greates pass round over bed 400 mm Swing dia. over traverse guideway 300 mm centre distance 600 mm turning speed range - main spindle max. 6.000 min/-1 power capacity - main spindel 16 kW max. Torque 155 Nm spindle diameter in front bearing 100 mm spindle bore 68,5 mm spindle nose 140H5 Spindle speed range subspindle max. 4.000 min/-1 power capacity - Sub spindle 7,5 kW max. Torque 48 Nm spindle diameter in front bearing 75 mm spindle bore 37 mm spindle nose 140H5 number of toolpositions 12 pos. Number of driven toolspositions 12 pos. Spindle speed - driven tools max. 5.000 min -1 power capacity - driven tools 3,7 kW max. Torque 24 Nm tool taper VDI 30 Tool dimensions with square shank 20 x 20 mm x-axis 160 mm z-axis 450 mm rapid traverse X: 60 m/min rapid traverse Z: 45 m/min Feed force X: 2,5 kN Dedpsypv Tqjfx Affeur Feed force Z: 4 kN rapid traverse C: 200 1/min max. Torque C: 155 Nm total power requirement 32 kVA weight of the machine ca. 3,8 t dimensions of the machine ca. 8,0 x 3,0 x 2,7 m CNC - Turning- and MillingCenter GILDEMEISTER - CTX 320 linear V5 - Main- and Subspindle - tool-drive - C-Axis - ShopTurn

Condition: ready for operation (used), Year of construction: 2001, operating hours: 27,752 h, functionality: fully functional, Equipment: documentation/manual, We are offering this ready-to-use GILDEMEISTER CTX 200 series 2 CNC turning and milling center, year of manufacture 2001. Manufacturer: GILDEMEISTER Type/Model: CTX 200 series 2 Djdpfx Ajyu Uytsffjur Contrary to the photo, the machine is sold with a three-jaw chuck and not a collet chuck; various VDI20 toolholders are included as well. The short bar feeder has not been in operation for a long time, so its condition is unknown. If you have any questions or need more information, feel free to send us a message or give us a call.

Condition: excellent (used), Year of construction: 2006, operating hours: 8,513 h, functionality: fully functional, machine/vehicle number: 8042942323C, We are offering this refurbished Gildemeister CTX 310 V4 CNC SIEMENS 840 D SHOPTURN CNC turning and milling center, year of manufacture 2006. Serviced and prepared for transport Extensive tool accessories included, such as tool cabinets and measuring devices Dedpfx Afeyvfq Sefour Year of manufacture: 2006 Weight: 3950 kg Maximum spindle speed: 6000 rpm Connected load: 26 kVA Max. connection current: 35 A Current: 38 A Mains voltage: 400 V Frequency: 50/60 Hz Control voltage: 230 V Control power consumption: 150 W Internal voltage: 24 V If you have any questions or need more information, please feel free to send us a message or call us.

Condition: reconditioned (used), Year of construction: 2006, CNC Lathe GILDEMEISTER CTX 420 linear Equipped with Siemens 840 D powerline control Year of manufacture: 2006 Max. turning diameter: 324 mm Max. turning length: 600 mm Max. swing diameter: 680 mm Spindle bore: 79 mm Max. spindle speed: 4,500 rpm Including the following accessories: Sliding guard with interior lighting 12-position turret with 12 driven stations Y-axis, C-axis Tool measuring device Parts catcher Dujdpfx Ajxzt Dcoffsr 3-jaw hydraulic chuck 210 mm with foot switch Hainbuch hydraulic collet chuck IRCO Breuning RBK 10012 bar feeder Signal lamp Tailstock with quill Chip conveyor Oil mist extraction Coolant system with high-pressure coolant (IKZ) and belt filter unit Operating manuals

Condition: used, CNC Lathe DMG MORI SEIKI - GILDEMEISTER Type CTX 310 ecoline Machine No. 8044001846E Year of manufacture: 2013 CNC Control: SIEMENS Sinumerik 840D sl Swing diameter over bedway cover: 330 mm Swing diameter over cross-slide cover: 260 mm Centre height max.: 190 mm Centre distance max.: 580 mm Turning diameter max.: 200 mm Longitudinal slide travel (Z-axis) max.: 450 mm Cross-slide travel (X-axis) max.: 160 mm Spindle bore through draw tube: 51 mm Spindle bore through front bearing: 100 mm Spindle speed max.: 5,000 rpm Feed rate X and Z: mm/min. Rapid traverse X-axis: 30 m/min. Rapid traverse Z-axis: 30 m/min. Dusdjyk Hrgjpfx Affor Feed force X and Z: 4,500 Nm Tool turret: 12 stations Driven tool stations: 6 stations Tool holder cylindrical VDI 30 mm Spindle drive motor power at 100% duty cycle: max. 11 kW Spindle drive motor power at 40% duty cycle: max. 16.5 kW Power supply: 400 Volt, 50 Hz, 21 kVA - CNC control SIEMENS Sinumerik 840D sl, system software NCU V04.04+SP02+HF02 - Controlled C4-axis chuck position and C1-axis for tool turret - 3-jaw chuck AUTOGRIP Ø 210 mm with 1 set of hard jaws and 15 sets of soft jaws - AUTOGRIP hydraulic hollow clamping device - Clamping force adjustment for regulating clamping pressure - Tool turret SAUTER, type 0.5.901.020 with 12 stations (6 driven) - 20 tool holders VDI 30 - Tailstock MK 4 - Indirect measurement system via rotary encoder - Chip conveyor with integrated coolant system - Workpiece residual life display and piece counter as large display on machine enclosure - Control cabinet cooling unit - 9,716 total operating hours (main switch on), of which 3,322 spindle hours as per counter - Operating instructions and manuals Machine footprint with chip conveyor (L x W x H): 4,500 x 2,600 x 2,050 mm Base machine space requirement (L x W x H): 2,900 x 2,150 x 2,050 mm (3,200 kg) Chip conveyor space requirement (L x W x H): 3,350 x 850 x 1,650 mm (500 kg) Weight: approx. 4 tons Very good condition

Condition: used, Year of construction: 2003, turning diameter 0324 mm turning length 600 mm control 840D shop turn turret head 12 pos. swing over bed 680 mm spindle turning speed - stepless 0 - 5000 rpm swing diameter over bed slide 565 mm spindle bore 79 mm drive capacity - workpiece 25 kW x-axis 260 mm y-axis +/- 40 mm z-axis 635 mm rapid traverse 60/15/45 m/min toolpiece turning speed range 4500 U/min Duedpfoyi Hpisx Affor total power requirement 50 KVA weight of the machine ca. 6,5 t dimensions of the machine ca. 4,5 x 2,4 x 2,1 m Machine has C-axe, Y- axe and live tooling. Control: Siemens 840 D shop turn. Machine has tail stock and power chuck.

Condition: used, Year of construction: 2007, turning diameter 325 mm turning length 600 mm control Siemens type 840D turning speeds 5000 U/min power capacity 25 kW total power requirement 35 kW weight of the machine ca. 6,5 t dimensions of the machine ca. 3,5x2,5x2,1 m Tool speed: 4500 rpm X-axis rapid traverse: 60 m/min Z-axis rapid traverse: 45 m/min Machine with Siemens 840 D powerline with Shopturn - C and Y axes, driven tools - IRCO ILS-RBK bar loader - Coolant system with internal coolant supply - Paper belt filter - Partial hollow clamping device - Oil mist separator - Counter spindle - Parts catcher The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. Duedpfx Ajyquwkjffer We look forward to your visit. Your Markus Hirsch Team

Condition: excellent (used), Year of construction: 2009, operating hours: 87,000 h, functionality: fully functional, turning length: 600 mm, turning diameter over cross slide: 410 mm, spindle speed (min.): 22,000 rpm, For sale is a CNC turning center manufactured by DMG, model CTX beta 800, year of manufacture 2009. The machine is in a well-maintained and fully operational condition. Technically flawless and immediately ready for operation. Technical Data Dsdpfx Ajyq Hq Njffeur Machine type: CNC Turning Center Manufacturer: DMG Model: CTX beta 800 Year of manufacture: 2009 Control system: Heidenhain 4290 Max. turning length: 600 mm Tool turret: 12-position Tool holder: VDI 40 Operating hours: approx. 87,000 h Spindle hours: approx. 22,000 h Linear guide Z1 recently renewed Turret drive S2 recently replaced Machine regularly serviced by customer service Technically flawless and fully functional Inspection under power possible by appointment Service and maintenance reports available Extensive accessory package Driven tools by WTO Further documentation and photos available on request Availability: from July 2026 If interested, simply write or call Maschinenhandel Nord Gerstenstraße 2 17034 Neubrandenburg

Condition: used, Year of construction: 2004, functionality: fully functional, machine/vehicle number: 02280000301, turning diameter over cross slide: 565 mm, turning length: 1,300 mm, turning diameter: 440 mm, spindle bore: 90 mm, spindle speed (max.): 4,000 rpm, spindle speed (min.): 20 rpm, travel distance X-axis: 315 mm, travel distance Z-axis: 1,350 mm, spindle motor power: 45,000 W, rapid traverse X-axis: 60 m/min, rapid traverse Z-axis: 45 m/min, rotational speed (min.): 20 rpm, rotational speed (max.): 4,000 rpm, total height: 2,230 mm, total length: 5,742 mm, total width: 2,730 mm, feed length X-axis: 315 mm, feed length Z-axis: 1,350 mm, quill travel distance: 150 mm, quill stroke: 150 mm, swing diameter over cross slide: 565 mm, turning diameter over bed slide: 840 mm, overall weight: 10,700 kg, swing diameter over bed slide: 680 mm, swing diameter over top slide: 680 mm, Equipment: documentation/manual, rotational speed infinitely variable, NO DEALER INQUIRIES – Dealer inquiries will not be answered. For sale is a DMG GILDEMEISTER CTX 520 linear – a robust, proven CNC lathe currently in production. Inspection and demonstration under power are possible at any time by appointment. The machine is sold as seen. Duedpfxjypkv Hj Affjr Additional photos and videos of the machine can be sent to you by email upon request.

Condition: excellent (used), Year of construction: 1997, functionality: fully functional, spindle speed (min.): 25 rpm, spindle speed (max.): 500 rpm, spindle bore: 79 mm, travel distance X-axis: 220 mm, travel distance Z-axis: 635 mm, rapid traverse X-axis: 20 m/min, rapid traverse Z-axis: 24 m/min, chuck outer diameter: 200 mm, spindle nose: 170 h5, Equipment: documentation/manual, rotational speed infinitely variable, Machine is from first owner (government institution) and is very well equipped. This CTX 400 is set up at our premises and can be inspected in operation if required. This machine comes standard with: - Chip conveyor - IFM oil mist extraction system - TurnPlus control - Collet chuck for 185E and 3-jaw chuck KH 200/68 with top jaws - Conversion kit for collet 173E - Overload clutch for X and Z axes - Double foot pedal (chuck + tailstock) - Original Gildemeister and Heidenhain documentation Dujdjydpdxspfx Affsr - Approx. 20 VDI-30 tool holders, of which 2 are driven

Condition: ready for operation (used), Year of construction: 2003, operating hours: 11,600 h, functionality: fully functional, spindle bore: 107 mm, spindle speed (max.): 4,000 rpm, overall weight: 10,000 kg, controller model: Siemens 810D, Equipment: chip conveyor, TECHNICAL DETAILS Maximum swing diameter: 680 mm Swing diameter over X-guide: 565 mm Longitudinal travel: 1,300 mm Cross travel: 315 mm Spindle head: h5 Spindle diameter at front bearing: 150 mm Spindle bore: 107 mm Maximum torque: 600 Nm Spindle speed: 4,000 rpm Chuck diameter: 315 mm Djdpfx Afsymn Ibefour Rapid traverse X-axis: 60 m/min Rapid traverse Z-axis: 45 m/min Tool turret for: 12 tools Driven tools: 12 Tool holder: VDI 40 Quill stroke: 120 mm Quill taper: MK 5 MACHINE DETAILS Control system: Siemens 810D Dimensions & Weight Machine dimensions with chip conveyor (L x W x H): 5,700 x 2,600 x 2,210 mm Machine weight: approx. 10,000 kg Operating Hours Power-on hours: 47,781 h Spindle hours: 11,600 h EQUIPMENT Hydraulic steady rest, clamping range 30-245 mm Chip conveyor KNCS-N 315-91 power chuck

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, CNC Twin-Spindle Turning Center Control: CNC path control incl. 19" TFT Siemens Sinumerik 840 D sl solution line with ERGOline control and ShopTurn 3 G TECHNICAL DATA Maximum turning diameter: 340 mm Spindle distance: 1470 mm Turning length: 1135 mm Swing over bed: 700 mm Swing over tool turret 2: 540 mm Travel distances: X1 — Tool Turret I: 270 mm Y1 — Tool Turret I: 120 mm Z1 — Tool Turret I: 1200 mm X2 — Tool Turret II: 195 mm Y2 — Tool Turret II: 80 mm Z2 — Tool Turret II: 1200 mm X3 — Counter-spindle slide: 180 mm Z3 — Counter-spindle slide: 1200 mm Main Spindle Integrated spindle motor ISM 102 Drive power (100/40% DC): 40/48 kW Torque (100/40% DC): 570/680 Nm Speed range: 0–4000 rpm Bar capacity: 102 mm Draw tube internal diameter: 104 mm C-axis and spindle brake (angular resolution): 0.001° Counter Spindle Integrated spindle motor ISM 76 Drive power (100/40% DC): 25/32 kW Torque (100/40% DC): 280/380 Nm Speed range: 0–5000 rpm Bar capacity: 65/75 mm C-axis (angular resolution): 0.001° Slide 1 Tool turret (direct drive) Number of tools: 12 VDI (DIN 69880) tool mounting diameter: 40 mm Maximum power (100/40% DC): 10.9/14.2 kW Maximum torque (100/40% DC): 26/34 Nm Speed range: 40 – 10,000 rpm Slide 2 Tool turret (direct drive) Number of tools: 12 VDI (DIN 69880) tool mounting diameter: 40 mm Maximum power (100/40% DC): 10.9/14.2 kW Maximum torque (100/40% DC): 26/34 Nm Speed range: 40 – 10,000 rpm Slide 3 Rapid traverse rate X-/Z-axis: 30/45 m/min Tool resolution Z-axis: 0.001° Feed force (40% DC) X-/Z-axis: 16/13 kN EQUIPMENT/ACCESSORIES - Short bar loader magazine IRCO ILS-RBK 100/16 - Various main spindle reduction sleeves - NC-controlled parts pick-off device for both main and counter spindle: * NC-controlled horizontal axis * Swivel unit * Vertical axis * 2-jaw gripper for interchangeable gripper jaws Duedpfswcd S Njx Affsr - Conveyor belt for part removal - Coolant system 8/20 bar with immersion cooler - Chip conveyor - Oil mist extraction - Control cabinet cooling unit (up to 40°) - Counter-spindle slide - Easy-Tool Monitor - 1 collet chuck for quick-change collet head size 100 for main spindle - 1 collet chuck for quick-change collet head size 100, Nova Axle Fix for counter spindle - Approx. 40 various quick-change collet heads size 100 (full inventory) - Pneumatic quick-change unit, ø 100 mm - Approx. 50 various tool holders, stationary and driven (full inventory) - Mounting elements - Documentation
