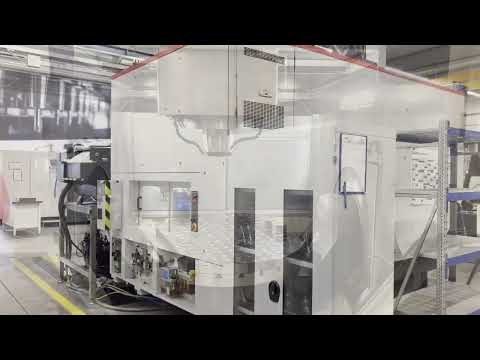

POS Posmill H800 U Universal Milling Machine

POS Posmill H800 U

Condition: ready for operation (used), Year of construction: 2017, operating hours: 11,206 h, functionality: fully functional, machine/vehicle number: 20170708, travel distance X-axis: 670 mm, travel distance Y-axis: 830 mm, travel distance Z-axis: 600 mm, controller model: Heidenhain 530, spindle speed (max.): 18,000 rpm, The machine underwent maintenance in April 2025, during which the rotary union was replaced at a cost of €8,600! TECHNICAL DETAILS Travel X-axis: 670 mm Travel Y-axis: 830 mm Travel Z-axis: 600 mm Swivel range A-/C-axis: approx. -100 to +120° / -120 to +120° C-axis rotation range: 360° Table diameter: 800 mm T-slots (number x width): 9 x 90 mm Maximum table load: 1,200 kg Kessler spindle: 18,000 rpm Maximum tool length: 300 mm Maximum tool diameter: 75 mm Maximum tool diameter (with adjacent stations empty): 125 mm Maximum tool weight: 7 kg Tool change time: 3 s Rapid traverse X/Y/Z: 60 m/min Max. A-axis speed: 50 rpm Max. C-axis speed: 100 rpm Acceleration X/Y/Z: 7 m/s² Repeatability: 0.004 mm Positioning accuracy: 0.008 mm Rotational drive system: Integrated direct drives Tool holder: HSK 63 Tool stations: 96 MACHINE DETAILS Control: Heidenhain 530 Dimensions & Weight Weight: 19,000 kg Layout with accessories (L x W x H): 4,150 x 5,000 x 3,500 mm Tank capacity: max. 330 l Total coolant capacity: max. 425 l Operating Hours Control on-time: 20,248 h Machine on-time: 19,424 h Program run: 11,331 h Spindle hours: 11,206 h EQUIPMENT Spindle chiller Kessler swing, 800 mm turning diameter, fully utilizable with zero-point clamping system Note: The touch probe is not included in the offer. The holders, however, are part of the offer. Iedsy I Tvnspfx Apyotg

Condition: excellent (used), Year of construction: 2010, functionality: fully functional, measuring range X-axis: 400 mm, measuring range Y-axis: 400 mm, measuring range Z-axis: 200 mm, workpiece weight (max.): 25 kg, warranty duration: 12 months, input voltage: 230 V, year of last overhaul: 2025, Equipment: documentation/manual, lighting, type plate available, Multi-sensor coordinate measuring center in top condition with warranty and guarantee extensive services Hexagon Optiv 442 multisensor meter equipped with camera, laser and Renishaw probe system. · Measuring range single sensor: 410x410x200mm · Dimensions: 1232x910x1663mm · Weight: about 940kg · Max. Load weight: glass plate 30kg · Accuracies: U1 = 1.9 + L / 200; U2 = 2.4 + L / 150; U3 = 2.9 + L / 100 (L = measuring length in mm) · Max. Traversing speed per axis: 200mm / s · Incl. Camera with 2-step zoom · Incl. Laser Itjdpfodyc Uasx Apyog · Incl. LED ring light · Incl. Renishaw 6-fold button changer · Incl. Renishaw TP200 touch probe · Incl. New frame grabber (Eagle) · Incl. 2-monitor operation · Incl. Windows 7 Ultimate evaluation station · On request including transport, commissioning and calibration

Condition: ready for operation (used), Year of construction: 2016, A vertical CNC 5-axis machining center POS is available. Travel X/Y/Z: 670mm/820mm/600mm, rotary table diameter: 800mm, max. table load: 1200kg, tool positions: 96, tool holder: HSK-63, speed: 18000rpm, A-axis: -100°/120°, C-axis: 360°, weight: approx. 20000kg, control: Heidenhain, operating hours: 22177h, spindle hours: 9601h. Including infrared probe, IKZ and Blum laser tool measurement. Documentation available. An on-site inspection is possible. Itedpfxeyuyv To Apyjg

Condition: excellent (used), Year of construction: 2021, operating hours: 11,514 h, functionality: fully functional, machine/vehicle number: 20210202, travel distance X-axis: 670 mm, travel distance Y-axis: 820 mm, travel distance Z-axis: 600 mm, controller model: Heidenhain TNC 640, spindle speed (max.): 18,000 rpm, TECHNICAL DETAILS Travel X-axis: 670 mm Travel Y-axis: 820 mm Travel Z-axis: 600 mm Spindle speed (min.): 18,000 rpm Spindle operating hours: 11,514 h Coolant supply: 40 bar MACHINE DETAILS Itjdpfxjymbb Io Apyog Apparent power rating: 90 kVA Control manufacturer: Heidenhain Control model: TNC 640 Total weight: 20,000 kg Input voltage: 400 V Full load current: 125 A Max. current load: 200 A Short-circuit resistance: 25 kA Voltage: 400.50 V/Hz Net weight: 20,000 kg Machine number: 20210202 EQUIPMENT Documentation/Manual Chip conveyor

Condition: used, Year of construction: 2003, CNC Tool Grinding Machine Schneeberger NORMA CFG Year of manufacture: 2003 Center height: 210 mm Table length: 950 mm Table width: 310 mm Travel X-axis: 380 mm Itedpoxz R T Ujfx Apyjg Travel Y-axis: 280 mm Travel Z-axis: 280 mm Grinding wheel diameter: 50–200 mm A-axis grinding head rotation: 360° C-axis tool rotation: 340° C-axis spindle resolution: 0.001° Tool holder: HSK 50 Grinding spindle speed, stepless: 0–9000 rpm Hydraulic unit: 6 bar Connection: 3×400 V / 50 Hz Spindle power: 7.5 kW Total power requirement: 33 kVA Machine weight: approx. 5,500 kg Machine dimensions Length: 1,930 mm Width: 1,590 mm Height: 2,250 mm Control system: GE Fanuc Series 16-M Accessories: various grinding wheel mounts and tool holders Max. operating current: 3×40 A No guarantee is given for the accuracy, completeness, or timeliness of the information.

Condition: excellent (used), functionality: fully functional, Year of construction: 2003, machine/vehicle number: NOH366, ABUS ELV Crane Skyline Crane Runway Bridge Crane Hall Crane Crane There are 3 identical cranes available! Load capacity / Lifting capacity: 5t - 5000KG Span: 14,260mm, external dimension approx. 14,500mm Year of manufacture: 2003, with radio remote control and pendant control as backup Lifting height: 6m Overall height (top of crane to hook): approx. 900mm End carriage length with buffer: approx. 280cm Itedpfxjxtyvpe Apysg Further data to follow Crane is dismantled and immediately available Very good condition, inspection book is available Column-mounted slewing cranes and wall-mounted slewing cranes also available Demag KBK and Abus HB systems, as well as Errikla, Hadef, Stahl KT 2000, etc. Shipping via freight carrier possible, please enquire with postcode Collection preferred

Condition: used, Year of construction: 2007, reus 8000 min-1 U/min Weight 5500 kg Year 2007 Control Siemens 840D Dimensions (L/W/H) 3600 x 2800 x 2400 mm Itsdpfx Aowm Rqaepyjg travel -x axis 1035 mm travel -y axis 560 mm travel -z axis 510 mm

Condition: excellent (used), Year of construction: 2022, functionality: fully functional, machine/vehicle number: SMILE420X-03746, Equipment: type plate available, Zoller smile 420 / pilot 4.0 Pilot 4.0 program HSK-63 tool adaptor See brochure for further details Isdpfev Sz H Djx Apystg Pick-up only

Condition: good (used), Opportunity: 2x Pfeiffer Classic 590 available! Price: EUR 99.500/piece. Configuration Coater 1: 2x Pfeiffer TPH 2301 (2300ls) completely overhauled Pfeiffer DCU 600 2x VAT Throttle Valve 64048-pe48-ads2/0001 1x Pfeiffer PKR251 fullrange sensor Pfeiffer TPR280 for prevacuum Pfeiffer DUO 120 prepump (120m3/h) Vacuumchamber: for substrate size round 840mm incl shielding and spare shielding set 2x viewport Several feedthroughs Rotating feedthrough incl thermocouple Iedpfx Ajhwv Tfspystg Infrared heater Watermanifold plus valves Vacuumvalves for venting-pumpdown etc Notes: Currently used for Resistance Evaporation (no boats available) Current PLC and E-cabinet is removed due to IP. However: if required our company Orange Thin Films can do a complete refurbishment with Labview automation and new processes (such as Eeam-Sputtering-Evaporation etc) Configuration Coater 2: 2x Pfeiffer TPH 2201 s p c (horizontal turbo 2200ls) completely overhauled Pfeiffer DCU 600 2x VAT Throttle Valve 64048-pe48-ads2/0001 1x Pfeiffer PKR251 fullrange sensor Pfeiffer TPR280 for prevacuum Pfeiffer DUO 120 prepump (120m3/h) Vacuumchamber: for substrate size round 840mm incl shielding and spare shielding set 2x viewport Several feedthroughs Rotating feedthrough incl thermocouple Infrared heater Watermanifold plus valves Vacuumvalves for venting-pumpdown etc Notes: Current used for Resistance Evaporation (no boats available) Current PLC and E-cabinet is removed due to IP. However: if required our company Orange Thin Films can do a complete refurbishment with Labview automation and new processes (such as Eeam-Sputtering-Evaporation etc)

Year of construction: 2013, condition: used, cutting diameter 420 mm saw band length 41 x 5600 mm cutting width 1,3 mm Control Simatic S7 Touch band speed 17 - 110 m/min Iedped Izmasfx Apyjtg sawing motor 7,5 kW diameter of round bars 420 x 3000 mm diameter of round bars 300 x 6000 mm total power requirement 30 kW weight of the machine ca. 18,5 t dimensions of the machine ca. 12,5 x 5,0 x 2,5 m CNC sawing machine with band saw JAESPA Compact 4S and round steel magazine and discharge gripper for sawing round bars from 50 - 420 mm and 6 pockets with a max. bar weight per pocket of 3400 kg. Cut-off lengths 20 - 1000 mm. As good as new condition, approx. 1,000 working hours.
