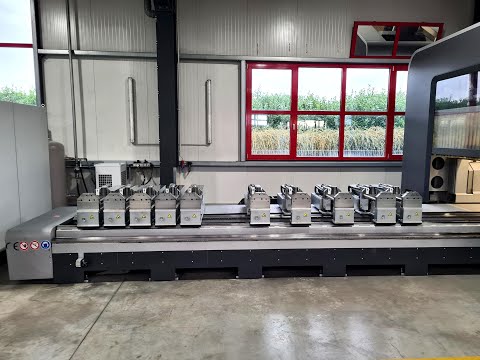

Profile processing machine

Schüco DC 500

Year of construction: 2009, operating hours: 5,387 h, condition: ready for operation (used), functionality: fully functional, overall weight: 12,000 kg, total length: 15,000 mm, rotational speed (max.): 24,000 rpm, working length: 7,500 mm, Functions: Sawing, notching, milling, drilling, thread tapping, lock case machining Fgodpfxox Azt Io Am Eji TECHNICAL DETAILS Number of controlled NC axes: 14 Machining length: 7,500 mm Max. traverse speed X / Y / Z: 60 / 60 / 30 m/min A-axis rotation: ±110°, continuous C-axis rotation: ±220°, continuous Tool holder: HSK-63F Tool dimensions (milling cutter/drill, max. diameter/length): Ø 50 mm / 200 mm Tool dimensions (disc milling cutter, max. diameter): Ø 500 mm Speed range: 1 - 24,000 rpm Milling motor power: 16 kW Number of tool magazine slots: 16 Number of special tool slots: 2 Automatic clamping jaw positioning: Yes Number of clamping jaws: 8 Profile system with quick-change system: Yes Machining features Max. cross-section WxH / length for single bar machining: 400 x 300 mm / 7,500 mm Min. cross-section WxH / length for single bar machining: 30 x 30 mm / 300 mm Movement: Tool Max. number of profiles per machine loading: Up to 8 profiles (depending on individual bar length) Number of fixed profile stops: 2 Automatic clamping jaw relocation during 2 machining steps: Yes Steel processing (up to 5 mm wall thickness): Yes Electronics / Software equipment Machine PC processor: Yes Control panel with display and keyboard: 19" touch TFT color display Machine operation based on Windows®, menu-driven: Yes Custom programming without NC/CNC knowledge: Yes Schüco CAM installable on office PC (machining visualization): Yes MACHINE DETAILS Dimensions: 15 x 4 x 5.5 m Weight: 12 t Operating hours: 20,616 h Spindle hours: 5,387 h

Condition: good (used), The Bystronic glass cutting line for split band dimensions (Maximum 3300 x 2550 mm) Service/spare parts are provided by Hegla, who purchased Bystronic. 1 Bystronic KTR tilting table, Serial No. E9801016-1, o Tilts with built-in hydraulics, roller drive for automatic glass transport to the cutting table • 1 fully automatic float glass cutting table o Type: XYT 972, Serial No. E980016-2 o Can also be used for shaping, waste optimization, and PC Terra o Maximum dimensions 3300 x 2550 mm Fsdpfjt Et Icsx Am Eogi o Glass thicknesses 2-15 mm o With belt conveyor • 1 breaking table with breaker bars and air cushions o Serial No. E980016-4

Year of construction: 2009, operating hours: 5,387 h, condition: ready for operation (used), functionality: fully functional, overall weight: 12,000 kg, total length: 15,000 mm, rotational speed (max.): 24,000 rpm, working length: 7,500 mm, Functions: Sawing, notching, milling, drilling, thread tapping, lock case machining TECHNICAL DETAILS Number of controlled NC axes: 14 Machining length: 7,500 mm Max. traverse speed X / Y / Z: 60 / 60 / 30 m/min A-axis rotation: ±110°, continuous C-axis rotation: ±220°, continuous Tool holder: HSK-63F Tool dimensions (milling cutter/drill, max. diameter/length): Ø 50 mm / 200 mm Tool dimensions (disc milling cutter, max. diameter): Ø 500 mm Speed range: 1 - 24,000 rpm Milling motor power: 16 kW Number of tool magazine slots: 16 Number of special tool slots: 2 Automatic clamping jaw positioning: Yes Number of clamping jaws: 8 Profile system with quick-change system: Yes Machining features Max. cross-section WxH / length for single bar machining: 400 x 300 mm / 7,500 mm Min. cross-section WxH / length for single bar machining: 30 x 30 mm / 300 mm Movement: Tool Max. number of profiles per machine loading: Up to 8 profiles (depending on individual bar length) Number of fixed profile stops: 2 Automatic clamping jaw relocation during 2 machining steps: Yes Steel processing (up to 5 mm wall thickness): Yes Electronics / Software equipment Fgsdox U Thkspfx Am Eji Machine PC processor: Yes Control panel with display and keyboard: 19" touch TFT color display Machine operation based on Windows®, menu-driven: Yes Custom programming without NC/CNC knowledge: Yes Schüco CAM installable on office PC (machining visualization): Yes MACHINE DETAILS Dimensions: 15 x 4 x 5.5 m Weight: 12 t Operating hours: 20,616 h Spindle hours: 5,387 h

Year of construction: 2009, operating hours: 5,387 h, condition: ready for operation (used), functionality: fully functional, overall weight: 12,000 kg, total length: 15,000 mm, rotational speed (max.): 24,000 rpm, working length: 7,500 mm, Functions: Sawing, notching, milling, drilling, thread tapping, lock case machining TECHNICAL DETAILS Number of controlled NC axes: 14 Machining length: 7,500 mm Max. traverse speed X / Y / Z: 60 / 60 / 30 m/min A-axis rotation: ±110°, continuous C-axis rotation: ±220°, continuous Tool holder: HSK-63F Tool dimensions (milling cutter/drill, max. diameter/length): Ø 50 mm / 200 mm Tool dimensions (disc milling cutter, max. diameter): Ø 500 mm Speed range: 1 - 24,000 rpm Milling motor power: 16 kW Number of tool magazine slots: 16 Number of special tool slots: 2 Automatic clamping jaw positioning: Yes Number of clamping jaws: 8 Profile system with quick-change system: Yes Machining features Fgjdpfx Amsyhf R Ne Esi Max. cross-section WxH / length for single bar machining: 400 x 300 mm / 7,500 mm Min. cross-section WxH / length for single bar machining: 30 x 30 mm / 300 mm Movement: Tool Max. number of profiles per machine loading: Up to 8 profiles (depending on individual bar length) Number of fixed profile stops: 2 Automatic clamping jaw relocation during 2 machining steps: Yes Steel processing (up to 5 mm wall thickness): Yes Electronics / Software equipment Machine PC processor: Yes Control panel with display and keyboard: 19" touch TFT color display Machine operation based on Windows®, menu-driven: Yes Custom programming without NC/CNC knowledge: Yes Schüco CAM installable on office PC (machining visualization): Yes MACHINE DETAILS Dimensions: 15 x 4 x 5.5 m Weight: 12 t Operating hours: 20,616 h Spindle hours: 5,387 h

Year of construction: 2008, condition: ready for operation (used), A vertical washing and drying system for flat glass is offered: 3 cleaning zones, 6 roller brushes, drying zone (warm air), warm water treatment (heating tank), quartz sand filter, recirculation system, suitable for: float glass, laminated glass, load capacity: 150kg/m², glass thickness: up to 15mm, working height: approx. 2000mm. Inspection possible by arrangement. Fedpfx Aox Hff Ssm Eegi

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, - loading table for jumbo sizes 6000 x 3210 mm with integrated transport belts Fodpfx Amoyh T Rus Eogi - laminated glass cutting module with cutting length : 4600 mm 4 unloading arms new heating element from december 2025 min. glass thikness : 3 + 3 mm + PVB max.glass thikness: 8 + 8 mm + PVB Knife separation : After automatic cutting and separation the PVB is cut by a blade giving a clean edge without any residue PC control system windows PC " View Plus " including flat screen monitor with cutting pattern display and optimisation import Lay out attached in photos

Condition: used, Year of construction: 2008, Panel dividing saw Manufacturer: Holzma Type: HPP 350/43/38 Year of manufacture: 2008 Technical data - Control system: CADmatic 4 - Optimization program: CAD-Plan 4 - Saw blade overhang: 80 mm - Saw carriage feed rate forward/backward: 1-150 m/min / 150 m/min - Feed rate of the program cut forward/backward: 90 m/min / 90 m/min - Main saw motor: 13.5 kW - Scoring saw motor: 2.2 kW - Working height: 920 mm - Main saw blade: 350 x 4.4 x 60 mm - Scoring saw blade: 180 x 4.4 - 5.4 x 45 mm - Cutting length: 4300 mm - Cutting width: 3700 mm - Label printer Pica 108 - Processing package for gypsum fiberboards - Annual maintenance and inspection by Homag - New PC in 2021 (Win10) and updated machine control software and CadLink Note: Fjdpfx Amjzuy N Ej Eegi The technical data and descriptions are copies of the original order confirmation. The information is provided for informational purposes only and is not binding.

Condition: good (used), Year of construction: 2009, In different assemblies, several parts. Fedpfsgblhvjx Am Ejgi Interface Module Panel Manufacturer. SIEMENS S7 Typ: X1 Profibus-DP ET200S Panel consist of the following pieces: 1 - X1 Profibus-DP ET200S 1 - IM 151-1Standard 6ES7-151-1AA04-0AB0 1 - PM-E 6ES7 138-4CA01-0AA0 4 - 4DI 6ES7 131-4BD01-0AA0 3 - 4DO 6ES7 132-4BD01-0AA0 1 - 1SI 6ES7 138-4DF01-0AB0

Condition: used, Year of construction: 2011, functionality: fully functional, total height: 8,550 mm, total width: 3,380 mm, total length: 3,074 mm, load capacity per storage section: 460 kg, input voltage: 400 V, 14 pieces Kardex Shuttles XP 500 of 8550mm Heights on stock Automated warehouse optimization storage system KARDEX Shuttle XP500 System Type : SHUTTLE-XP-500-3050x864 Control : C3000, with OP3000 OPGraphic color display Serial No. : 11002214 Year of construction: 2011 Total Load: 2 x 33,500 kg Load per tray: MediumX: 460 kg (proportionally distributed) Tray dimensions: 3050 x 864 mm Number of trays: 32 pieces (more trays on request) Dimensions Shuttle W x D x H: 3380 x 3074 x 8550 mm (height Kardex is adjustable to available height) Power: 3/N/PE400 V, 11 A, 50/60 HZ, 4.9 kVA This offer is valid provided system is unsold Technical details each Shuttle: - Maximum total capacity of the KARDEX Shuttle XP: 2 x 33,500 kg - Maximum tray capacity: 32 trays MediumX: 460 kg each, evenly distributed, more trays can be ordered. - Tray dimensions: 3050 x 864 mm - Machine dimensions: Wide x Depth x Height: 3380 x 3074 x 8550 mm - Footprint of the system appx: 10.39 m2 - Capacity with 32 trays: appx. 84 m2, every tray is appx. 2.64 m2 - Electronic volume measuring system in 25 mm screen (grid) - An access opening with sliding doors to protect people and stored goods - Control C3000, with OP3000 OPGraphic color display - LED anti-dazzle lighting above access point - Use of toothed belt for minimum noise - Use of toothed-belt for fastest order picking - Distances can be realized in steps of 25mm by arranging the support profile. a prerequisite for high compression storage Price: On request only by e-mail Price: excl. VAT, including transport, assembly and warranty Fodpewnamyofx Am Eegi Delivery time: from stock Machinehandel De Leeuw BV is one of the few companies in Europe that trades and has in stock mainly used Kardex Remstar VLM automatic Lift & rotating warehouse systems. See our website for the current stock. We assemble and/or disassemble these systems in a safe manner with VCA certified technicians and we have been doing this for more than 30 years. We also disassemble other brands such as: Hänel, Electrolux, Bertello, Megamat, Lista, Denocard Machinehandel De Leeuw BV Oordeelsestraat 7 – b 5111 PA Baarle-Nassau The Netherlands

Year of construction: 2001, condition: used, • Heating plate size (mm): approx. 1500 x 2700 • Usable area max. (mm): 1250 x 2450 Fsdpfjkt N Huox Am Esgi • Loading side (mm): 1500
