Turning automatic lathe

STAR Micronics SR 32 J Type N

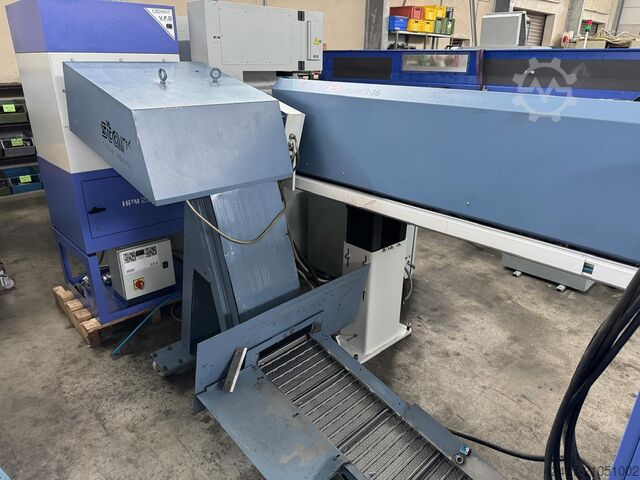

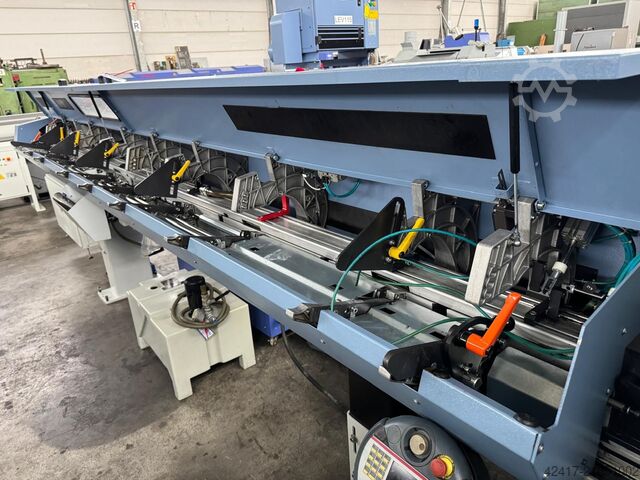

Condition: good (used), Year of construction: 2011, CNC Swiss-type automatic lathe Make: STAR Model: SR-32 J Type N Year of manufacture: 2011 Equipped with: FANUC 32i Model B control Synchronous spindle Live tooling C-axis Subsequent machining (backworking) High-pressure pump Chip conveyor Isdpfeycqx Isx Abrjhu Parts conveyor Oil mist extraction unit Bar feeder: FMB TURBO 3-36

Condition: excellent (used), pressure 0,5 - 20 t max. workpiece diameter 5 - 75 mm threading length 2000 mm pitch in mm 8 mm diameter of roll spindle taper 69,85 tool diameter 200 mm roll spindle turning speed range 20 - 90 U/min stroke 0 - 20 mm total power requirement 7,5 kW weight of the machine ca. 3,1 t Ijdovpaa Ropfx Abrshu dimensions of the machine ca. 1,9 x 1,1 x 1,2 m

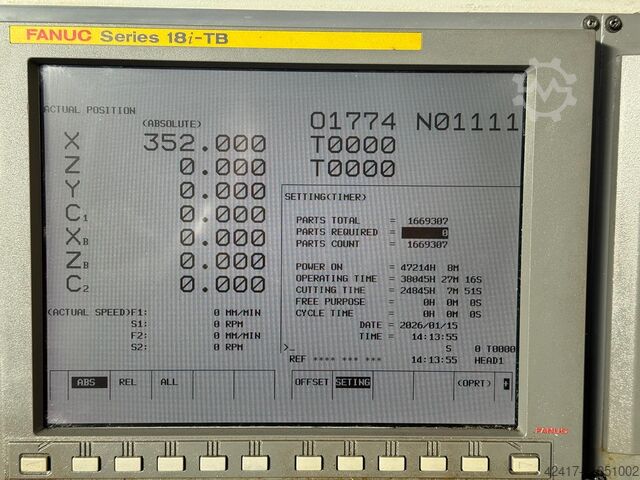

Condition: used, TECHNICAL DETAILS - Number of axes : 7 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 32 [mm] - Travel : 310 [mm] - Spindle speeds : 7.000 [rpm] - Spindle power : 7,5 [kW] - C axis indexing precision : 0,001 [°] COUNTER-SPINDLE - Max. bar diameter : 32 [mm] - Spindle speeds : 7.000 [rpm] - Spindle power : 3,7 [kW] - C axis indexing precision : 0,001 [°] GUIDE BUSH HOLDER 1 - Number of positions : 11 - Number of motorized positions : 5 - Live tools speed : 5.000 [rpm] - Live tools power : 1,2 [kW] END ATTACHMENT - Number of positions : 4 SECONDARY OPERATION - Number of positions : 4 - Number of motorized positions : 4 POWER SUPPLY - Supply voltage : 200 [V] - Total installed power : 6,2 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 2.711 x 1.275 [mm] - Machine height : 1.705 [mm] - Machine weight : 3.100 [kg] MACHINE HOURS - Number of working hours : 35.367 [h] EQUIPMENT - CNC : Fanuc 18i-TB - 3 colors status lamp - Coolant tank * with high-pressure pump - Bar loader : FMB Turbo 3-36/3200/A (2008)) - Ejection of workpiece - Parts catcher - Parts conveying strip - Chips conveyor - Fire extinguisher * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer. Iodpfx Abeuhazasrshu

Condition: good (used), Year of construction: 2005, CITIZEN K12 CNC lathe TECHNICAL DATA Max. machining diameter: 12 mm Max. machining length: 200 mm Max. extension length: 80 mm Max. front drilling diameter: 10 mm Max. front thread diameter: M8 Spindle diameter: 16 mm Spindle speed: 15000 rpm Max. machining diameter of the counter spindle: 12 mm Max. machining length of the counter spindle: 40 mm Max. drilling diameter for rear machining: 6 mm Max. thread diameter for rear machining: M5 Spindle speed, counter spindle: 10000 rpm Tool attachment, number of tools: 8 Speed of the driven tools: 6000 rpm X1 axis: 122 mm Z1 axis: 200 mm Iodpfx Abjvrz H Rjrshu Z2 axis: 150 mm Weight: 1950 kg SCOPE OF OFFER Among other things: (list not exhaustive) Citizen K12 CNC lathe Chip tray Transformer Complete operating documentation Exact scope of offer according to photo gallery We assume no liability for the accuracy, completeness and timeliness of the information

Condition: used, Year of construction: 1998, machine/vehicle number: 98BE510071, turning length: 90 mm, spindle speed (min.): 4,000 rpm, spindle motor power: 11 W, overall weight: 6,300 kg, bar passage: 51 mm, 12 position upper turret (6 are driven) -10 position lower turret (5 are driven) - sub spindle - 2 x C axis - equipped with Lns Sprint S2 bar loader with front magazine, fixed and driven tool holders, manuals - Fanuc 18T Control Iodpfewidp Iex Abrjhu

Condition: like new (used), Year of construction: 2007, Citizen M32V - Baujahr : 2007 Anbei mal paar Maschinendaten der M32-M332V - Durchlass für Stangen: 32mm - 10 Werkzeugplätze auf Revolver mit Y-Achse für Stirn- und Rückseitenbearbeitung - ⁠5 Kammwerkzeugplätze - ⁠3 Werkzeugplätze auf Bohrblock f.Rückseitenbearb. - ⁠4 angetriebene Werkzeuge für Quer - C-Achse Hauptspindel - Fräsinterpolation - schneidenradiuskompensation - ⁠synchron gewindebohren - ⁠ER16 Aufnahmen Juni 2023 – Motor Gegenspindel getauscht Juli 2023 – Tacho Gegenspindel getauscht November 2023 – Kabel Ti-Achse getauscht November 2023 – Motor Ti-Achse getauscht Ihjdpexfr Tdsfx Abrou Juni 2024 – Festplatte getauscht Juli 2024 – komplette NC

Condition: good (used), Year of construction: 2007, functionality: fully functional, turning length: 320 mm, spindle speed (min.): 8,000 rpm, bar passage: 32 mm, Machining Data Maximum bar capacity: 32 mm Maximum turning length: 320 mm Maximum drill diameter (front): 12 mm Maximum tapping size (front): M12 Main spindle speed: up to 8,000 rpm Sub spindle speed: up to 8,000 rpm Number of tools: 25 to 27 Dimensions & Weight Dimensions (W x D x H): 2,860 mm x 1,465 mm x 1,900 mm Weight: 4,300 kg Isdpfxexb R R He Abrjhu 10-position turret Rotating tools for complex machining operations FMB Turbo 3-36

Condition: used, Thread Rolling Machine, Cold Rolling Machine, Thread Rolling Machine, Profile Rolling Machine Manufacturer: PEE-WEE Model: UPW 24 Serial No.: P07 Year of manufacture: 2007 Maximum rolling force: 24 tons Maximum tool diameter: 270 mm Roll spindle diameter: 69.85 mm Tool bore diameter: 70 mm (nominal diameter) Maximum tool/reception length: 180 mm Maximum workpiece diameter: 50 mm Hydraulic motor power: 3 kW Roll drive motor power: approx. 5.5 kW Electrical connection: 400 Volt, 50 Hz, 10 kW - Pivotable roll spindle for through-feed thread rolling - Roll spindle speed adjustable in 4 steps via gearbox shift - Hydraulic unit integrated in the machine base - Operating manual with electrical schematic Space requirements (L x W x H): 2,000 x 1,450 x 1,900 mm Weight: approx. 3 tons Very good condition Plunge Rolling: The thread rolling tools, having the same pitch as the workpiece, form the thread by penetrating the workpiece up to the nominal diameter. The maximum thread length is limited to the width of the rolling dies. Through-feed Rolling: Used when the thread length is greater than the width of the rolling dies. Through-feed tools are divided into three sections – entry, calibration, and exit. Knurling rolls have no pitch and are swiveled at the lead angle corresponding to that of the profile to be rolled. Iedpfxouz If Ns Abrjhu Lead angle rolls differ from knurling rolls by having a pitch in the profile. The sum of the lead angle and swivel angle results in the effective lead angle in the workpiece.

Condition: like new (used), Year of construction: 2004, functionality: fully functional, Citizen M32V - Baujahr : 2004 Anbei mal paar Maschinendaten der M32-M332V - Durchlass für Stangen: 32mm - 10 Werkzeugplätze auf Revolver mit Y-Achse für Stirn- und Rückseitenbearbeitung Ijdpfx Aexfr T Rebrehu - ⁠5 Kammwerkzeugplätze - ⁠3 Werkzeugplätze auf Bohrblock f.Rückseitenbearb. - ⁠4 angetriebene Werkzeuge für Quer - C-Achse Hauptspindel - Fräsinterpolation - schneidenradiuskompensation - ⁠synchron gewindebohren - ⁠ER16 Aufnahmen Februar 2022 – Kugelrollspindel X2 Achse getauscht und Lager gewechselt August 2022 – Regler X2 Achse getauscht September 2023 – Messsystem / Regler Ti-Achse getauscht März 2025 – Messsystem Ti-Achse getauscht

Condition: excellent (used), Year of construction: 1991, Multi-spindle & bar turning machines TRAUB TD 26 1991 * Spindle power 2.2 kW * Number of spindles 4 * Spindle bore 26 mm * Speeds 1.18 > 4750 mm Ihsdpfxewc Aqwo Abreu * Total power 3.2 kW * Length L - R 1800 mm * Width V - H 1000 mm * Height 1400 mm * Weight 800 kg * Tool changer 6 tools Additional information * Max. round: 26 mm, max. square: 18 mm, max. hexagon: 22 mm * * Bar loader available
