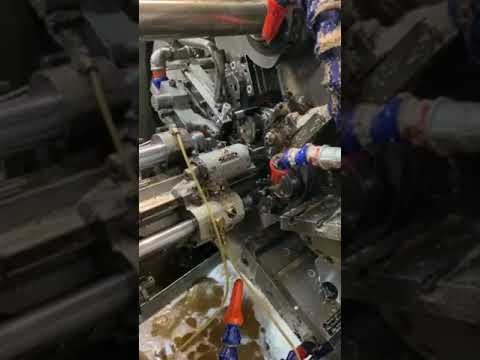

CNC Turning automatic lathe

TORNOS AS14

Condition: good (used), TECHNICAL DATA AXLE Rapid feed X,Y: 15000 mm/min Rapid feed A,B: 15000 mm/min Rapid feed Z1,Z2,E: 18000 mm/min Rapid feed C: 90000°/min Smallest input unit: 0.001 mm Smallest input unit, C-axis: 0.001° MACHINING PERFORMANCE Max. turning diameter: 20 mm Max. Headstock stroke: 205 mm Max. Drilling capacity: Stationary: 14 mm; Driven: 8 mm Max. Tapping capacity: Stationary: M10 x P1.5; Driven: M6 X P1.0 MAIN SPINDLE Pgodpeu Uic Tjfx Abzen Spindle speed: 500 - 10000 rpm Drive: Spindle drive Main spindle motor: 3.7 / 5.5 kW Main spindle bore: 26 mm WHEELING SPINDLE Max. Clamping diameter: 20 mm Max. Part length for ejection to the front: 150 mm Max. Clamping length: 75 mm Spindle speed: 500 - 10000 rpm Pick-up spindle motor: 2.2 / 3.7 kW Indexing angle: 1°, 15° CONFIGURATION Operation mode: Right-handed Dimensions: 2700 x 1400 x 2400 mm Weight: 3400 kg SCOPE OF OFFER U.A: (list not exhaustive) Control system: Fanuc Fire extinguishing system: Siemens Oil mist separator: Donaldson Transformer Hydraulic unit Parts conveyor Chip conveyor Bar feeder: LNS Tool holder Exact scope of supply according to photo gallery We assume no liability for the correctness, completeness and up-to-dateness of the information.

Condition: used, TECHNICAL DETAILS - Number of axes : 9 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 16 [mm] - Travel : 205 [mm] - Spindle speeds : 10.000 [rpm] - C axis indexing precision : 0,001 [°] COUNTER-SPINDLE - Max. bar diameter : 16 [mm] - Spindle speeds : 10.000 [rpm] - C axis indexing precision : 1 [°] GUIDE BUSH HOLDER 1 - Number of positions : 10 - Number of motorized positions : 4 Podsuwd Ryspfx Abzjgn - Live tools speed : 8.000 [rpm] SECONDARY OPERATION - Number of positions : 5 - Number of motorized positions : 3 POWER SUPPLY - Supply voltage : 400 [V] WEIGHT & DIMENSIONS - Machine floor space : 2.269 x 1.160 [mm] - Machine height : 1.693 [mm] - Machine weight : 1.800 [kg] EQUIPMENT - CNC : Mitsubishi MELDAS - Rotating guide bush - Parts catcher - Ejection of workpiece - Coolant tank - Bar loader : LNS Hydrobar Express 332 - Fire extinguisher * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.

Condition: ready for operation (used), Year of construction: 2015, A CNC vertical long-bed machining center Mazak is available. Travel X/Y/Z: 3000mm/800mm/720mm, B-axis: 110°, C-axis: 360°, table diameter: 600mm, long-bed table dimensions X/Y: 3500mm/820mm, max. table load: 2500kg, spindle interface: BT40, speed: 18000rpm, rapid traverse: 50m/min, tool stations: 48, coolant pressure: 70bar. Machine dimensions X/Y/Z: approx. 5250mm/3650mm/3200mm, weight: approx. 16100kg, control: Mazatrol Matrix 2, spindle hours: 18502h. Including rotary table Nikken CNC 601MA, high-pressure coolant, center partition wall, Renishaw probe, touch probe RMP 60Q, CAD/CAM software Topsolid 7.18 and postprocessor. Documentation available. An on-site inspection is possible. Pgodpfox Ih Dmox Abzon

Year of construction: 1993, condition: good (used), machine/vehicle number: 03.2370, Arthur Klink - internal broaching machine (WAG 748) machine type: internal vertical hydraulic broaching machine manufacturer: Arthur Klink type: RISZ 10 x 1000 built in: 1993 stroke: 1000mm pulling force: 10.000KG working stations: 3 PCs drive: hydraulic system equipment: coolant system, magnetic chip conveyer remark: machine under power in stock the machine has an automatic workpiece loading system for 2 workpieces, ideal useable for high production Pedecc D Ddepfx Abzjgn Optional accessories available on request: tools, workpiece holder Information about us: we are specialized for second hand broaching machine and still have anytime about 80 pcs of used broaching machines in our stock, vertical and horizontal machines from 3000kg up 63.000kg pulling force and from 1000mm stroke up to 3500mm stroke.

Condition: new, Year of construction: 2025, spindle speed (max.): 8,000 rpm, spindle speed (min.): 8,000 rpm, 1 multispindle TORNOS SAS16-DC in rebuilding - new electrical cabinet SIEMENS or FANUC, to choose – pick-up with brake – adjustable stop with counter operation Pgodpfeugl S Ijx Abzsn – 3 independent feeding system – several tool-holders and drillings – drum bar with support – Options :automatic bar loader IEMCA PRA, numerical tapping, CNC cross slides, etc... Contact us.

Condition: good (used), Year of construction: 2014, Technical data shown on photos. Pgsdpfjufp Svsx Abzen Parts shown by hand not come.

Condition: ready for operation (used), Year of construction: 1989, An aluminum die casting system is available. Clamping force: 2200kN, opening force: 71kN, max. opening stroke: 430mm, mold closure: double toggle lever, pressure chamber: cold chamber, position: horizontal. Filling piston diameter min./max.: 40mm/70mm, pressure chamber filling volume min./max.: 293cm³/898cm³, casting pressure: 1990bar, blast area min./max.: 110cm²/338cm², output: 780 cycles/h. Clamping plate dimensions X/Y: 755mm/755mm, column spacing: 500mm/500mm, mold height min./max.: 250mm/600mm, min. mold dimensions X/Y: 296mm/296mm. Including crucible furnace, blow-out device, automatic dosing unit and 4x control cabinets. Documentation available. Pgodpfx Aoucfwpobzen

Condition: used, Year of construction: 2016, turning diameter 366 mm turning length 700 mm control Celos Mitsubishi M730U turning diameter over bed 920 mm turning diameter over cross slideways 742 mm max. turning speeds 4.000 min/-1 drive capacity - main spindle 18,5/18,5/15 kW max. rod diameter 80 mm number of tool places 12 Pos. tool taper BMT 80 x-axis 260 mm z-axis 795 mm y-axis +/- 50 mm mm tailstock taper MT5 Number of working hours ca. 20.564 h auto power on hours ca. 28.664 h weight of the machine ca. 4,7 t The machine has been overhauled with the following components: - Ball screws in the X, Y, and Z axes - New main spindle - Complete maintenance package - Recalibrated and recalibrated This puts the machine in like-new technical condition. There are 2 machines available. Price per unit. Technical Features: - 12-position BMT 80 tool turret, max. speed 10,000 rpm, 5.5/5.5/3.7 kW - Y-axis - Overhang for driven tools 100 mm - Scraper-belt chip conveyor - Coolant system with increased pressure of 5 bar Accessories: Podpjyvvt Ssfx Abzogn - Coolant shower on the main spindle chuck - Compressed air blow-off system for tool cutting edges - Line filter for coolant system - Compressed air blow-off system for tailstock center - Mechanical I/F for 150 mm oil mist separator - 4-color signal light - EtherNET I/P interface for automation Accessories, tools, and clamping devices shown are only included in the scope of delivery if noted in the additional information. Subject to changes and errors in the technical data and information, as well as subject to prior sale!

Condition: used, Year of construction: 1999, x-travel 4000 mm y-travel 1000 mm z-travel 1500 mm Control Heidenhain 355 Podjxzuz Nopfx Abzjgn weight max. 10 t ja more pictures available

Year of construction: 2016, operating hours: 10,900 h, condition: excellent (used), functionality: fully functional, The machine is in very good condition and fully operational. We don't need it anymore so it is for sale. It is regularly maintained. Dismantling and load on truck are included in price. Some other informations: 4-axis profile machining centre Designed for flexible and efficient machining of aluminium Pgodpfxowwtylo Abzon Autonomous clamp positioning Max. working lenght: 7.600 mm 8 pneumatic clamps Tool magazine with 8 tools capacity Spindle working hours 5100h Additional tehnical specifications available on request
