Sizing saw with large suction hood

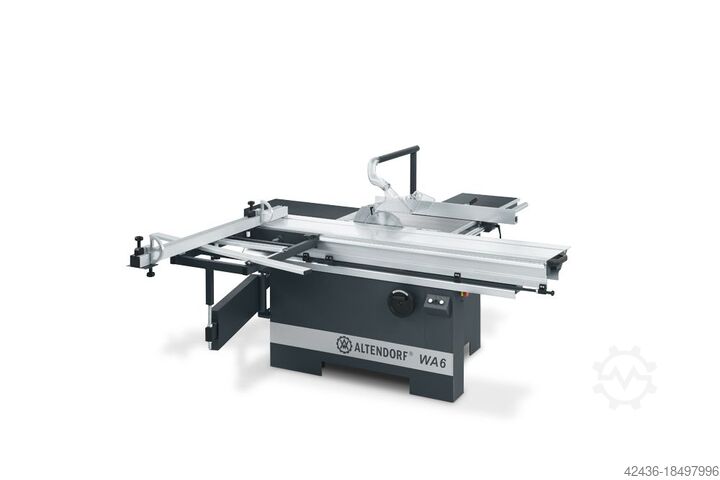

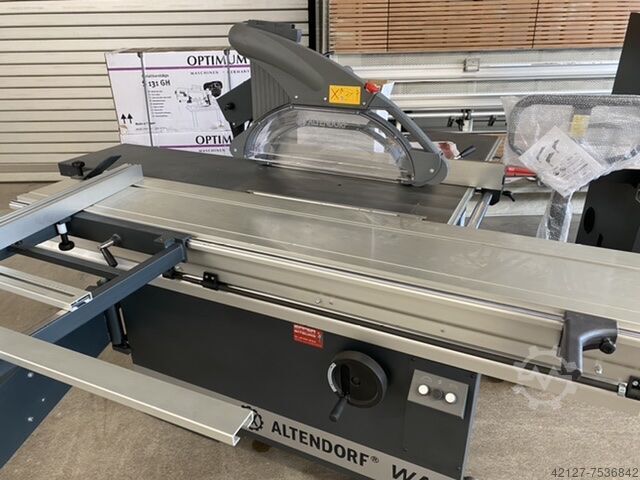

Altendorf WA 6

Condition: new, ALTENDORF WA 6 sliding table saw - Exhibition machine - manual height adjustment, double roller carriage, scoring unit, pivoting, outrigger table, angle mitre fence, automatic brake, can be lowered below table height ----- Technical data ----- Swivel range: 0 - 45 °, Cutting length: 2,500 mm, Cutting width at rip fence: 1,000 mm, max. cutting height: 100 mm, max. saw blade Ø: 315 mm, Swivel range mitre fence: up to 49 °, speeds: 4,200 rpm Motor power main motor: 5.5 hp / 4.0 kW, Scoring motor power: 0.5 hp / 0.37 kW, Work table height: 910 mm, Extraction nozzle Ø: 1 x 100 / 50 mm each, Weight: 450 kg Bdedpeu R Sx Eefx Ap Ijd - new exhibition machine -

Condition: excellent (used), functionality: fully functional, Surface planer HA 4 Bdodpjinkfnefx Ap Isd Planing width 450 mm Total table length 2500 mm Feed table 1500 mm Machine height 820 mm Max. chip thickness 15 mm Knife shaft rotation 4800 rpm Motor power 4 hp Weight 660 kg 3-knife shaft Transport available for an extra charge! Due to the age of the used machine, the warranty is excluded when selling to commercial customers.

Condition: used, Cutting height: Max. 100 mm (at 315 mm saw blade diameter) Saw blade swing: 0 to 45° (manual) Motor power: 4 kW (approx. 5.5 hp) Trimming table (sled): 1600 mm standard Bedjzflv Sjpfx Ap Iodd Cutting width: default 1000 mm on the parallel stop

Condition: new, -New-CE version- The WA 6 is the smallest Altendorf sliding table saw,that exist.- Despite its smaller dimensions, it impressesgreat achievements.- She trumps herself with her strong equipmentbig in the smallest space.- The cutting quality and flexibility are outstandingin daily hnical specifications:Double trolley length 2000 mmMotor 4 kW, speed 4200 ring unit 0.37 kWCutting height max. 100 mm, at 45° max. 72 mmmanual height and swivel adjustment 0-45°Cutting width 1000 mm, manually adjustableCut to length on the miter stopup to 2600mmSuction connection top/bottom 50/100 mmWorking height 910 mmWeight from 450 kg Bodpfsvyurpjx Ap Iedd

Condition: new, Year of construction: 2025, CASADEI PFS 520 - Planer-thicknesser machine with 520 mm planing width and motorized thickness table adjustment Stable steel cast iron construction Large, ribbed planer tables made of cast iron, annealed to prevent warping Smooth operation due to high self-weight Four feed speeds Motorized thickness table adjustment with two speeds and digital display Segmented pressure shoes in the infeed 4-knife cutterhead, precision-mounted Helically toothed steel feed roller for particularly even and gentle wood feed Take-off roller with rubber coating Large planer fence, adjustable 90°-45°, readable from the front Standard with auxiliary fence Powerful S6 industrial motor (P2) Bdjdpfx Aobxz S Hjp Iod Tersa cutterhead Knife changes in seconds When the machine starts, the knives are automatically tensioned by centrifugal force - self-clamping The knife overhang adjusts automatically without adjustment or screwing The planer table is adjusted by a stable and precisely guided parallelogram system, ensuring that the distance between the table tips and the cutterhead remains the same in every adjustment position. The stable aluminum planer fence is anodized as standard, easily adjustable, and offers a generous support surface. The adjustable inclination from 90° to 45° is easily readable from the workstation. Standard with an auxiliary fence for safe planing, even of narrow workpieces. Fig. with optional equipment The connection point for the dust extraction is always in the same position, both for planing and thicknessing. This eliminates the need for additional dust extraction hoses or cumbersome repositioning and routing around the machine. Technical data Total length of planer tables 2300 mm Infeed table length 1180 mm Planing width 520 mm Dimensions of planer fence 1200 x 190 mm Swivel range of planer fence 90 - 45° Min./Max. planing height 3/250 mm Cutterhead diameter / number of knives 100 mm / 4 pcs. Feed speed 5/8/12/18 m/min. Speed 5000 rpm Motor power 400 V / 50 Hz / S6 Dust extraction port diameter 120 mm Weight 1020 kg Top machine Location: Bitburg - available immediately

Condition: new, -New-CE version- The WA 6 is the smallest Altendorf sliding table saw,that exist.- Despite its smaller dimensions, it impressesgreat achievements.- With her strong equipment she trumps herselfthe smallest space.- The cut quality and flexibility are excellentin daily hnical specifications:Sliding table length 2600 mmMotor 4 kW, speed 4200 ring unit 0.37 kWCutting height max. 100 mm, at 45 ° max. 72 mmmanual height and swivel adjustment 0-45 °Cutting width 1000 mm, manually adjustableCutting to length at the crosscut-miter fenceup to 2600 mmExtraction connection top / bottom 50/100 mmWeight 550 kgWorking height 910 mm Bdodpfx Ajvyd Dnjp Ied

Condition: excellent (used), C.N.C. WORKING CENTER 3 axes (X-Y-Z) Vertical position of the panel (workpiece) Movable panel (workpiece), movable working head Numerical Control POWERCONTROL + POWERTOUCH Bodpsyywcvefx Ap Ijdd Software woodWOP Safety cabin (enclosure) of the working head No. 1 Workpieces fixing clamps (for the panels introduction in the working area Panels feeding by motorized chain/track Minimum workpieces dimensions (X - Y - Z) mm 200 x 70 x 8 Maximum workpieces dimensions (X - Y - Z) mm 3050 x 850 x 56 Total installed power (Kw) 11,5 (ca.) WORKING GROUPS: No. 1 Drilling head (power Kw 2.3) with vertical spindles - No. 13 Independent vertical boring spindles (V13 High Speed) - No. 6 Independent horizontal boring spindles (4 in X + 2 in Y) No. 1 Circular Grooving Saw (on X axis) dia. (mm) 100 No. 1 Vertical electro-spindle (HKS63) power Kw 5 Automatic Tools Changing System - Tools storage plate (No. 4 folds-positions)

Condition: excellent (used), SCM T150 Spindle Moulder Spindle diameter: 35 mm Total spindle length: 180 mm Electric spindle lift Electric fence movement Bdedpew Ral Hofx Ap Iod Electrically adjustable tilt angle -10/45° Variable spindle speed: 3000-4500-6000–7000-10000 rpm Motor power: 5.5 kW DTR technical documentation

Condition: new, Technical data: Max saw blade diameter: 300 mm Bdodpshqxx Defx Ap Ied Min saw blade diameter: 290 mm Saw spindle diameter: 30 mm Scoring saw diameter: 90 mm Scoring spindle diameter: 22 mm Manual saw height adjustment Saw blade tilting at an angle of 0 ° to 45 ° Manual adjustment of the saw inclination angle Trolley length: 2200 mm Trolley lock Table extensions Extraction port with a diameter of 120 mm Ruler with 2 stops Eccentric pressure Cover Safety switch Engine power: 4 kW Power supply: 400V Producer: SEGA NEW machine Overall dimensions: Length: 2200 mm Width: 2900 mm Height: 1150 mm

Condition: used, mileage: 186,967 km, power: 62 kW (84.30 HP), first registration: 07/2009, fuel type: diesel, empty load weight: 1,800 kg, maximum load weight: 1,000 kg, overall weight: 2,800 kg, axle configuration: 4x2, fuel: diesel, CO₂ emissions: 227 g/km, fuel consumption (urban): 10.2 l/100km, fuel consumption (extra-urban): 7.6 l/100km, fuel consumption (combined): 8.6 l/100km, color: yellow, driver cabin: other, gearing type: mechanical, emission class: euro4, suspension: other, number of seats: 3, total length: 4,890 mm, loading space length: 2,500 mm, loading space width: 1,600 mm, loading space height: 1,300 mm, Year of construction: 2009, construction height: 1,990 mm, Equipment: ABS, central locking, electronic stability program (ESP), immobilizer system, onboard computer, traction control, The 2009 Volkswagen T5 Transporter 1.9 TDI is a versatile van with 186,967 km on the clock. It is powered by a 1.9-litre diesel engine with 62 kW (84 hp) and complies with the Euro 4 emissions standard. The car is equipped with a 5-speed manual gearbox and has truck approval and two sliding doors for improved accessibility. The T5 has a combined fuel consumption of 8.6 l/100 km and emits 227 g/km CO2. The vehicle is painted broom yellow and has a green environmental sticker (level 4). With its robust construction, the van is ideal for commercial purposes, especially for buyers from agriculture, freelancers or as an export vehicle. The dimensions of the vehicle are 1,990 mm high, 1,904 mm wide and 4,890 mm long, with a permissible total weight of 2,800 kg. A wooden panel in the cargo area offers additional functionality. Viewings are possible from Monday to Friday and Saturday mornings. Bdsdpjtfa Hwjfx Ap Iod Sale only to commercial customers (agriculture, freelancers, small and large businesses) or export. Errors and prior sale reserved.
