Column drilling machine

ALZMETALL AB 3 ESV

Condition: excellent (used), Year of construction: 1987, ALZMETALL AB 3 ESV, built in 1987 Drilling capacity in steel (diameter) 40.0 mm Drilling capacity in cast iron 35.0 mm Tapping capacity in steel M22 Throat 285 mm Spindle stroke 160 mm Speed 65 - 1750 rpm Nlolhcov T Nfdjdwyoa Table size 500 x 370 mm Column diameter 130 mm Feed rate 0.1-0.2-0.3 m/min Spindle mount MT 3 Motor power 1.0 / 1.6 kW Weight 400 kg Machine comes from a vocational school Very good / well-maintained condition (!!) Equipment: - Thread cutting device - Robust motorized column drill with VARIO drive (V-belt) - Electro-automatic spindle feed - Pole-changing motor - Continuous speed adjustment (VARIO drive) - Adjustable drilling depth stop - Machine table with 2x T-slots 2 x 14 x 224 - Height adjustable via hand crank - Connection cable + connector - Original operating instructions with original circuit diagram - Mandatory and prohibition signs affixed according to the new Machinery Directive. - Upon request, a work spindle guard integrated into the emergency stop chain can also be installed. The machine can be inspected and tested on-site by appointment. Technical details and errors excepted.

Condition: used, Year of construction: 1975, bore capacity in steel (diameter) 35.0 mm bore capacity in cast iron 40.0 mm throat 300 mm bore stroke 180 mm turning speeds 65 - 1750 U/min table-size 425 x 500 mm column diameter 155 mm feed 0.1-0.2-0.3 m/min spindle taper MT 4 MK Nlolov Dxwqjhcdwyja engine output 0.9 / 1.5 kW weight 450 kg range L-W-H 800 x 650 x 1850 mm Machine from a vocational school good / well-maintained condition (!!) Equipment: - robust motor-driven pillar drill with VARIO drive (V-belt) - electro-automatic spindle feed - pole-changing motor - stepless speed adjustment (VARIO drive) - adjustable drilling depth stop - machine table with 2x T-slots * height adjustable via hand crank - 1x used machine vice - machined base plate - coolant device - connection cable + connection plug - original operating instructions

Condition: used, Technical Specifications: Tool Holder: MT 3 Drilling Capacity: 32 mm Speed Range: 65 - 1750 rpm Spindle Stroke: 160 mm Throat: 293 mm Column Diameter: 115 mm Nelhcov Av Tmedwyola Motor Power: 1.1 kW Features: - Machined base with T-slots - Emergency Stop Button - Drilling Depth Stop - Reversible Travel

Condition: used, Year of construction: 1984, bore capacity in steel (diameter) 30/35 mm throat 300 mm bore stroke 140 mm table-size 700 x 500 mm spindle taper MT 3 number of spindle speeds 65 - 1750 UpM total power requirement 1,7 kW weight of the machine ca. 0,7 t dimensions of the machine ca. 1 x 1 x 2 m Nelhju Rt Hqocdwysla Pillar drilling machine.

Condition: used, Year of construction: 1983, bore capacity in steel (diameter) 30 mm Nlelovzlp Ijhcdwyoa weight of the machine ca. 0,3 t dimensions of the machine ca. 0,6*1*2,3 m

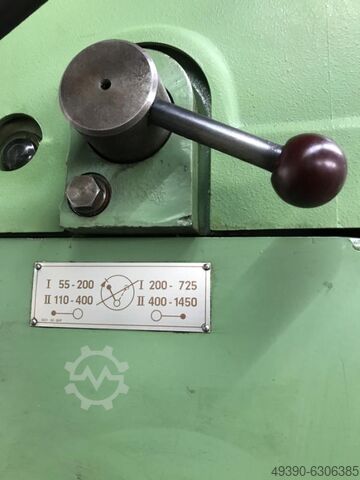

Condition: used, ALZMETALL column drilling machine type AB 3 ES Mach. No. 21703, year of manufacture 1981 Drilling capacity 32 mm Spindle mount MK 3 - long spindle Thrust 290 mm Spindle stroke 160 mm Table size 510 x 300 mm Column diameter 115 mm Spindle speed 55 - 1450 rpm. stepless Motor power 0.9 and 1.3 kW, pole-changing Mains connection on the type plate 500 volts, 50 Hz. Mains connection tested 400 volts, 50 Hz. - tested without power restriction - Spindle speed via 2 gear stages, 2 motor speeds and stepless via variator gear - Countershaft stage for high torque at low speeds - Tachometer for the spindle speed - Table height adjustment via hand crank - Machine light - Emergency stop via foot switch and impact switch - Keyless drill chuck 1 to 13 mm Space requirement L x W x H 1200 x 650 x 1900 mm Weight 400 kg Nelhcdevu Dv Hswyela very good condition Machine tested with drill Ø 30mm in steel - runs very well

Condition: good (used), Alzmetall AB 3 ES - Pillar drill Nelhcdwsvtzrvjysla -Drilling capacity / steel 35mm -Thrust 280mm -Drilling stroke 180mm -MK 3 mount -Table size 600x470mm -Continuous speed control -Drilling depth stop -Drill chuck -Documentation Dimensions: LxWxH1.2x0.8x2.1 meters / weight 550 kg Errors / input errors reserved

Condition: used, bore capacity in steel (diameter) 60 mm throat 400 mm Nlelswftt Ijhcdwyoa total power requirement 4,4 kW weight of the machine ca. 1,7 t

Condition: good (used), Year of construction: 1984, machine/vehicle number: 15470, Offer 25095 Nelhjwd Ii Ujcdwyola Technical specifications: - Drilling capacity in steel ST 60: 40 mm - Drilling capacity in steel ST 60: 50 mm - Drill spindle mount: MT 4 - Drill spindle stroke: 180 mm - Drill spindle speeds continuously adjustable with gearing - Stage 1: 50 - 175 rpm - Stage 2: 175 - 640 rpm - Throat depth: 330 mm - 3 feed rates: 0.1 - 0.2 - 0.3 rpm - Table with 2 T-slots: 720 x 360 mm - Table height adjustable via rack and pinion with hand crank - Max. distance between table and drill spindle: approx. 780 mm - Max. distance between machined base plate and drill spindle: approx. 1250 mm - Coolant system - Lighting - Drive: 400 V / 4 kW - Space requirement approx. W 720 x H 2050 x D 1150 mm - Weight approx. 500 kg

Condition: used, Year of construction: 1977, Used ALZMETALL AB 35S pillar drill. Drilling capacity in steel: 35mm. MK 4 spindle. Speed range: 55-1450 rpm (infinitely variable). Tapping device with foot switch. Nlelhcjwcrn Sjdwyoa Machined base plate. With keyless drill chuck. Drilling depth fine adjustment. Automatic feed rate: 0.1 + 0.2 + 0.3 Delivery time: from the Waiblingen Beinstein warehouse. Inspection possible upon request.

Condition: used, Year of construction: 1995, bore capacity in steel (diameter) 60 mm throat 400 mm bore stroke 240 mm 5 speeds 63 - 1250 U/min table-size 840 x 670 mm total power requirement 4 / 5,5 kW weight 1450 kg dimensions 1000 x 1400 x 2450 mm Column drilling machine OPTIdrill DP 33V promotion set / 3020680SET With an electronically controllable drive in a modern design * Industrial engine * Quiet running spindle thanks to new spindle design Nlelhcdwswcg H Aeyoa * Machine operation with safety electronics in 24 V direct current * Guaranteed concentricity = 0.02 mm in the measured drilling spindle * Clockwise/counterclockwise rotation * Precision spindle bore * Control panel with user-friendly, dirt and water resistant * Membrane keyboard * RPM display * Separate emergency stop button * Tapping function * Precisely crafted, stable drill table with diagonal T-slots with all-round cooling water channel, can be tilted sideways by ±45° and rotated by 360° * Drilling depth stop * LED machine light integrated in the drill head * V-belt cover with safety switch * Thick-walled steel column for high power absorption and stability * Solid, large base plate with T-slots * Execution of the entire machine Scope of delivery: - Keyless drill chuck 0 - 16 mm - T-Nuts -expectors - Operating tool - BMP 160 machine vice

Condition: excellent (used), Year of construction: 1988, Alzmetall AB 30/R-1000 radial drilling machine with 3,0 kW motor Manufacturer: Alzmetall Type: AB 30/R-1000 Condition: used, very good Year of manufacture: 1988 Drilling capacity steel E335 (St 60) 40 mm Drilling capacity cast iron EN-GJL-200 50 mm Thread cutting (St60)* M 30 Thread cutting in cast iron (EN-GJL-200)* M 42 Short spindle MK 4 / MT 4 Stroke motor 0.75 kW 4 feeds 0.15-0.2-0.3-0.36 mm/rev Spindle stroke 160 mm* throat 1000 mm Drive Manual gearbox Motor: n = 1500 min-1 3.0 kw kW 12 Spindle speeds 56 / 80 / 112 / 160 / 224 315 / 450 / 630 / 900 / 1250 / 1800 / 2500 Standard equipment - Electromagnetic feed clutch with overload protection and electric handle cross switching - Clockwise rotation through contactor control - incl. motor protection switch for drive and lift motor - Base plate with T-slots - Protection class IP 54 Special equipment. - Machine light - Thread cutting device - Coolant system - Electrically controlled free-cutting device - Drilling depth fine adjustment and fixed stop - 2 x cube table 630 x 800 x 500 Nelhcdwswbqfajysla - Central clamping for drilling slide and boom mechanical and for column pneumatic

Condition: excellent (used), bore capacity in steel (diameter) 45 mm throat 300 mm Nlslhcsvn U Umodwysa bore stroke 160 mm taper MK 4 table surface area 600 x 500 mm table adjustable 550 mm total power requirement 0,8 kW weight of the machine ca. 0,5 t dimensions of the machine ca. 0,8 x 0,6 x 1,8 m

Condition: used, Year of construction: 1959, Functionality: fully functional, Cantilever drilling machine High performance radial drilling machine Nelhcdsv U Tr Rswyola ALZMETALL FROM 3R year of construction 1959 Clamping surface: 1015 x 520mm Column can be swiveled 350 Stroke drilling depth 150mm Drilling capacity steel (St 60) 28, 32 [mm] Spindle MK 3 Power 1.5 [KW] Spindle speed 56 - 1,500 [rpm-1] Space requirement 1700 x 700 x 2400 mm Weight 1500 kg

Condition: new, bore capacity in steel (diameter) 40.0 mm throat 293 mm bore stroke 120 mm morse taper 3 MK table: 515 x 360 mm turning speeds 160 - 2250 U/min column diameter 115 mm thread M 24 ST60 thread M 30 GG20 feed 0.10 + 0.20 mm/U distance spindle /table 117 / 701 mm engine output 1.0 / 1.6 kW weight 270 kg Machine height 1840 mm NEW ALZMETALL MODEL RANGE 7 "TFT - LCD display with touch function: * Spindle speed setpoint * Actual speed display * Integrated drilling depth display Nleljt Ev Nvehcdwyja * with touch zero point transfer * Virtual drilling depth scale in the display * Machine status displays and warnings in the display * Service information * Selectable user language: DE / EN / FR / ES / IT / NL / RU. Furnishing: - Thread cutting device * for thread cutting with a stop * max. 6 threads / min (thread cutting performance depends on the spindle speed) * Thread depth adjustable via depth stop * in the TFT - LCD display (3 tools). - Infinitely variable speed setting by means of an adjusting lever - automatic spindle feed with feed overload protection - Spindle protection with electrical fuse - Three separate buttons for clockwise rotation - counterclockwise rotation - stop - Mushroom pushbutton (latching) for EMERGENCY STOP - Main switch, lockable - Right and left rotation by contactor control - Control voltage 24 volts - Protection class IP 54 - Paint: DD textured paint signal white RAL 9003, PANTONE 7545c, black - Machine oil first filling: oil bottle, loose delivery including special accessories: - 25. Coolant system B.

Condition: used, Year of construction: 1988, Used ALZMETALL pillar drill press with a 35mm steel drilling capacity. MK 4 spindle. Infinitely variable speed range: 55-1450 rpm. With thread cutting device. With Albrecht keyless chuck and drill press vise. Jaw width: 110mm. Fine drilling depth adjustment. Nlslhcswcrm Iedwyja Automatic feed rate: 0.1 + 0.2 + 0.3 Delivery time: from the Waiblingen Beinstein warehouse. Inspection possible upon request.

Condition: new, ALZMETALL Alzstar 18-T/S, Manufacturer. Alzmetall Type: Alzstar 18-T/S Condition: New Drilling capacity in St 60: 18 mm, Thread cutting in St 60: M 12, Thread cutting in GG 20: M 14, Short spindle: MK 2, Spindle speed: 225-4,300 rpm, Spindle stroke: 80 mm, Throw: 190 mm, Column diameter: 65 mm, Machine table - usable support: 300x240 mm, T-slots number - width - distance: 2 x 12 x 80 mm, Distance spindle-machine table min./max.: 75/357 mm, Machine base plate usable support: 300x240 mm, T-slots number - width - distance: 2 x 12 x 80 mm, Distance Spindle base plate min./max.: 437/437 mm, Feed by hand, Machine table height adjustment: hand crank, Total power requirement: 0.37/0.55 kW, Machine height: 840 mm, Weight: 110 kg Standard equipment: Main switch with motor protection switch, lockable Reversing switch for clockwise and counterclockwise rotation Infinitely variable speed adjustment Protection class IP 54 Mushroom push button (latching) for EMERGENCY STOP Spindle protection with electrical protection Optional: - LED machine light - Under table Nlolhcswbqd Njdwyoa - Drill chuck 1-13 or 3-16 Available now. For self-collection. Forklift available. Shipping also possible Subject to errors, changes and prior sale. Other Alzmetall table drilling machines and pillar drilling machines always in stock!

Condition: new, bore capacity in steel (diameter) 40.0 mm throat 293 mm bore stroke 120 mm morse taper 3 MK table: 515 x 360 mm turning speeds 80 - 1125 U/min column diameter 115 mm thread M 24 ST60 thread M 30 GG20 feed 0.10 + 0.20 mm/U distance spindle /table 117 / 701 mm engine output 1.0 / 1.6 kW weight 270 kg Machine height 1840 mm NEW ALZMETALL MODEL RANGE 7 "TFT - LCD display with touch function: * Spindle speed setpoint * Actual speed display * Integrated drilling depth display * with touch zero point transfer * Virtual drilling depth scale in the display * Machine status displays and warnings in the display * Service information * Selectable user language: DE / EN / FR / ES / IT / NL / RU. Furnishing: - Thread cutting device * for thread cutting with a stop * max. 6 threads / min (thread cutting performance depends on the spindle speed) Nolst Ev Nishcdwysla * Thread depth adjustable via depth stop * in the TFT - LCD display (3 tools). - Infinitely variable speed setting by means of an adjusting lever - automatic spindle feed with feed overload protection - Spindle protection with electrical fuse - Three separate buttons for clockwise rotation - counterclockwise rotation - stop - Mushroom pushbutton (latching) for EMERGENCY STOP - Main switch, lockable - Right and left rotation by contactor control - Control voltage 24 volts - Protection class IP 54 - Paint: DD textured paint signal white RAL 9003, PANTONE 7545c, black - Machine oil first filling: oil bottle, loose delivery including special accessories: - 25. Coolant system B.

Condition: new, Alzmetall Alzstar 40/SV pillar drilling machine Manufacturer: Alzmetall Type: Alzstar 40/SV Condition: new Technical data: Column diameter: 115 mm Machine table (usable support): 514 x 360 mm T-slots (number x width x distance): 2 x 14 x 224 mm Nlslhcswbqclsdwyea Distance spindle-table (min./max.): 117 / 701 mm 2 feeds: 0.1 + 0.2 mm/rev Height (mm): approx. 1840 Drilling capacity St 60 (mm): 40 Spindle stroke (mm): 120 Thrust (mm): 293 Motor (kW): 1.45 / 1.9 Speed range (r/min): 160 - 2250 Weight (kg): 285

Condition: new, bore capacity in steel (diameter) 60.0 mm threading M 42 throat 350 mm bore stroke 200 mm turning speeds 60 - 1530 U/min table: 720 x 510 mm bore spindles - Morse Taper 4 Kurzspindel MK column diameter 200 mm feed 0.15-0.2-0.3-0.36 mm/U distance spindle /table 159 / 884 mm engine output 3.6 / 4.3 kW weight 605 kg Machine height 1950 mm Furnishing : - automatic feed with electromagn. Feed clutch - 4 feed levels 0.15 / 02, - 0.3 - 0.36 mm / rev - stepless speed adjustment - digital speed display - Feed overload protection - Spindle protection with electr. validation Nlslhcet Eixdodwysa - digital speed display - machined base plate including special equipment: - Coolant device mounted in the foot pos. 24. - Thread cutting device pos. 20.0 - LED machine light pos. 12.

Condition: new, Functionality: fully functional, Equipment: lighting, Alzmetall AB 40 iTRONIC 70-4000rpm pillar drill Condition: new Nelswbqbzshcdwyola Drilling capacity steel E335 (ST 60): 50 mm Thread cutting steel: E335 (ST 60): M 30 Spindle mount: MK 4 Spindle stroke: 160 mm Throw: 300 mm Column diameter: 145 mm Spindle speed L rpm: 70 – 4,000 Power: 1.8 / 2.9 KW Equipment: 7" TFT - LCD display with touch function Thread cutting device Infinitely variable speed setting Automatic speed control Spindle protection Three separate buttons for clockwise - counterclockwise - stop Mushroom push button Main switch Clockwise and counterclockwise rotation Control voltage 24 volts Protection class IP 54 Motor insulation class "F" (155°) Painting Electromagnetic feed overload protection Machine oil initial filling Equipment options: - Alzmetall option no. 12 LED machine light - Alzmetall option no. 20.4 Comfort grip switch - Alzmetall option no. 20.5 Foot switch - Alzmetall option no. 24 Coolant device A - Alzmetall option no. 37.3 Automatic drilling depth control - Alzmetall option no. 37.5 Technology computer - Alzmetall option no. 37.6 Maximum drilling depth display - Alzmetall option no. 38.1 Automatic spindle stop - Alzmetall option no. 38.2 Workpiece counter / spindle hour counter - Alzmetall option no. 50.6 Drilling depth fine adjustment 0.1mm

Condition: new, bore capacity in steel (diameter) 40.0 mm bore capacity in cast iron 45.0 mm throat 300 mm bore stroke 160 mm morse taper 4 MK table: 615 x 430 mm turning speeds 100 - 1800 U/min column diameter 145 mm thread M 24 ST60 Njlet Ev Irjhcdwyela thread M 30 GG20 feed 0.1-0.2-0.3-0.4 mm/U distance spindle /table 138 / 688 mm engine output 1.4 / 2.2 kW weight 470 kg Machine height 1865 mm NEW ALZMETALL MODEL RANGE 7 "TFT - LCD display with touch function: * Spindle speed setpoint * Actual speed display * Integrated drilling depth display * with touch zero point transfer * Virtual drilling depth scale in the display * Machine status displays and warnings in the display * Service information * Selectable user language: DE / EN / FR / ES / IT / NL / RU. Furnishing: - Thread cutting device * for thread cutting with a stop * max. 6 threads / min (thread cutting performance depends on the spindle speed) * Thread depth adjustable via depth stop * in the TFT - LCD display (3 tools). - Infinitely variable speed setting by means of an adjusting lever - Electromagnetic feed clutch * with overload protection and electrical * Comfort cross-handle switch * Feed rates selectable 0.1-0.2-0.3-0.4 mm / rev - Spindle protection with electrical fuse - Three separate buttons for clockwise rotation - counterclockwise rotation - stop - Mushroom pushbutton (latching) for EMERGENCY STOP - Main switch, lockable - Right and left rotation by contactor control - Control voltage 24 volts - Protection class IP 54 - Paint: DD textured paint signal white RAL 9003, PANTONE 7545c, black - Machine oil first filling: oil bottle, loose delivery including special accessories: - 12. LED machine light - 24. Coolant system A * in the machine base

Condition: like new (used), Year of construction: 2017, Functionality: fully functional, ALZMETALL AX 3/SV pillar drilling machine (2017) Manufacturer: Alzmetall Type: AX 3/SV pillar drilling machine Year of manufacture: 2017 Condition: used Drilling capacity 40 mm Short spindle MK 3 Spindle stroke 120 mm Usable projection 293 mm Column diameter 115 mm Machine table 515 x 360 mm Distance spindle-table 117/701 mm T-slots 2 x 14 x 224 mm Feed 0.1 + 0.2 mm/rev Machine height 1840 mm Net weight approx. 270 kg Drive continuously variable Spindle speed rpm 160-1125 rpm Standard equipment Main switch with motor protection switch, lockable Nljlhcdewbqaqowyja Mushroom push button (latching) for EMERGENCY STOP Speed adjustment stepless Digital speed display Protection class IP 54 Spindle protection with electrical fuse Special options: – Digital drilling depth display – Combination drilling table Scope of delivery: – Documentation – Drill chuck

Condition: new, bore capacity in steel (diameter) 40.0 mm threading M 24 throat 293 mm bore stroke 120 mm morse taper 3 Kurzspindel MK table: 515 x 360 mm turning speeds 80 - 1125 U/min feed 0.10 + 0.20 mm/U column diameter 115 mm distance spindle /table 117 / 701 mm total power requirement 1.0 / 1.6 kW weight 270 kg height of the machine 1840 mm Furnishing: Nlolhcdwet Eiv Nsyoa - Lockable main switch with motor protection switch - Mushroom pushbutton (latching) for EMERGENCY STOP - Infinitely variable speed adjustment - Digital speed display - Feed overload protection - Protection class IP 54 - Spindle protection with electrical fuse - Operating instructions in German including special equipment: - Thread cutting device pos. 20.0 (Thread cutting with stop) - Coolant device "B" pos. 25.

Condition: new, ALZMETALL AX3/SV pillar drilling machine NEW Manufacturer: Alzmetall Type: AX3 SV Condition: New Drilling capacity steel 40 mm Thread cutting steel M24 Cast M30 Short spindle MK 3 Spindle stroke 120 mm Usable projection 293 mm Column diameter 115 mm Nslhjwbqakscdwysla Machine table 515 x 360 mm Distance spindle-table 117/701 mm T-slots 2 x 14 x 224 mm Feed 0.1 + 0.2 mm/rev Machine height approx. 1840 mm Net weight approx. 270 kg Drive continuously variable Motor 750/ 1500 rpm Power 1.0 / 1.6 kW Spindle speed rpm 80-1125 Additional equipment: - Reversing switch - Machine light LED - Thread cutting device - Coolant device B Available immediately from stock
