CNC lathe EMCO E45

EMCO E45

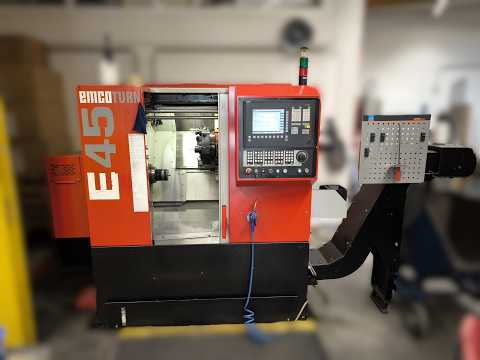

Condition: good (used), Year of construction: 2008, operating hours: 27,800 h, functionality: unexamined, machine/vehicle number: R2EW2202, turning length: 310 mm, turning diameter: 220 mm, CNC lathe EMCO E45 incl. bar feeder - from a social institution - driven tools - in good condition ● Availability: Immediate - by arrangement ● Collection date: The machine must be collected by the customer on Thursday, July 30, 2026, at 1:00 PM. Collection on a different date is not possible. ● Payment terms: Prepayment - by bank transfer ● Internal No.: 173-1 ● Can be inspected while powered on: YES Technical data: ● Control: Siemens 810 DC powerline ● Operating hours approx.: 27,800 ● Spindle hours approx.: 10,150 ● C-AXIS & DRIVEN TOOLS ● Tool holder: VDI 30 ● Number of tool positions in the turret: 12 (6 of which are driven) ● Max. bar diameter approx.: 45 mm ● Max. distance between centers approx.: 687 mm ● Max. speed approx.: 6300 RPM ● Internal coolant line through the turret Hjdpfx Aqjzhv Rxsrop ● Bar feeder Emco Compact Load (Bar length up to 800 mm, bar diameter up to 45 mm) ● Chip conveyor ● Parts catcher ● 400 V / 50 Hz / 17 kVA ● Further technical data - see pictures Scope of delivery: ● Bar feeder Emco Compact Load, existing manuals, chip conveyor, chuck ● The tool holders are not included in the scope of delivery! Dimensions & weights: ● Installation dimensions L x W x H approx.: 5500 x 2000 x 2200 mm ● Weight approx.: 4000 kg Additional notes: ► Upon request, we can offer transport to the destination. ► The quoted price is net plus VAT. ► The goods are sold excluding any warranty. ► Technical data without guarantee. ► Subject to prior sale. The sale of the goods is exclusively to businesses❗

Condition: used, Year of construction: 2016, turning diameter 366 mm turning length 700 mm control Celos Mitsubishi M730U turning diameter over bed 920 mm turning diameter over cross slideways 742 mm max. turning speeds 4.000 min/-1 drive capacity - main spindle 18,5/18,5/15 kW max. rod diameter 80 mm number of tool places 12 Pos. tool taper BMT 80 x-axis 260 mm z-axis 795 mm y-axis +/- 50 mm mm tailstock taper MT5 Number of working hours ca. 20.564 h auto power on hours ca. 28.664 h weight of the machine ca. 4,7 t The machine has been overhauled with the following components: - Ball screws in the X, Y, and Z axes - New main spindle - Complete maintenance package - Recalibrated and recalibrated This puts the machine in like-new technical condition. There are 2 machines available. Price per unit. Technical Features: - 12-position BMT 80 tool turret, max. speed 10,000 rpm, 5.5/5.5/3.7 kW - Y-axis - Overhang for driven tools 100 mm - Scraper-belt chip conveyor - Coolant system with increased pressure of 5 bar Accessories: - Coolant shower on the main spindle chuck - Compressed air blow-off system for tool cutting edges - Line filter for coolant system - Compressed air blow-off system for tailstock center - Mechanical I/F for 150 mm oil mist separator - 4-color signal light - EtherNET I/P interface for automation Hsdpfx Asyvvt Seqrsp Accessories, tools, and clamping devices shown are only included in the scope of delivery if noted in the additional information. Subject to changes and errors in the technical data and information, as well as subject to prior sale!

Condition: used, Year of construction: 2016, machine/vehicle number: S4E163551, Control system: FANUC Oi-TD, remote control, single spindle, maximum speed 6,300 rpm, power 13 kW, 12-position tool changer with powered tools (VDI 25), chip conveyor, maximum turning length/diameter = 670/220 mm, maximum bore diameter 45 mm, control cabinet: RITTAL, stated B/h = 16,500. Hsdpfxjy U R Ris Aqrjp

Condition: used, Year of construction: 2010, machine/vehicle number: R2EY2851, Control system: GE-FANUC Oi-TC, remote control, single spindle, maximum spindle speed 6,300 rpm, power 13 kW, 12-position tool changer with powered tools (VDI 25), chip conveyor, maximum turning length/diameter = 670/220 mm, maximum bore diameter 45 mm, control cabinet RITTAL, stated B/h = 23,500. Hodpjy U R R Aefx Aqrep

Condition: ready for operation (used), Year of construction: 2014, operating hours: 100 h, spindle speed (max.): 5,000 rpm, total height: 1,800 mm, overall weight: 2,200 kg, controller manufacturer: FANUC, controller model: 31t- Model B, number of axes: 3, This 3-axis EMCO MaxxTurn 65 SMY was manufactured in 2014, featuring a robust FANUC 31i B control system and a dual spindle setup with C and Y axes for complex machining. It includes a 12-position tool turret and a bar feeder with a capacity of 65 mm diameter and 3200 mm length. Ideal for precision turning and milling, this machine offers a comprehensive solution for advanced metalworking. Contact us for more information about this machine. Additional equipment • Automatic bar loading magazine with adjustable part length and bar diameter • Remnant extraction system • Guide channel made of polyurethane plastic • Displacement system for longitudinal movement Machine Benefits Hedpox D H Sfefx Aqrop Qualitative Machine Benefits • No spindle reduction required Technical Machine Benefits • Cooling: thermocompensation system • Axes: c-axis and y-axis • System: linear guide system, digital drive system • CATCHING DEVICE Pneumatically operated precast catching device for the gentle unloading of precast elements. The precast elements are transported into a catching box (standard) or onto a conveyor belt (optional). Max. precast element length: 175 mm Max. precast element diameter: 65 mm Max. • Tool system: 12-position tool turret, vdi30 radial • Driven tools: up to 12 driven tools • Sub-spindle speed range: 0–7000 rpm • Bar length capacity: 1200 – 3200 mm • Diameter passage: 20 – 65 mm • Feed speed: 0 – 627 mm/sec • Turning length is 650mm Extra Information Control Unit Control: Integrated PLC Features: Fully automatic work cycle, Monitoring and error diagnostics (display output) Tools Max Power: 6.7 kW Max Torque: 25 Nm Speed Range: 0–5000 rpm C-Axis: Available Media Power Supply: 200/220/400 V AC Air Requirements: Min. 7 bar Air Consumption: 45 L/min Mount Position (Assembly) Installation Kit includes vibration-absorbing, height-adjustable leveling shoes, and mounting brackets. Machine History Note: Machine like new with only 100 hours of use Dimensions Machine Depth 4500 mm

Condition: used, Year of construction: 2021, machine/vehicle number: S4E213351, Control system: FANUC Oi-TF, remote control, single spindle, maximum speed 6,300 rpm, power 13 kW, 12-position tool changer with driven tools (VDI 25), chip conveyor, maximum turning length/diameter = 670/220 mm, maximum bore diameter 45 mm, control cabinet by RITTAL, stated B/h = 6,500. Hsdpfxjy U R N So Aqrsp

Condition: excellent (used), Year of construction: 2019, functionality: fully functional, machine/vehicle number: S4ES_V16, CNC lathe with main spindle and 12-position turret Make: EMCO, Model: EMCOTURN E45 Year of manufacture: 2019, Serial number: S4ES_V16 Control: Siemens, type Sinumerik 828 Maximum turning diameter: 220 mm Chip conveyor: Manufacturer Bürener, type SPE62/12 ----- Attractive offer – flexible & worry-free We offer you not only a high-quality product, but also tailored financing options to suit your needs. Whether down payment, installment payment, or custom financing models – together we will find the right solution. On request, we also take care of the entire transport organization. From planning to reliable delivery, we ensure a smooth and on-time process, so you don't have to worry about a thing. 📞 Feel free to contact us for further information or a non-binding quote. We provide personal and competent advice. Hsdpeyzn Tnefx Aqrjp Subject to prior sale, modifications, and errors!

Condition: used, Year of construction: 2011, Technical details: turning length: 310 mm swing diameter over bed: 500 mm swing diameter over bed slide: 290 mm centre distance: 500 mm x-axis: 190 mm z-axis: z1: 335 / z3: 370 mm y-axis: 80 mm revolution per minute: 6000 U/min Control: Heidenhain CNC Pilot 4290 spindle bore: 73 mm bar material dia.: 50 mm tool turret - number of stations: 12 tool taper: VDI 30 mm rapid traverse x + z axis: 30 m/min operating hours - idle run: 36443 h spindle hours: 8545 h interface: ja total power requirement: 20 kVA kW dimension swarf conveyor LxWxH: 3,2 x 0,45 x 1,5 CNC inclined bed lathe With a 3-jaw chuck Ø 160mm with matching flange (max. speed 4500 rpm) and 2 additional sets of spare jaws. Turret head for 12 tools all with tool drive; Sauter disk turret (C-axis = 300 rpm) Torque main spindle: 95 Nm at 100% and 127 Nm at 40% Hedpjw S Efzofx Aqrep Chip conveyor 450 K-1/250; year of manufacture 2000 Electric cabinet with Rittal cooling The machine does not have a hydraulic chuck. A manual chuck has been installed by the previous owner. The machine is not functional and is for sale. The machine has an unknown malfunction in the turret, meaning that reference travel and axis movements are not possible. Machining functionality is therefore currently not possible. The machine is for sale and in need of repair! i.D. *

Condition: good (used), Year of construction: 2002, functionality: fully functional, machine/vehicle number: R2EU2002, CNC lathe with main spindle and 12-station turret Hsdpfx Aoyzn N Nsqrop Manufacturer: EMCO TURN E45 Year of manufacture: 2002, Serial number R2EU2002 Control: Siemens, Sinumerik type Bar feeder: EMCO Compact Load E45 Turning diameter: 220 mm Chip conveyor: Knoll Attractive offer – flexible & hassle-free We offer not only a high-quality product, but also tailor-made financing options to suit your needs. Whether down payment, installment payments, or individual financing models – together we will find the right solution for you. Upon request, we can also take care of the entire transportation process. From planning to reliable delivery, we ensure a smooth and on-schedule operation so you don’t have to worry about a thing. 📞 Feel free to contact us for more information or a non-binding quote. We offer personal and competent advice.

Condition: ready for operation (used), Year of construction: 2019, spindle motor power: 13,000 W, spindle speed (max.): 6,300 rpm, number of axes: 2, This EMCO E45 turn-mill centre was manufactured in 2019. It features a KK5 spindle with a bar capacity of 45 mm and a speed range up to 6300 rpm. The 12-position VDI30 tool turret supports 6 driven tools, enhancing versatility. Equipped with SINUMERIK 828D OPERATE control for precise operations and a robust design with a chip conveyor and high-pressure coolant system. Reach out for more information about this machine. • Connection: KK5 (DIN 55026) • Bar capacity: 45 mm • Drive power: 13 kW • Speed range: 0–6300 rpm • C-axis on main spindleTool turret • 12-position VDI30 axial • Directional logic for up to 6 driven tools • Driven tools: max. 4 kW / max. 16 Nm • Driven tools speed: 0–5000 rpmTailstock • Programmable, hydraulically actuated • Max. clamping force: 6000 N • Morse taper: MK4 • Hollow clamping cylinder incl. draw tubeControl & software • SINUMERIK 828D OPERATE • SHOPTURN dialog programming • USB interface • Network / Ethernet • 10.4" TFT color monitor • 3D simulationMedia & machine features • Machine light • Coolant system incl. pump (3.5 bar) • Hydraulic unit • Chip conveyor interface • CE certificate Hodpfx Aqsyffgrorsp • DocumentationTool measurement (E45) • Measuring arm fixed in the work area • Tool measurement on the turret • Short setup times / precise measurement / cost-efficientWorkpiece clamping • 3-jaw chuck KK5 • Max. speed: 6300 rpm • Diameter: 20 mm • Soft + hard jawsOther (machine-related) • Water gun • Air to spindle • Oil/coolant separator • Automatic coolant monitoring • Electronic handwheel • Tool change guard • Hydraulic connections • Pneumatic connections • Machine packaging: pallet + roll-up cover Additional equipment Bar feeder / magazine (SL1200 – as referenced) • Bar length: 850–1200 mm • Bar diameter: Ø 8–95 mm • Max. feed rate: 60 m/min • Bar change: approx. 3 s • Magazine change: approx. 15 s • Material support area: 550 × 1210 mm • Material capacity: 10 × Ø 55 mm • Operating side: right • Power supply: 240 V DC/DC • Air supply: 6 bar • Dimensions: 1700 × 1250 × 1090–1380 mm • Weight: approx. 500 kg • Safety device: CE • High-speed function • DocumentationSpindle extension (for bar feeder use) • E45 / MT45 / HT45 → DM45 • For 45 mm spindle • Short bars up to 1100 mm • With reducing sleeves (3 pieces) • Required for use with SL1200Chip conveyor • Hinged belt conveyor • Discharge height: 1200 mmHigh-pressure coolant unit • 14 bar / 50 Hz • Additional high-pressure pump • For tools with internal coolant • Interface & softwareRobot interface • PROFI-NET interface • 24 V signals • Safety release • Automatic/manual operation switchingAdditional components • PC keyboard USB (QWERTY) • Machine status LED: Green (Automatic), Red (Alarm), White (Material handling)Installation & mounting hardware • 4× vibration absorbers • 4× mounting brackets • 4× heavy-duty anchorsParts collection device • Pneumatically operated • Max. part length: 120 mm • Max. diameter: 45 mm (51 mm) • Max. weight: 2 kg • Collection box / conveyor belt

Condition: new, Load Weight Shelf 42000 kg Loading weight per level 3000 kg Hodpfxjfgyhde Aqrep Number of load levels 2 x 7 Stk. Recommended material length 6000 mm Column width 3000 mm Shelf height 2440 mm dimensions m

Condition: used, Year of construction: 2007, Technical details: turning diameter: 220 mm turning length: 310 mm total power requirement: 17 kW weight of the machine ca.: 3,3 t dimensions of the machine ca.: 2,25 x 1,63 x 1940 m Hjdpfx Aqjx Aq Hwerop greates pass round over bed: 430 mm bore diameter: 45 mm centre distance: 687 mm slide travel radial ( X-axis ): 160 mm slide travel axial ( Z-axis ): 310 mm spindle turning speed range: 0-6.300 U/min

Condition: ready for operation (used), Year of construction: 2007, operating hours: 6,615 h, functionality: fully functional, machine/vehicle number: R2EV3403, turning length: 310 mm, turning diameter: 220 mm, spindle speed (max.): 6,300 rpm, turning diameter over bed slide: 430 mm, bar passage: 45 mm, TECHNICAL DETAILS Work Area Swing over bed: 430 mm Max. turning diameter: 220 mm Max. turning length: 310 mm Hedpfx Aqoxvrv Tsrep Max. bar capacity: 45 mm Distance between centers: 687 mm Carriage Travel X-axis travel: 160 mm Z-axis travel: 310 mm Main Spindle Spindle nose to DIN: 55026 KK5 Front spindle bearing diameter: 80 mm Hollow clamping cylinder max. through bore: 45 mm Max. chuck size: 160 mm Speed range (infinitely variable): 0–6,300 rpm Max. torque: 78 Nm C Axis (Rotary Axis) Resolution: 0.001° Spindle indexing (disc brake, for driven tools): 0.01° Feed Drives Feed force X: 4 N Feed force Z: 6 N Rapid traverse speed X: 20 m/min Rapid traverse speed Z: 24 m/min Acceleration time from 0 to rapid traverse X/Z: 0.2 s Positioning spread P₉ as per VDI 3441 in X/Z: 3 / 3 µm Tool System Tool holders to DIN: 69880 VDI30 Tool cross section for square shank tools: 20 x 20 mm Shank diameter for boring bars: Ø32 mm Number of tool stations / powered (option): 12 / 6 Turret indexing time: 0.14 s MACHINE DETAILS Total power requirement: 17 kW Dimensions & Weight Footprint: 2.25 x 1.63 x 1.94 m Machine weight: 3.3 t Operating hours: 6,615 h EQUIPMENT - Integrated holding brake for driven tools - Disc turret with direction logic - AC motors on X and Z axes

Condition: used, Year of construction: 2003, turning diameter max. 246 mm turning length 600 mm control 840 D Powerline Siemens greates pass round over bed 400 mm Swing dia. over traverse guideway 300 mm centre distance 600 mm turning speed range - main spindle max. 6.000 min/-1 power capacity - main spindel 16 kW max. Torque 155 Nm spindle diameter in front bearing 100 mm spindle bore 68,5 mm spindle nose 140H5 Spindle speed range subspindle max. 4.000 min/-1 power capacity - Sub spindle 7,5 kW max. Torque 48 Nm spindle diameter in front bearing 75 mm spindle bore 37 mm spindle nose 140H5 number of toolpositions 12 pos. Number of driven toolspositions 12 pos. Spindle speed - driven tools max. 5.000 min -1 power capacity - driven tools 3,7 kW max. Torque 24 Nm tool taper VDI 30 Tool dimensions with square shank 20 x 20 mm x-axis 160 mm z-axis 450 mm rapid traverse X: 60 m/min rapid traverse Z: 45 m/min Feed force X: 2,5 kN Feed force Z: 4 kN rapid traverse C: 200 1/min max. Torque C: 155 Nm total power requirement 32 kVA weight of the machine ca. 3,8 t dimensions of the machine ca. 8,0 x 3,0 x 2,7 m CNC - Turning- and MillingCenter Hsdpfxsypv Tqs Aqrop GILDEMEISTER - CTX 320 linear V5 - Main- and Subspindle - tool-drive - C-Axis - ShopTurn
