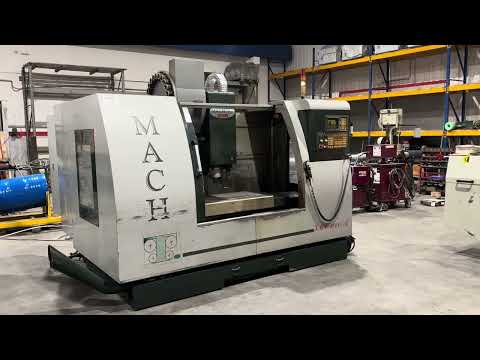

Vertical machining center

MACH MIND 1000/A

Condition: good (used), Parts shown by hand not come. Hedpfowb Em Ssx Afgjw Technical data shown on picture. Tools in wooden box will come with machine.

Condition: used, Year of construction: 2004, MAZAK VTC 200B II, year 2004 X axis: 1120 mm Y axis: 510 mm Z axis: 510 mm Hjdpfx Ajylnxksfgew Spindle: max. 12,000 rpm SK40 Through-spindle coolant (IKZ) Table length: 1460 mm Table width: 510 mm Table load: 800 kg Tool changer: 30 positions Spindle power: 18.5 kW Spindle speed: 12,000 rpm Tool changer: 30 positions IKZ: Yes Number of controlled axes: 3 Chip conveyor: Yes Cooling system: Yes

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, travel distance X-axis: 1,400 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 700 mm, rapid traverse X-axis: 24 m/min, rapid traverse Y-axis: 24 m/min, rapid traverse Z-axis: 20 m/min, controller manufacturer: FANUC, controller model: 18 IM, table width: 800 mm, table length: 1,550 mm, table load: 1,800 kg, spindle speed (max.): 6,000 rpm, distance table to spindle center: 900 mm, spindle nose: BT50, number of slots in tool magazine: 30, Equipment: chip conveyor, documentation/manual, TABLE Hjdpfow D Enhjx Afgsw Table dimensions: 1550x800 mm Max weight allowed: 1800 kg CAPACITY Longitudinal X-travel: 1400 mm Cross Y-travel: 800 mm Vertical Z-travel: 700 mm SPINDLE Spindle nose: BT50 ISO Spindle speed: 6000 rpm. Motor power: 18-22 Kw ADVANCES Rapid X,Y,Z axis: 24000/24000/20000 mm/min TOOL WAREHOUSE Tool Stations: 30 no. SPECIFIC PROPERTIES Distance between table surface and spindle nose: 200–900 mm Distance between table and floor: 980 mm Max torque (continuous / 30 min): 626 / 740 Nm Positioning accuracy: 0.015 mm Repeatability: 0.008 mm

Condition: used, Year of construction: 1997, CNC lathe Dainichi F200 Japan year 1997 Fanuc 18iT turning diameter: 360 mm turning length: 600 mm Hodpfx Afjymcvgegjw spindle bore: 52 mm chuck: 200 mm turret for 12 tools tailstock probe chip conveyor

Year of construction: 2015, condition: ready for operation (used), - USED - FIBER LASER CUTTING MACHINE WITH PALLET CHANGER X-AXIS TRAVEL: 3048 mm Hodpfx Aexcqrgjfgjw Y-AXIS TRAVEL: 1524 mm Z-AXIS TRAVEL: 70 mm MAX ADMITTED LOAD: 750 Kg/m WORKING AREA: 3000 x 1500 mm SOURCE: IPG Fiber 4000 ; 4000 W CONTROL UNIT: ByVISION WEIGHT: 13000 Kg

Condition: excellent (used), travel distance X-axis: 1,500 mm, travel distance Y-axis: 1,100 mm, travel distance Z-axis: 600 mm, controller manufacturer: Heidenhain, controller model: iTNC530, spindle speed (max.): 18,000 rpm, spindle nose: hsk 63, number of spindles: 30, Equipment: chip conveyor, documentation/manual, FPT vertical machining center model RAID Travels 1500X1100X600 mm 30-position tool changer Hsdex H Iylepfx Afgjw HSK 63 spindle, 18,000 RPM (overhauled in 2025) CNC HEIDENHAIN iTNC 530 Remote electronic handwheel Chip conveyor

Condition: used, Year of construction: 2004, BIGLIA B 470 YSM LATHE LATHE WITH Y AXIS SUB-SPINDLE 2 MOTORIZED TURRETS FANUC 18i-TB CNC CONTROL CAPACITY: Max working diameter from bar (main spindle/sub-spindle): 68/45 mm Max working diameter (chucking, main spindle/sub-spindle): 200/160 mm Max working length (main spindle/sub-spindle): 300/200 mm Max swing diameter (main spindle/sub-spindle): 200/160 mm Bar passage (main spindle): 65 mm Hsdoy Ndx Aopfx Afgow SPINDLE: Main spindle/sub-spindle speed range: 100–4000 / 100–4000 rpm Spindle nose (main spindle/sub-spindle): ASA 6'' / ASA 5'' Spindle bore (main spindle/sub-spindle): 80/56 mm Spindle motor power (50% duty cycle) (main spindle/sub-spindle): 22-26 / 5.7-7.5 kW UPPER/LOWER TURRET: Number of driven tool positions: 12 Driven tool speed range: 100–3000 rpm Drive motor power: 1.1–3.7 kW (25% duty cycle) AXES: X-axis travel (main spindle/sub-spindle): 160/158 mm Z-axis travel (main spindle/sub-spindle): 390/240 mm Y-axis travel (main spindle): 100 mm (40-60) B-axis travel (sub-spindle): 420 mm C AXIS (CONTROLLED): Minimum programmable value: 0.001° DIMENSIONS: Overall dimensions with chip conveyor: 4107 x 2128 x 2204h mm EQUIPPED WITH: – Chip conveyor

Condition: excellent (used), Year of construction: 2001, functionality: fully functional, machine/vehicle number: 120J434, travel distance X-axis: 1,020 mm, travel distance Y-axis: 610 mm, travel distance Z-axis: 560 mm, controller model: FANUC 18 M, table width: 550 mm, table length: 1,200 mm, table load: 1,000 kg, spindle speed (max.): 10,000 rpm, number of slots in tool magazine: 24, Table size 1200 x 550 mm Longitudinal travel 1020 mm Cross travel 610 mm Vertical travel 560 mm Max. distance spindle to table 710 mm Max. load on table 1.000 Kg Spindle speeds 10.000 rpm Rapid movement 24 m/min Hjdpfx Asymmh Tefgow Tool change 24 pcs Spindle taper ISA 40 Control FANUC 18 M Cycle hours 7100 Timer

Condition: ready for operation (used), Year of construction: 2021, - USED - 3-AXIS VERTICAL MACHINING CENTRE WITH MELTIO 3D HEAD X-AXIS TRAVEL: 1360 mm Y-AXIS TRAVEL: 700 mm Z-AXIS TRAVEL: 700 mm DISTANCE SPINDLE NOSE-TABLE: 100-800 mm DISTANCE COLUMN-SPINDLE AXIS: 792 mm RAPID FEEDS X-Y-Z: 32 m/min SPINDLE: 15000 rpm; 11-15 kW; SK-40 TABLE SIZE: 1400 x 700 mm MAX ADMITTED LOAD: 1000 Kg HIGH PRESSURE COOLANT: 20 Bar TOOL MAGAZINE: 30 POS MAX TOOL DIAMETER: 75 (150) mm MAX TOOL LENGHT: 300 mm MAX TOOL WEIGHT: 7 Kg CONTROL UNIT: FANUC 0i-MF WEIGHT: 9500 Kg OVERALL DIMENSIONS: 4670 x 2985 x 3104 mm ACCESSORIES: SWARF CONVEYOR ; FANUC MANUAL GUIDE-I ; ETHERNET PORT ; Hedpfxszqwfvo Afgjw USB PORT ; MECHANICAL TOOL SETTER ; PORTABLE HANDWHEEL NOTE: MELTIO 3D HEAD MODEL CNC DOUBLE METALLIC WIRE; LASER 6X200WATT; WIRE DIAMETER 0,8-1,2 mm; REEL BS300

Condition: ready for operation (used), Year of construction: 2015, controller manufacturer: SIEMENS, controller model: n/a, overall weight: 7,000 kg, This 3-axis LORENZ LS 150 was manufactured in 2015. It features a connected load of 60KVA, a rated current of 50A, and operates on a 400V system. Weighing 7000kg, this machine has been modernized to enhance performance. If you are looking to get high-quality milling capabilities, consider the LORENZ LS 150 machine we have for sale. Contact us for more information. Additional equipment • Rolling, single tooth parts, spiral feed Machine Benefits Technical Machine Benefits • Operating voltage: 400v • Connected load: 60kva • Rated current: 50a • Frequency: 50hz • Main fuse: 63a • Retrofit: a cnc retrofitting was carried out in 2015, sinumerik 840d control system. • All mechanical components checked, all hydraulic components checked and hoses replaced. • All necessary components were installed to guarantee problem-free production. Hodpsx D Iyqefx Afgjw Extra Information Machine still under power // All necessary components were installed to guarantee problem-free production.
