Vertical machining center

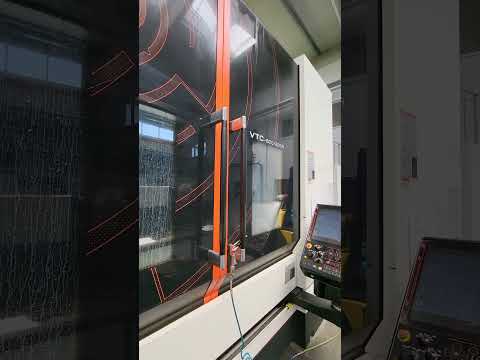

Mazak VTC-800/20SR

Condition: good (used), Year of construction: 2018, operating hours: 7,819 h, functionality: fully functional, travel distance X-axis: 2,000 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 720 mm, rapid traverse X-axis: 50 m/min, rapid traverse Y-axis: 50 m/min, rapid traverse Z-axis: 50 m/min, STANDARD TECHNICAL SPECIFICATION – MAZAK CAPABILITIES Table work surface (length): 2,500 mm Table work surface (width): 820 mm Longitudinal (crosswise) X-axis travel: 2,000 mm Column (crosswise) Y-axis travel: 800 mm Spindle head (vertical movement) Z-axis: 720 mm Minimum distance from spindle nose to top of table: 140 mm Maximum distance from spindle nose to top of table: 860 mm Table load capacity (uniform load): 1,700 kgf Spindle head rotation (B-axis): ± 110° SPINDLE HEAD Spindle taper: 7/24 taper, No. 40 Maximum spindle speed (standard): 18,000 min⁻¹ Minimum spindle speed (standard): 35 min⁻¹ Main spindle motor output (continuous rating): 26.0 kW FEED RATES Rapid traverse (X-axis): 50 m/min Rapid traverse (Y-axis): 50 m/min Rapid traverse (Z-axis): 50 m/min TABLE Table length: 2,500 mm Table width: 820 mm T-slot width: 18 mm Number of T-slots: 7 Distance between T-slot centers: 100 mm Height from machine base to table surface: 870 mm AUTOMATIC TOOL CHANGER Tool storage capacity (standard): 30 Tool storage capacity (optional): 48 Tool selection: Mazatrol memory random access type Tool shank: CAT-40 / MAS BT-40 Max. tool diameter with adjacent tools: 80 mm Max. tool diameter without adjacent tools: 130 mm Max. tool weight (with holder & taper pin): 8 kgf Max. total tool magazine weight: 150 kgf Max. tool length (from gauge line): 350 mm Tool change time (chip-to-chip): 4.7 s MACHINE DIMENSIONS Machine height (from floor): 3,355 mm Machine width: 4,250 mm Machine depth: 4,046 mm Machine weight: 14,000 kg OTHER Power supply voltage: AC380/400/415V ±10% Power supply frequency: 50/60 Hz ±1 Compressed air pressure: 0.5–0.9 MPa Compressed air capacity: 260 l/min Coolant tank capacity: 450 L STANDARD MACHINE EQUIPMENT – MAZAK GENERAL MACHINE OPTIONS Foundation kit (base bolts & plates) One set of adjusting tools Work area lighting Power transformer for European market USB I/F (1 port) MANUALS, DOCUMENTATION One set of documentation (CD) SPINDLE SPEED Spindle speed: 18,000 rpm (#40) MACHINE FRAME COLOR Mazak standard color (F white / S black) SAFETY, HEALTH Global safety measures Work area door interlock with locking switch Full machine enclosure Full-cover chip and coolant protection TOOL MAGAZINE 30-position tool magazine COOLING SYSTEMS Complete cooling system HIGH PERFORMANCE/HIGH PRESSURE COOLANT Through-spindle coolant (5 bar, 71 PSI) PRODUCTION AUTOMATION SYSTEMS Automatic ON/OFF + warm-up MEASURING SYSTEMS Automatic tool length measurement & tool breakage detection Hodsya Hngspfx Aqqep POSITIONING SYSTEM Absolute positioning system CHIP CONVEYOR Preparation for chip conveyor (left side) NC CONTROL UNIT – 15 Functions 19" color LCD (touch screen) 3-D coordinate conversion Position sensor B) Shape compensation for rotary axes EIA/ISO code input function (standard) Background tool path check LAN connection High smoothing control Mazak 2D software (shape compensation) Mazak 3D high-speed software package Mazak thread tapping / pre-tapping Tornado (Mazatrol) Mazatrol SmoothX CNC Movable control panel SD memory I/F (1 slot) + USB I/F (1 slot) Smooth standard software
