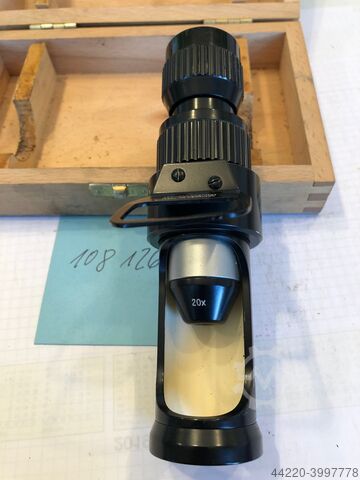

Used Centering Microscope for sale (14,421)

Condition: ready for operation (used), Year of construction: 2002, operating hours: 23,462 h, functionality: fully functional, travel distance X-axis: 800 mm, travel distance Y-axis: 650 mm, travel distance Z-axis: 500 mm, controller model: Heidenhain iTNC 530, spindle speed (max.): 20,000 rpm, The machine spindle was replaced in 2022. Since then, the machine has accumulated approximately 6,500 operating hours. TECHNICAL DETAILS Travel range X-axis: 800 mm Travel range Y-axis: 650 mm Travel range Z-axis: 500 mm Spindle speed range: 0–20,000 rpm Spindle speed control: stepless Tool interface: HSK 63 Magazine capacity: 30 Clamping area: 900 × 600 mm MACHINE DETAILS Fgjdpfxez Hwvdj Al Ujh Control system: Heidenhain iTNC 530 Dimensions & Weight Dimensions (L x W x H): 3,200 x 2,400 x 3,000 mm Weight: 10 t Operating Hours Machine operating hours: 54,796 h Spindle hours: 23,462 h EQUIPMENT Fixed angular table Vertical tool changer Full enclosure with sliding doors and interior lighting Electronic handwheel Tool measurement in the work area with BLUM laser 3D infrared probe Renishaw Chip conveyor Coolant system 4 height-adjustable machine feet Operating manuals

Condition: used, Year of construction: 2008, workpiece height (max.): 40 mm, controller model: PowerControl P85, working width: 1,550 mm, working length: 4,175 mm, TECHNICAL DETAILS Working area, X-axis: 4,175 mm Working area, Y-axis: 1,550 mm Maximum workpiece thickness: 40 mm Number of working areas: 2 Traverse speed, X-axis: 80 m/min Traverse speed, Y-axis: 80 m/min Traverse speed, Z-axis: 30 m/min Table system: Beam table with vacuum cups Number of vacuum cup beams: 8 Positioning: CNC-controlled Drilling unit Position: Top Vertical drilling spindles: 20 Horizontal drilling spindles in X-direction: 10 Milling unit Position: Top Controlled axes: 4 + Flex5 Motor power: 15 kW Cooling: Liquid cooling Tool changer: Automatic Sawing unit Position: Top Tool magazine: 2 slots Tool magazine 1: 18 slots Position of tool magazine 1: Rear of the machine Tool magazine 2: 10 slots Position of tool magazine 2: On the machining head MACHINE DETAILS Fgjdjz Ekfvopfx Al Ujh Control system: PowerControl P85 Machine programming software: WoodWOP 5.0 EQUIPMENT Beam table with vacuum cups 8 vacuum cup beams Vacuum pump Automatic tool changer Liquid cooling PowerControl P85 control system WoodWOP 5.0 machine programming software Note: Tools not included The machine will be sold and delivered in its actual and legal condition ("as is, where is") based on photographic documentation and technical/commercial documents of a descriptive nature. The buyer has the right to inspect the goods before collection and assumes responsibility for the installation, securing, and use of the machine at the destination. External reference: 7350

Condition: ready for operation (used), Year of construction: 2006, operating hours: 3,010 h, functionality: fully functional, travel distance X-axis: 1,000 mm, travel distance Y-axis: 530 mm, travel distance Z-axis: 510 mm, controller model: Fanuc Oi-MC, spindle speed (max.): 10,000 rpm, TECHNICAL DETAILS Travel range, X-axis: 1,000 mm Travel range, Y-axis: 530 mm Travel range, Z-axis: 510 mm Table length: 1,200 mm Table width: 510 mm Fodoz Ebb Uepfx Al Uegh Orientation: Horizontal Tool interface: ISO 40 Max. spindle speed: 10,000 rpm Tool positions: 24 MACHINE DETAILS Control: CNC Control system: Fanuc Oi-MC Number of axes: 3 Power: 11 kW Dimensions & Weight Dimensions (L x W x H): 2,850 x 2,150 x 2,300 mm Net weight: 6,000 kg Shipping packages: 3 Operating hours: 3,010 h EQUIPMENT Spindle cooling Documentation CE marking External cooling Tool magazine Chip conveyor Tools included

Condition: ready for operation (used), Year of construction: 2013, operating hours: 10,649 h, functionality: fully functional, machine/vehicle number: 101161, travel distance X-axis: 1,020 mm, travel distance Y-axis: 620 mm, travel distance Z-axis: 920 mm, controller model: Heidenhain iTNC 530, spindle speed (max.): 14,000 rpm, A new spindle was installed one year ago! TECHNICAL DETAILS Travel in X-axis: 1,020 mm Travel in Y-axis: 620 mm Travel in Z-axis: 920 mm Swivel range of B-axis: +30° to -120° Spindle speed range: 1–14,000 rpm Tool holder: SK 40 Tool magazine capacity: 40 Fodpsz Hwutsfx Al Ujgh Clamping surface of rotary table: 1,200 × 610 mm Diameter of rotary table: 500 mm MACHINE DETAILS CNC control: Heidenhain iTNC 530 Operating voltage: 400 V Frequency: 50 Hz Control voltage: 24 V Power: 75 kVA Rated current: 100 A Main fuse: 120 A Machine weight: 8,740 kg Operating hours (according to counter) Spindle running time: 10,649 h Program running time: 11,159 h Machine operating hours: 24,317 h Control operating hours: 26,901 h EQUIPMENT Fixed rotary table NC rotary table WALTER B-axis swivel head with torque drive Vertical tool changer 3D measuring probe Heidenhain Electronic handwheel Fixed full protective enclosure with interior lighting Internal cooling system Coolant system Oil mist extraction Chip conveyor Operating manual

Condition: ready for operation (used), Year of construction: 2013, functionality: fully functional, travel distance X-axis: 300 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 250 mm, controller manufacturer: MITSUBISHI, spindle speed (max.): 15,000 rpm, TECHNICAL DETAILS Travel range, X-axis: 300 mm Travel range, Y-axis: 250 mm Travel range, Z-axis: 250 mm Spindle speed range: 60–15,000 rpm Spindle speed control: stepless Tool changer: vertical Magazine capacity: 12 Tool interface: SK 30 Workpiece clamping area: 400 × 250 mm MACHINE DETAILS Control system: MITSUBISHI Jaw width: 100 mm EQUIPMENT Fixed angular table Dual-pallet changer 4 × Allmatic vices Various tool holders SK 30 Electronic handwheel Full-protection enclosure with sliding doors and interior lighting Coolant system with paper band filter Coolant system Fjdpfoz Hxb Ujx Al Usgh Two-color signal light Chip conveyor 6 × Machine feet Operating manuals

Condition: used, Year of construction: 2007, operating hours: 21,999 h, turning length: 170 mm, turning diameter: 140 mm, spindle speed (max.): 8,000 rpm, controller model: Mitsubishi Meldas, TECHNICAL DETAILS Turning diameter: 42 / 140 mm Turning length: 170 mm Spindle speed: 80–8,000 rpm C-axis: 0.001° Number of turrets: 2 Tool positions per turret: 12 Tool holder: VDI 20 Spindle speed for driven tools: 45–4,500 rpm Sub-spindle distance: 42 mm Spindle power: 1 kW Spindle speed: 60–6,000 rpm Fgedpsz Ia Rgefx Al Uoh C-axis: 0.001° MACHINE DETAILS Control system: Mitsubishi Meldas Number of controlled axes: 8 Simultaneously machinable axes: 7 Collet chuck: 48 DIN 6343 Dimensions & Weight Footprint: approx. 2.4 × 1.6 × 2.2 m Machine weight: approx. 3.3 t Operating hours: 21,999 h EQUIPMENT Various tool holders, see images 5 axial driven tool holders Collet chuck for pressure collets, type 173E 15 pressure collets, type 173E Additional coolant cooler Chip conveyor Knoll, year of manufacture 2018 Simultaneous operation with 7 axes on main and sub-spindle Note: Complete battery replacement on 22.12.2025

Condition: good (used), Zeiss Primovert Inverted Microscope (Serial Number: 3841010097) Fsdpfx Ajzhidrel Uogh WF 10x/20 eyepieces Zeiss Primo Plan-Achromat 4x/0.10 objective Zeiss Primo Plan-Achromat 10x/0.25 Ph1 objective Zeiss Primo Plan-Achromat 20x/0.30 Ph1 objective Zeiss Primo Plan-Achromat 40x/0.50 Ph1 objective Ph1 / 0.3 phase slider Dust cover

Condition: ready for operation (used), Year of construction: 2000, operating hours: 28,027 h, functionality: fully functional, travel distance X-axis: 800 mm, travel distance Y-axis: 700 mm, travel distance Z-axis: 600 mm, controller model: Heidenhain Mill Plus, spindle speed (max.): 18,000 rpm, No minimum price – guaranteed sale to the highest bidder! Vertical machining center with a virtually new spindle (the machine received a new spindle after 23,919 operating hours)! TECHNICAL DETAILS Travel in X-axis: 800 mm Travel in Y-axis: 700 mm Travel in Z-axis: 600 mm Spindle Spindle speed: 18,000 rpm Tool holder: HSK 63 MACHINE DETAILS Internal coolant supply: 40 bar Control system Control system manufacturer: Heidenhain Control system model: Mill Plus Fgjdez Hu Sijpfx Al Uoh Spindle operating hours: 28,027 h Spindle replacement at: 23,919 h EQUIPMENT NC rotary table with C-axis NC swiveling head FD function (free-form machining) Pallet changer Infrared measuring probe for workpiece measurement Additional magazine with 120 positions

Condition: used, Year of construction: 2008, number of axes: 3, working width: 1,300 mm, working length: 3,200 mm, TECHNICAL DETAILS Working area, X-axis: 3,200 mm Working area, Y-axis: 1,300 mm Number of controlled axes: 3 Total number of drilling spindles: 36 Tool change stations: 10 MACHINE DETAILS Power of main electric spindle: 11 kW Fgsdpfx Aljz Ekche Ush EQUIPMENT Type of machining: Drilling and milling The machine is sold and delivered in its actual and legal condition (“as is, where is”) based on photographic documentation and technical/commercial documents with a descriptive nature. The buyer has the right to inspect the goods before collection and assumes responsibility for the installation, securing, and use of the machine at the destination. External reference: 7468

Condition: used, Year of construction: 2010, controller model: PC85, working width: 1,750 mm, milling spindle speed (max.): 24,000 rpm, working length: 6,000 mm, TECHNICAL DETAILS Machining method: Drilling and milling Number of work areas: 2 Work area X-axis: 6,000 mm Work area Y-axis: 1,750 mm Number of controlled axes: 5 Travel speed X-axis: 80 m/min Travel speed Y-axis: 80 m/min Travel speed Z-axis: 30 m/min Table system: Console work table with vacuum cups Number of vacuum consoles: 10 CNC positioning: Yes Vacuum cups for workpiece clamping: Yes Number of vacuum cups: 40 Drilling unit Number of drilling units: 1 Position of drilling unit: Top Vertical drilling spindles: 20 Horizontal drilling spindles, X-direction: 5 Horizontal drilling spindles, Y-direction: 5 Total drilling spindles: 30 Milling unit Number of milling units: 1 Position of milling unit: Top Controlled axes: 5 Motor power: 12 kW Speed: 24,000 rpm Liquid cooling: Yes Automatic tool changer: Yes Number of tool magazines: 1 Tool positions: 72 MACHINE DETAILS Control: PC85 Programming software: WoodWOP 5.0 Vacuum pumps: 2 Individual output per vacuum pump: 250 m³/h Fgedpfx Alez Ekb Dj Ujh Total connected power: 49 kW EQUIPMENT Console work table with vacuum cups 10 vacuum consoles with CNC positioning 40 vacuum cups for workpiece clamping 2 vacuum pumps Top drilling unit with 30 drilling spindles Top 5-axis milling unit with 12 kW electric motor spindle Liquid cooling Automatic tool changer Tool magazine with 72 tool positions PC85 control WoodWOP 5.0 programming software Automatic chip extraction Safety mats on the front of the machine Safety sensors Fixed safety guards CE conformity The machine is sold and delivered in its actual and legal condition ("as is, where is") based on photo documentation and technical/commercial documents of a descriptive nature. The buyer has the right to inspect the goods before collection and assumes responsibility for the installation, securing, and use of the machine at the destination. External reference: 8167

Condition: used, Year of construction: 2006, number of axes: 3, working width: 1,250 mm, working length: 3,100 mm, TECHNICAL DETAILS Working area, X-axis: 3,100 mm Working area, Y-axis: 1,250 mm Max. panel thickness: 85 mm Number of controlled axes: 3 Drilling unit Number of drilling units: 1 Position of drilling unit: top Vertical drilling spindles: 7 Horizontal drilling spindles, X-direction: 2 Horizontal drilling spindles, Y-direction: 2 Total number of vertical and horizontal drilling spindles: 11 Milling unit Number of milling spindles: 1 Position of milling spindle: top Controlled axes: 3 Motor power: 9 kW Automatic tool changer: yes Grooving unit Number of grooving units: 1 Position of grooving unit: top Swivel positions: 0° / 90° Number of tool magazines: 1 Tool positions: 8 Position of tool magazine: machine side Fgsdpfx Aoz En Afsl Ujh Number of work tables: 1 Table width: 3,100 mm Table length: 1,250 mm Table material: phenolic resin MACHINE DETAILS Number of vacuum pumps: 1 Suction capacity per pump: 250 m³/h Control system: PC Control Programming software: WoodWOP 5.0 EQUIPMENT Flat table design Nesting work table Vacuum pump Automatic tool changer Tool magazine positioned on the side Safety light barriers CE marking The machine is sold and delivered in its actual and legal condition ("as is, where is") based on photo documentation and technical/commercial documents with a descriptive nature. The buyer has the right to inspect the goods before collection and assumes responsibility for the installation, securing, and use of the machine at the destination. External reference: 6279

Condition: ready for operation (used), Year of construction: 2004, operating hours: 19,357 h, functionality: fully functional, travel distance X-axis: 1,600 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 400 mm, controller model: Siemens Sinumerik 810D, spindle speed (max.): 9,000 rpm, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Number of axes: 4 Travel in X-axis: 1,600 mm Travel in Y-axis: 400 mm Travel in Z-axis: 400 mm A-axis: 360° × 0.001° A-axis speed: 20 rpm Spindle speed: 0–9,000 rpm Speed control: stepless Tool interface: DIN 69871 SK40 Working feed rate: 5–28,000 mm/min Rapid traverse rate X/Y/Z-axis: 28,000 mm/min Table design: Bridge table with 4 sides Table length: 1,800 mm Table width: 113 mm Table load capacity: approx. 150 kg Magazine design: Chain magazine Magazine capacity: 44 Max. tool diameter: approx. 70 mm Max. tool diameter with free adjacent positions: approx. 200 mm Max. tool length: approx. 240 mm Max. tool weight: 5 kg Max. total weight of tool magazine: approx. 200 kg Tool change time: approx. 8 s MACHINE DETAILS Control system: Siemens Sinumerik 810D Total power consumption: 14 kW Dimensions & Weight Dimensions (L x W): approx. 6,500 x 3,500 mm Machine weight: approx. 9,000 kg Operating hours: 19,357 h EQUIPMENT Second milling spindle Exchangeable milling spindle Coolant system (coolant tank: approx. 480 l) Internal cooling Fedpfoz Izdhox Al Ujgh External cooling Clefil RBF-E100 unit (coolant pressure: 20 bar) Clamping system Hydraulic clamping options in the machining area Pneumatic clamping options in the machining area Römheld hydraulic unit (max. hydraulic pressure: 500 bar) Additional equipment Chip conveyor Coolant nozzle in the machining area Enclosed work area enclosure according to UVV Automatic measuring probe RWP20.00 Various SK40 tool interfaces Technical documentation Layout plan

Condition: ready for operation (used), Year of construction: 2010, functionality: fully functional, travel distance X-axis: 500 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 500 mm, controller model: Fanuc Series 18-M, spindle speed (max.): 10,000 rpm, TECHNICAL DETAILS Travel range, X-axis: 500 mm Travel range, Y-axis: 500 mm Travel range, Z-axis: 500 mm Rapid traverse rate, X-axis: 30,000 mm/min Rapid traverse rate, Y-axis: 30,000 mm/min Rapid traverse rate, Z-axis: 30,000 mm/min Table length: 650 mm Table width: 500 mm Spindle speed: 10,000 rpm Speed ranges: 2 Spindle interface: ISO 40 Tool positions: 30 Tool selection: Random Fedpjz Ir Iwjfx Al Uogh MACHINE DETAILS Control system: Fanuc Series 18-M Coolant pressure: 20 bar Dimensions & Weight Dimensions (L x W x H): 3,140 x 2,090 x 2,900 mm Weight: 7,000 kg

Condition: ready for operation (used), Year of construction: 2000, operating hours: 23,574 h, functionality: fully functional, travel distance X-axis: 600 mm, travel distance Y-axis: 560 mm, travel distance Z-axis: 560 mm, controller model: Siemens Sinumerik 840D, spindle speed (max.): 8,000 rpm, No minimum price – guaranteed sale to the highest bidder! The following components of the machine have been renewed: Motor and pump of the hydraulic system Hydraulic and pneumatic hoses (partially) Control cabinet LT module replaced Drum of the Knoll system TECHNICAL DETAILS Travel range X-axis: 600 mm Travel range Y-axis: 560 mm Travel range Z-axis: 560 mm B-axis: 360 x 0.001 (60 rpm) Spindle speed: 8,000 rpm Table size: 6 pallets, each 500 x 400 mm Fodpoz Izavsfx Al Ujgh Table width: 400 mm Table length: 500 mm Table load capacity: 350 kg Working feed rate: 1 - 60,000 mm/min Rapid traverse: 60 m/min MACHINE DETAILS Control model: Siemens Sinumerik 840D Overall length: 7,000 mm Overall width: 5,000 mm Coolant supply: 50 bar Coolant system: approx. 1,100 L Motor power: 13 kW / 20 kW Torque: 124 / 191 Nm Total power consumption: 20 kW Dimensions & Weight Space requirement (L x W): 7 x 5 m Machine weight: approx. 16,000 kg Operating hours Power-on counter: approx. 48,804 h Spindle running time: 23,574 h total EQUIPMENT Documentation/manual Speed infinitely adjustable Chip conveyor Knoll cooling unit with drum filter (30/40/50 bar via M-command) Tool measurement: Renishaw measuring probe Tool breakage monitoring in the machining area Pallet storage space (4 places) Pallet sequence operation Enclosed work area enclosure according to UVV Network capability Technical documents & layout plan

Condition: used, Year of construction: 2006, number of axes: 3, working width: 2,040 mm, working length: 3,680 mm, TECHNICAL DETAILS MACHINING PROCESS Fjdpoz Enz Usfx Al Usgh Machining process: Drilling and milling WORKING AREA X-axis working area: 3,680 mm Y-axis working area: 2,040 mm Number of working areas: 2 Number of controlled axes: 3 WORKTABLE Table type: Flat table / Nesting table Number of tables: 1 Table width: 3,680 mm Table length: 2,040 mm Table material: Aluminum DRILLING UNIT Number of drilling units: 1 Position of drilling unit: top Vertical drilling spindles: 7 Horizontal drilling spindles, X-axis: 2 Horizontal drilling spindles, Y-axis: 2 Total number of drilling spindles: 11 MILLING SPINDLE Number of milling spindles: 1 Position of milling spindle: top Controlled axes: 3 Motor power: 13 kW Speed: 24,000 rpm Automatic tool changer: yes TOOL MAGAZINE Number of tool magazines: 1 Tool slots: 12 Tool magazine: positioned at the head VACUUM SYSTEM Number of vacuum pumps: 1 Suction capacity: 250 m³/h CONTROL AND SOFTWARE Control: PC-based control Programming software: Xylog Plus MACHINE DETAILS MAIN DRIVE Power of main electric spindle: 13 kW SAFETY CE marking: yes Protective guard: permanently mounted on the machine Safety system: front safety mats EQUIPMENT Aluminum nesting table Suction cups for workpiece clamping Vacuum pump Drilling unit with 11 drilling spindles Milling spindle with automatic tool changer Tool magazine with 12 tool slots PC-based control Programming software Xylog Plus Protective guard permanently mounted on the machine Front safety mats

Condition: ready for operation (used), Year of construction: 2000, functionality: fully functional, travel distance X-axis: 1,100 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 640 mm, controller model: SIEMENS 840 D, spindle speed (max.): 10,000 rpm, TECHNICAL DETAILS Travel range, X-axis: 1,100 mm Travel range, Y-axis: 500 mm Travel range, Z-axis: 640 mm Number of pallets: 2 Table size: 2 × 1,000 × 450 mm Table load capacity: 600 kg Spindle speed range: 50–10,000 rpm Drive power: 18.5 kW Tool interface: DIN 69871 / ISO 40 Feed rate range X/Y/Z: up to 10,000 mm/min Rapid traverse rate in all axes: 30 m/min MACHINE DETAILS CNC path control: SIEMENS 840 D Number of tool positions: 30 Machine dimensions & weight Machine dimensions L × W × H: approx. 3,605 × 3,041 × 3,220 mm Machine weight: approx. 6,700 kg EQUIPMENT 2-position pallet changer 30-position tool changer Internal coolant supply (ICS) Full enclosure with electrically interlocked safety doors Linear guides with double roller recirculating bearing for even absorption of high torques in all directions Ball screws in all 3 axes Fjdpfxjz Ibb To Al Usgh Machine bed made of Meehanite cast iron for high precision, rigidity, and vibration damping Swivel chip conveyor with integrated coolant system Preparation for 4th axis CE compliant

Condition: ready for operation (used), Year of construction: 2000, functionality: fully functional, travel distance X-axis: 800 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 500 mm, controller model: Heidenhain TNC 410, rotational speed (max.): 10,000 rpm, TECHNICAL DETAILS Travel range, X-axis: 800 mm Travel range, Y-axis: 500 mm Travel range, Z-axis: 500 mm Spindle speed range: 0–10,000 rpm Spindle speed control: stepless Fsdpfxjz Hxcls Al Uegh Tool holder: SK 40 Magazine capacity: 20 MACHINE DETAILS Control system: Heidenhain TNC 410 Workpiece clamping area: 1,000 × 500 mm EQUIPMENT Fixed angular table Vertical tool changer Full enclosure with sliding doors and interior lighting Various SK 40 tool holders Electronic handwheel Coolant system with high-performance pump Coolant pressure: 20 bar Chip conveyor Operating manual

Condition: like new (used), Year of construction: 2019, operating hours: 2,557 h, functionality: fully functional, travel distance X-axis: 1,270 mm, travel distance Y-axis: 508 mm, travel distance Z-axis: 635 mm, feed rate X-axis: 25 m/min, feed rate Y-axis: 25 m/min, feed rate Z-axis: 25 m/min, controller manufacturer: HAAS, controller model: CNC Control, total height: 3,096 mm, total length: 3,832 mm, total width: 3,402 mm, table width: 473 mm, table length: 1,321 mm, table load: 1,500 kg, overall weight: 6,500 kg, spindle speed (max.): 8,000 rpm, operating hours of spindle: 2,557 h, spindle nose: BT40, number of spindles: 1, number of slots in tool magazine: 20, input voltage: 400 V, Equipment: chip conveyor, documentation/manual, The machine is in excellent condition and has only 2557 spindle hours, and it is very well-equipped! This HAAS VF-4 is equipped with: - Chip conveyor - Renishaw OTS tool probe - Renishaw (HAAS 40-2) 3D probe - Programmable coolant nozzle - Mechanical preparation for a 4th axis - Approx. 25 tool holders incl. tools - Machine vise Fodpfxjz Nfirs Al Ujgh - Coolant gun - 3 Renishaw probe styli - Coolant tank - Original documentation.

Condition: ready for operation (used), Year of construction: 2005, operating hours: 3,648 h, functionality: fully functional, travel distance X-axis: 625 mm, travel distance Y-axis: 650 mm, travel distance Z-axis: 650 mm, controller model: Siemens Sinumerik 840D, spindle speed (max.): 10,000 rpm, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Travel range X-axis: 625 mm Travel range Y-axis: 650 mm Travel range Z-axis: 650 mm B-axis swivel range: 360° B-axis resolution: 0.001° B-axis speed: 100 rpm Spindle speed: 50–10,000 rpm Spindle power: 24 / 37 kW Spindle torque: 250 / 350 Nm Spindle operating hours: 3,648 h Tool interface: HSK-A63 according to DIN 69893 Number of pallets: 2 Pallet size: 500 × 400 mm Pallet load capacity: 400 kg Pallet change time: 8 / 5 s T-slots: according to DIN 55201 Magazine capacity: 60 Max. tool diameter: 80 mm Max. tool diameter with free adjacent slots: 160 mm Max. tool length: 350 mm Max. tool weight: 10 kg Max. total weight of tools: 200 kg Fgjdpfsz Izc Rjx Al Uoh MACHINE DETAILS Control system: Siemens Sinumerik 840D Coolant tank volume: approx. 1,100 l Coolant pressure: 50 bar Dimensions & Weight Dimensions (L x W): 5,800 x 4,800 mm Machine weight: 12,800 kg Total automatic operation: 32,099 h Total operating hours: 20,326 h Spindle hours: 3,648 h EQUIPMENT Pallet changer Chain magazine with 60 tool positions Knoll coolant unit with filter fleece Emulsion cooling inside and outside Renishaw measuring probe Tool breakage monitoring in the magazine Chip conveyor Sound enclosure Paper band filter Rinsing gun at the setup station Closed work area enclosure according to UVV Pallet sequence operation Network connection Ethernet interface Technical documentation Layout plan

Condition: like new (used), Year of construction: 2021, functionality: fully functional, travel distance X-axis: 730 mm, travel distance Y-axis: 450 mm, travel distance Z-axis: 470 mm, controller manufacturer: Mazatrol, controller model: SmoothX, workpiece height (max.): 320 mm, workpiece diameter (max.): 500 mm, workpiece weight (max.): 200 kg, total height: 2,933 mm, total length: 3,650 mm, total width: 2,984 mm, overall weight: 6,800 kg, spindle speed (max.): 18,000 rpm, operating hours of spindle: 1,114 h, coolant supply: 70 bar, spindle motor power: 15 W, number of spindles: 1, number of slots in tool magazine: 48, Equipment: chip conveyor, documentation/manual, We are pleased to offer this well-maintained CNC 5-axis vertical machining centre. It is a Mazak CV5-500 from fitted with the Mazatrol Smooth X control system. The machine is in a like new condition with 1114 spindlehours. Fsdpfxjz Ndxkj Al Usgh Technical specifications: Table dimensions: Ø 500 mm Number of pallets: 1 Max. workpiece dimensions: 500 x 320 mm Max. workpiece weight: 200 kg X-axis travel: 730 mm Y-axis travel: 450 mm Z-axis travel: 470 mm C-axis (work table rotation): 360° B-axis travel: ±110 (220) ° Spindle speed: 18,000 rpm Spindle mount: HSK A-63 Spindle motor: 15/11 kW Number of positions in tool magazine: 48 We realise that you may wish to receive further information or view the machine. In that case, please contact us, providing your company details so that we can get in touch with you. About Mamach Machinehandel: With over 40 years’ experience in the CNC machinery sector, we are now one of Europe’s leading suppliers of metalworking machinery. Our success is based on high quality, customer-focused service and a strong international network. Discover our wide range of used CNC lathes and machining centres – we’d be happy to advise you personally!

Condition: ready for operation (used), Year of construction: 2015, operating hours: 8,950 h, functionality: fully functional, travel distance X-axis: 762 mm, travel distance Y-axis: 406 mm, travel distance Z-axis: 508 mm, feed rate X-axis: 36 m/min, feed rate Y-axis: 36 m/min, feed rate Z-axis: 36 m/min, controller manufacturer: HAAS, controller model: CNC Control, workpiece weight (max.): 680 kg, total height: 2,570 mm, total length: 2,570 mm, total width: 2,510 mm, table width: 356 mm, table length: 914 mm, table load: 680 kg, overall weight: 3,600 kg, spindle speed (max.): 12,000 rpm, operating hours of spindle: 8,950 h, spindle nose: CAT 40 / BT40, number of spindles: 1, number of slots in tool magazine: 24, Equipment: chip conveyor, documentation/manual, The Haas VF-2SS is a compact, high-speed 3-axis vertical CNC machining center. The “SS” stands for Super-Speed. This machine is installed and operational at our location and can be inspected while running! This HAAS VF-2 SS is equipped with: - SS (Super Speed) version. - 24-tool magazine. - Internal cooling (IKZ). - Chip conveyor. - Renishaw OTS tool probe. Fgedpfxoz Nhphj Al Ueh - Renishaw OMP40-2 3D probe. - Programmable coolant nozzle. - Air blow gun. - Coolant tank. - Original documentation.

Condition: ready for operation (used), Year of construction: 2015, operating hours: 8,995 h, functionality: fully functional, travel distance X-axis: 850 mm, travel distance Y-axis: 700 mm, travel distance Z-axis: 500 mm, feed rate X-axis: 35 m/min, feed rate Y-axis: 35 m/min, feed rate Z-axis: 35 m/min, controller manufacturer: Heidenhain, controller model: iTNC530 (HSCI), workpiece weight (max.): 600 kg, total height: 3,000 mm, total length: 4,500 mm, total width: 4,500 mm, table width: 65 mm, table length: 650 mm, table load: 600 kg, rotary table diameter: 650 mm, overall weight: 10,000 kg, spindle speed (max.): 15,000 rpm, operating hours of spindle: 8,995 h, coolant supply: 40 bar, spindle motor power: 15,000 W, spindle nose: HSK-A63, number of spindles: 1, number of slots in tool magazine: 38, input voltage: 400 V, Equipment: chip conveyor, documentation/manual, The HERMLE C 400 U is a high-quality 5-axis CNC machining center, designed for precise and efficient machining. With a working area of 850 × 700 × 500 mm and a Ø650 mm swiveling/rotating table, this machine offers ample space for both complex and larger workpieces. The machine is installed and operational at our facility and can therefore be inspected while running! Additional options & accessories: Fgedpfx Alsz Nluus Ujh - Chip conveyor - 40 bar internal cooling (IKZ) - Band filter system incl. 2 new rolls of filter paper. - BLUM LaserControl NT measuring system for tools. - Heidenhain TS 460 3D probe - Electronic handwheel - Tool cabinet incl. approx. 100 pcs. HSK-A63 tool holders, collets and accessories. - 2 pcs. All-Matic machine clamp - Heidenhain reference pin - Manual cabinet roof - Original HERMLE + Heidenhain documentation. Weight & dimensions: approx. 10,000 kg approx. 4.5 x 4.5 x 3 m

Condition: good (used), Year of construction: 2004, functionality: fully functional, machine/vehicle number: 665001, travel distance X-axis: 700 mm, travel distance Y-axis: 550 mm, travel distance Z-axis: 450 mm, feed rate X-axis: 30 m/min, feed rate Y-axis: 30 m/min, feed rate Z-axis: 30 m/min, workpiece weight (max.): 2,000 kg, total height: 2,300 mm, total length: 3,300 mm, total width: 2,300 mm, table width: 700 mm, table length: 850 mm, table load: 2,000 kg, overall weight: 7,700 kg, spindle speed (min.): 3,000 rpm, spindle speed (max.): 40,000 rpm, number of slots in tool magazine: 40, Equipment: documentation/manual, OPS INGERSOLL OPS 650 CNC machining center - Table T-slot quantity: 5 - T-slot dimensions: 18H12 - Distance HSK tool holder - table: 550 mm - Main spindle tool holder: HSK-E 40 - Positioning accuracy TP according to DIN ISO 230-2: 0.005 mm - Repeatability: 0.002 mm - For further technical data, see the photographed data sheet - Including technical documentation - Including workbench and accessories such as HSK-E 40 tool holders, equipped with tools - Workbench dimensions: approx. 1500 x 900 x 1100 mm Fsdpfxoy Tu Dds Al Uegh Attention: The item must be collected between July 21 and July 23, 2026, on a date to be determined. FCA D-73529 Schwäbisch Gmünd - loaded onto a truck.

Condition: ready for operation (used), Year of construction: 2011, operating hours: 12,214 h, functionality: fully functional, machine/vehicle number: 111146, travel distance X-axis: 1,100 mm, travel distance Y-axis: 610 mm, travel distance Z-axis: 610 mm, controller model: Heidenhain 530, spindle speed (max.): 10,000 rpm, Equipment: chip conveyor, TECHNICAL DETAILS Travel range, X-axis: 1,100 mm Travel range, Y-axis: 610 mm Travel range, Z-axis: 610 mm Spindle nose – table: 120–730 mm Table size: 1,250 × 610 mm T-slots in table: 5 T-slot width: 18 mm T-slot spacing: 100 mm Speed: 60–10,000 rpm Torque: 332 Nm Power: 13 kW (40 %) Rapid traverse rate X/Y/Z: 32 m/min Feed rate: 1–12,000 mm/min Positioning accuracy: ±0.005 mm Repeatability: ±0.003 mm Tool holder: SK40 Pull stud: DIN 69871/72 Tool changer: 30 stations Tool change time: 1.5 s Tool weight: max. 7 kg Tool diameter: max. 76 mm Tool diameter with free magazine slot: max. 140 mm Tool length: max. 300 mm MACHINE DETAILS Control system: Heidenhain 530 Central lubrication: R68 (ISO 68) Hydraulic oil: R32 (ISO 32) Compressed air: 3/8″, 6–8 bar Power supply: 400 V / 75 A / 35 kVA Coolant tank: 250 l Guideways X/Y/Z: 45/45/45 mm Machine weight: 7,500 kg Internal cooling (IKZ): 22 bar Program runtime: 12,214 h Spindle hours: 14,123 h Machine operating hours: 39,242 h Control system operating hours: 34,987 h EQUIPMENT Chip conveyor Electronic handwheel Internal cooling (IKZ) 22 bar Fedoz Im Tnspfx Al Uogh Oil-cooled spindle Linear guideways X/Y/Z Machine bed made of cast iron Note: Machine is sold without tools and vise.

Condition: like new (used), Year of construction: 2006, operating hours: 671 h, functionality: fully functional, total height: 2,992 mm, total length: 3,980 mm, total width: 2,580 mm, overall weight: 8,500 kg, operating hours of spindle: 671 h, number of slots in tool magazine: 48, input voltage: 400 V, type of input current: three-phase, Equipment: chip conveyor, documentation/manual, We offer this as new Quaser MV154 APC/P vertical machining center, year of construction 2006. The machine has 9039 power-on hours, but only 671 spindle-hours, this has been confirmed in the parameters aswell. The machine has seen very little usage. When i bought this machine the linear guides for the X & Y axis was worn out as they had not been lubricated properly and with the incorrect grease. These have been swapped for brand new ones, aswell as most of the air and coolant hoses. All the lubricating lines for the X & Y guides and ballscrews have also been renewed. There are some tools in the 48 tool magazine aswell. It also has a 3D Taster. The chip conveyor also has new bearings and seals. Two Hilma vices could also come with the machine. I have done a ballbar test and checked the machine to be in great working order. Fgjdjzxz Dfepfx Al Ujh The size of the machine also makes transportation easy, as it will fit inside a standard curtain semitrailer. If you have any questions or need more information, feel free to send us a message or give us a call.
