Used Cylindrical Grinding Cnc for sale (12,455)

Condition: good (used), Year of construction: 2013, TOYODA (JTEKT) GL32M-63 CNC UNIVERSAL CYLINDRICAL GRINDER Equipped with: CBN Grinding Wheel Flagging Steady Rest Workhead Mounted Rotary Dresser Marposs P3SE System Monitoring Toyoda In Process Gaging Marposs E20N Acoustic Controller Air Gap Eliminator Workpiece Collision Control Coolant Pumps W/Magnetic Separator Pendant Control RH Workhead with Center LH Workhead with Center Work Rests Worklight Light Curtains Stacklight Extra Wheels Specifications: -Grind Center to Floor: 1,000 mm -Swing Over Table: 320 mm -Distance Between Centers: 630 mm -Grinding Diameter Range: 10 - 150 mm -Floor Space (Base machine w/auxiliary equipment): 3,400 x 5,000 mm -Net Machine Mass (approx.): 10,500 kg Grinding Wheel: -Type: CBN Wheel -Wheel Size (OD): 350 mm -Maximum Wheel Width: 60 mm -Surface Speed: 120 m/s Wheelhead: -Spindle Bearing: TOYODA STAT Bearing -Slide: V and Flat -Feed System: Ballscrew -Rapid Feed (on diameter): 30 m/min -Minimum Incsrement (on diameter): 0.0001 mm Workhead: -Type: Dead Spindle Iiodpfxjrtrzpe Ac Eji -Work Speed (Max): 500 rpm -Center Taper: MT #4 Footstock: -Type: Hydraulic -Taper Compensation: Manual -Maximum Center Retraction: 60 mm -Center Taper: MT #4 Motors: -Wheel Drive Motor: 15 kW, Belt-Drive -Wheelhead Feed Servomotor: 1.3 kW Tank Capacities: -Wheel Spindle Lubrication Oil: 80 L -Hydraulic/Lubrication Oil: 20 L

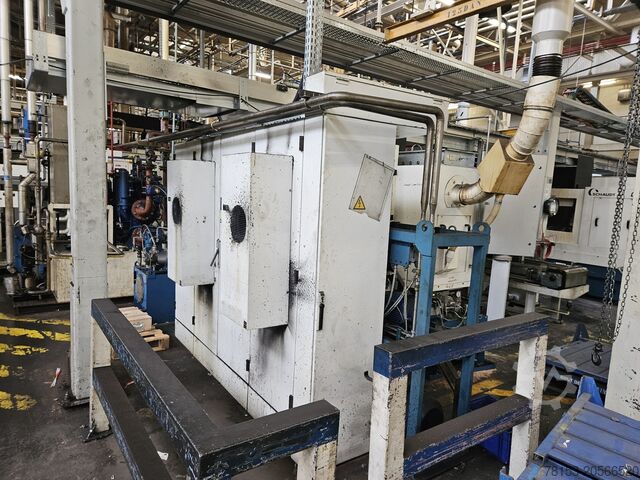

Condition: used, Year of construction: 2000, machine/vehicle number: 120138, center height: 180 mm, Schaudt CF 41 CBN 600 D CNC Grinder Iedpoxxyt Eofx Ac Eoii Center height 180mm, dia 200 x 600mm, one grinding slide / travel 150mm, CNC SIEMENS SINUMERIK 840D, LxWxH, ca. 3 x 2 x 2m, weight, ca. 6,5to

Condition: excellent (used), Year of construction: 2003, Universal cylindrical grinding machine with internal grinding attachment Year of manufacture: 1991, geometrically overhauled in 2003 Technical data: Table: Centre height: 180 mm Max. grinding diameter: 360 mm Between centers: 1500 mm Max. automatic table travel: 1580 mm Hydr. table speed: 0 – 3000 mm/min Iiedpfxjxama Uj Ac Eji Max. table swiveling range: ± 5° Workpiece headstock: Workpiece spindle speeds: 30 – 300 rpm Workpiece spindle taper: MT 5 Tailstock taper: MT 4 Max. swiveling range: 90° Grinding spindle head: Spindle speeds: 1450 – 1600 rpm Grinding wheel diameter/bore: 450 x 127 mm Min. / max. grinding wheel width: 20 - 50 mm Max. swiveling range: 90° Min. automatic grinding head infeed: 0.005 mm Internal grinding attachment: Spindle speed: 17,000 rpm Spindle diameter: 60 mm Min. / max. grinding diameter: 18 - 100 mm Max. grinding depth at large diameter: 130 mm Motor power: Grinding spindle head: 5.5 HP Internal grinding attachment: 1 HP Dimensions and weight: Machine dimensions L x W x H: 4200 x 1400 x 1500 mm Machine weight: 3300 kg Accessories / Special features: • Manual or automatic operation • Internal grinding attachment • 3-jaw chuck • 1 fixed steady rest • Wheel dresser • 2 additional grinding wheel flanges • Balancing arbor • Wet grinding attachment The hydraulic table cylinder has just been newly sealed. Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel

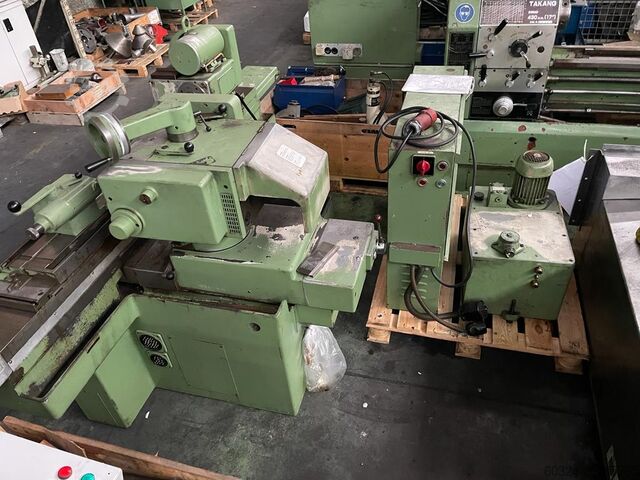

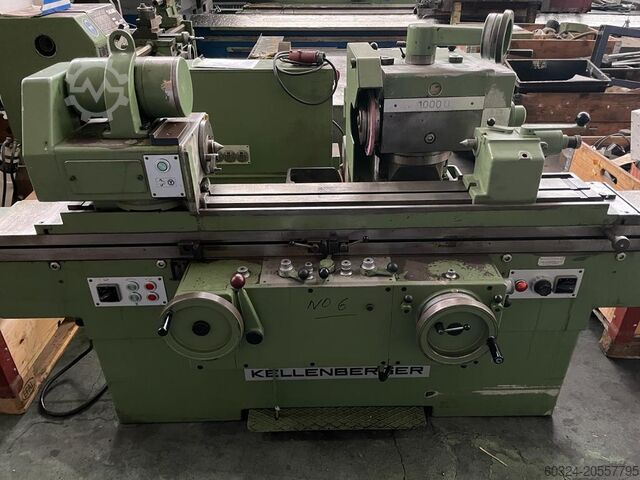

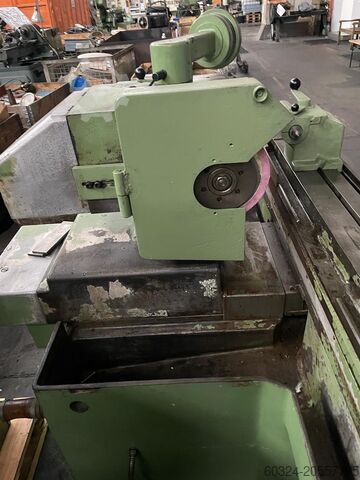

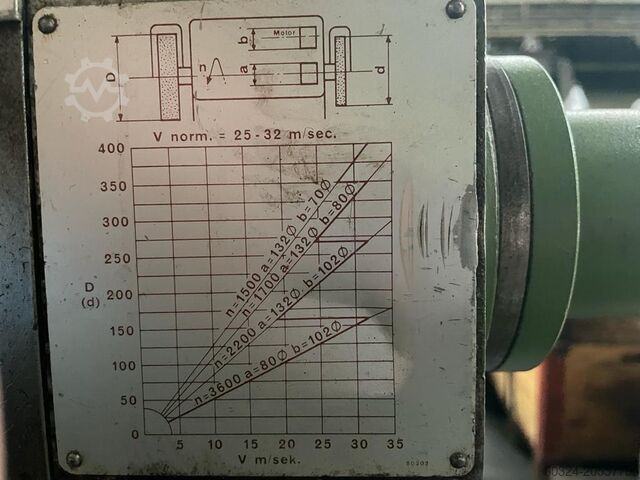

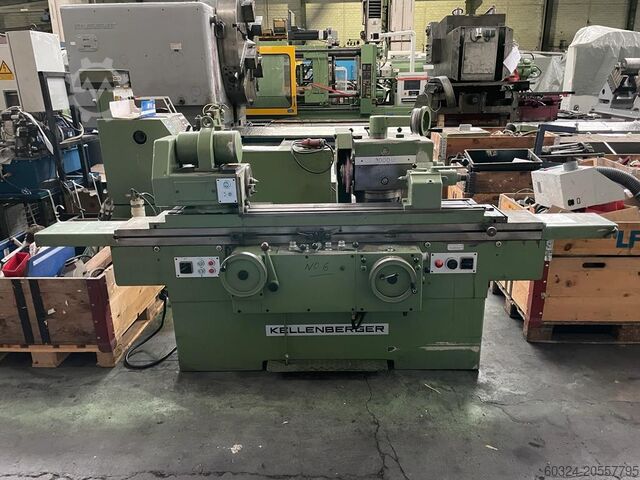

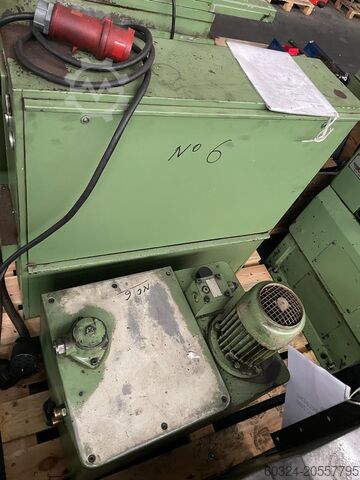

Condition: good (used), Year of construction: 1974, Ref. -No.: 10159 Manufacturer: KELLENBERGER Type: 1000 U Year of construction: 1974 Storage location: Halberstadt Ijdpsxxn Udefx Ac Ejii Country of origin: Schweiz Grinding Length: 1000 mm Grinding Diameter: 250 mm

Year of construction: 2002, condition: ready for operation (used), General Data Machine weight 11000 kg Control Unit Brand FANUC Main Drive Number of axis 2 Spindle motor power 24 kW This JUNKER jucam 5002/51 cylindrical grinding machine was manufactured in 2002. It features a FANUC control system, MARPOSS verification, and a robust 24 kW main drive motor. Capable of grinding lengths up to 1000 mm and diameters up to 280 mm, it supports workpieces from 20 to 80 mm. Weighing 11,000 kg, it ensures stability and precision. Contact us for more information about this machine. Application Types Grinding Iedpfx Aexwqtyoc Esii

Condition: like new (used), Year of construction: 2021, operating hours: 7,500 h, functionality: limited functionality, FOR SALE Grinding Machine Brand: STUDER Model: S 110 Year: 2021 CNC FANUC Iedpfoxwbdpox Ac Eeii

Condition: good (used), Year of construction: 2008, functionality: fully functional, Technical details grinding length 2000 mm grinding width 850 mm distance spindle center to table 900 mm control Siemens 840 D total power requirement 155 kVA weight of the machine ca. 15 t dimensions of the machine ca. 8815 x 4185 x 2963 mm Additional information CNC Precision Surface and Profile Grinding Machine Technical Specifications: Grinding length 2000 mm Grinding width 850 mm Travel, transverse 750 mm Distance from table to spindle center 900 mm (or 800 mm with intermediate plate) Magnetic plate size 2000 x 700 mm Table load without magnet 3500 kg Table speed 60 m/min. Spindle drive 26 kW Grinding wheel dimensions 500 x 150 x 203.2 mm Grinding wheel peripheral speed 35 m/s Equipment: 3-axis contouring control Siemens 840 D Grinding programs: Full-cut grinding Face grinding Plunge grinding Path grinding X/Y-axis and Y-Z-axis Profile grinding Automatic program sequence with roughing, finishing, fine finishing Iijdpjxwvfhjfx Ac Eei and spark-out grinding. Multiple plunge grinding for economical production Surface grinding with continuous, continuously programmable cross feed Grinding wheel calibration Plunge/step grinding Face grinding Dressing in the grinding cycle with lift-off amount Fully automatic compensation of dressing amounts Tool management AC servo drives with ball screw and absolute measuring system in the X, Y, and Z axes Preloaded precision roller guides in the X, Y, and Z axes with linear guides Portable electronic handwheel Automatic belt filter system Coolant heating Electro-permanent magnetic chuck Fully enclosed Direct measuring system in the vertical axis Temperature-controlled machine bed for consistent accuracy Linear motor in the X-axis, table speed max. 60 m/min. Swiveling control panel Continuous speed control of the grinding spindle Electrical linear measuring device for cross-travel adjustment with zero point setting in any position, resolution 0.001 mm Electro-mechanical locking via position control of the headstock in the cross direction for profile and plunge grinding Mechanical extraction of coolant mist TAG table dresser Pre-profiling dresser VPG 190 Diamond grinding wheel, 190 mm diameter Software program for pre-profiling dresser VPG Rough profiling (roughing) CNC table profile dresser TAD 190 Profile depth max. 45 mm Contour accuracy +/- 0.0025 mm Swivel angle +/- 65 degrees Max. dressing speed 210 mm/min. Diamond wheel for table dressing machine TAD 190 Regrinding package for diamond wheel Intermediate plate for raising the magnet WinWop profiling software Import of CAD profile data SP 60 JOB Listing expansion package Additional holes for the magnet clamping plate to facilitate removal of workpieces using compressed air Ghost shift circuit for shutting down the machine after the end of the program

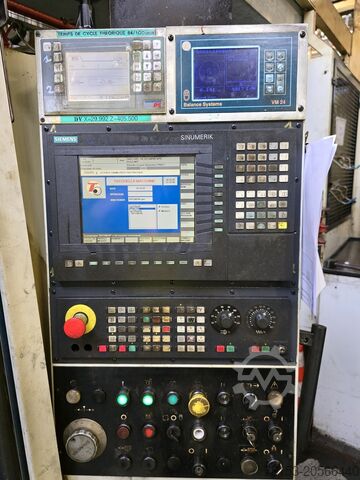

Condition: used, Year of construction: 2000, machine/vehicle number: Pulsar HS-150RAS, Tacchella Pulsar HS-150RAS CNC Angle Approach Cylindrical Grinder dia 250 x 800mm, VM24 grinding wheel balancing system, MARPOSS InProcess measuring unit, CNC SIEMENS SINUMERIK 840D Iedpfx Aoxxyqkec Eeii

Condition: refurbished (used), Year of construction: 2025, operating hours: 36 h, functionality: fully functional, machine/vehicle number: 1024-54, Country of Manufacture: Switzerland Voltage: 380/50/3 Net weight: approx. 1600 kg Customs tariff: 8460.2920 Dimensions: 235 x 155 x 145 cm TECHNICAL FEATURES: MAIN DIMENSIONS: Centre height: 100 mm Distance between centres: 400 mm LONGITUDINAL SLIDE: Max travel: 420 mm Minimum automatic travel: 1 mm Table feed speed: 100–3500 mm/min Overtravel delay: 0–5 sec. Maximum table swivel (400/650 mm): 30°/15° CROSS SLIDE: Max travel: 170 mm Rapid traverse: 30 mm Plunge depth (diameter): 1.9 mm Feed rate 1: 0.03–1.5 mm/min Feed rate 2: 0.02–0.3 mm/min Plunge feed per impulse: 0.0005–0.025 mm WHEELHEAD: Grinding wheel (diameter x width x bore): 350 x 32 x 127 mm Drive power: 3 kW Peripheral speed: 30 m/s Spindle speeds: 1600/1975/2200 rpm Manual stroke: 120 mm Swivel to right: 15°/30° Optional wheel guard for wheel set max width: 50 mm Iedpfx Aow T Sc Noc Eeii WORKHEAD: Swivel range: 0°–90° Spindle speeds: 80/175/380/800 rpm Internal taper: Morse 4 Collet type: W-20 Drive power: 0.5 kW Maximum workpiece weight: 20 kg Load for in-the-air grinding: 12 Nm Optional stepless drive speed range I: 30–300 rpm Optional stepless drive speed range II: 120–1200 rpm TAILSTOCK: Internal taper: Morse 2 Quill travel: 20 mm GUARANTEED WORKING ACCURACY: Generator straightness: Between centres: 400 mm Measured over 400 mm: 0.002 mm Between centres: 650 mm Measured over 650 mm: 0.003 mm Roundness accuracy for in-the-air grinding: 0.0004 mm CONNECTION VALUES: Power consumption: max. 8 kVA Permissible voltage variation: –15% / +10% Permissible frequency variation: ±3% Compressed air: 5 bar All technical specifications are given without obligation and subject to errors or omissions.

Condition: good (used), Year of construction: 2000, Ref. -No.: 10609 Manufacturer: GLEASON - PFAUTER Type: P 2400 G Year of construction: 2000 Type of control: CNC Control: Siemens 840 D Storage location: Halberstadt Country of origin: Germany Machine length: 1100 mm Machine width: 6585 mm Machine Height: 5200 mm Max. Workpiece Diameter: 2640 mm Weight Of The Machine Ca.: 23 t Grinding Wheel Diameter: 400 mm Spindle Speeds (Infinitely Variable): 600 bis 6000 mm Grinding Wheel Width: 80 mm Iedpsxvw R Nefx Ac Eoii X-Axis: 1200 mm Y-Axis: 300 mm Z-Axis: 1000 mm Z2 - axis: 150 mm Sandable profile depth: 80 mm Workpiece table: 0 bis 5 1 / min Feed rate X-axis: 3000 mm Feed rate Y-axis: 5000 mm Z-axis feed rate: 6000 mm Further information: - Fully automatic centering device - Oil mist separation - Gear tooth measurement - “Profile grinding” software package - Error diagnosis - IFK2 internal milling head - Milling mandrel with spacer discs - Chip conveyor - Oil mist extraction - Technical documentation

Year of construction: 2005, operating hours: 22,640 h, condition: ready for operation (used), Control Unit Brand FANUC Model 21i-TB This 4-axis STUDER S33 cylindrical grinding machine was manufactured in 2005. It features a dynamic balancing unit, Marposs push button insert, and includes 2 CBN grinding discs. The machine also comes with approximately 20 internal grinding mandrels and 3 collets. Consider the opportunity to buy this STUDER S33 cylindrical grinding machine. Contact us for more information about this machine. Application Types Iijdpfx Aexwzzzsc Eei Grinding

Condition: used, Year of construction: 2000, controller manufacturer: Heidenhain, controller model: Heidenhain 1830 M - KELCO 120, _____ Description: Year of manuf. : 2000 Control : Heidenhain Heidenhain 1830 M - KELCO 120 Grinding length : 1000 mm In General: YOM::2000 - Retrofit 2024 Isdpfxjxwgh Hj Ac Ejii Controller:Heidenhain 1830 M - KELCO 120 Workpiece headstock: Swivelling range:-10°/+100° Speed:600 rpm Centre height:250 mm Internal mounting cone:MK5 Short taper outside:DIN 55026 Workpiece weight max.:150 kg Grinding headstock: Design:Tandem grinding headstock B-axis:-210°/+30° Internal grinding device:Internal grinding spindle Grinding table (X-axis): X-axis:320 mm Max. speed:7.5 m/min Resolution:0.1 μm Lower table (Z-axis): Centre distance:1,000 mm Z-axis:1,150 mm Max. speed:15 m/min Resolution:0.1 μm Equipment: Coolant supply:Coolant system with filter Emulsion mist separator:Mechanical Tailstock:MK4, stroke 50 mm Workpiece measurement:Marposs T25 :Tool measurement Marpos A 90 Set-up mode:Electronic handwheel Chuck:3-jaw chuck, magnetic chuck

Condition: good (used), Internal item no.: 25087 Iedpfx Aextpbbsc Eoii Cylindrical grinding machine Schaudt AR 500 + Magnetic chuck D160mm + Internal grinding attachment! Grinding length: max. 500mm Grinding diameter: max. 300mm Centre height: 150mm Centre distance: 500mm Tailstock taper: MK4 Machine dimensions (LxWxH): 2700 x 2000 x 1800mm Weight: approx. 2000kg

Condition: used, Year of construction: 1998, control Siemens Sinumerik grinding wheel diameter 900 mm grinding wheel width 20-80 mm In our opinion, the machine is in good condition used condition. Double face side grinders The machine was used for the production of connecting rods. Accessories, tools and clamping devices shown are only part of the scope of delivery if this is noted in the additional information. Changes and errors in the technical data and information as well as Ijdpfoxuv Udsx Ac Ejii Subject to prior sale!

Condition: used, Year of construction: 2006, grinding diameter - cylindrical max. 650 mm grinding diameter - internal max. 600 mm control Siemens Sinumerik 840 D internal grinding depth max. 600 mm Iijdpfow Rf Tvjx Ac Eji External grinding length max. 600 mm workpiece length - max. 380 mm turning speed range - stepless 1-795 U/min Workpiece spindle unit (U/B1/L adjustment): -Travel (U axis) 300 mm -Swivel angle (B1 axis) -1°/+12° -Speed range (infinitely variable) 1-795 rpm -Setup speed (tapping) 10 rpm -Spindle head size A 8 according to DIN 55026 -Through bore 58.5 mm -Workpiece diameter max. 830 mm -Workpiece length max. 600 mm -Load capacity at spindle head max. 6100 N Internal grinding device (Z1/X1/B2): -Travel (Z1 axis) 800 mm -Travel (X1 axis) 150 mm -Swivel angle (B2 axis) 270° -Drive power of internal grinding spindles (infinitely variable) 7.5 kW -Grinding block mounting bore (diameter) 100 mm -Grinding block mounting length (diameter) 100 mm -Grinding diameter max. 600 mm -Grinding depth max. 860 mm -Manual longitudinal adjustment of internal grinding axis on table 530 mm External and surface grinding device (Z2/X2): -Travel (Z2 axis) 800 mm -Travel (X2 axis) 470 mm -Drive power of external grinding spindles 5.5 kW -Mounting bore grinding block Ø 120 mm -Grinding diameter max. 650 mm -Grinding length max. 600 mm -Grinding wheel diameter max. 500 mm Equipment/accessories: -Various grinding spindles -Various flanges/grinding wheel holders -Various clamping jaws -Coolant system -Oil mist filter -Cooler -Technical documentation

Condition: good (used), Year of construction: 1988, Ref. -No.: 10396 Manufacturer: KELLENBERGER Type: 600 U - Nr. 40 Year of construction: 1988 Type of control: Konventionell Control: N/A Storage location: Halberstadt Country of origin: Switzerland Distance between center: 600 mm Center height (standard): 125 mm Height of centers by lifting work blocks head and tailstock: 175 - 250 mm Iedsxvw E Tepfx Ac Eoii Swing diameter with lifting blocks max.: 350 - 500 mm Table swivel / each side: 10 ° Dwell time of the table reversal: 0 - 5 Sec Diameter / width / hole: 250 x 13 x 76 mm Speeds of the grinding wheel spindle: 1500/1700/2200/3600 Swiveling grinding wheel head: 360 ° Cross movement of the grinding wheel head: 285 mm Quickly pulling the wheel head back and forth: 40 mm Intermittent injection for each reversal of the table: 0,001 - 0,03 mm / dia Micro-corrector of the feed, 1 division of the dial: 0,001 mm / Ø Working speeds continuously adjustable (normal / special): 20-400/10-400 Max. Grinding length: 900 mm

Year of construction: 2008, condition: ready for operation (used), General Data Machine weight 12000 kg Movement X-Axis Movement 450 mm Z-Axis Movement 850 mm This STUDER S242 was manufactured in 2008, a cylindrical grinding machine known for its robustness and precision. It features a swing diameter of 180 mm, max workpiece weight of 20 kg, and grinding spindle speeds up to 50 m/s. The machine includes shaft automation, grinding wheels, and is still powered up and fully functional. Annual maintenance by Studer ensures reliability. For more information about this machine, please reach out to us. Application Types Grinding Iiedexvt Anopfx Ac Esi

Condition: excellent (used), Year of construction: 2011, grinding diameter 250 mm grinding length 650 mm centre height 125 mm total power requirement 13 kW weight of the machine ca. 3500 t STUDER (CH) High Precision Electrohydraulic Universal Cylindrical Grinding Machine Model S 30-1 Year 2011 19-39xx Height of centers / Grinding Ø 125 / 250 mm Center distance / Grinding length Z-axis 700 / 650 mm Workpiece weight between centers (no steady) max. 130 kg Table speeds 50 – 5000 mm/min Table way automatic, min. 1,5 mm Table reverse delay 0 – 6 s Table swivable ° Cross way X-axis 315 mm Rapid infeed way 60 mm Feeds 0,012 – 6 mm/min Spar-out time 0 – 6 s Universal Turret Wheelhead Swivable, manual B-axis 0 – 180 ° Iiodsxvdrtjpfx Ac Esi Grinding wheel dimension : bore x width x Æ 127 x 63 x 400 mm Cutting speed max. 35 m/s Internal Grinding device for spindle Ø 0 mm Workhead with hydrodynamic bearing Fitting taper / spindle bore MK 5 / 30 mm Speeds 60 / 175 / 270 / 600 U/min Spindle drive 5,5 kW Total electric load approx.. 13 kW - 400 V – 50 Hz Weight approx. 3.500 kg Accessories / Special Features: • Electrohydraulic conventional control and drives with a large variablilty and high und high resolution. • MAGNESCALE 2 axis digital read out for Z- and X- axis (linear and diameter display) • Preinstalled automatic cycles for plunge-in grinding, traverse grinding, internal grinding with roughing, finishing, fine-finishing, spark-out (also prepared for use of structure sound sensor and gauge control) • Turret wheelhead with manual B-axis 0-180° with cylindrical grinding spindle left, 5,5 kW and internal grinding spindle with oilmist-lubrication Ø 0 mm, 40.000 rpm, 1,5 kW • Workhead, hydrodynamic bearing, swivable 90°, sine ruler, aircushion • Precision tailstock with fine setting to correct for cylindricity • Machine base made of mineral catsting GRANITAN S3 for high excellent dimensional accuracy, themal stability and dampening characteristics. • Adjustable Dresser mounted on tailstock, hinged dresser for table mount, swivable dresser for table mount • Collet device with many SCHAUBLIN high precision collets Ø 1 – 25 mm • Wide range of accessories as 2 grinding wheel flanges, various internal grinding mandrels, 2 pieces face plates, balancing arbor, var. centers and mandrels, MK adapters, var. sleeves, var. covers, auxiliary pulley, large bandfilter coolant unit, manuals, etc. Condition : excellent, 7.515 hours, universal machine for all sorts of grinding tasks ! Video : ! Delivery : immediately available, FCA Metzingen Payment : 0 % Net, before loading

Condition: like new (used), Year of construction: 1995, functionality: fully functional, center height: 225 mm, workpiece weight (max.): 100 kg, grinding length: 1,600 mm, CNC cylindrical grinding machine STUDER S40, year of manufacture 1995. The machine is in good used condition. Technical data: • Control: Fanuc Series 16-GC • Required space approx. (Height/Length/Width): 250 cm / 650 cm / 320 cm Axes: • Distance between centers: 1,600 mm • Center height: 225 mm • 4 axes (X, Z, B, C) Iijdot N Ivcspfx Ac Eji • Max. workpiece weight approx.: 100 kg Equipment: • 2 grinding wheels + 1 internal grinding stone (selectable via control) • Face, plunge, internal, and cylindrical grinding • Magnetic chuck, three-jaw chuck, collets, between-centers grinding • Automatic dressing device • Steady rest • Resolution: 0.0001 mm • Polygon grinding • Static balancing unit • Grinding wheels available in corundum, diamond, and CBN • Cycle control • DXF import possible

Condition: ready for operation (used), Year of construction: 2005, Immediately available from site: CNC Cylindrical Grinding Machine TOS HOL – MONTA Type UN 63 / 750 / 2000 Year of manufacture: 2005 CNC Control: Sinumerik 840 Di Centre height: 375 mm Grinding diameter: 750 mm Grinding length: 2000 mm Iedpfxoxxuuqj Ac Eoii Grinding wheel dimensions: 750 x 100 x 305 mm Swing diameter in open steady rest: 40 – 250 mm Tailstock Morse taper: 6 Table swivelling: 4 degrees Workpiece spindle speed range: stepless, 1 – 50 rpm Grinding wheel speed: 20 – 33 m/sec Grinding spindle motor: 19 kW Total power requirement: 41 kW Workpiece diameter control Full enclosure Grinding mist extraction Weight: 20 t Complete accessories Price: EUR 28,500.— plus VAT, ex site

Condition: defective spare-parts repository (used), We offer you: Cylindrical grinding machine Manufacturer: Karstens For spare parts The main spindle grinding head is missing Accessories, illustrated tools, and clamping devices are only included if stated in the additional information. Iodpfx Acsxxxrte Eeii Subject to changes and errors in technical data and details, as well as prior sale!

Year of construction: 2001, condition: good (used), table diameter 200 mm workpiece height 100 mm number of wheels 1 Control Robot CNC total power requirement 6 kW weight of the machine ca. 1,8 t dimensions of the machine ca. 1,83 x 2,04 x 2,1 m Technical data - Grinding capacity : Ø 0.025 –12.7 [mm] - Bar diameter : Ø 1.0 –12.7 [mm] - Iisdjtt Tb Depfx Ac Eei Grinding length : W15 (option W20) - Z-axis : 35[mm] Resolution : 0.5 [µm] – X- axis : 25 [ mm] Resolution : 0.1µm – Y-axis : 286[mm] Resolution : 0.5µm – U- axis : 15 [mm] Resolution : 0.1µm Head Motor: 0.70 [kW] Rotation: 300 – 3000 [rpm] Grinding - Raw grinding : 1.5 [kW] Spindle : Ø 60 [mm] Grinding wheel diameter : Ø 200 [mm] Cutting speed : 30 m/sec. - Completion: 0.75 [kW] Spindle: Ø100 [mm] Grinding wheel diameter: Ø150 [mm] Cutting speed: adjustable - Dimensions (L x W x H): 1830 x 2040 x 2100 mm - Weight: approx. 1800 [kg] Accessories - Loading and unloading robots - Fire protection device CONTROL axes; 4 axes + 2 programmable robots - simultaneously linear interpolation of the 4 axes + cylindrical interpolation of 2 robot axes

Condition: refurbished (used), Completely overhauled Studer cylindrical grinding machine Centre distance: 650 mm Iijdpfx Acoxxy A Tj Esi Technical data and accessories as per photos and PDF.

Condition: refurbished (used), Year of construction: 2025, functionality: fully functional, machine/vehicle number: 1845/455, Completely refurbished: Mechanics, geometry, hydraulics, and electrical components Wheelhead Disassembly, cleaning of parts, replacement of worn and defective components, motor overhaul, replacement of bearings, replacement of belts, spindle disassembly, replacement of seals and O-rings, plus adjustment. New paintwork. Workhead Disassembly, cleaning of parts, replacement of worn and defective components, motor replacement, replacement of belts. New spindle bearings. New paintwork. Tailstock Disassembly, cleaning of parts, replacement of worn and defective components, motor replacement, replacement of belts. New spindle bearings. New paintwork. Internal grinding attachment Disassembly, cleaning of parts, replacement of worn and defective components, installation of the support and geometry alignment. New paintwork. Hydraulics Disassembly, motor replacement, hose replacement, defective and worn parts replaced. Hydraulic block checked. X-Axis Disassembly, replacement of worn items such as O-rings, seals, rings, etc., overhaul of hydraulic piston, regrinding of tables. Z-Axis Disassembly, regrinding of tables, replacement of worn and defective parts, overhaul of hydraulic piston, scraping of V and flat guides. New paintwork. Measuring system Digital 2-axis display included. Electrical cabinet Replacement of motor contactors and relay controls. New wiring. New variable speed drive (frequency inverter) for the workhead. TECHNICAL SPECIFICATIONS Distance between centers: 1500 mm Distance between centers (workhead to tailstock overhang): 1650 mm Center height, standard: 125 mm Center height with riser blocks: 225/250 mm Maximum grinding diameter: Ø 250 mm Maximum grinding diameter with riser blocks: 450/500 mm Table Usable surface: 2060 x 140 mm Max. length and width for surface grinding: 1750 x 200 mm Longitudinal travel, manual or hydraulic: 1750 mm Manual table movement, 1 handwheel revolution – coarse: 20.006 mm Manual table movement, 1 handwheel revolution – fine: 2.457 mm Table speed, continuously via hydraulics: up to 6 m/min Table swivelling: 6° Stop and return: 0–5 sec. Iiodpfx Aoxt Ilfoc Eoi Workspindle Workpiece speeds, continuously variable (electric): 20–400 rpm Swivelling: 360° Workspindle taper (internal): MT5 Tailstock Internal taper, tailstock spindle: MT3 Spindle retraction, manual or hydraulic: 30 mm Diamond dresser taper (internal): MT0 Universal grinding head Cross slide travel for wheel: 285 mm Rapid traverse for wheel slide, front and rear: 40 mm Grinding spindle speeds: 1500 – 1700 – 2200 – 3600 rpm Vertical grinding spindle movement, center heights: 125–330 mm Max. wheel for cylindrical grinding: 400 x 50 x 127 mm Max. wheel for surface grinding: 250 x 20 x 76 mm Head swivelling with locking at every 90°: 270° Wheel feed 1 division of the micrometer drum: 0.005 mm/Ø Automatic wheel feed, max.: 0.9 mm/Ø Motors Grinding spindle motor: 2,900 rpm / 4.0 hp Workspindle motor: 3,000 rpm / 2.0 hp Coolant pump motor: 2,850 rpm / 0.12 hp Internal grinding attachment Bore: 70 mm Internal grinding spindle speed Ø70 mm: 14,000 rpm Internal grinding spindle speed Ø50 mm: 21,000 rpm Subject to error or omission, the technical information is provided without obligation.

Condition: as good as new (ex-display), Year of construction: 2023, functionality: fully functional, workpiece weight (max.): 130 kg, center width: 600 mm, grinding wheel diameter: 450 mm, total width: 2,110 mm, total length: 3,120 mm, total height: 1,435 mm, grinding diameter: 350 mm, quill stroke: 30 mm, grinding wheel width: 50 mm, grinding spindle speed: 2,000 rpm, overall weight: 3,100 kg, Max. Sanding diameter: Ø350mm Max. Workpiece weight: 130 kg Sanding length between centers: 600 mm Sanding spindle speed: 1500 or 2000 rpm (manual belt change) Standard grinding wheel: Ø 450 x Ø127 x 50 mm Grinding wheel width: from 25 to 50 mm Z-axis travel: 750 mm X-axis travel: 265 mm Grinding spindle power: 3.7 kW Including the following standard accessories: - 120 liter coolant tank with 0.4 kW pump (200 l/min) and magnetic separator - Hydraulic tailstock - Removable splash guard - Hydraulic unit - Standard grinding wheel Ø 450 x Ø127 x 50 mm - 1 grinding wheel flange - 1 grinding wheel flange Dresser - Dressing holder with dressing diamond on tailstock - 2 centering centers Ijdpfx Ajc Tnq Iec Ejii - Dial gauge for table adjustment to 0 - Machine light - 3 unscrewable hooks for transportation by crane - Leveling screws with mounting plates - Machine documentation Including the following special accessories: - Internal grinding device - Inverter (Mitsubishi) for speed control on the work spindle - Inverter for speed control on the grinding spindle with 5.5 kW motor, incl. display - 2-axis digital display Heidenhain ND 780
