Used Drill Grinding for sale (8,615)

Condition: good (used), Internal item no.: 25087 Cylindrical grinding machine Schaudt AR 500 + Magnetic chuck D160mm + Internal grinding attachment! Grinding length: max. 500mm Grinding diameter: max. 300mm Centre height: 150mm Centre distance: 500mm Tailstock taper: MK4 Machine dimensions (LxWxH): 2700 x 2000 x 1800mm Weight: approx. 2000kg Iodpfsxtpbbsx Ac Eetp

Condition: used, Year of construction: 1998, control Siemens Sinumerik Itodpfx Acexuv Udo Eop grinding wheel diameter 900 mm grinding wheel width 20-80 mm In our opinion, the machine is in good condition used condition. Double face side grinders The machine was used for the production of connecting rods. Accessories, tools and clamping devices shown are only part of the scope of delivery if this is noted in the additional information. Changes and errors in the technical data and information as well as Subject to prior sale!

Condition: used, Speedfam TFG Through Feed Grinder , serial number 625 tfg 415901-337, New 1999, machine dimensions 2m x 1m x 2m high, with Flow-Con Coolant Filtration System. note Filtermist unit not included Itodpfx Acjxwc Upj Ejp

Condition: good (used), Nagel Citoborma 280B Paper Drill The device is 100% functional. This is one of the newest models. The drill table is adjustable in every plane (sides, front/back). It has limiters for setting the drilling spacing. The installed table is in an enlarged version. Additionally, the paper drill has an automatic table lock, which is released after each cycle. Ijdpfjxwtu Hox Ac Eetp Super condition. Solid construction – weight 76kg. 380V power supply Two drilling heads, with adjustable spacing within the range of 45-120 mm. Drill diameter 2-20 mm. Stack height 60 mm. The machine has been inspected The set includes drills and tools, a new cutting stick, and an instruction manual.

Condition: good (used), Year of construction: 2001, functionality: fully functional, CNC Precision Grinding Machine Spiral Bevel Gear Grinding Machine Klingelnberg Oerlikon B10 Year of manufacture: 2001 CNC Control: SIEMENS Technical Specifications Grinding wheel diameter: approx. 100–200 mm Workpiece length: up to approx. 200 mm CNC axes: 3–5 axes, depending on configuration Control system: Siemens 840D or equivalent Drive power: approx. 5–10 kW (grinding spindle) Coolant tank: approx. 100–200 liters, with filtration unit Repeatability: within a few microns Special Features • Versatile use for various tool types and geometries • High flexibility through CNC programming and adaptable clamping devices • Process reliability due to integrated cooling and filtration system • Easy maintenance thanks to modular design and centralized supply units EQUIPPED WITH: COOLANT FILTRATION SYSTEM Itodpfx Acsw Hda Uj Eep

Condition: used, Year of construction: 1993, table-size 1500 x 550 mm grinding range 1250 x 500 mm workpiece height 500 mm grinding length 1250 mm grinding width 550 mm voltage 400 V weight of the machine ca. 10 t Machine has cooling arrangement, dressing arrangement and auto. vert. feed. Itsdpfx Aexukn Ejc Esp

Condition: used, Year of construction: 2006, grinding diameter - cylindrical max. 650 mm grinding diameter - internal max. 600 mm control Siemens Sinumerik 840 D internal grinding depth max. 600 mm External grinding length max. 600 mm workpiece length - max. 380 mm turning speed range - stepless 1-795 U/min Workpiece spindle unit (U/B1/L adjustment): -Travel (U axis) 300 mm -Swivel angle (B1 axis) -1°/+12° -Speed range (infinitely variable) 1-795 rpm -Setup speed (tapping) 10 rpm -Spindle head size A 8 according to DIN 55026 -Through bore 58.5 mm -Workpiece diameter max. 830 mm -Workpiece length max. 600 mm -Load capacity at spindle head max. 6100 N Internal grinding device (Z1/X1/B2): -Travel (Z1 axis) 800 mm -Travel (X1 axis) 150 mm -Swivel angle (B2 axis) 270° -Drive power of internal grinding spindles (infinitely variable) 7.5 kW -Grinding block mounting bore (diameter) 100 mm -Grinding block mounting length (diameter) 100 mm -Grinding diameter max. 600 mm -Grinding depth max. 860 mm -Manual longitudinal adjustment of internal grinding axis on table 530 mm External and surface grinding device (Z2/X2): -Travel (Z2 axis) 800 mm -Travel (X2 axis) 470 mm -Drive power of external grinding spindles 5.5 kW -Mounting bore grinding block Ø 120 mm -Grinding diameter max. 650 mm -Grinding length max. 600 mm -Grinding wheel diameter max. 500 mm Ijdpfxew Rf Tvo Ac Eotp Equipment/accessories: -Various grinding spindles -Various flanges/grinding wheel holders -Various clamping jaws -Coolant system -Oil mist filter -Cooler -Technical documentation

Condition: used, Year of construction: 2020, Second hand straight line edging machine (with mitering), NEPTUN Type Rock 10-45, Year 2020 Isdpfx Ajxxmptsc Estp

Condition: used, Distance between centers: 1000 mm Maximum external grinding diameter: 320 mm Grinding wheel dimensions (OD x ID x width): Ø500 x Ø127 x 80 mm Maximum internal grinding diameter: 200 mm Center height: 175 mm Control type (CNC/manual): CNC CNC brand: FANUC CNC model: 16GC Maximum grinding length: 1000 mm Maximum workpiece weight: 130 kg Main motor power: 7.5 kW / 2870 rpm Total power: 30 kW Internal grinding spindle power: 15 kW Max. workhead spindle speed: 30 - 750 rpm Voltage: 380 V / 50 Hz X-axis feed: 0.0001 – 5,000 mm/min Z-axis feed: 0.0001 – 10,000 mm/min Air pressure: 1.5 - 3 bar Coolant flow rate: 100 L/min Max. Z-axis travel: 1050 mm Max. X-axis travel: 275 mm Max. worktable swivel: 8.5º Workhead internal taper: M 5 Isdpfx Aexxmcgjc Estp Tailstock taper: M 3 Tailstock quill travel: 35 mm Dimensions (L x W x H): 3,687 mm x 2,000 mm x 2,090 mm Weight: 5,200 kg

Condition: as good as new (ex-display), Corundum grinding discs 300 mm Ø x 40 mm x 25 mm Ø, 4 pieces quality 31A60M6V511 and 4 pieces quality 10A24Qu4 Iedpfx Asuv Ecboc Estp Corundum grinding discs 300 mm Ø x 40 mm x 76 mm Ø with recess 125 mm Ø x 20 mm, 2 pieces quality 31A60M6V511 and 2 pieces quality 10A24Qu4V1 Corundum grinding discs 200 mm Ø x 32 mm x 51 mm Ø, 3 pieces quality 31A60M6V511 and 3 pieces quality 10A24Qu4V1

Condition: good (used), Year of construction: 1984, Machine is in good working codition. Ijdpfx Aoxvikujc Eotp

Condition: used, Year of construction: 1989, table-size 1800 x 900 mm grinding range 1500 x 900 mm workpiece height 690 mm grinding length 1500 mm Itsdpoxukqajfx Ac Ejp grinding width 900 mm table speeds 4 - 36 längs m/min table speeds 1 - 60 quer m/min grinding wheel size 500 x 100 x 203 mm grinding spindle speed 1000 U/min voltage 400 V total power requirement 80 kW grinding spindle drive 28 kW weight of the machine ca. 17 t Machine was complete refurbished and modernized in 2009/23. X-axe and drive were refurbished in 2023 and the machine got new magnetic chucks. Machine has cooling arrangement, dressing arrangement and auto. vert. feed. Machine has mechanical table drive and a Siemens Control.

Condition: excellent (used), Year of construction: 2013, operating hours: 2,730 h, functionality: fully functional, workpiece weight (max.): 150 kg, clamping length: 1,700 mm, grinding wheel diameter: 660 mm, center height: 270 mm, grinding length: 1,500 mm, 1 pc. used crankshaft & camshaft cylindrical grinding machine Brand: BERCO Model: LYNX 2000 Year of manufacture: 2013 Technical Data Max. grinding diameter (plunge grinding): 220 mm Max. grinding diameter (cylindrical grinding): 300 mm Max. workpiece weight between centers: 150 kg Center height above table: 270 mm Distance between centers: 1,700 mm Max. grinding length: 1,500 mm Chuck diameter: 180 mm Tailstock quill travel: 50 mm Max. grinding wheel diameter: 660 mm Min./max. grinding wheel width: 20 / 80 mm Max. circumferential speed: 35 / 80 m/sec Grinding spindle head (X-axis) Axis drive with linear motor - travel: 490 mm Measuring system: optical scale, resolution 0.0001 mm Workpiece headstock (C-axis) Workpiece spindle speed range: 1 - 1,000 rpm Encoder measuring range - resolution: 0.0001 degrees Table (Z-axis) Axis drive with linear motor Measuring system: optical scale - resolution 0.0001 mm Machine dimensions (L x W x H): 5,500 x 2,600 x 2,000 mm Space requirement: approx. 7,500 x 5,000 mm Machine weight: 9,850 kg Itedpfx Acou R Nvuo Ejp Accessories: CNC control Siemens 840 D Oil cooler Coolant system with treatment unit

Condition: excellent (used), Year of construction: 2007, Gleason Pfauter G130H CNC vertical gear hobbing machine Control, Siemens 840D Year of manufacture, 2007 Capacity Maximum workpiece diameter, about 130 millimetres Maximum gear width, about 170 to 180 millimetres Maximum module, up to module 3 or 4 depending on the configuration Minimum module, about module 0 point 5 Hob head Itodpjxxzqlofx Ac Ejp Hob spindle power, about 11 point 5 to 14 kilowatt Hob speed range, about 10 to 4000 revolutions per minute Hob head swivel, about plus and minus forty five degrees Maximum hob diameter, about 100 millimetres Maximum hob length, about 240 to 317 millimetres Hob shift travel, about 170 to 220 millimetres Axis travels X axis travel, about 200 millimetres Y axis travel, about 170 millimetres Z axis axial slide travel, about 250 to 350 millimetres Work spindle and table Work spindle speed, about 0 to 1000 revolutions per minute Table diameter, about 160 to 168 millimetres Table bore, about 65 millimetres Maximum clamping length, about 245 millimetres Hydraulic clamping included in most units Process Wet cutting External gear hobbing Two cut cycles and taper or crown hobbing possible ISO thirty hob arbor Optional automatic loading systems Electrical and general Machine weight 11 tons Overall footprint, roughly three metres by three metres with guarding

Condition: used, Year of construction: 1995, grinding length 400 mm grinding width 200 mm workpiece height 300 mm table adjustment - longitudinal max. 420 mm table cross movement max. 190 mm distance spindle center to table 90 - 415 mm table speeds 2 - 28 m/min table load max. 150 kg cross feed of table intermittent 3 - 20 mm rapid traverse cross 7 mm/min Ijdpfxoxu Ntge Ac Estp rapid traverse vertical 180 mm/min grinding wheel size ø 225 x 25 x ø 51 mm total power requirement 7 kW weight of the machine ca. 1,5 t dimensions of machine L x W x H 2,20 x 1,46 x 2,10 m Accessories: magnetic plate 400 x 200 mm, grinding wheel with flange, balancing scale, 1 flange separate, 2 grinding wheels separate, DRO on Y-axis, wet grinding attachment

Condition: excellent (used), Year of construction: 2011, grinding diameter 250 mm grinding length 650 mm centre height 125 mm total power requirement 13 kW weight of the machine ca. 3500 t STUDER (CH) High Precision Electrohydraulic Universal Cylindrical Grinding Machine Model S 30-1 Year 2011 19-39xx Height of centers / Grinding Ø 125 / 250 mm Center distance / Grinding length Z-axis 700 / 650 mm Workpiece weight between centers (no steady) max. 130 kg Table speeds 50 – 5000 mm/min Table way automatic, min. 1,5 mm Table reverse delay 0 – 6 s Table swivable ° Cross way X-axis 315 mm Rapid infeed way 60 mm Itsdpfx Acoxvdrtj Eop Feeds 0,012 – 6 mm/min Spar-out time 0 – 6 s Universal Turret Wheelhead Swivable, manual B-axis 0 – 180 ° Grinding wheel dimension : bore x width x Æ 127 x 63 x 400 mm Cutting speed max. 35 m/s Internal Grinding device for spindle Ø 0 mm Workhead with hydrodynamic bearing Fitting taper / spindle bore MK 5 / 30 mm Speeds 60 / 175 / 270 / 600 U/min Spindle drive 5,5 kW Total electric load approx.. 13 kW - 400 V – 50 Hz Weight approx. 3.500 kg Accessories / Special Features: • Electrohydraulic conventional control and drives with a large variablilty and high und high resolution. • MAGNESCALE 2 axis digital read out for Z- and X- axis (linear and diameter display) • Preinstalled automatic cycles for plunge-in grinding, traverse grinding, internal grinding with roughing, finishing, fine-finishing, spark-out (also prepared for use of structure sound sensor and gauge control) • Turret wheelhead with manual B-axis 0-180° with cylindrical grinding spindle left, 5,5 kW and internal grinding spindle with oilmist-lubrication Ø 0 mm, 40.000 rpm, 1,5 kW • Workhead, hydrodynamic bearing, swivable 90°, sine ruler, aircushion • Precision tailstock with fine setting to correct for cylindricity • Machine base made of mineral catsting GRANITAN S3 for high excellent dimensional accuracy, themal stability and dampening characteristics. • Adjustable Dresser mounted on tailstock, hinged dresser for table mount, swivable dresser for table mount • Collet device with many SCHAUBLIN high precision collets Ø 1 – 25 mm • Wide range of accessories as 2 grinding wheel flanges, various internal grinding mandrels, 2 pieces face plates, balancing arbor, var. centers and mandrels, MK adapters, var. sleeves, var. covers, auxiliary pulley, large bandfilter coolant unit, manuals, etc. Condition : excellent, 7.515 hours, universal machine for all sorts of grinding tasks ! Video : ! Delivery : immediately available, FCA Metzingen Payment : 0 % Net, before loading

Condition: used, functionality: fully functional, 1 used grinding and polishing machine Manufacturer: ATM Model: Saphir 320 Year of manufacture: 2003 Technical specifications: 320 Series - Single wheel Plate/disc diameter: 200 mm Speed: 600 rpm Voltage: 220 V / 60 Hz, 1 phase Weight: 24.5 kg Iodpfx Aexuq I Sjc Estp

Condition: used, Year of construction: 1955, grinding length 1000 mm grinding width 400 mm workpiece height 400 mm total power requirement 11 kW Isdpfx Acjxuknxs Eetp weight of the machine ca. 5 t dimensions of the machine ca. 4 x 2,5 x 2,5 m

Condition: good (used), Year of construction: 1977, functionality: fully functional, Deckel SOE tool grinder with accessories Technical data: >> Machine no. SOE 77-3997 Year built 1977 >> Motor speed 2800 rpm >> Grinding spindle speed 4500 rpm >> Motor power: 0.55 kW / 380 Volt >> Weight approx. 200 KG Accessories and equipment: >> Collets Isdpjwrm Nvofx Ac Eotp >> Grinding wheels >> Machine stand / base >> Dressing device >> Tools >> Grinding dust extraction About the machine: Offered is a Deckel SOE tool grinder with accessories. Mechanically and electrically tested. A beautiful and fully functional machine. Take the opportunity to view and try out this machine under power on site.

Condition: like new (used), Year of construction: 1995, functionality: fully functional, center height: 225 mm, workpiece weight (max.): 100 kg, grinding length: 1,600 mm, CNC cylindrical grinding machine STUDER S40, year of manufacture 1995. The machine is in good used condition. Technical data: • Control: Fanuc Series 16-GC • Required space approx. (Height/Length/Width): 250 cm / 650 cm / 320 cm Axes: • Distance between centers: 1,600 mm • Center height: 225 mm • 4 axes (X, Z, B, C) • Max. workpiece weight approx.: 100 kg Equipment: • 2 grinding wheels + 1 internal grinding stone (selectable via control) • Face, plunge, internal, and cylindrical grinding • Magnetic chuck, three-jaw chuck, collets, between-centers grinding • Automatic dressing device • Steady rest • Resolution: 0.0001 mm • Polygon grinding Iodpet N Ivcsfx Ac Estp • Static balancing unit • Grinding wheels available in corundum, diamond, and CBN • Cycle control • DXF import possible

Condition: ready for operation (used), Machine can be viewed and tested on site. Magerle Machining Center, Grinding Machine, Profile Grinding, Magerle MGC-240.65.85, Used Machine Manufacturer: Magerle Type: MGC-240.65.85 Weight: 42,500 kg Year: 2002 Iodpfxjw Tt R Uo Ac Ejtp Axis travel range: X: 2393 mm Y1–Y2: 667 mm Z: 620 mm Simultaneous axis: C1–C2: 270°

Condition: used, Year of construction: 1980, workpiece diameter 600 mm Isdpjt Abrwsfx Ac Ejtp workpiece weight 400 kg workpiece height 300 mm total power requirement 35 kW weight of the machine ca. 4500 kg

Year of construction: 2001, condition: ready for operation (used), Main Drive Number of axis 4 This 4-axis BLOHM Profimat MT 408 grinding machine was manufactured in 2001. It features a robust grinding spindle motor, PEA table, and efficient drives for the X-axis, Z-axis, and Y-axis. Grinding wheels are included, enhancing its readiness for immediate use. Consider the opportunity to buy this BLOHM Profimat MT 408 grinding machine. Contact us for more information about this machine. Itodpfx Acjxuw Hbo Eep Application Types Grinding

Condition: ready for operation (used), Year of construction: 1981, Available immediately from Swiss toolmaking facility: Rapid radial drilling machine HKS Model HKS 40 Itodsxxu D Espfx Ac Eep Year of manufacture: 1981 Morse taper MK 4 Drilling capacity: 40 mm Arm reach: 1120 mm Installation height: 780 mm Table size: 1520 x 560 mm 3-axis digital readout for table adjustment Spindle drive power: 3.8 kW Spindle speeds: 26 – 1940 rpm Quill stroke: 200 mm Feeds: 0.05 – 0.45 mm/min Thread cutting device Coolant system Total power consumption: 6.5 kW Hydraulic vice Weight: 2600 kg Offered at a price of EUR 2,500.— plus VAT ex location

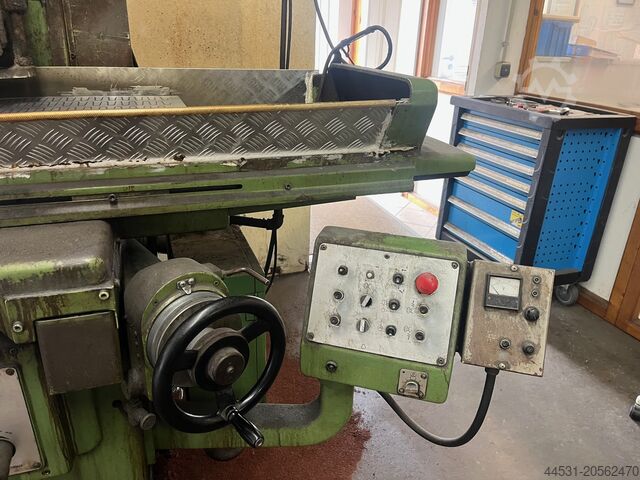

Condition: ready for operation (used), Year of construction: 1988, Horizontal surface grinding machine Okamoto Model PSG 63 – UAN Year of manufacture 1988 Grinding length 600 mm Grinding width 320 mm Maximum workpiece height 500 mm Table longitudinal travel 750 mm Table cross travel 340 mm Grinding wheel diameter 350 mm Grinding wheel width 40 mm Spindle speed 1,500 rpm Rapid vertical traverse 400 mm/min Power 3.7 kW Automatic feed Magnetic chuck Coolant system Weight 2,500 kg Price: €2,500 plus VAT, ex-site Itsdpjxxuvhofx Ac Eop
