Used Guide And Tips Up To 500 Mm Spindle Lathe for sale (115,356)

Condition: used, Drawer rail, telescopic rail, drawer extension, drawer rails, drawer extension, Telescopic rails, pull-out rails, heavy-duty pull-outs -Length retracted: 500 mm -Length extended: 935 mm -Width: 13 mm Isdefdkg Hspfx Agzjik -Height: 27 mm -Price: per pair (left right) -Number: 7x pairs available -Weight: 1.25 kg

Condition: good (used), Year of construction: 1968, functionality: unexamined, turning diameter: 1,500 mm, For sale: Iiedjr Nzm Tjpfx Agzek 1 used head lathe / facing lathe Manufacturer: Heyligenstaedt GmbH Werkzeugmaschinenfabrik type: 505ev/500 YEAR OF MANUFACTURE: 1968 Diameter face plate: 1.500mm incl. documentation The machine can be inspected in our warehouse in 09599 Freiberg.

Condition: used, TECHNICAL DETAILS - Number of axes : 2 MAIN SPINDLE - Spindle nose : A2-5 - Spindle power : 11 [kW] - Spindle speeds : 6000 [rpm] - Max. bar diameter : 52 [mm] - Max. turning diameter : 350 [mm] - Max. diameter on bench : 923 [mm] TURRET - Number of positions : 12 - X/Z stroke : 260/590 [mm] TAILSTOCK - Tailstock type : Numérique - Tailstock stroke : 564 [mm] - Distance between centers : 694 [mm] POWER SUPPLY - Supply voltage : 200 [V] - Total installed power : 19 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 2460 x 2000 [mm] - Machine height : 2185 [mm] - Machine weight : 5300 [kg] EQUIPMENT - CNC : MORI MSX-850 III (Mitsubishi) Iiedjuhb Tdopfx Agzjk - Coolant tank - Chips conveyor - Spindle cooling unit - Tool probe - Electric transformer

Condition: ready for operation (used), Year of construction: 2022, functionality: fully functional, 2 used CNC lathes with Y-axis and two spindles Machines including loader and accessories (tool holders, jaws, etc.) For technical data, see the PDF file Iodpfx Agow N R Nyozsik

Condition: as good as new (ex-display), Year of construction: 2024, operating hours: 10 h, functionality: fully functional, Controller SIEMENS 828D with Shopturn and 17 inch Touch screen Swing dia 550 mm Turning length 428 mm Max. turning dia 300 mm Spindle bore 62 mm Max bar dia 51 mm Spindle face A2-6 Spindle speed 35 - 5000 rpm motorspindel Travel X axis 210 mm Travel Z axis 561 mm Turret 12-fold (all stations driven) Turret interlock hydraulic Turret drive servo Tool change time 0,2 sec. Tool section 25x 25 mm Max speed of life tools 5000 rpm. Max power of live tools 5 kW Max milling capacity (shaft mill) 16 mm Max milling capacity (milling head) 50 mm Max drilling capacity D16 mm Max tapping capacity M16x2 Rapid speed Z axis 30 m/min Rapid speed X axis 30 m/min Position accuracy 0,008 mm Repeat accuracy 0,003 mm Tailstock Pinole conus MT4 Travel of tailstock body 565 mm Hydraulic tank capacity 20 L. Power of hydraulic pump 1,5 kW Hydraulic power 3,5 - 6 Mpa Volumen of lubrication 2 L Power of lubrication pump 25 W Coolant tank volume 130 L Power of coolant pump 25 W Iedpfx Aswbu T Uegzjik Motor power cont. 11 kW 400 Volt 50Hz Motor power short time (30 min) 15 kW 400 Volt 50 Hz Weight 4000 kg Dimensions LxWxH = 2600 x 1685 x 1768 mm Accessories Coolant unit, Turret for 12 driven tools, 200 mm hydr. chuck, Linear guides and ball screws THK/Japan, SHOP TURN, Spindle cooler, Chip conveyor, Tool presetter, automatic tool length compensation, barfeeder interface, air blowing for chuck and turret, high pressure coolant, oil selector.

Condition: excellent (used), Year of construction: 1983, functionality: fully functional, - turning length: 1500 mm - turning diameter over bed: 500 mm - turning diameter over the slide: 300 mm - spindle passage: 71.5 mm - tailstock sleeve travel: 180 mm Iijdpfx Agsq Hvayszsk - rapid slide travel: - longitudinal: 5.6 m/min - transverse: 2.8 m/min - spindle speed range: 18-180 rpm - longitudinal travel range: 0.64-26 mm/rev. - transverse: 0.32-13 mm/rev. - stroke of pull screw: 6 mm

Condition: used, Clamping angles, clamping angles, tombstones, clamping devices, mechanical clamping elements Iiedjdl Smdepfx Agzok -Clamping angle for: workpiece clamping -Dimensions: 500/605/H815 mm -Wall thickness: 37 mm -Surface: milled -Long holes for workpiece clamping: mm -Number: 1x angle available -Price: per piece -Weight: 225 kg/piece

Condition: used, Combination conveyor, fan with connection to the hopper, fan conveyor, combination conveyor, AirMove - components, injector conveyor, injection conveyor -Injector conveyor: injection conveyor with distributor, without fan -Inlet funnel: 175 x 180 mm -Distribution radius: 200 mm -Discharge pipe: Ø 60 m -Drive motor: Euronorm 0.09 kW -Number: 3x conveyors available -Price per piece Iiodpjhg Rg Rsfx Agzsk -Dimensions total: 1630/500 / H1230 mm -Weight: 57 kg

Condition: used, Clamping plate, unit carrier, milled surface, welding table, welding table -Clamping surface width: 500 mm -Length of the table surface: 10930 mm -Height of table surface: 262 mm -Working height: 262 mm -Price: per piece -Number: 1x available Iiodjb Uhpispfx Agzjk -Transport dimensions: 11370/510/H240 mm -Weight: 2020 kg

Condition: used, Clamping plate, scribing spotting plate, measuring plate, measuring table, welding table, welding table, straightening plate -Surface: very good -Width: 500 mm -Length: 800 mm -Height: 175 mm Iijdpfxjdnuhio Agzok -Plate thickness: 26 mm -with: support ribs -Weight: 90 kg

Condition: used, Clamping plate, plate field, welding table, welding table, plate boring mill, straightening plate, tool holder -with: holes -Width: 400 mm Isdpfxod R Ak He Agzeik -Length: 500 mm -Height: 30 mm -Weight: 45 kg

Condition: ready for operation (used), Dimeco Straightener 500 x 3.5 mm Iisdex Iml Nepfx Agzek

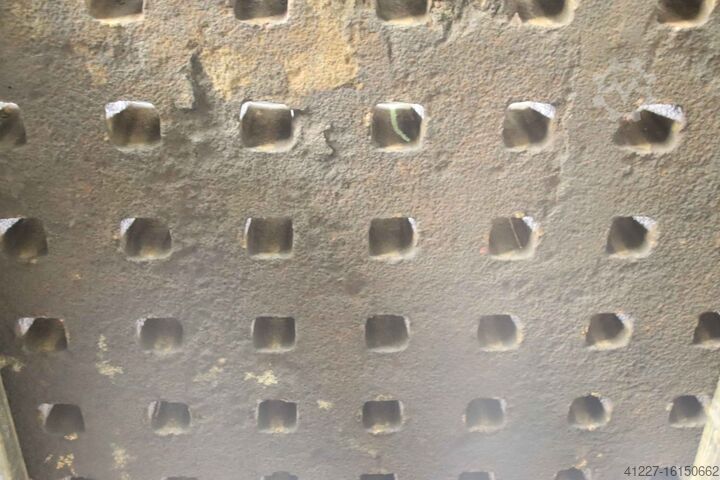

Condition: good (used), Clamping plate with T-slots, plate field, welding table, welding table, plate boring machine, T-slot plate -Mounting plate: with dovetail guide -Clamping surface: 1955 x 1040 mm -Height: 110 mm -Dovetail: 27 to 45 mm / 35 mm high -Pin opening: 47 x 47 mm -Quantity: 2x mounting plates available Price: per piece -Transport dimensions: 1955/1040/H110 mm -Weight: 1288 kg Isdpstp Rfhsfx Agzoik

Year of construction: 2015, operating hours: 61,469 h, condition: ready for operation (used), Control Unit Brand TRUMPF Model TASC 6000 This TRUBEND Cell 5000 with TruBend 5085 extended version (2720 mm x 850 kN) and BendMaster 60 was manufactured in 2015. World's first bending automation with image recognition for maximum flexibility. Sheet metal parts up to 40 kg, 6-axis backgauge sensor technology. Maximum repeat accuracy thanks to angle sensor technology (ACB) in automated operation. It features a stable all-steel frame, electro-hydraulic top drive, and a modern block hydraulic system. The control unit is a TRUMPF TASC 6000 with a 15-inch touchscreen and network capabilities. Ideal for precise bending operations, consider the opportunity to buy this TRUMPF TruBend Cell 500 press brake. Contact us for more information about this machine. Iedpfx Asx Imqljgzeik Application Types Bending

Condition: ready for operation (used), Year of construction: 1989, functionality: fully functional, For sale is a lathe of the brand Weiler type Primus LZ-GS Iiedpeihig Iefx Agzok The machine is in very good condition Technical data Year of construction 1989 Machine no. 4443 Operating voltage 380 V Center height 120 mm Center width 430 mm Speed:60 - 3000 rpm in 18 gear stages Spindle clearance 23 mm Short taper spindle head DIN 55027 Tailstock MK 2 Feed rates from 0.03 to 0.15 mm /rev Possible threads metric, inch, module and diametral pitch Metric thread pitches from 0.25 to 2.5 mm Length 1.2 m, height 1.3 m, depth 0.65 m Prices plus VAT Viewing possible by appointment. Contact us, our team will be happy to help you. Trade-in or exchange possible! Machines purchase / sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES AND MUCH MORE. Do you need a high-quality but inexpensive metalworking machine for your production? Or do you want to sell yours? For further information or contact options, please visit our website

Condition: excellent (used), Year of construction: 1986, Engine lathe, manufacturer VDF HEIDENREICH & HARBECK, type 540 Hamburg, year 1986. In very good original condition, equipped with a 3-axis digital readout Heidenhain POSITIP 880. Feed and rapid traverse on all 3 axes, including the top slide. Comes with coolant system, rear chip guard, and machine documentation. Chuck: 315 mm Forkardt Turning diameter: 540 mm Turning length: 1500 mm Spindle bore: 103 mm Spindle speeds: 9–1800 rpm Tool holder: Multifix C Chip protection cover Iiedpfx Agjx Hr Dujzek For further details, see technical data sheet. Space requirement: length 3.8 m, width 2 m (with rear wall), height 2 m (with rear wall), weight approx. 3500 kg.

Condition: ready for operation (used), Vermogen slijpsteen: 15 kWt Besturing: Siemens Sinumerik 840 C Siemens drive: 6SN1145-1BA00-OCAO Worklength with magnetic table: 1270 mm Grindingwidth: 610 mm Longitudinal travel X-axis (autom.): 1310 mm Cross-travel Y-axis (autom.): 565 mm Travel Z-axis (autom.): 470 mm Dimensions of the table: 1215 x 500 mm Distance between table -- spindlecentre: 680 mm Max dia grindingstone: 400 x 100 x 127 mm Spindlespeeds: rpm Motorpower: 30 / 47 kWt Tension needed: 380V - 50Hz Cooling system: yes Iijdpfx Agjxl Hxhszjk

Condition: good (used), Clamping table, clamping angle, T-slot table, rotary table, milling machine table -Table surface: 500 x 200 mm -4x T slots: 14 mm -Clamping angle: rotatable, swiveling, tiltable Iodpfx Asd Dzlqsgzjik -Foot recording: mm -Dimensions: 500/300/H210 mm -Weight: 50.5 kg

Condition: good (used), functionality: fully functional, turning diameter: 240 mm, turning length: 600 mm, For sale is a Boley lathe The guides and the concentricity are still very good (see pictures) center distance 600mm turning diameter 240 mm spindle bore: 20 mm Many accessories (cabinet incl.) Isdpfxjrdf A Dj Agzsik IDEAL COLLECTION DATE 06.02.2024 On request, for an extra charge, loading and transport (Europe-wide) can be organized. Prices plus VAT Viewing possible by appointment. Contact us, our team will be happy to help you. Trade-in or exchange possible! Machines purchase / sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES AND MUCH MORE. Do you need a high-quality but inexpensive metalworking machine for your production? Or do you want to sell yours? For further information or contact options, please visit our website

Condition: good (used), Spindles, machining unit, automatic drilling machine, drilling machine, pillar drilling machine, multi-spindle drilling machine, row drilling machine, dowel drilling machine Isdpfx Agjb A Iiaszeik -Max. feed rate: Stroke 60 mm -Drive: 1.1 kW -Recording: 10 x 17 mm -Number: 2x quill processing units available Price: per piece -Weight: 25 kg/piece

Condition: good (used), Pipe grab, round grab, laying tongs, round material grab, scissor grab, rectangular tongs, clamp, clamping pliers -Manufacturer: Siegert, rectangular pliers type GZ -Grasping range: 20 to 60 mm -Load capacity: 500 kg -Quantity: 1x gripper available -Price: per piece Iisdelg H I Iopfx Agzjk -Dimensions: 500/100/H350 mm -Empty weight: 17 kg/pc.

Condition: good (used), Year of construction: 1992, Scissor lift table, scissor lift table, scissor lift platform, scissor lift platform -Load capacity: 500 kg -Platform: 2200 x 1000 mm -Dimension when retracted: 450 mm -Extended dimension: 600 mm -Attention: Stroke only: max. 150 mm -without control -Number: 7x lifting tables available Price: per piece Iedob A R I Dopfx Agzeik -Empty weight: 700 kg/piece

Condition: good (used), Faceplate, faceplate chuck, four-jaw chuck -Mouth size: Ø 500 mm -without: Baking -Camlock mount: Ø 196 mm short taper 11 -Bolt circle: Ø 204 mm Iedpfx Ajb A Sbpjgzjik -Weight: 80 kg

Condition: good (used), Roller conveyor, conveyor belt, roller track -not powered -Roller conveyor: on wheels -Roller width: 500 mm -Transport length: 1500 mm -Roller diameter: 80 mm -Roller spacing: 200 mm -Total height of roller conveyor: 210 mm -Dimensions: 1500/625/H210 mm Iiodpfx Ageb Rr Suezjk -Weight: 42 kg

Condition: good (used), Bezel, setting stick, lynette -Manufacturer: Meuser, steady rest with coolant connection from lathe M4L -Max. passage: Ø 500 mm -Peak height: 390 mm Iedpfxoh Tr E He Agzoik -Technical drawing: see photos -Dimensions: 840/140/H850 mm -Weight: 98 kg
