Used Mori Seiki Vertical Machining Centers for sale (168)

Condition: used, Year of construction: 2008, turning diameter max. 320 mm turning length 810 mm control MSX 701 MAPPS III standard turning dia. 200 mm Main spindle: Number of revolutions max. 6.000 min/-1 power capacity - main spindel 22 / 18,5 kW Bar feed max. 52 mm spindle bore 61 mm Dsdpfstqmqwox Ah Ujwd C-Axis 0,001 ° Subspindel: Number of revolutions max. 6.000 min/-1 power capacity - Sub spindle 22 / 18,5 kW Bar feed max. 52 mm spindle bore 61 mm C-Axis 0,001 ° Turret 1 + 3: number of toolpositions je 16 pos. Number of driven toolspositions je 16 pos. Spindle speed - driven tools max. 6.000 min -1 power capacity - driven tools 7,5 / 5,5 kW Y - Axis 110 (+65 / -45) mm Turret 2: number of toolpositions 16 pos. Number of driven toolspositions 16 pos. Spindle speed - driven tools max. 6.000 min -1 power capacity - driven tools 7,5 / 5,5 kW Y - Axis 110 (+45 / -65) mm axis stroke: x-travel 1-3: 210 mm y-travel 1-3: 110 mm z-travel 1+3: 300 / 2: 810 mm total power requirement 90 kVA weight of the machine ca. 9,3 t dimensions of the machine ca. 4,5 x 3,0 x 2,5 m CNC - Turning- and MillingCenter MORI SEIKI - NZ 1500 T3Y3 - Main- and Subspindle - 3 turrets, 2x upper / 1x below - 3x Y-Axis - 3x 16-pos. tool-drive - incl. 28x collets - incl. Hainbuch changing device

Condition: used, Year of construction: 2008, Swing over bed 923,8 mm Swing over cross slide 755 mm Max. turning diameter 356 mm Max. turning length 510 mm Dwodpeu Sn Hzofx Ah Usd X/Z-axis movement 260/590 mm Turret w/12 stations Spindle speeds 5000 rpm Spindle bore 73 mm Control: MSX-850 III Equipped with: Collet chuck w/collets Chip conveyor 3 standard tool holders No Gantry loader incl.

Condition: used, Year of construction: 2011, Technical details: standard turning dia.: 200 turning length: max. 810 mm control: MSX-701 MAPPS IV greates pass round over bed: 800 mm Max. distance between centres: 1130 mm max. turning diameter: 320 mm max. workpiecediameter: 300 mm bar material dia.: 65 mm Traverse X-Axis 1: 210 Traverse X-Axis 2: 210 mm Traverse X-Axis 3: 210 mm Traverse Y-Axis 1: 110 (+65/-45) mm Dwjdpjxq E Ewefx Ah Ued Traverse Y-Axis 2: 110 (+45,/-65) mm Traverse Z-Axis 1: 300 mm Traverse Z-Axis 3: 300 mm Traverse Z-Axis 2: 810 mm Traverse B-Axis: 870 mm turning speed range - spindle: 5.000 1/min Number of spindle speed ranges: 2 . spindle nose: JIS A2-6 spindle bore: 73 mm spindle bearing diameter: 120 mm C-Axis: 0,001 ° turning speed range - spindle: 5.000 1/min spindle nose: JIS A2-6 spindle bore: 73 mm bar material dia. max: 65/52 mm spindle bearing diameter: 120 mm C-Axis: 0,001 ° Number of Turrets: 3 . Number of tool stations: 16 x 3=48 pos Schank height for square tool: 20 mm Diameter of boring bar: 32 mm turret changing time (4-stations): 0,18 sec Number of driven tools: 16 x 3=48 pos max. spindle speed driven tools: 6.000 U/min. Rotary tool machining ability: M16 / Ø16 . rapid traverse X-axis: 30 m/min rapid traverse Y-axis: 20 m/min rapid traverse Z-axis: 50 m/min drive capacity - spindle motor: 25 / 22 kW power capacity - driven tools: 7,5 / 5,5 kW total power requirement: 92,7 kVA weight of the machine ca.: 9,4 t dimensions of the machine ca.: 4,0 x 2,8 x 2,4 m Accerories Chip conveyor Coolantsystem C-axis in main and sub spindle Y-axis 2 x part counter total counter tool setting Overhead partsgripper with conveyor belt. Spindle 1 Chuck SMW KNCS-N 210 / 52 mm Spindle 2 Collet Chuck Hainbuch Spanntop nova Kombi Axfix 65 Robot interface Lehmann Robot with parts belt for feeding and disposal CNC Turning- and Milling Center MORI SEIKI NZ 2000 T3Y2 The NZ2000 T3Y has 2 spindles and 3 turrets, and 2 turrets have the Y-axis function and built-in milling motors. This not only allows synchronized machining using 3 turrets, but also achieves heavy-duty cutting and high-speed machining using rotary tools thanks to the built-in motor turrets. For shaft parts loading and unloading there is a Lehmann Robot conveyor belts for loading and unloading . *

Condition: like new (used), Year of construction: 2010, CNC controller: FANUC FS-31iA5 (MAPPS 4) Capacity X-axis travel mm: 685 Y-axis travel mm: 125 Z-axis travel mm: 1075 Turning length mm: 1045 Max. turning diameter mm: ø: 600 Bar work capacity mm: 65 Turn-mill spindle Full indexing specifications: YES B-axis degree: 120º FULL INDEXING SPECIFICATION Speed spindle rpm: 12000 Drive power kW: 18.5/11 Tool magazine Magazine places: 80 Tool holder: CAPTO C5 Tool length max. mm: 250 Tool diameter max. mm: 70/130 Tool weight max kg: 5 Lower turret Number of tool slots St .: 12 Drive power driven tools kW: 5.5/3.7 Main spindle Speed spindle rpm: 5000 Drive power spindle kW: 25/22 (100%/40%ED) Spindle bore mm: 73 Chuck type: HOLLOW CHUCK (8") Manufacturer: KITAGAWA Counter spindle Speed spindle rpm: 5000 Drive power spindle kW: 25/22 (100%/40%ED) Spindle bore mm: 73 Chuck type: HOLLOW CHUCK (8") Manufacturer: KITAGAWA Equipment Electronic Handwheel Chip conveyor Swivel head Signal lamp High pressure pump Mist collector Workarea light CE conformity Chuck foot switch (double) for main and counter spindle Coolant gun Toolholders are not included Precision NC rotary table, rapid traverse and feed rate 100 1/min incl. direct measuring system Oil skimmer Linear scales Gantry loader LG-10 AII RENISHAW MP700 Working time hours Under power: 76.510 Spindle 1: 11.521 Spindle 2: 9.271 Potencial nominal kVA: 102 Basic machine dimensions / weight Length mm: 8.000 Width mm: 4.000 Height mm: 3.000 Weight kg: 15.000 Dodpfxewwuaaj Ah Uowd

Year of construction: 2005, condition: ready for operation (used), Main Drive Spindle speed range 6000 Number of axis 6 Dwjdpfx Ahjxlllgj Uod Movement X-Axis Movement 260 mm Z-Axis Movement 590 mm This 6-axis MORI SEIKI NL2000SY/500 was manufactured in 2005, featuring X-axis travel of 260 mm, Z-axis travel of 590 mm, spindle power of 5.5 kW, and a spindle speed of 6,000 rpm. It includes a 12-position tool turret. If you are looking to get high-quality turning capabilities, consider the MORI SEIKI NL2000SY/500 machine we have for tact us for more information. Application Types Turning

Year of construction: 2005, condition: ready for operation (used), Two identical CNC lathes Mori Seiki are available. Turning diameter: 356mm, max. machining length: 705mm, travel X/Z: 260mm/795mm, speed: 4000rpm, spindle bore: 91mm, spindle power: 18.5kW, tool positions: 12. Machine dimensions X/Y/Z: approx. 2800mm/1900mm/2150mm, weight: approx. 6000kg, control: Mitsubishi/Fanuc. The operating hours have a maximum display value of 9999h, therefore the exact runtime cannot be determined. Documentation available. An on-site inspection is possible. Dwedpfx Asxph Rash Ued

Condition: used, Year of construction: 2010, turning diameter max. 320 mm turning length 810 mm control MSX 701 Number of revolutions max. 6.000 U/min power capacity - main spindel 22 / 18 kW max. usable bar diameter 52 mm C-Axis 0,001 ° spindle nose JIS A2-5 collet chuck 140 mm Number of revolutions max. 6.000 U/min power capacity - Sub spindle 22 / 18 kW max. usable bar diameter 52 mm C-Axis 0,001 ° spindle nose JIS A2-5 collet chuck 140 mm number of toolpositions 16 pos. Number of driven toolspositions 16 pos. Spindle speed - driven tools max. 6.000 min -1 power capacity - driven tools 7,5 / 5,5 kW Djdpfx Ajv E R E Ash Uewd Y - Axis 110 mm number of toolpositions 16 pos. Number of driven toolspositions 16 pos. Spindle speed - driven tools max. 6.000 min -1 power capacity - driven tools 7,5 / 5,5 kW x-travel 1/2: 210 mm y-travel 110 mm z-travel 1/2: 810 mm b-axis 900 mm total power requirement 86 kVA weight of the machine ca. 8,1 t dimensions of the machine ca. 8,0 x 3,5 x 2,8 m CNC - Turning- and MillingCenter MORI SEIKI - NZ 1500 T2Y - Main- and Subspindle - 2 turrets, up and below - Y-Axis - 2x 16 driven tool positions

Condition: used, Year of construction: 2007, Turning length 700 mm Max. turning dia. 460 mm Spindle speeds 4000 rpm X/Z travel 260/795 mm Dwodexdhxtspfx Ah Ued Turret w/12 stations Control: MSX-850 III Equipped with: Various tool holders

Condition: ready for operation (used), Year of construction: 2012, operating hours: 8,597 h, functionality: fully functional, turning length: 424 mm, turning diameter: 370 mm, bar diameter (max.): 65 mm, turning diameter over bed slide: 370 mm, milling spindle speed (max.): 12,000 rpm, TECHNICAL DETAILS Turning diameter: 370 mm Turning length: 424 mm Swing diameter: 370 mm X1-axis travel: 380 mm X2-axis travel: 155 mm Z1-axis travel: 460 + 155 mm Z2-axis travel: 610 mm y-axis travel: ±105 mm B-axis travel: ±120° Bar diameter: 65 mm Spindle 1 Maximum speed: 6,000 rpm Number of speed ranges: 2 (winding switch) Spindle mounting: JIS A2-5 Spindle bore: 61 mm C-axis resolution: 0.0001° Spindle diameter (front bearing): 100 mm Maximum torque (40% DC/continuous): 223/158 Nm Dwsdpfx Ahsxf A Ape Uod Spindle 2 Maximum speed: 6,000 rpm Number of speed ranges: 1 Spindle mounting: 80 g6 flat nose Spindle bore: 38 mm C-axis resolution: 0.0001° Spindle diameter (front bearing): 70 mm Maximum torque (15% DC/continuous): 49/22 Nm Tool Spindle Number of tool stations: 1 Tool shank type: C5 Spindle diameter (front bearing): 65 mm Tool change time (tool to tool): 1.2 s Maximum tool diameter with adjacent positions occupied: 70 mm Maximum tool diameter with adjacent positions free: 130 mm Maximum tool length: 250 mm Maximum tool length (over 70 mm diameter): 210 mm Maximum tool weight: 5 kg Minimum indexing increment for B-axis: 0.0001° Maximum spindle speed: 12,000 rpm Maximum torque (15% DC/continuous): 49/22 Nm Turret 2 Number of tool stations: 10 Maximum shank diameter for boring bars: max. 32 mm Feed Drives Rapid traverse X-axis (tool spindle): 40,000 mm/min Rapid traverse Y-axis (tool spindle): 40,000 mm/min Rapid traverse Z1-axis (tool spindle): 50,000 mm/min Rapid traverse X2-axis (lower turret): 30,000 mm/min Rapid traverse Z2-axis (lower turret): 30,000 mm/min Rapid traverse A-axis (workpiece unloading unit): 36,000 mm/min Rapid traverse B-axis: 100 rpm Rapid traverse C-axis: 250 rpm Tool Magazine Tool magazine: chain magazine, 76 positions Control Control: MSX-711-IV Mori Seiki Control system: MAPPS MACHINE DETAILS Power-on hours: 75,992 h Total power consumption: 45 kW Weight and Dimensions Machine weight: approx. 10.5 t Space required: approx. 2.71 × 2.43 × 2.40 m Operating Hours Head 1 Operating time: 48,606 h Machining time: 8,597 h Operating Hours Head 2 Operating time: 48,382 h Machining time: 2,664 h EQUIPMENT Renishaw HPRA Blum Laser Control Direct measuring system X, Y, Z, B SMW Autoblok KSZ-MB-040-Z140 collet chuck Workpiece conveyor belt Bar feeder Breuning Irco ILS-RBK-10012 Knoll band filter KF10/500 / HPC via milling spindle, 7-stage up to 70 bar Chip conveyor ConSep 2000

Condition: used, Year of construction: 2006, functionality: fully functional, turning length: 1,000 mm, turning diameter: 400 mm, spindle bore: 56 mm, travel distance X-axis: 800 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 460 mm, rapid traverse Z-axis: 80 m/min, rotational speed (max.): 12,000 rpm, overall weight: 10,500 kg, fuel: electricity, number of slots in tool magazine: 40, Mori Seiki MT 1500 SX 9-axis milling and turning center, manufactured in 2006, with Fanuc Series 18iB (MSX-501) control, maximum chuck length of 920mm, maximum diameter of 400mm, bore size of 56mm, 4000 and 6000 rpm spindle rotation, and 12,000 rpm milling spindle. 12-position turret with live tools, Y axis, B axis +/- 120, C axis 0.001, ATC 40 tools, and chip extractor. In excellent working condition and can be seen working in Portugal. Dedpfxeh Elp Eo Ah Uewd

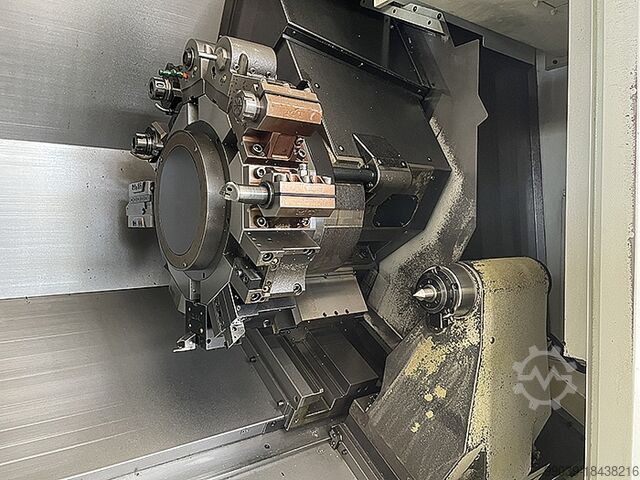

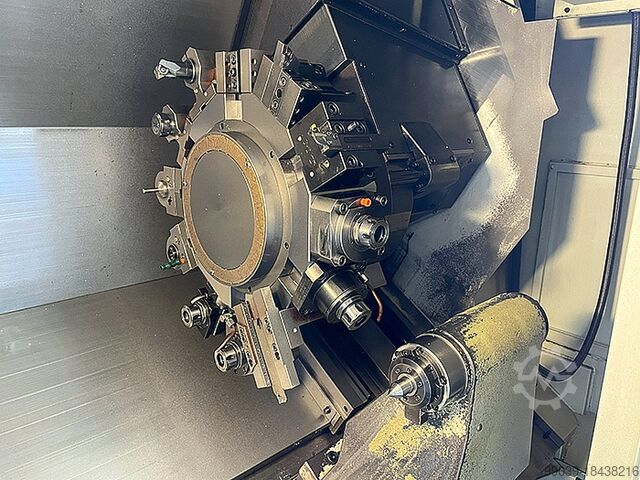

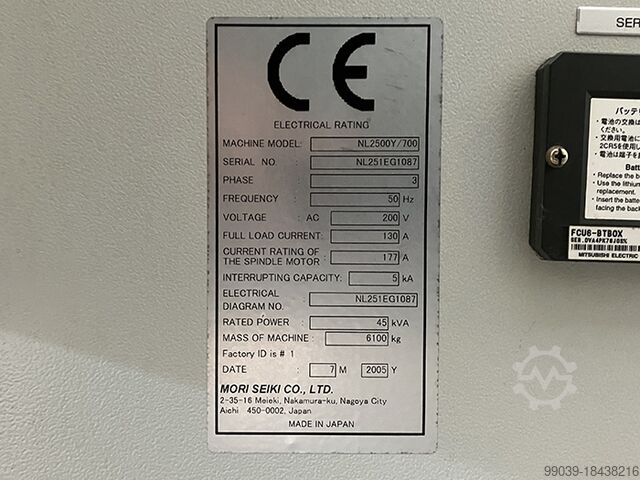

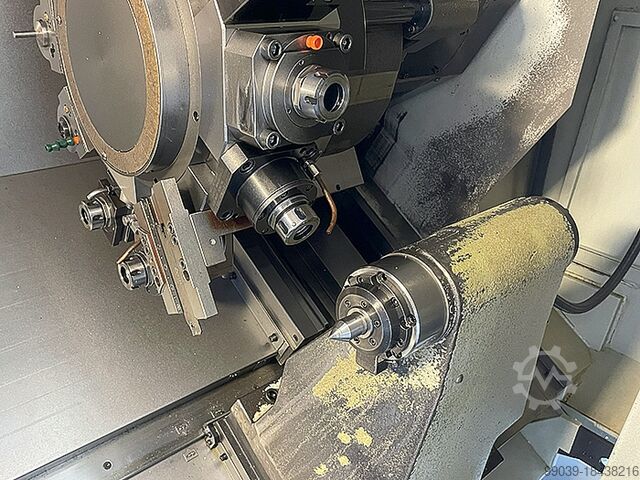

Condition: ready for operation (used), Year of construction: 2005, functionality: fully functional, machine/vehicle number: NL251EG1087, turning length: 705 mm, turning diameter: 356 mm, spindle bore: 81 mm, spindle speed (max.): 4,000 rpm, travel distance X-axis: 260 mm, travel distance Y-axis: 100 mm, travel distance Z-axis: 795 mm, rapid traverse X-axis: 30 m/min, rapid traverse Z-axis: 30 m/min, total height: 2,220 mm, total length: 3,100 mm, total width: 1,920 mm, overall weight: 6,200 kg, bar passage: 80 mm, tailstock quill stroke: 734 mm, Equipment: documentation/manual, Mori Seiki NL2500Y/700 CNC Lathe – with Y-axis – Used and Fully Refurbished, Ready for Use The machine is in excellent condition, fully overhauled and operational. Ideal for precision machining with Y-axis capability and driven tools. Main specifications: - Year of manufacture: 2005 - CNC: Mori Seiki MSX-850 - Max. swing diameter: 755 mm - Max. turning diameter: 356 mm - Max. turning length: 705 mm - Bar capacity: 80 mm - Spindle bore: 81 mm Spindle and Turret: - Kitagawa BB210 3-jaw chuck (clamping range 41–254 mm) - Spindle speed: up to 4000 rpm - 12-position turret - Driven tools up to 6000 rpm - Included: 4 driven tool holders and 7 static holders Axes: - X-axis travel: 260 mm - Y-axis travel: ±50 mm - Z-axis travel: 795 mm - Rapid traverse X/Z: 30 m/min Additional features: - Programmable tailstock (734 mm travel, MT3 fitting) - Belt chip conveyor - Tool presetting system - Parts catcher (gripper hand) Dimensions and weight: - Footprint: 3100 x 1920 x H 2220 mm - Weight: 6200 kg Machine supplied with: - 2x radial driven tool holders - 1x axial driven tool holder - 8x static toolholders (boring bar and tool holders) Dwjdpfxjvw Ackj Ah Usd The machine is available for testing and demonstrations, including via video call, and is immediately ready for use.

Condition: used, Year of construction: 2001, functionality: fully functional, Japanese-built 4-axis CNC lathe for secondary machining, featuring C axis, Y axis, and driven tools. Installed in 2002 and compliant with CE standards, with the following main specifications: Turning diameter: 755 mm Workable diameter: 390 mm Workable length: 655 mm 12-position driven turret Y axis travel: +/- 60 mm C axis Spindle nose: A2-8 Kitagawa B-210, 250 mm Spindle speed: 3,500 rpm Spindle motor: 18.5 kW Driven tool motors: 5.5 kW Driven tool speed: 4,000 rpm Bar capacity: 73 mm Tailstock: MT5 Rapid traverse speed: 18 and 24 m/min on X and Z axes Weight: 5,800 kg Complete with: - Hydraulic programmable tailstock - Box ways - Chip conveyor - Headstock oil cooling - Dual foot pedal for main chuck and tailstock open/close - Set of fixed tool holders - Set of driven tool holders - Complete manual set - CE certificate Dodpfx Aexf Iygsh Uowd

Condition: ready for operation (used), Year of construction: 2008, turning length: 1,542 mm, turning diameter over cross slide: 660 mm, spindle motor power: 22,000 W, spindle speed (min.): 4,000 rpm, spindle speed (max.): 12,000 rpm, travel distance X-axis: 750 mm, travel distance Z-axis: 1,550 mm, workpiece weight (max.): 8 kg, total height: 2,900 mm, total length: 6,800 mm, total width: 3,200 mm, overall weight: 25,600 kg, CNC controller: FS-31IA5 (MAPPS 4) Capacity Turning length mm: 1.542 Max. turning diameter mm: ø: ø660 Swing over bed mm: ø: ø730 Distance between spindle centers mm: 1.862 Turning diameter f. lower turret mm: ø350 Bar work capacity mm: 91 Turn-mill spindle Full indexing specifications: Yes X-axis travel mm: 750 Z-axis travel mm: 1.550+100 (for ATC) B-axis degree: ±180º (0.001°) C-axis degree: ±210 Speed spindle rpm: 12.000 Drive power kW: 18,5/11 Tool magazine Magazine places: 100 Tool holder: CAPTO C6 Tool diameter max. mm: 140 Tool weight max kg: 8 Lower turret X-axis travel mm: 195 Z-axis travel mm: 1.525 Number of tool slots St .: 12 Main spindle Speed spindle rpm: 4.000 Drive power spindle kW: 22/18,5 (30min/cont) Counter spindle Speed spindle rpm: 4.000 Drive power spindle kW: 22/18,5 (30min/cont) Coolant system High-pressure bar: 28 Equipment Electronic Handwheel Chip conveyor Rinsing gun Dwsdpfx Aexcwf Toh Usd Signal lamp Workarea light Internal coolant supply Measuring probe Gantry loader LG-10; 10 Pallets, 75kg per pallet, pieces of Ø200 x 150 (W x H) Basic machine dimensions / weight Length mm: 6.800 Width mm: 3.200 Height mm: 2.900 Weight kg: 25.600

Condition: used, Year of construction: 2001, Turning length 470 mm Max. torning dia. 390 mm Spindle speeds 3500 rpm Movements X/Z - 235/520 mm No of stations in turret 12 pcs. Control: MSG 500 Accessories: Various tool holders Dedpfx Ahjxdfi Nj Ujwd

Year of construction: 2005, condition: ready for operation (used), Control Unit Brand MITSUBISHI Main Drive Number of axis 3 This 3-axis MORI SEIKI NL 2000 SY/500 was manufactured in 2005. A horizontal turning machine featuring a BF interface and live tools, it also includes a tool setter on both spindles. If you are looking to get high quality turning and milling capabilities consider the MORI SEIKI NL 2000 SY/500 machine we have for sale. Contact us for more information. Application Types Turning Djdpfsxcb Rtox Ah Uswd

Condition: used, Year of construction: 1991, Lathe Mori Seiki SL 35 MC Dodpfx Aexmf T Heh Uowd

Condition: ready for operation (used), Year of construction: 1991, functionality: fully functional, machine/vehicle number: 1063, turning length: 790 mm, turning diameter: 650 mm, travel distance X-axis: 350 mm, travel distance Z-axis: 860 mm, center width: 900 mm, TECHNICAL DETAILS Turning diameter: max. 650 mm Turning length: max. 790 mm Swing over bed: 890 mm Swing over cross slide: 560 mm Distance between centers: 900 mm Travel paths X-axis: 350 (25 + 325) mm Z-axis: 860 mm Main spindle Speed range: 4 – 1,010 rpm Drive power: 37 / 30 kW Max. torque: 3,870 Nm Dsdpfx Ahoxb Amgj Uewd Number of speed ranges: 2 Spindle bearing diameter: 240 mm Spindle bore: 168 mm Max. bar diameter: 144 mm Usable bar diameter: 120 mm Spindle nose: JIS A2-11 Chuck diameter: 610 mm Turret Number of tool stations: 12 Square tool shank height: 32 mm Max. drill shank diameter: 65 mm Tailstock Travel: 680 mm Quill diameter: 110 mm Quill stroke: 100 mm Tailstock taper: MT 4 Feeds Rapid traverse X-axis: 5 m/min Rapid traverse Z-axis: 8 m/min Jog feed rate: 0 – 1,260 mm/min MACHINE DETAILS Control: MORIC T5F Electrical data Total power requirement: 69 kVA Frequency: 50 Hz Space requirement & weight Required space: approx. 6.0 x 3.0 x 2.6 m Machine weight: approx. 9.2 t EQUIPMENT Documentation Coolant system Tool presetting arm Three-jaw chuck Chip conveyor

Condition: good (used), Year of construction: 2007, functionality: fully functional, turning length: 530 mm, turning diameter: 370 mm, spindle speed (max.): 4,000 rpm, spindle motor power: 13 W, rapid traverse X-axis: 24 m/min, rapid traverse Z-axis: 24 m/min, Equipment: rotational speed infinitely variable, Mori Seiki Duraturn 2050 Year of manufacture: 2006/12 Initial commissioning: 2007 Control system: Fanuc 0iTB (MSC-504) Turning length: 528 mm Turning diameter: 354 mm Swing over bed: 609 mm Distance between spindle and tailstock: 545 mm X-axis travel: 200 mm Z-axis travel: 370 mm Spindle bore: 65 mm Turret: 12 stations Dwsdpexpcu Hsfx Ah Ujd Tailstock Chip conveyor Dimensions (L x W x H): 2175.0 × 1850.0 × 1825.0 mm Weight: 4100 kg

Condition: excellent (used), Year of construction: 2009, CNC controller: M720BM Capacity X-axis travel mm: 260 Y-axis travel mm: ±50 (100) Dedpfxsxcqz Ij Ah Uowd Z-axis travel mm: 795 Turning length mm: 705 Max. turning diameter mm: ø 356 Swing over bed mm: ø 923,8 Swing over cross-slide mm: 755 Bar work capacity mm: 80 C-axis degree: 0,001° Upper turret Number of tool slots St .: 12 Speed ​​driven tools RPM: 6.000 Drive power driven tools kW: 5,5/3,7 (3 min/cont) Indexing time s: 0,25 Main spindle Speed ​​spindle rpm: 4.000 Drive power spindle kW: 18,5/15 (25% ED/cont) Spindle bore mm: ø91 Tailstock Tailstock travel mm: 734 Holder: MT5 Equipment Chip conveyor Tool measuring arm

Condition: excellent (used), Year of construction: 2006, operating hours: 7,562 h, turning length: 515 mm, turning diameter: 366 mm, travel distance X-axis: 260 mm, travel distance Z-axis: 590 mm, rotational speed (max.): 6,000 rpm, total height: 2,120 mm, total length: 2,705 mm, total width: 2,000 mm, overall weight: 5,500 kg, CNC controller: Mitsubishi M-720BM (MAPPS 2) Capacity X-axis travel mm: 260 Z-axis travel mm: 590 B-axis travel mm: 624 Turning length mm: 515 Max. turning diameter mm: ø: 366 Swing over bed mm: ø: 923.8 Swing over cross-slide mm: 755 Bar work capacity mm: 52 Upper turret Number of tool slots St .: 16 Dedpfou T H Dxex Ah Ujwd Speed driven tools RPM: 6.000 Drive power driven tools kW: 5.5/5.5/3.7 (3min/5min/cont) Indexing time s: 0.25 Main spindle Speed spindle rpm: 6.000 Drive power spindle kW: 11/7.5 Spindle bore mm: 61 Chuck type: Hollow Chuck (6") Manufacturer: KITAGAWA Spindle nose: JIS A2-5 Counter spindle Speed spindle rpm: 6.000 Drive power spindle kW: 11/7.5 Spindle bore mm: 43 Chuck type: Hollow Chuck (6") Manufacturer: KITAGAWA Coolant system Tank capacity liter: 235 Equipment Chip conveyor Signal lamp High pressure pump Chuck foot switch (double) for main and counter spindle Interface for Bar feeder Bar loader IEMCA MASTER 880/MP 33 LL Working time hours Potencial nominal kVA: 27.4 Basic machine dimensions / weight Length mm: 2.705 Width mm: 2.000 Height mm: 2.120 Weight kg: 5.500

Year of construction: 1996, condition: ready for operation (used), Control Unit Dwodpfexd H Tpjx Ah Usd Brand FANUC Model na Main Drive Number of axis 2 Tools Number of index 12 This DMG Mori Seiki 150 SL was manufactured in 1996. A horizontal turning machine featuring a turning diameter of 150 mm, swing over saddle of 430 mm, and distance between centers ranging from 180 to 500 mm. It comes equipped with 12 tools. Consider the opportunity to buy this DMG Mori Seiki 150 SL horizontal turning machine. Contact us for more information. Application Types Turning

Condition: ready for operation (used), Year of construction: 2006, operating hours: 12,280 h, functionality: fully functional, machine/vehicle number: NL201FH1430, turning length: 510 mm, turning diameter: 356 mm, spindle speed (max.): 5,000 rpm, travel distance X-axis: 260 mm, travel distance Z-axis: 590 mm, TECHNICAL DETAILS Turning diameter: 356 mm Turning length: 510 mm Swing diameter: 755 mm Standard turning diameter: 275 mm Bar diameter: 65 mm Travel X-axis: 260 mm Travel Z-axis: 590 mm Spindle drive: 15 kW Spindle speed: 5,000 rpm Turret stations / with drive: 12/12 Rapid traverse - longitudinal/flat: 30 m/min MACHINE DETAILS Control: MSX 850 3 Electrical Data Phases: 3 Frequency: 50 Hz Voltage: AC 200 V Rated current: 110 A Rated spindle motor current: 131 A Total power requirement: 32 kW Dimensions & Weight Installation space: approx. 2,320 x 1,783 x 1,819 mm Machine weight: approx. 5.8 t Operating Hours Spindle hours: 12,280 h Machining hours: 13,579 h EQUIPMENT Dedpfx Ahsxhf Efe Uowd Chip conveyor Extraction unit Tool setting arm Parts catcher Double foot switch

Condition: good (used), Year of construction: 2008, In good technical condition and fully operational. Year of manufacture: 2008. Additional Y-axis ±60 mm Maximum spindle speed 3,000 min⁻¹ Spindle motor power 22/18.5 kW Maximum driven tool speed 6,000 min⁻¹ - 300 mm chuck with 90 mm through hole, spindle head A2-8 - Increased power and torque 25/30 kW, 1,000/1,300 Nm Dwedpfxexdcige Ah Ued - Turning diameter 420-500 mm - Turning length 1,250 mm - C-axis, driven tools - NC tailstock, fully programmable, separate motor - Increased Z-axis power - New chip conveyor

Condition: excellent (used), Year of construction: 2010, functionality: fully functional, turning length: 810 mm, turning diameter over cross slide: 800 mm, turning diameter: 320 mm, spindle motor power: 25,000 W, spindle speed (max.): 5,000 rpm, spindle bore: 73 mm, travel distance X-axis: 210 mm, travel distance Y-axis: 110 mm, travel distance Z-axis: 810 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 20 m/min, rapid traverse Z-axis: 50 m/min, rotational speed (max.): 6,000 rpm, CNC FANUC MSX-701 / MAPPS IV CAPACITY Swing diameter over bed: mm 800 Swing diameter over cross slide: mm 800 Maximum turning diameter: mm 320 Standard turning diameter: mm 200 Maximum distance between the center: mm 1.130 Maximum turning length: mm 810 Maximum workpiece size: mm 300 TRAVELS X axis turret 1 and 2: mm 210 Y axis turret 1 and 2: mm +65 / -45 Z axis turret 1 and 2: mm 810 B axis headstock 2: mm 920 MAIN SPINDLE Maximum speed: rpm 5.000 Drive power (30 min / continuous operation): kW 25/22 Maximum bar diameter: mm 65 Spindle bore: mm 73 Spindle diameter in front bearing: mm 120 Spindle mount: JIS A2-6 C-axis resolution: degrees 0,001 SUB SPINDLE Maximum speed: rpm 5.000 Drive power (30 min / continuous operation): kW 25/22 Maximum bar diameter: mm 65 Spindle bore: mm 73 Spindle diameter in front bearing: mm 120 Spindle mount: JIS A2-6 C-axis resolution: degrees 0,001 FEED DRIVES Rapid traverse turret 1 X/Y/Z: m/min 30/20/50 Rapid traverse turret 2 X/Y/Z: m/min 30/20/50 TOOL TURRET Number of turrets: 2 Dwjdpswlvlgsfx Ah Uod Number of tool stations per turret: 16 Shaft cross – section for turning tools: mm 20 x 20 Maximum shaft diameter for boring bars: mm 32 Turret switching time (1 station): s 0,18 Maximum speed of the driven tools: rpm 6.000 Drive power for driven tools (5 min/continuous operation): kW 7,5/5,5 DIMENSIONS Installation area with chip conveyor: mm 5.120 x 2.720 Net weight: kg 8.300 Macchina equipped with: • High pressure cooling system • Bar loader interface • Gantry-type piece unloading arm • Cutting effort management system and load monitor • No. 1 double radial motorized tool holder • No. 3 axial motorized tool holders • No. 2 external tool holders • No. 2 double boring bar holders • No. 2 single radial motorized tool holders • No. 2 internal boring bar holders • No. 2 Kitagawa BD 208 self-centering chucks diam. Mm 210 • No. 1 set of jaws for each self-centering chuck • Instruction manuals and CE declaration Year of manufacturing: 2010

Condition: good (used), Year of construction: 2002, Machine is in good working condition. Parts shown by hand not come. Dwodpjxbqnxjfx Ah Ujd
