Used Nibbling for sale (96)

Condition: good (used), Year of construction: 1990, functionality: fully functional, punching force: 22 t, sheet thickness steel (max.): 6 mm, Murata Weidemann C 2000 Codpfx Aetulrfogpjpt

Year of construction: 2003, condition: good (used), Boschert EL500CNC Z TRUMPF quick tool change system Punching force: 280 kN (28 tons) Travel x- 1000 mm (repositioning up to 9999 mm) y- 580 mm punching arm throat: 730 mm Tooling system Trumpf Gr1-3(105mm) Labod 32040 graphic control / workshop programmable Max. Sheet thickness: 6 mm(jaw opening) Max. Lifting height: 90 mm up and down infinitely programmable. Punching slug extraction Table width left + right: 1100 mm each Table depth: 810 mm table height: 900 mm total width: 2582 mm total depth: 2800 mm total height: 2080 mm Driving power: 20 kVA Codpfxohr A Nve Agpjpt Machine weight: 8.300 kg Hydraulic filling: 80 l Color: reseda green RAL6011/light gray RAL7035 Machine year 2003 Very well maintained condition with a lot of accessories Tool cabinet

Condition: repair required (used), Year of construction: 1992, functionality: limited functionality, punching force: 40 t, total height: 2,100 mm, total width: 1,800 mm, total length: 2,500 mm, sheet thickness steel (max.): 12 mm, type of input current: three-phase, travel distance X-axis: 1,250 mm, travel distance Y-axis: 750 mm, punching diameter: 100 mm, overall weight: 2,000 kg, table length: 2,500 mm, input frequency: 50 Hz, compressed air connection: 6 bar, input voltage: 380 V, Quick tool change rich suite of tools, punching, slitting, notching, cutting and shaping metal sheets, strip, bar stock, angles, etc. punching Examples: for steel with normal strength (about 400 N / mm) - diameter 100 or 70 x 70mm in diameter 5 mm thickness and 50 in 10 in 12.0 Diameter 35 mm plate thickness Cpjdpov A I Ngefx Agpst

Condition: good (used), Year of construction: 1997, operating hours: 30,000 h, functionality: fully functional, machine/vehicle number: 5820387, punching force: 30 t, total height: 2,000 mm, total width: 5,000 mm, total length: 15,000 mm, sheet thickness steel (max.): 8 mm, working range: 3,000 mm, type of input current: three-phase, travel distance X-axis: 2,500 mm, Amada VIPROS 358 KING + LKI L III 250 automatic loader + PR III automatic unloader + noise protection cover . It can work complete automatic , also sorting your parts on the pallet . Cjdpfx Aevb Dn Aegpjpt The machine was verry well mentained , we bought this machine and did not finish installation because we bought a new machine . The machine has SICK light barriers and original protection fences . For more informations please contact me . CNC AMADAN 04 P-C N. 2 pneumatic punches Brush table for low noise operation & scratch free processing Device for automatic repositioning of the sheet metal Air Blow automatic tool lubrication

Condition: used, Year of construction: 1997, EUROMAC CX 1000 PRESSURE 30t TABLE DIMENSIONS: 1000χ2000mm MULTITOOL 6 POSITIONS DIAMETER Φ24 SHEET METAL THICKNESS 6MM IN TOP CONDITION WITH EXTRA TOOLS Cjdpfxjncdvbs Agpopt MADE IN ITALY

Condition: ready for operation (used), Year of construction: 1997, functionality: fully functional, machine/vehicle number: 5820387, punching force: 30 t, sheet thickness steel (max.): 8 mm, working range: 3,000 mm, travel distance X-axis: 2,500 mm, CNC punching machine with fully automatic loading system TECHNICAL DETAILS Control: CNC AMADAN 04 P-C Automation & Safety Loading system: LKI L III 250 automatic loader Unloading system: PR III automatic unloader Sorting: Automatic part sorting on pallets possible Noise protection: Noise protection hood Safety equipment: SICK photoelectric sensors, original safety fences Processing capacity Punching force: 30 t Max. material thickness (steel): 8 mm Working area: 3,000 mm X-axis travel: 2,500 mm Table system Cpsdpfx Aowc S R Hogpjt Table type: Brush table for quiet operation and scratch-free processing Repositioning: Automatic sheet repositioning Tool lubrication: Air Blow automatic lubrication Punching Pneumatic punches: 2 pieces MACHINE DETAILS Power supply: Three-phase Overall length: 15,000 mm Total width: 5,000 mm Total height: 2,000 mm Punching machine weight: 16 t Loader weight: 2.3 t EQUIPMENT - Automatic loader LKI L III 250, built in 2011 - Automatic unloader PR III - Noise protection hood - SICK photoelectric sensors - Original safety fences - Brush table - Automatic sheet repositioning - Air blow lubrication - Two pneumatic punches Further technical details according to the manufacturer - without guarantee Ram stroke: 31.9 mm Max. hole diameter: 114.3 mm Punching frequency (X/Y direction) Stroke length: 8.0 mm – Pitch: 25.4 mm – Stroke frequency: 300 / 375 strokes/min Stroke length: 4.5 mm – Pitch: 25.4 mm – Stroke rate: 375 / 375 strokes/min Stroke length: 4.5 mm – Pitch: 2.0 mm – Stroke rate: 600 / 600 strokes/min Tool turret Tool type: Amada Thick Turret Turret speed: 25 rpm Turret capacity: 58 stations (4 of which are auto-indexable) Accuracies Punching accuracy: ± 0.10 mm Positioning accuracy: ± 0.025 mm Repeat accuracy: ± 0.025 mm

Condition: used, Manufacturer: TRUMPF Codpfx Aj Dv I Tjgpept Type: CS20a EXCELLENT CONDITION

Condition: used, Year of construction: 1999, Working area 4000 x 1500 mm Max pressure 30 ton No. of stations in turret 21 pcs. No. of indexing tool stations 10 pcs. Max. material thickness 8 mm Max. sheet size 3061 x 1528 m Max. punch dia. 89 mm Control: Cpedpfx Aexyiw Ajgpjt Siemens Sinumeric 840 D Equipped with: 4 threading stations Automatic loading/unloading system

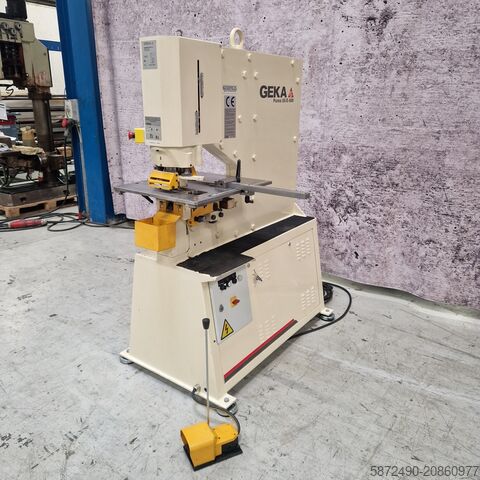

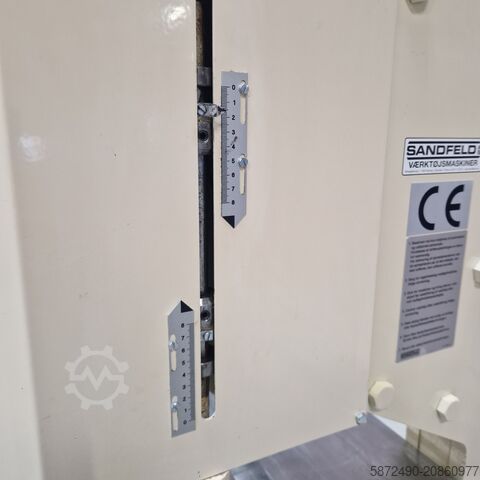

Condition: excellent (used), Year of construction: 2021, functionality: fully functional, Pressure, tn: 55 Punching capacity: Ø40 mm. in 10 mm. Throat/reach: 500 mm. Year: 2021 Country of origin: Spain. Size (L x W x H): 1000 x 1400 x 1900 mm. Weight: 1.200 kg. Very good condition. All our machines are tested and serviced before delivery. Cjdpfx Agjx Rybvopspt

Condition: good (used), Hand punch, hand punch, eccentric punch, hand lever punch, spindle punch Cpjdpfxjb A Rmbs Agpjt -Stamp holder: Ø 22 mm -Die holder: Ø 40 mm -Dimensions: 310/400/H50 mm -Weight: 26 kg

Condition: ready for operation (used), Year of construction: 2011, General Data Machine weight 21000 kg Main Drive Punching force 300 Kn Number of axis 2 Table Table load 160 kg Cpsdpfsx D Hpqjx Agpet Control Unit Brand FANUC Movement X-Axis Movement 2500 mm Y-Axis Movement 1525 mm This AMADA EMZ 3610 NT CNC punching machine was manufactured in 2011. It features a Fanuc control system, a punching force of 300kN, and a working area of 2500 x 1525 mm, extendable to 5000 x 1525 mm with repositioning. The machine can handle sheet thicknesses up to 4.5 mm and supports a maximum table load of 160 kg. If you are looking to get high-quality punching capabilities, consider the AMADA EMZ 3610 NT machine we have for sale. Contact us for more information. Application Types Punching

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2006, operating hours: 83,700 h, machine/vehicle number: 0126427-027, Equipment: type plate available, LVD STRIPPIT GLOBAL 30 1225 Turret Press Machine in very good technical condition, used at Alsanit. Regularly serviced only by the manufacturer's service. Service parts used in the service - only new and original. The turret press is in continuous production use. If you are interested, we encourage you to make an appointment to confirm the technical condition and technological capabilities of the offered machine. It is possible to provide a video presenting the operation of the turret press, please send an inquiry with a request for sharing. General data: Location: Alsanit Sp. z o.o., ul. Wieleńska2, 64-980 Trzcianka, Poland Province: Wielkopolskie Year of production of the turret press: 2006 Date of purchase and installation of the machine: June 2019 Machine mileage: 83700rh Maximum pressing force: 300 kN (30 tons) Maximum sheet thickness: 6.4 mm Turret system type: Thick Turret Control unit: CNC :GE FANUC 180 IP Maximum travel in the X axis: 2,576 mm Maximum travel in the Y axis: 1,337 mm Maximum table load (even): 145.6 kg Simultaneous speeds: 110 m/min Number of strokes per min (die fi 25 mm); ±2% 400 min-1 Number of strokes per min ("nibbling" function - 2 mm): 1000 min-1 Number of strokes per min (marking/0.5 mm): 1700 min-1 Maximum feed rate (speed) in the X axis: 83 m/min Maximum feed rate (speed) in the Y axis: 73 m/min Number of tool sockets (stations) in the turret: 30 pcs. Station A – max. diameter 12.7 mm: 8 pcs. Cpsdpfewptdusx Agpet Station B – max. diameter 31.7 mm: 16 pcs. Station C – max. diameter 50.8 mm: 2 pcs. Station D – max. diameter 88.9 mm: 4 pcs. Number of indexed (rotary) stations in the revolver: 4 pcs. (D stations) Note: A multitool can be placed in each D station (1 multitool has 3 to 8 tools), which increases the number of tools from 12 to 32 pcs. Machine height: 2,325 mm Machine length: 5,584 mm Machine width: 5,160 mm Machine weight: 13,750 kg Working sheet size: 1,250 x 2,500 mm Number of sheet metal clamps (individually programmable): 3 pcs. Tilting work chute for cut parts: 450 x 500 mm Electric power supply 380/415 Volt, 35.5 kVA, 63 A, cable cross-section (3+1)x16 mm2 Additional equipment: Waste conveyor; Brush table The LVD Strippit Global 30 punching machine has 4 programmable rotary stations (size D). Each station can be equipped with a multitool head with automatic rotation. Using a servo drive, as well as CNC control - both the rotary stations and the entire turret have the possibility of bidirectional rotation with an accuracy of 0.01 degrees. The Auto Index rotary stations of the LVD Strippit Global 30 punching machine operate on the principle of direct drives, which are located directly above the station, constituting part of the turret mechanism. In the rotary stations with a diameter of 88.9 mm, a multitool tool holder can be mounted, thus increasing the machine's capabilities and the number of tools. The multitool holders allow for the installation of 3 or 8 punches and dies with a diameter of 12.7 mm or 31.7 mm, respectively. We issue a VAT invoice The price given is a net price!

Condition: used, Year of construction: 2019, functionality: fully functional, total height: 2,100 mm, total width: 9,000 mm, sheet thickness (max.): 6 mm, punching diameter: 105 mm, overall weight: 17,500 kg, table height: 900 mm, color: blue, power of feed motor: 20,000 W, Punching machine equipped with two independent tool stations with electrohydraulic heads and HiFocus 160i plasma unit from Kjellberg. The machine is characterized by: - automatic adjustment of the plasma torch height, - TRUMF quick tool change system - short changeover time; - X-axis movement range from 0 to 3000 mm, Cjdpowayilofx Agpjpt - Y-axis movement range 0d 0 to 1500 mm, - stepless adjustment of feed speeds, - possibility of nibbling, punching and embossing, - stepless adjustment of stroke height up to 90 mm, - tool punching up to 6 mm thick, - plasma torch cutting up to 12 mm thick, - easy programming. Available functions: - single hole, - row of holes, - circle of holes, - circle nibbling, - rectangular chipping, - matrix, - nibbling of cuts, - object rescaling, - contour program (in combination with Rotation station), - subroutines, - object repetition, - trimming, - hole-free zone, - ellipse, - V-belt, - mirror image, - waste removal. High-quality plasma cutting unit for structural steel, high-alloy steel and aluminum. Reduces the use of additional processing due to the appropriate cutting surface. Water-cooled PerCut 210 plasma torch with high heat dissipation efficiency and long nozzle durability thanks to the use of swirl gas technology.

Condition: new, neu ca. 12 - 14 Wochen ab Auf Türkei 209800 € 3371.76 € 178400 € 20 to 2000x1250 mm 2000 mm 1250 mm 90 m/Min 70 m/Min 114 m/Min 1100 1/Min 375 1/Min 1200 1/Min 6 mm 3 mm 3 mm 1.5 mm 27 0,1 mm 0,05 mm 30 U/Min 150 U/Min 100 kg 940 mm 6 bar 88.9 mm 7.5 kW 5600 mm 6600 mm 4200 mm 6200 mm 2310 mm 11000 kg SPECIAL CAMPAIGN UNTIL 23.12.2025 Control unit, Siemens Sinumerik 840 D SL CAD-CAM software Programming on the control panel Remote diagnostic function Automatic clamp positioning Network Ethernet communication Automatic tool lubrication UPS for control panel Movable scrap box Brush table Oil Cooler USB Driver Command pedal Web cam for service Reposition on X axis Cpedpfxewirpcj Agpet Alignment Tools for Index Stations C+B Station Manual nesting turret (27 stations without tool and holder): 11 x A-Station fix: 0,8-12,7 mm 10 x B-Station fix: 12,8 - 31,7 mm 2 x B-Station Index: 12,8 - 31,7 mm 1 x C-Station fix: 31,8 - 50,8 mm 1 x C-Station Index: 31,8 - 50,8 mm 2 x D-Station fix: 50,9 - 88,9 mm Infra-red light barriers according to CE rules

Condition: ready for operation (used), Trumpf TruPunch 3000 Stanzmachine, Punching Machine, 1st owner Cpjdpfjx I Iwgex Agpst

Condition: good (used), Brush deburring machine, sheet metal deburring machine, deburring machine -Deburring machine for: stamped, laser and nibbling parts -Deburring system for: sheet metal edges with notches -Drive power: 0.71 kW -Speed: 4500 rpm -Dimensions: 400/180/H130 mm Codpjd Nq A Ujfx Agpept -Weight: 3.5 kg

Condition: ready for operation (used), Year of construction: 1999, General Data Measurements width 4100 Measurements depth 5700 Measurements height 2070 Machine weight 8000 Main Drive Maximum sheet thickness 6.4 mm Movement X-Axis Movement 1270 Cpodpfx Aox D Rg Hogpet Y-Axis Movement 1270 - 2020 Workpiece Workpiece weight 75 kg This 3-axis TRUMPF TC2000R was manufactured in 1999, featuring a robust 1270 mm X and Y-axis travel, expandable to 2020 mm for larger sheets. It boasts a 22-ton punching capacity and a high-speed punching rate of up to 900 strokes/min. The machine includes a 9-station linear magazine with an automatic turret-style changer and full C-axis rotation. Ideal for high precision CNC punching. Contact us for more information about this machine. Application Types Punching

Condition: used, Year of construction: 2001, gebraucht 2001 Cpedpfx Ajwirkgogpot 9647 prompt, Zwischenverkauf v Italien 24400 € 1 30 to 1250+N x 1000 mm 1250 mm 1000 mm 40 m/Min 30 m/Min 50 m/Min 30 mm 730 1/Min 300 1/Min 980 mm 4 kW 115 l 4000 mm 2780 mm 1900 mm 4000 x 2300 x 1900 mm + Z mm 4800 kg With 6-way multitool holder MTE6 (max. Dm. 24 mm) 2 Clamping claws Table with Brushes, table dimension 1970 x 2260 mm Foot pedal 2 pcs. additional single matrix holders PC with Euromac Software Eurowin 8.36 Max. Punching force 300 kN Automatic repositioning up to 10.000 mm Max. Punching diameter for single tool 88,9 mm, Max. Punching diameter Multitool Holder MTE6 Dm. 24 mm Max. Opening the clamping claws 7 mm Transport width: 2350 mm User Manual in english and italian CE declaration available WITH LARGE TOOL PACKAGE several pieces of each of the following dimensions: Round: Dm. 2,5/2,8/3/3,12/3,2/3,5/3,9/4,1/4/4,5/5/5,2/5,5/6/7/7,5/8/8,5/9/9 ,5/10/10,5/11/11,5/12/12,5/13/13,5/14/15/16/18/19/20/21/23 Square: 10/12/13/15 mm Rectangle: 5x2/20x2/22x4 mm Oblong hole: 10x6,5/12x8,5/12,2x10,7/18x5 mm

Condition: ready for operation (used), Year of construction: 2008, General Data Machine weight 21000 kg Table Table load 160 kg Main Drive Number of axis 2 Movement X-Axis Movement 2500 mm Y-Axis Movement 1525 mm This AMADA EMZ 3610 NT was manufactured in 2008. It features a press force of 300 kN, can handle material up to 4.5 mm thick, and supports a maximum table load of 160 kg. The machine includes 45 turret stations with auto-index and achieves a stroke rate of 1000 strokes/min. If you are looking to get high-quality punching capabilities consider the AMADA EMZ 3610 NT machine we have for sale. Contact us for more information. Application Types Punching Csdpsx Enlxjfx Agpept

Condition: ready for operation (used), Year of construction: 2007, General Data Measurements width 4900 Measurements depth 6190 mm Measurements height 2450 mm Machine weight 8400 kg Control Unit Brand FANUC Model FANUC 16I-PB Main Drive Main motor power 12.5 kW Movement X-Axis Movement 3090 mm X-Axis Rapid Traverse 70 m/min Y-Axis Movement 1540 mm Y-Axis Rapid Traverse 65 m/min Table Cpsdpfx Asx D Nk Rjgpjt Outer length 1500 mm Outer width 3000 mm Additional Equipment Integrated Auto-Index system Automatic tool change system with 15 stations Waste extraction system at the die Pedal for opening/closing sheet clamps Pedal for single punching operation Automatic collision prevention for tilting parts and cutouts Interactive CAD with export function Import of CAD drawings in common formats Interactive nesting (freehand, bump nesting) Automatic positioning of special tools This TECHNOLOGY Tecnotransfer 1500x3000 was manufactured in 2007. A robust CNC punching machine, it offers precision and efficiency for your metalworking needs. If you are looking to get high-quality punching capabilities, consider the TECHNOLOGY Tecnotransfer 1500x3000 machine we have for sale. Contact us for more information. Application Types Punching

Condition: ready for operation (used), Year of construction: 2009, operating hours: 22,574 h, punching force: 20 t, total height: 2,082 mm, travel distance X-axis: 2,500 mm, travel distance Y-axis: 1,270 mm, overall weight: 13,000 kg, controller manufacturer: AMADA, controller model: AMNC-F, product length (max.): 4,165 mm, General Data Machine weight 13000 kg Measurements height 2082 mm Control Unit Brand AMADA Model AMNC-F Main Drive Punching force 200 Kn Dimensions Machine Length 4165 mm Movement X-Axis Movement 2500 mm Y-Axis Movement 1270 mm This AMADA AC2510 NT + MP 250 was manufactured in 2009. It features a 51-station turret and can handle sheet sizes up to 1270 × 5000 mm, with a maximum thickness of 3.2 mm for mild steel. The machine includes a loading system MP 250, enhancing its efficiency. Consider the opportunity to buy this AMADA AC2510 NT + MP 250 CNC punching machine. Contact us for more information. Codpfx Asx E Ecuegpjpt Application Types Punching

Condition: ready for operation (used), Year of construction: 2013, General Data Machine weight 6500 kg Main Drive Punching force 300 Kn Cpedsx D Ia Rjpfx Agpot Movement X-Axis Movement 1300 mm This Euromac MTX Flex 6 Hybrid was manufactured in 2013. It features a maximum punching force of 300 kN and can handle sheet weights up to 200 kg. Equipped with a hydraulic system controlled by a servomotor, it ensures precision and efficiency. The machine supports automatic repositioning up to 10000 mm and has a maximum punching diameter of 85 mm. Ideal for high-quality punching capabilities. Contact us for more information about this machine. Application Types Punching

Condition: ready for operation (used), Year of construction: 2012, punching force: 18 t, total height: 2,252 mm, sheet thickness (max.): 6 mm, travel distance X-axis: 2,500 mm, travel distance Y-axis: 1,250 mm, controller manufacturer: BOSCH, controller model: MTX CMP70, product length (max.): 6,500 mm, General Data Measurements height 2252 mm Control Unit Cpodpfox D Dklsx Agpot Brand BOSCH Model MTX CMP70 Dimensions Machine Length 6500 mm Movement X-Axis Movement 2500 mm Y-Axis Movement 1250 mm Main Drive Punching force 180 Kn Maximum sheet thickness 6.4 mm This TRUMPF TruPunch 3000 S11 was manufactured in 2012. It features a Bosch MTX CMP70 control system, with X/Y-axis travels of 2500 / 1250 mm, and can handle sheet weights up to 160 kg. The machine includes a linear tool magazine with 18 stations and offers functions like MultiTool, MultiBend, and thread forming. Consider the opportunity to buy this TRUMPF TruPunch 3000 S11 CNC punching machine. Contact us for more information about this machine. Application Types Punching

Condition: ready for operation (used), Year of construction: 2003, operating hours: 24,628 h, General Data Machine weight 17500 kg Control Unit Model WIN NT Brand TRUMPF Main Drive Punching force 220 kN Movement Csdpfx Ajx D Htpegpopt X-Axis Movement 3125 mm Y-Axis Movement 1650 mm This Trumpf Trumatic 5000 R Punching machine was made in 2003 and has 24628 production hours. It is equipped with a Trumpf WIN NT control unit. The machine has a punching force of 220 kN. Application Types Punching

Condition: ready for operation (used), Year of construction: 2011, General Data Measurements width 4413 Measurements depth 5860 mm Measurements height 2263 mm Machine weight 14500 kg Csdpex D Dn Djfx Agpopt Control Unit Brand BOSCHERT Main Drive Maximum sheet thickness 6 mm Movement X-Axis Movement 3430 mm Y-Axis Movement 2670 mm Z-Axis Movement 1500 mm Additional Equipment 8 Station Automatic Tool Change tooling, system TRUMPF Rotation with stepless Index (360°) of all tools Up to 64 Tools available (with Revotools) Very short time for tool change All standard Trumpf tools may be used Clamp system for automatic material handling with 2 clamps Stepless programmable clamp positioning Automatic repositioning of the clamps with 2 sheet hold downs for sheets up to 9999 mm This BOSCHERT Multipunch 1500 x 3000 was manufactured in 2011. A robust CNC punching machine, it offers precision and efficiency for your sheet metal operations. Ideal for a variety of punching applications, ensuring consistent performance. Contact us for more information. Application Types Punching
