Used Phantomatic for sale (13)

Condition: excellent (used), Year of construction: 2006, functionality: fully functional, X working area: 3,100 mm Electrospindle: 1 HSD, ISO 30 taper – max. 18,000 rpm Ljdpfjxt Hd Hjx Ab Tsrh Tool changer positions: 5+1 Worktable: 4 automatically positioned clamps Weight: 1,950 kg Dimensions: 5,472 x 1,900 x 2,200 mm

Year of construction: 2011, condition: reconditioned (used), functionality: fully functional, X-axis travel (longitudinal axis) 4300 mm Y-axis travel (transverse axis) 270 mm Z-axis travel (vertical axis) 300 mm Electrospindle 1 HSD - max 18000 rpm - power 5.5 kW Tool magazine capacity 8 Bevel gearbox for lateral machining Lrodpfx Asvi N H Tjb Tsh Number of vices 4 Vices positioning: automatic Weight 1950 kg

Year of construction: 2019, condition: excellent (used), functionality: fully functional, machine/vehicle number: G123379, Machining center, fully functional, well-maintained, ready for immediate collection. Lrjdpfjygh Etox Ab Teh

Year of construction: 2015, condition: excellent (used), Machining centre with 4 CNC-controlled axes for machining profile bars or parts made of aluminium, PVC, non-ferrous metals, and steel up to 3 mm. Travel Range: X-axis up to approx. 4300 mm Y-axis up to approx. 270 mm Z-axis up to approx. 300 mm The profile rotating device positions at -90°, 0°, and 90°, eliminating the need for angle heads for lateral machining and allowing full utilization of the spindle motor’s power range. Minimum quantity lubrication system (oil) 4 clamping elements 8-slot tool changer Lredpfx Aswhwpljb Toh Tool holder HSK - 63F MG Pilot control panel Pneumatic reference stop on the right side

Condition: ready for operation (used), Year of construction: 2020, operating hours: 3,440 h, functionality: fully functional, travel distance X-axis: 3,000 mm, travel distance Y-axis: 274 mm, travel distance Z-axis: 390 mm, rapid traverse X-axis: 56 m/min, rapid traverse Y-axis: 22 m/min, rapid traverse Z-axis: 22 m/min, feed length X-axis: 3,000 mm, feed length Y-axis: 274 mm, feed length Z-axis: 390 mm, rotational speed (max.): 20,000 rpm, overall weight: 1,700 kg, spindle speed (max.): 20,000 rpm, operating hours of spindle: 1,621 h, spindle motor power: 4,000 W, number of slots in tool magazine: 9, tool diameter: 80 mm, input voltage: 400 V, type of input current: three-phase, We offer this ready for use Emmegi PHANTOMATIC M3 vertical machining center, year of construction 2020. Manufacturer: Emmegi Model: PHANTOMATIC M3 Serial number: C124963 Year of manufacture: 2020 Weight: 1700 kg Pneumatic operating pressure: 6-8 bar Motor power: 6.5 kW Current: 9.4 A Voltage: 400/3 V Frequency: 50 Hz Machining center with less than 1700 spindle hours! TECHNICAL DETAILS Travel distances X-axis (longitudinal): 3,000 mm Y-axis (transverse): 274 mm Z-axis (vertical): 390 mm Automatic positioning: -90° | 0 | +90° Positioning speed X-axis: 56 m/min Y-axis: 22 m/min Z-axis: 22 m/min Spindle Maximum power in S1: 4 kW Maximum speed: 20,000 rpm Tool holder: HSK-50F Tool stations: 9 MACHINE DETAILS Weight: 1,700 kg Operating hours Spindle hours: 1,621 h Operating hours: 3,440 h EQUIPMENT - Cutter head, 80mm -Collets 5mm: 1 pc 9mm: 1 pc 2.5mm: 1 pc 8mm: 3 pcs 16mm: 1 pc 10mm: 3 pcs 7mm: 1 pc Lrsdpfx Ajygtckob Tsh 12mm: 1 pc 6-5mm: 2 pcs 4mm: 1 pc If you have any questions or need more information, feel free to send us a message or give us a call.

Condition: good (used), Year of construction: 2007, functionality: fully functional, travel distance X-axis: 7,000 mm, travel distance Y-axis: 300 mm, travel distance Z-axis: 350 mm, rotational speed (max.): 18,000 rpm, Emmegi Phantomatic T5 – CNC Profile Machining Centre (2007) For sale: a well-maintained and fully operational Emmegi Phantomatic T5 CNC profile machining centre. This machine is ideal for the efficient and precise processing of aluminium, PVC, and light-alloy profiles. The long X-axis travel allows machining of profiles up to 7 meters in a single setup, while the pendulum mode delivers outstanding productivity for series production. Technical Specifications Manufacturer: Emmegi Model: Phantomatic T5 Year of Manufacture: 2007 Control System: CNC – 3 axes (X/Y/Z) Axis Travels: X-axis: 7000 mm Y-axis: 300 mm Z-axis: 350 mm Spindle Power: 5.5 kW electrospindle Lrsdpfx Abexz R H Us Tsh Spindle Speed: up to 18,000 rpm Tool Holder: ISO 30 Tool Magazines: 2 × (5 + 1) tool positions Machining Capability: Five-sided machining with angle heads Clamps: 8 pcs, automatic positioning Operating Modes: Single-zone machining Double-zone / pendulum machining Maximum Profile Length: 7000 mm Machine Weight: approx. 3200 kg Air Pressure: 6–8 bar Equipment & Features - Automatic clamp positioning - Sawing, drilling, and milling in a single setup - Pendulum mode for continuous production - Dual tool magazines for both working zones - Suitable for long aluminium and PVC profiles - Optional Camplus software (depending on machine) Condition - Fully functional and ready for operation - All axes run smoothly - Tool magazines fully operational - Mainly used for aluminium profiles (light-duty work) - Machine is clean and in straight condition Ideal Applications - Aluminium window & door fabrication - Light-alloy profile machining - PVC profile processing - Batch and serial production - Industrial manufacturing of long profiles Please verify the accuracy of the machine specifications with the seller.

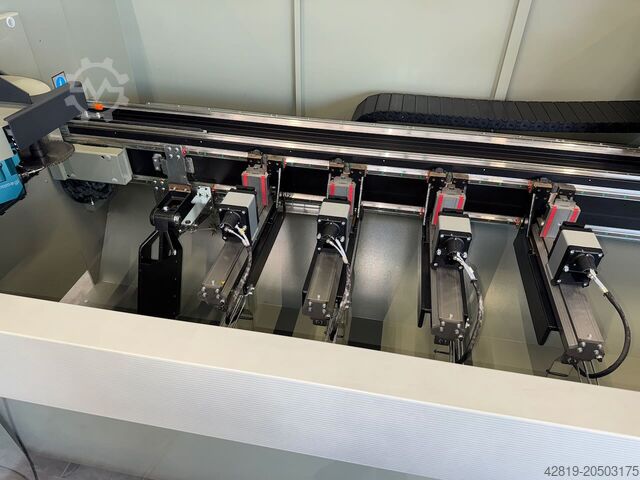

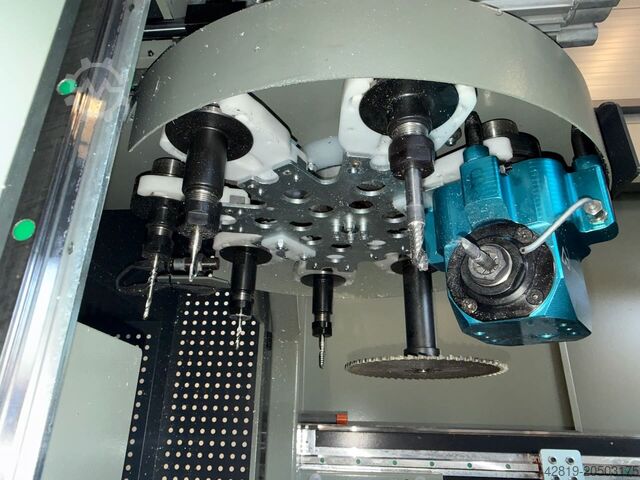

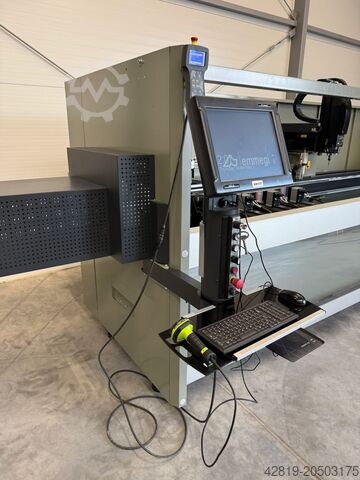

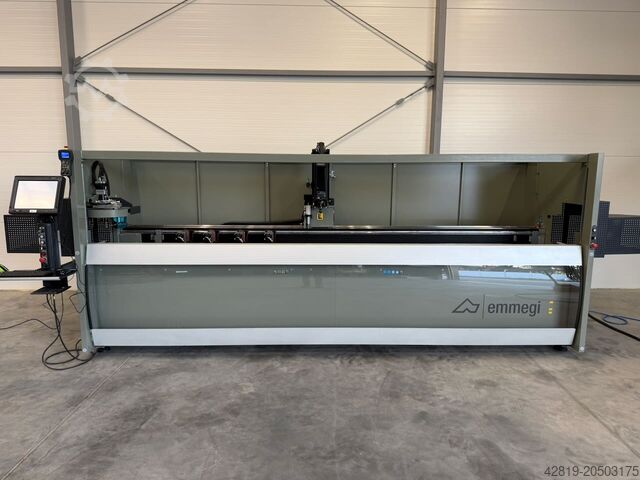

Year of construction: 2008, condition: used, functionality: fully functional, Three-axis interpolated CNC machining center with angular head accessory (enabling 4-axis machining), model Phantomatic T3 A. Specifically designed for comprehensive processing of aluminum, PVC, and light alloy profiles. Renowned for its historical reliability, precision, and sturdiness, this machine is ideally suited for window and door fabrication workshops as well as light metal carpentry applications. Structure and Configuration • Monoblock, fully enclosed frame with extensive perimeter protections • Completely enclosed working area with safety panels • Extended worktable with multiple pneumatic clamps for secure profile holding • Heavy-duty linear guides and kinematics, engineered for continuous operation • Prepared for machining of longer profiles Machining Unit • High-performance vertical spindle suitable for: o Milling o Drilling o Tapping o Slotting and contoured machining • Tool holding stations in view, including: o Milling head attachments o Drilling tools o Saw blade group (as shown in photos) • Manual tool change with current tool set included Controls and Commands • Emmegi operator console featuring: o Integrated monitor o Physical control keypad o Safety selectors o Emergency stop button • Ergonomic operator station with work surface • User-friendly, proven control system—suitable even for less experienced operators Included Equipment (as pictured) • Tool and toolholder set • Accessory case with: o Service wrenches o Clamping devices o Support equipment • Full set of guards and safety covers • Integrated electrical system on board the machine Applications Lredpoygumdefx Ab Toh • Aluminum and PVC windows and doors • Lightweight façades • Industrial profiles • Light metal fabrication • Precision machining of extruded profiles Machine Condition • Used machine • Overall condition: good • Source: production workshop • Dismantled / ready for loading (see photos) • Normal wear consistent with age

Year of construction: 2006, condition: good (used), 3-axis / 5-side machining center with ISOLA soundproof cabin for aluminum, PVC, and steel profile bars. Comparable to Elumatec, Mecal, Fom, Pertici, etc. The machine features two machining zones and two tool magazines, which can be operated individually in pendulum mode or together for setups spanning the entire machining length (multi-part operation). The clamps can be positioned independently on the left and right relative to the machining head. Travel distances: X-axis: 7000 mm Lrodpfx Abox Dimxs Toh Y-axis: 300 mm (+113 mm from the movable worktable) Z-axis: 350 mm P-axis: 3500 mm (for left-side clamp positioning) H-axis: 3500 mm (for right-side clamp positioning) 8 clamping elements (4 clamps per machining zone) 12 tool holders (6 holders per changer magazine/machining zone) Including: Camplus software 2 angle heads

Year of construction: 2008, condition: used, functionality: fully functional, machine/vehicle number: C105253, 3-axis milling machine 8 pneumatic clamps with auto, independ positioning Lsdox Eytzjpfx Ab Torh 2x automatic toolmagazine for 2x 5 tools

Condition: ready for operation (used), Technical characteristics AXIS TRAVEL X AXIS (longitudinal) (mm) 4300 Y AXIS (cross) (mm) 270 Z AXIS (vertical) (mm) 300 ELECTRO-SPINDLE Max. power rating (S1) (kW) 5,5 Max. power rating Lodpfx Abeundg Us Torh Max. speed (rpm) 20000 Tool taper HSK 63F AUTOMATIC TOOL MAGAZINE Max. number of tools in the tool magazine 4 standard Max. number of angle machining heads loadable in the tool magazine 2 Max. blade diameter loadable in the tool magazine (mm) Ø 180 FUNCTIONS Multi-piece operation MACHINABLE FACES With straight tool (top face) 1 With angle machining head (side faces and ends) 2 + 2 With blade tool (side faces and ends) 2 + 2 TAPPING CAPACITY (with tap on aluminium and through hole) With compensating chuck M8 Rigid WORKPIECE CLAMPING Standard number of vices 4 Max. number of vices 6 Power and Motors Pluging: Three-phased Overall dimensions Lenght: 5000 mm Width: 1300 mm Weight: 2000 Kg

Year of construction: 2008, condition: good (used), 4-axis workingcenter 4 pneumatic clamps with automatic positioning automatic toolchange with 8 toolholders usefull lenght 4000 mm Windows XP Embedded Software Camplus Software Shape remote control MG pilot Lsdoxhck Espfx Ab Tsrh

Condition: ready for operation (used), Year of construction: 2020, operating hours: 1,621 h, functionality: fully functional, machine/vehicle number: C124963, travel distance X-axis: 3,000 mm, travel distance Y-axis: 274 mm, travel distance Z-axis: 390 mm, spindle speed (max.): 20,000 rpm, number of slots in tool magazine: 9, Machining center with only 1,621 spindle hours! TECHNICAL DETAILS Travel distances X-axis (longitudinal): 3,000 mm Y-axis (cross): 274 mm Z-axis (vertical): 390 mm Automatic positioning: -90° | 0 | +90° Positioning speeds X-axis: 56 m/min Y-axis: 22 m/min Z-axis: 22 m/min Spindle Maximum power in S1: 4 kW Maximum speed: 20,000 rpm Tool holder: HSK-50F Tool positions: 9 MACHINE DETAILS Weight: 1,700 kg Operating hours Spindle hours: 1,621 h Operating hours: 3,440 h EQUIPMENT - Milling cutter head 80 mm - Collets: 5 mm: 1 piece 9 mm: 1 piece 2.5 mm: 1 piece 8 mm: 3 pieces 16 mm: 1 piece 10 mm: 3 pieces 7 mm: 1 piece 12 mm: 1 piece 6-5 mm: 2 pieces 4 mm: 1 piece Note: The machine will be available from 01/12/2025. Lredpfjxwnhzsx Ab Tjh

Condition: ready for operation (used), Year of construction: 2020, operating hours: 1,621 h, functionality: fully functional, machine/vehicle number: C124963, travel distance X-axis: 3,000 mm, travel distance Y-axis: 274 mm, travel distance Z-axis: 390 mm, spindle speed (max.): 20,000 rpm, number of slots in tool magazine: 9, Machining center with only 1,621 spindle hours! TECHNICAL DETAILS Travel distances X-axis (longitudinal): 3,000 mm Y-axis (cross): 274 mm Z-axis (vertical): 390 mm Automatic positioning: -90° | 0 | +90° Positioning speeds X-axis: 56 m/min Y-axis: 22 m/min Z-axis: 22 m/min Lredpfx Aow Nvt Dob Tjh Spindle Maximum power in S1: 4 kW Maximum speed: 20,000 rpm Tool holder: HSK-50F Tool positions: 9 MACHINE DETAILS Weight: 1,700 kg Operating hours Spindle hours: 1,621 h Operating hours: 3,440 h EQUIPMENT - Milling cutter head 80 mm - Collets: 5 mm: 1 piece 9 mm: 1 piece 2.5 mm: 1 piece 8 mm: 3 pieces 16 mm: 1 piece 10 mm: 3 pieces 7 mm: 1 piece 12 mm: 1 piece 6-5 mm: 2 pieces 4 mm: 1 piece Note: The machine will be available from 01/12/2025.
