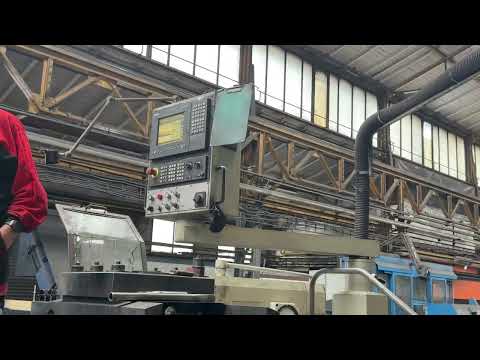

CNC Lathe POREBA - TCF 160

Poreba TCF 160

Condition: used, Year of construction: 2008, max. wheel diameter 700 mm max. module 10 (18) min. module 1 table diameter 530 mm Table speed max. 350 1/min Distance of shafts 50 - 680 0 Hedpfx Acjyv Ipfo Tor workpiece weight 4.000 kg Axial travel 1.000 mm tangential adjustment 300 mm pivoting angle + / - 45 Grad power capacity 32 kW spindle turning speed range 3.500 - 12.000 U/min tool diameter 320 mm total power requirement 80 kW weight of the machine ca. 25,00 t

Condition: used, Year of construction: 1983, grinding length 8400 mm grinding width 1450 mm workpiece height 1250 mm surface area 8000 x 1250 mm table height over floor 920 mm distance between columns 1470 mm workpiece weight max. 59700 kg weight of the machine ca. 59,7 t dimensions of the machine ca. 22 x 5 x 5 m Adjustment ranges: -Crossbeam, vertical 1250 mm -Grinding support, horizontal 3100 mm Adjustment speeds: -Machine table (X-axis) infinitely variable 1-45 m/min Table creep speed 5 m/min -Grinding support, horizontal (Y-axis) Rapid traverse 3000 mm/min Feed, step 0.001-0.099 mm Feed rate, continuous 100-3000 mm/min Creep speed 18+1 mm/min Tip infeed 0.001-0.019 mm -Crossbeam (W-axis) Hsdpjvr Hgvsfx Ac Tsr Rapid traverse 410 mm/min Table drive: -Oil transmission, Type Iv4 -Cylinder-Ø 185 mm -Piston rod Ø 130 mm -Drive motor 22 kW

Condition: excellent (used), Year of construction: 2015, functionality: fully functional, MAZAK QUICK TURN NEXUS 200-II MSY Max. machining diameter: 380 mm Max. machining length: 511 mm Max. milling speed: 4,500 rpm Max. spindle speed: 5,000 rpm Max. bar diameter: 65 mm Machine is equipped with: - CNC control system Mazatrol Matrix 2 - Hydraulic HAINBUCH chuck, combination type, size 65 for main spindle - Hydraulic HAINBUCH chuck, combination type, size 65 for counter spindle Hjdozczd Uspfx Ac Tsr - Tool Eye - C-axis - C-axis counter spindle, input accuracy 0.0001° - Y-axis - Interface for bar feeder - Automatic parts catcher - Reinforced coolant pump - MAYFRAN chip conveyor - 8 pcs. fixed tool holders - 2 pcs. driven tool holders

Condition: excellent (used), workpiece diameter 10 - 250 mm threading length 900 mm Hodpfjyb S Risx Ac Ter thread pitch 0,3 - 100 mm spindle turning speed range 72 / 1700 - 2540 U/min relief of the tap 0,03 - 8 mm clamping length max. 1190 mm max. module 10 workpiece turning speeds 0,4 - 160 U/min total power requirement 13 kW weight of the machine ca. 7,4 t dimensions of the machine ca. 4,5 x 2,0 x 2,1 m Many accessories.

Condition: ready for operation (used), Year of construction: 2021, operating hours: 67 h, clamping force: 1,600 kN, screw diameter: 45 mm, overall weight: 5,900 kg, controller manufacturer: ARBURG, controller model: SEOLOGICA direct, This 3-axis Arburg Allrounder 520S 1600-400 was manufactured in 2021. It features a screw diameter range of 35-45 mm and a clamping force up to 1600 kN. The machine includes a removal robot and an enclosure with a FilterFanUnit, ensuring clean operations. Ideal for precision plastic processing, it offers a mold clamping height of 250 mm and platen spacing of 825 mm. Contact us for more information about this machine. Additional equipment • Cooling water connection: Max. temperature: 30 °C, Min. Δp: 1.5 bar | DN 25 Machine Benefits Technical Machine Benefits • Thermoplastic cylinder: 45 mm, high wear resistant • CrN coating (screw and non-return valve) • Standard screw coupling, square geometry • Open nozzle 45 mm • Larger holding pressure pump • Selogica direct control system • Technology level 2, servo-controlled with 2 control pumps • Ejector pressure P/Q controlled • Continuous oil cooling and filtration • Nozzle contact force controlled, programmable (1st injection unit) • Clamping plate set, central 125 mm • Machine raised by 100 mm (increased vibration elements) Hsdpfox D E Dyex Ac Tjr • 8 programmable digital inputs/outputs • 6 electric mould heating control circuits • 1 additional heating control circuit (nozzle or adapter) • 4 manually adjustable cooling circuits • Controlled machine cooling circuits • aXw Control ScrewPilot (1st injection unit) • Water-cooled control cabinet • Reinforced screw coupling with multi-spline geometry • Injection speed with ramp function (F90302 = 1) • Automatic heater standby switching • Sound pressure level: 70 db(a) | ± 3 Extra Information • Screw Diameter: 45 mm • Injection Pressure (Max.): 1580 bar • Shot Weight (Max. g PS): 232 g • Heating Output 9.7 kW | 5 zones • Net Machine Weight: 5900 kg

Condition: like new (used), Working width 1350 mm The machine is in excellent, new condition as shown in the pictures. Hodpfxsuuitgs Ac Tor

Condition: used, Radial drilling machine CSEPEL, Type RFh 75 / 1500 Machine no. 13704, Year of manufacture 1985 Drilling capacity in steel: Ø 75 mm Drilling capacity in cast iron: Ø 90 mm Spindle mount: MK 5 Nominal overhang: 1500 mm Maximum overhang of the spindle: 1500 mm (to the column) Hjdolhwr Rspfx Ac Tsr Minimum overhang of the spindle: 440 mm (to the column) Distance from spindle nose to clamping surface: 370 - 1700 mm Overarm vertical adjustment: 950 mm Table size / clamping surface: 1800 x 1100 mm Column diameter: 450 mm Quill stroke: 380 mm Spindle speed: 19-1900 rpm, 21 steps Feed rate: 0.047-2 mm/rev, 12 steps Motor power: 11 kW Mains connection: 380 Volts, 50 Hz, 15 kW - Right-hand and left-hand rotation of the drilling spindle via hand lever switch - Hydraulic gear change for spindle speed and feed rate - Hydro-mechanical central clamping device - Motorized overarm vertical adjustment - Without coolant system - Machine light - Operating manual Space required: Length 2720 mm x Width 1170 mm x Height max. 3770 mm Transport height with motor on the column: 3500 mm Transport height without motor on the column: 3250 mm Weight: 6.3 tons Good condition

Condition: used, Year of construction: 1998, operating hours: 8,700 h, functionality: fully functional, The used DAEWOO Lynx 200B 2-axis CNC lathe is a robust and fast numerically controlled lathe with a slant bed and flat guides, compact in size. It is equipped with a FANUC 21-T CNC control unit with LCD monitor, year of manufacture 1998, and complies with CE standards. Main features: Max. swing over bed: 460 mm Max. turning diameter: 280 mm Max. turning length: 500 mm Max. bar capacity: 51 mm Spindle nose: ASA 6” Spindle: max. rotation speed 4,500 rpm Spindle motor power: 11 kW Turret: 10 positions Turning/boring tool size: 25×25 mm / Ø40 mm Tailstock: quill diameter 65 mm, quill stroke 80 mm – MT4 Machine weight: 3,500 kg Hjdpfxsx Nqlij Ac Tsr The equipment includes the tailstock with programmable quill, tool presetting system, 3-jaw hydraulic chuck (which will be supplied in place of the manual chuck), and operating and maintenance manuals.

Condition: used, Year of construction: 2005, - Fagor 8055 CNC control - Additional tank for internal spindle cooling (15 bar) 400 liters - Year of construction 2005 Technical data: Hedpjtvf Htefx Ac Tor - Travel X/Y/Z: 610 / 455 / 520 mm - Rapid traverse: 24 m/min - Working spindle speed: 8000 rpm - Tool holder: BT40 - Table size: 762 x 363 mm - Maximum table load: 350 kg - Motor power: 18 kW - Operating voltage: 400 V - Weight: 3140 kg

Condition: new, ZEATZ NC rotary tables, PHV series – available for short delivery times The ZEATZ NC rotary tables from the PHV series stand for the highest precision, stability, and flexibility in modern machining. Ideal for positioning, turning, and simultaneous machining in a wide range of applications. Your advantages at a glance: ✔ Integration into existing machines with HEIDENHAIN or SIEMENS control systems ✔ Service & technical support directly from JMT ✔ Individual designs and customer-specific solutions ✔ High load-bearing capacity for heavy workpieces Why ZEATZ: ZEATZ stands for innovative NC rotary table solutions with the highest precision and reliability. Thanks to robust construction, backlash-free drive systems, and state-of-the-art control technology, the rotary tables are ideally suited for demanding machining processes. Technical features: Working position: Vertical / Horizontal Applications: Precise positioning, stepless turning, and interpolative machining in a single setup Sizes: Faceplate diameter: 500 / 600 / 800 / 1,000 / 1,200 mm (optional square clamping surfaces also available) Max. workpiece weight: Horizontal: up to 20,000 kg Vertical: up to 4,000 kg Positioning accuracy: ± 3" Integration: Compatible with HEIDENHAIN and SIEMENS control systems Your advantages: ✔ Official distribution partner for ZEATZ in Germany Hjdjm Tvz Dopfx Ac Tsr ✔ On-site technical support and service ✔ Fast supply of spare parts ✔ Support for integration and commissioning ✔ Numerous reference projects available in Germany
