CNC turning and milling center
SPINNER TTS 65 DUPLEX

Name: SPINNER TTS 65 DUPLEX
Brand: SPINNER
Price: 44900 EUR
Availability: InStock

Highest bid

€44,900

Year of construction

2015

Condition

Used (fully functional)

Location

Baden-Württemberg Germany

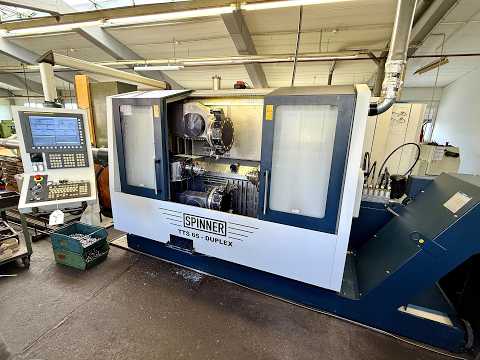

CNC turning and milling center SPINNER TTS 65 DUPLEX

Observe auction

Machine data

Machine type:: CNC turning and milling center

Manufacturer:: SPINNER

Model:: TTS 65 DUPLEX

Machine number:: AS0211

Year of construction:: 2015

Condition:: ready for operation (used)

Functionality:: fully functional

Operating hours:: 5,381 h

Technical details

Spindle speed (max.):: 5,000 rpm

Travel distance X-axis:: 180 mm

Travel distance Y-axis:: 90 mm

Travel distance Z-axis:: 704 mm

Controller model:: FANUC SERIES 31 i-MODEL A

Provision

Location:: Baden-Württemberg, Germany – Distance: about 7,933 km

Availability:: as of end of auction

Delivery conditions:: FCA

Costs for dismantling & loading:
€1,500.00 (binding)

Pick up at location:
free

Shipping costs:

Description

No minimum price – guaranteed sale to the highest bidder!

Bidding obligates timely collection either between 11/05/2026 and 13/05/2026 or between 18/05/2026 and 21/05/2026!

TECHNICAL DETAILS

TRAVEL PATHS
X1-axis: 180 mm
X2-axis: 180 mm
Y1-axis: ±45 mm
Z1-axis: 704 mm
Z2-axis: 620 mm
E2-axis: 720 mm

Rapid traverse X-/Y-/Z-axis: 30 m/min

SPINDLE 1
Max. speed: 5,000 rpm
Spindle nose: A6k
Spindle bore: 65 mm
Clamping cylinder bore: 65 mm
Chuck diameter: 210 mm
Drive power: 24 kW

SPINDLE 2
Max. speed: 7,000 rpm
Spindle nose: Ø 110 mm
Spindle bore: 42 mm
Clamping cylinder bore: 42 mm
Chuck diameter: 140 mm
Max. chuck jaw weight: 1.25 kg
Output power: 16.5 kW

Max. speed driven tools: 8,000 rpm
Number of stations turret 1: 12
Number of stations turret 2: 10
All tool positions are driven

MACHINE DETAILS

Control: FANUC SERIES 31 i-MODEL A

Operating voltage: 400 V
Frequency: 50–60 Hz
Rated current: 80 A

Dimensions & Weight
Footprint (L x W x H): 4,500 x 2,400 x 2,400 mm
Mach

The listing was translated automatically. Translation errors are possible.

Payment processing

Closing costs:: 18 %

Terms of payment:: 100 % prepayment

Payment methods:: Bank transfer

Invoicing will be in the amount of the highest bid plus any dismantling/loading costs and shipping costs as well as the closing costs and statutory VAT.

Details about the offer

Listing ID:: A21321977

Reference number:: AUC-2602276

Update:: 25.02.2026

Exclusive offer:: Only available in auction
