Table Type Boring and Milling Machine

TOS W100A

Condition: excellent (used), Year of construction: 1982, Spindle diameter: 100mm Table dimensions: 1250x1250 Cross travel: 1600mm Milling head available Fgedpfx Apjzqvxzewef

Condition: used, Year of construction: 1992, grinding length 0800 mm grinding width 500 mm workpiece height 400 mm table-size 800 x 400 mm table speeds 1 - 25 m/min cross feed autom. 0 - 60 mm/Hub grinding wheel size 400 x 100 x 127 mm grinding spindle speed 1400/2800 U/min total power requirement 10 kW voltage 380 V weight of the machine ca. 6 t Machine has cooling arrangement, auto. vert. feed, dressing arrangement and wheel flanges. Control doesn't work continuesly !! Fgsdpfx Apowgnz Aewof

Condition: used, Year of construction: 1998, functionality: fully functional, travel distance X-axis: 4,000 mm, travel distance Y-axis: 1,400 mm, travel distance Z-axis: 1,000 mm, rapid traverse X-axis: 10 m/min, rapid traverse Y-axis: 10 m/min, rapid traverse Z-axis: 15 m/min, feed rate X-axis: 5 m/min, feed rate Y-axis: 5 m/min, feed rate Z-axis: 5 m/min, torque: 1,200 Nm, controller manufacturer: SIEMENS SINUMERIK 840D, workpiece weight (max.): 18,000 kg, total height: 4,950 mm, total length: 10,270 mm, total width: 5,640 mm, table width: 1,000 mm, table height: 800 mm, table length: 6,000 mm, table load: 18,000 kg, rotational speed (min.): 16 rpm, rotational speed (max.): 3,200 rpm, overall weight: 21,000 kg, spindle speed (max.): 3,200 rpm, spindle motor power: 22,000 W, type of input current: three-phase, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, FFQ 100W-A6(A8) CNC – TOS KUŘIM Machining Center, Table Length 6m (8m) Control System: Siemens 840 C Availability: According to selected refurbishment Warranty: According to selected refurbishment Can be supplied as used, after medium repair, or after general overhaul, including modernization. FFQ 100W-A6(A8) CNC – Technical Specifications: Basic Machine Data: Manufacturer: TOS Kuřim Overall Length: 10,270 mm Overall Width: 5,640 mm Overall Height: 4,950 mm Total Weight: 21,000 kg Total Connected Load: 40 kVA Working Range: Longitudinal Travel X-axis: 4,000 mm (6,000 mm) Cross Travel Z-axis: 1,000 mm Vertical Travel Y-axis: 1,400 mm Horizontal Spindle Head with Extendable Quill: Tool Taper per ČSN 22 0433 ISO 50 Max. Power: 22 kW Speed Range: 16 – 3,200 rpm Number of Speed Steps: Infinitely variable Max. Torque: 1,200 Nm Quill Diameter: 170 mm Quill Extension: 400 mm Quill Working Feed Range: 1 - 2,000 mm/min Quill Rapid Traverse: 4,000 mm/min Max. Quill Feed Force: 10,000 N Spindle Head (IPS head): Tool Taper per ČSN 22 0433 ISO 50 Max. Power: 22 kW Speed Range: 16 – 3,200 rpm Fgjdoxp Iz Sopfx Apwjf Number of Speed Steps: Infinitely variable Max. Torque: 1,200 Nm Machining H-V, spindle automatically adjustable to vertical or horizontal position Feed Range X – Y / Z: Number of Steps / Range: Infinitely variable / 1 – 5,000 mm/min Rapid Traverse Y – Z / X: 10,000 / 15,000 mm/min Table: Table Area: 1,000 x 6,000 mm (8,000 mm) Max. Load: 3,000 kg/m2 Tool Magazine: Number of Positions: 40 pcs Control System: SIEMENS 840 C Details upon request.

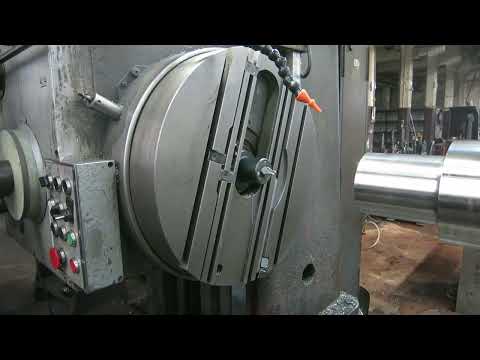

Condition: used, Year of construction: 1992, spindle diameter 100 mm x-travel 1500 mm y-travel 1250 mm z-travel 1800 mm turning speeds 7,1-1120 U/min table surface area 1200x1200 mm w-axis 800 mm Radial face slide 600 mm radial face slide travel 200 mm digital readout Heidenhain The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team Fgedpfx Apsyqvmyswsf

Condition: refurbished (used), Year of construction: 1987, functionality: fully functional, turning diameter: 4,300 mm, faceplate diameter: 4,000 mm, Vertical Turning Lathe SC43 CNC, retrofitted and upgraded with CNC Fanuc 0𝑖-TF Plus Made in Romania by TITAN Year of manufacture: 1987 The machine was completely retrofitted in 2026 Main technical data: FACE PLATE DIA. MM 4000 MAX. SWING MM 4300 MAX HEIGHT UNDER THE CROSSRAIL MM 2000 MAX. LOADING ADMITTED KG 18,000 FACEPLATE SPEED RANGE 1-92 RPM FEEDS RANGE MM/ROT 0.05-5 CARRIAGE RAPID FEEDS MM/MIN 2500 MAIN D.C. MOTOR POWER KW 55 SIEMENS WITH SIEMENS DRIVER MACHINE WEIGHT APPROX. 63 TONS The machine has the following brand new components: - New electrical equipment with parts made by Schneider, Shrack, Siemens, with a new cabinet - New control panel - New micro switches - New hydraulic pump and components - New pump for guideway lubrication, and the entire installation was redone - New CNC Fanuc 0𝑖-TF Plus 55KW Main motor, Siemens, refurbished in 2018 with Siemens driver The main gearbox was checked and refurbished with new bearings. The machine was repainted. We grant a 6-month guarantee for parts. We can send more photos and a video showing the machine’s precision measurements. Do not hesitate to contact us. Fgjdpfey A Iifox Apwsf

Year of construction: 2007, condition: used, gear hobbing diameter - external 1200 mm gear hobbing diameter - internal 1200 mm gear hobbing width -max. 260 mm control Liebherr PC-NC max. workpiece diameter 1500 mm table diameter 900 mm table bore diameter 320 mm Fodpfew Rf S Ejx Apwogf max. table load 95 kN power capacity 30 kW coolant pump 120 l/min Axial distance between thrust spindle - table 0-820 mm Shaping spindle diameter 125 mm tool taper SK 45 DIN weight of the machine ca. 26 t dimensions of the machine ca. 8,073 x 6,183 x 4,375 m Strokes: - Stroke length min./max. - 0 mm / 270 mm - Stroke length adjustability - 270 mm - Stroke rate (double strokes) - 10 to 270 DH/min Equipment/accessories: - Chip conveyor - Cutting wheel holder SK 45 DIN - Cooler - Technical documentation

Condition: used, Year of construction: 1992, spindle speed (min.): 7,500 rpm, spindle speed (max.): 24,000 rpm, 4 motorized grinding spindles (liquid-cooled, purge air / oil mist lubrication) including REFU HF frequency converter, e.g. for powering the spindles of a Voumard 400 CNC T4. Grinding spindle GMN TSSV 170-7500 7,500 rpm, 350V, 19.3A, 7.5kW, 250 Hz Grinding spindle Voumard BM15-170 15,000 rpm, 350V, 35A, 18kW, 250 Hz Grinding spindle Voumard BM18-15032 18,000 rpm, 350V, 28.5A, 12kW, 600 Hz Grinding spindle Voumard BM24-150 24,000 rpm, 350V, 27A, 12kW, 800 Hz REFU HF Converter 316/25 High-frequency converter (inverter, frequency inverter) Frequency converter / inverter for powering motor spindles GMN tool spindle, motorized grinding spindle The spindles are fully functional, sold as is – manufacturing year approx. 1992 A collection of various grinding spindle shafts / arbors for grinding wheels is available for these spindles and can be purchased separately. Price / details on request All technical data subject to error or omission. Fgsdpfxsl Tn Afj Apwef We sell exclusively to countries within the European Community.

Condition: used, Year of construction: 1992, Measuring range, X-axis: 2400 mm Measuring range, Y-axis: 1200 mm Measuring range, Z-axis: 1500 mm Fgodpfxeg Er Nls Apwef Machine weight: approx. 9.00 t

Condition: excellent (used), Large inventory of electric motors Total 4 rows (2 single racks and 1 double rack (as shown in the attached photos)) Fgjdpfx Asyz R Egjpwof AC and DC motors Mainly 500V motors Reconditioned and new motors For sale as a single lot

Condition: excellent (used), Year of construction: 2008, operating hours: 40,255 h, functionality: fully functional, For sale is a DMG DECKEL MAHO DMF 220 linear, a 5-axis universal travelling-column machining center. The machine was built in 2008 and was modernized / totally retrofitted in 2022 with Siemens Sinumerik 840D Solution Line control. Equipped with 5-axis simultaneous machining license, Siemens Sinamics drive technology, Siemens OP15 Black Operator Panel, MCP control panel and electronic handwheel. Technical data: Manufacturer: DMG DECKEL MAHO Type: DMF 220 linear Machine type: 5-axis universal machining center / travelling-column machining center Year of manufacture: 2008 Control: Siemens Sinumerik 840D Solution Line Modernization / Total Retrofit: Siemens CNC / drive modernization in 2022 5-axis simultaneous operation: License available Serial number: 15115223244 Machine number: 2499093 Travel X: 2,200 mm Travel Y: 560 mm Travel Z: 720 mm Tool taper: SK 40 Table load: 2,500 kg Main spindle speed range: 20 - 14,000 rpm Connected load: 80 kVA Max. rated current: 115 A Fuse protection: 125 A Supply voltage: 400 V Frequency: 50 Hz AC control voltage: 230 V DC control voltage: 24 V Power-on hours: approx. 40,255 h Spindle / working hours: approx. 13,082 h CNC / drive technology: X-axis: Siemens Sinamics 160 A, 2 x SMC20 encoder module Y-axis: Siemens Sinamics 50 A, 2 x SMC20 encoder module Z-axis: Siemens Sinamics 80 A, 2 x SMC20 encoder module B-axis: Siemens Sinamics 25 A, 2 x SMC20 encoder module A-axis: Siemens Sinamics 25 A, 2 x SMC20 encoder module Spindle axis: Siemens Sinamics 26 kW, 2 x SMC20 encoder module Operator panel: Siemens OP15 Black Operator Panel MCP control panel: Siemens Electronic handwheel: Siemens Magazine technology: Magazine A: 400 W servo drive, 400 W servo motor, 10 m power cable, 10 m encoder cable Magazine B: 400 W servo drive, 400 W servo motor, 10 m power cable, 10 m encoder cable Magazine C: 400 W servo drive, 400 W servo motor, 10 m power cable, 10 m encoder cable Software / licenses: 5-axis simultaneous machining license Axis licenses Operator software license Equipment: Integrated swivelling table / trunnion-type table setup Paper band filter unit Coolant / filter unit Fgjdpfx Asyuzg Hspwef Electrical cabinet Full enclosure Working area lighting Siemens control panel Condition: Machine in well-maintained condition Modernized Siemens control and drive technology 5-axis simultaneous machining available
