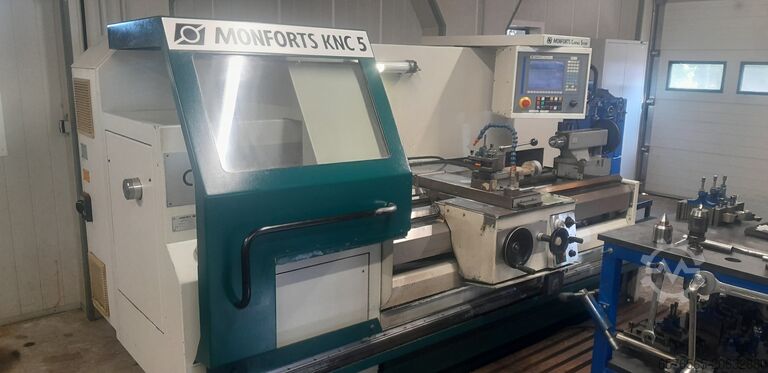

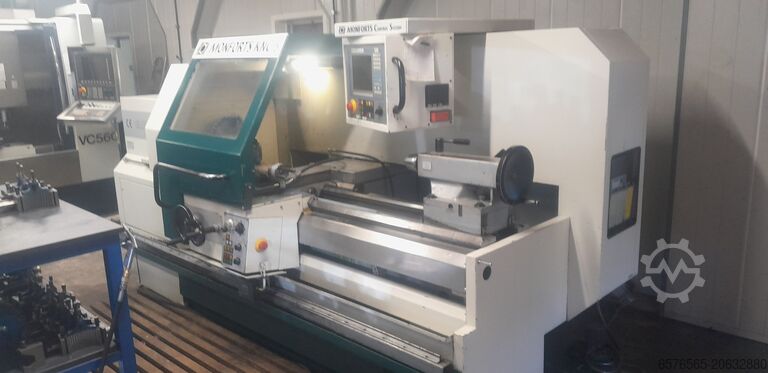

Lathe - cycle controled

MONFORTS KNC 5 1500

Condition: used, Year of construction: 1996, Technical details: turning diameter: 500 mm turning length: 1500 mm turning diameter over bed slide: 290 spindle bore: 71 mm turning speed range: 3 - 2800 U/min rapid speed: 10 / 5 m/min feed speeds: 1 - 2000 mm/min total power requirement: 22 kW weight of the machine ca.: 3,2 t dimensions of the machine ca.: 3,0 x 1,6 x 2 m with Teach In controll R&D MTC-K Bdedewwlvlopfx Ap Iod PARAT toolpost 1 fixed steday dia. 100 mm 4 jaw face plate dia. 500 mm coolant attachment *

Condition: used, Technical details: Bdodpfxjwa A Hme Ap Ied x-axis: 120 mm z-axis: 610 mm diameter: - mm measuring range Y-axis: Höhe: 0 - 610 mm weight: 19 kg interface: 2xRS-232C, 2xUSB-A/B total height: 950 mm measuring system resolution capability: 0,0001 mm power consumption: 43 Watt Floor Space WxD: 320 x 330 x H: 950 mm High-precision height measuring *

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, center width: 1,500 mm, center height: 250 mm, swing diameter over bed slide: 500 mm, spindle speed (max.): 2,800 rpm, controller model: Monforts Control System MTC K, The machine was overhauled in 2017! The corresponding invoices are available upon request. TECHNICAL DETAILS Swinging diameter over bed: 500 mm Swinging diameter over slide: 290 mm Distance between centers: 1,500 mm Spindle bore: 70 mm Center height: 250 mm Spindle speed: 2 - 2,800 rpm MACHINE DETAILS Control system: Monforts Control System MTC K Control method: Teach-in Dimensions & Weight Dimensions (L x W x H): 3,350 x 1,550 x 1,800 mm Net weight: 3,300 kg Bdedpszdfzaofx Ap Ied Transport packages: 1 EQUIPMENT Fixed steady rest 3-jaw chuck Documentation CE marking

Condition: ready for operation (used), Year of construction: 1995, functionality: fully functional, machine/vehicle number: 198/04, turning length: 1,500 mm, turning diameter: 500 mm, swing diameter over cross slide: 290 mm, spindle speed (min.): 3 rpm, spindle speed (max.): 2,800 rpm, bed width: 360 mm, total length: 3,325 mm, total width: 1,550 mm, total height: 1,740 mm, type of input current: three-phase, overall weight: 3,800 kg, torque: 1,520 Nm, spindle diameter: 70 mm, workpiece length between centers: 1,500 mm, Well-maintained Monforts KNC 5 with extensive accessories. Can be inspected under power. Please refer to the pictures for the complete equipment. 3-jaw chuck 4-jaw chuck Faceplate Bsdpjyn U T Tsfx Ap Ijdd Collet chuck 173 E Chip tray Coolant pump Tailstock

Condition: excellent (used), Year of construction: 2006, FAMUP MCP 45 CNC machining center TECHNICAL DATA axes Number of axes: 3 X-axis: 450 mm Y-axis: 300 mm Z-axis: 400 mm Feed rate Work feed X,Y,Z: 10`000 mm/min Rapid feed X,Y,Z: 30`000 mm/min Working pressure force X,Y: 2000 N Working pressure force Z: 3300 N Pallet Dimensions: 400 x 300 mm Number of grooves: 2 Groove width: 14 mm Bsdpfx Apoq U Rm He Isdd Groove spacing: 80 mm Max. Table load: 100 kg Changeover time: 9 sec. Spindle Spindle motor power: 5 kW Speed: 10`000 rpm Tool changer Magazine slots: 16 Max. Tool diameter: 63 mm Max. Tool length: 150 mm Max. Tool weight: 4 kg Tool change time: 1.7 sec Weight: Approx. 3000 kg No responsibility is taken for the correctness, completeness and up-to-dateness of the information.

Condition: good (used), functionality: fully functional, spindle bore: 70 mm, turning length: 1,500 mm, turning diameter: 500 mm, overall weight: 3,300 kg, Monforts KNC5-1500 Lathe in good condition for sale. The machine operates perfectly. Included accessories comprise all documentation, a quick-change toolholder, and a chip conveyor as shown in the photos. Inspection under power is gladly possible. Loading can be arranged by forklift or crane. Working area: Distance between centers: 1,580 mm Swing over bed: 500 mm Swing over cross slide: 290 mm Cross slide travel: 265 mm Top slide travel: 140 mm Bed width: 360 mm Cross slide width: 220 mm Bed slide guide length: 615 mm Turning tool shank size: 32x25 mm Spindle diameter at front bearing: 100 mm Spindle nose as per DIN 55027, Size 8 Bar capacity: 70 mm Spindle taper (metric): 80 Main drive: steplessly variable, three-phase AC motor Drive power (50/100% duty cycle): 15/11 kW Total speed range: 2-2,800 rpm Gear stage I: 2-280 rpm Gear stage II: 7-1,120 rpm Gear stage III: 28-2,800 rpm Three-phase servo drive with mechanical safety clutch Rapid traverse speed longitudinal/cross: 10/5 m/min Thread cutting range: longitudinal and taper threads, pitch 0.001-500 mm Tailstock: quill diameter 80 mm Quill stroke 160 mm Internal taper MK5 Tool system: Multifix quick-change toolholder, size C Coolant system: pressure/delivery rate 0.4 bar / 10 l/min Machine dimensions (LxWxH): 3,330 x 1,550 x 1,790 mm Weight (transport unit): approx. 3,300 kg Bdodpfx Apeypbcds Iod Bed: – Torsion-resistant bed, guideways hardened and ground Gearbox: 3-stage with limit switch monitoring Spindle: – Front spindle bearing: double-row cylindrical roller bearing with tapered bore combined with double-row angular contact bearing – Electric holding brake in main drive motor – Full-length cross slide with adjustable gib Longitudinal and cross feed driven by variable-speed three-phase AC motor via precision ball screw Feed and rapid traverse operated via cross selector lever Longitudinal and cross movements via electronic handwheels Increment selector switch in combination with electronic handwheel Additional contour handwheel Automatic central lubrication for guideways and ball screws Clampable top slide – Quick-change toolholder – Bedway clamping by excenter lever – Additional clamping via tension bolts for heavy workpieces – Quill adjustment by handwheel – Quill tip holder MK5 Connection voltage: 3 x 400 Volt +/-10%, 50 Hz for TN-S or TN-C networks without RCD Total connected load: 16 kVA Transistor-controlled three-phase main drive with speed monitoring If you have any questions, please feel free to contact us at any time.

Year of construction: 1996, condition: ready for operation (used), Center distance: 1500mm, rotational speed: 3-2800/min, max. swing over bed/ slide: 500/ 290mm, controls: Monforts Control-System K, weight: 3.3t, with accessories, without tools. Bjdpfxjip D Rho Ap Isdd

Condition: used, CNC cycle-controlled turning machine HARRISON, Type Alpha 400 Plus Machine No. P30180/150 Year of manufacture 1998 Center distance 1250 mm Turning diameter over bed 400 mm Center height 200 mm Turning diameter over cross slide 245 mm Diameter in the crotch 585 mm Bed width 313 mm Cross travel (X-axis) 250 mm Tailstock quill diameter 73 mm Tailstock quill stroke 140 mm Tailstock quill taper MK 5 Spindle bore 54 mm Spindle head size Camlock D1 Size 6 Spindle speed 20-2500 rpm Spindle speed range (Stage 1) 15-275 rpm Spindle speed range (Stage 2) 35-795 rpm Spindle speed range (Stage 3) 110-2500 rpm Feed rate X and Z 0.03 - 0.6 mm/rev Rapid traverse rate X-axis max. 2000 mm/min Rapid traverse rate Z-axis max. 4000 mm/min Threading function Metric / Inch / Diametral / Module Spindle drive power 7.5 KW Power connection 400 Volt, 50 Hz, 23.5 kVA - Cycle control Harrison Alpha / GE FANUC - Language in French (France) - Automatic gear range selection in 3 stages (15-275, 35-795, 110-2500 rpm) - Electronic handwheels with different gear ratios (1/10/100) - 3-jaw scroll chuck FORKARDT Ø 250 mm Type CSN, 1 set of soft jaws - Quick-change tool holder MULTIFIX Size B with 2 inserts - 1 live center - 1 quick-change drill chuck RÖHM, 3-16 mm - Folding chuck guard - Folding work area safety doors - Chip tray with coolant system under the machine bed Bdsdpfx Aoh Hvk Ajp Ied - Control cabinet fixed to the machine - RS 232 interface Space requirement L x W x H 2600 x 1450 x 1550 mm Weight 1950 kg Good condition

Condition: used, Year of construction: 2013, travel distance X-axis: 600 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 310 mm, Travel: X 600 / Y 400 / Z 310; Water bath machine; Automatic wire threading; Chiller. Bdjdpfxsx Hgg Ds Ap Isd

Condition: used, Pallet with 18H7 T-slots, suitable for DMG DMC 100 H and DMG DMC 100 U as well as DMC 125H/U Duoblock. Bjdpfoqx Uh Njx Ap Iodd More than 10 pallets available.
