Used Die Sinking for sale (4,421)

Condition: like new (used), Year of construction: 2023, operating hours: 16 h, functionality: fully functional, travel distance X-axis: 400 mm, travel distance Y-axis: 300 mm, travel distance Z-axis: 350 mm, workpiece weight (max.): 800 kg, total height: 2,410 mm, total width: 2,110 mm, total length: 2,334 mm, table width: 400 mm, type of input current: three-phase, distance table to quill: 310,660 mm, table length: 700 mm, workpiece length (max.): 850 mm, workpiece width (max.): 850 mm, workpiece height (max.): 380 mm, input voltage: 415 V, overall weight: 2,500 kg, table load: 800 kg, input frequency: 50 Hz, tank capacity: 450 l, Equipment: documentation/manual, 2023 Excetek ED400C CNC Die Sink EDM Machine Used 2023 Excetek ED400C CNC Die Sink EDM Machine for Sale – C-Axis – EROWA 4-Station Automatic Tool Changer – Spinflo Oil Cooler – Magnetic Chuck – ViTiny Digital Microscope Manufacturer: Excetek Model: ED400C Machine Type: CNC Die Sink EDM / Sinker EDM / Spark Erosion Machine Year: 2023 Condition: Excellent Machine Description Modern 2023 Excetek ED400C CNC Die Sink EDM machine available for sale with an excellent specification and useful additional tooling and accessories. The Excetek ED400C is a compact CNC spark erosion / sinker EDM designed for accurate machining of complex cavities, moulds, dies, precision components and difficult-to-machine conductive materials. This machine is particularly well equipped and includes a C-axis, EROWA tooling, 4-station automatic EROWA tool changer, 600 x 200mm magnetic chuck, Spinflo ECEA oil cooler and ViTiny digital microscope with display screen. Main Machine Specification X-axis Travel: 400mm Y-axis Travel: 300mm Z-axis Travel: 350mm Worktable Size: 700 x 400mm Maximum Workpiece Size: 850 x 850 x 380mm Maximum Workpiece Weight: 800kg Maximum Electrode Weight: 120kg Electrode Head to Worktable Distance: 310–660mm Approx. Machine Dimensions: 2,334 x 2,110 x 2,410mm Machine Weight: Approx. 2,500kg Dielectric Oil Filtration System The ED400C is supplied with an integrated oil filtration arrangement. Oil filter tank capacity: Approx. 450 litres Paper filters: 3 A clean and stable dielectric oil system is important for maintaining consistent EDM performance, flushing efficiency and surface finish during spark erosion operations. Spinflo ECEA Oil Cooler The machine includes a Spinflo ECEA oil cooler / dielectric chiller. C-Axis The ED400C is equipped with a C-axis, allowing controlled rotary positioning of the electrode. EROWA 4-Station Automatic Tool Changer The machine is fitted with a 4-position automatic EROWA tool changer. This enables several electrodes to be loaded and automatically changed during a machining cycle, helping increase unattended machining capability and reducing operator intervention The machine also includes EROWA tooling, providing a recognised precision electrode holding and referencing system. 600 x 200mm Magnetic Chuck Included with the machine is a: 600 x 200mm magnetic chuck This provides an additional workholding option for suitable ferrous components and adds to the versatility of the machine for general precision EDM work. ViTiny Digital Microscope & Screen The machine also includes a ViTiny digital microscope with separate display screen. A digital microscope is particularly useful for close inspection of electrodes, fine features and machined surfaces and can assist with setup, inspection and process verification. Key Equipment Included Excetek ED400C CNC die-sink EDM C-axis Ibodez E A Hxopfx Ap Dec EROWA tooling 4-station automatic EROWA tool changer Spinflo ECEA dielectric oil cooler 600 x 200mm magnetic chuck ViTiny digital microscope ViTiny display screen Integrated dielectric filtration system Approx. 450-litre oil tank 3 paper filters CNC control and EDM generator Please Note: All specifications, dimensions, capacities, accessories and machine details quoted above are approximate and are provided for guidance only.

Condition: excellent (used), Year of construction: 2017, operating hours: 12,300 h, functionality: fully functional, machine/vehicle number: 7846, travel distance X-axis: 455 mm, travel distance Y-axis: 300 mm, travel distance Z-axis: 300 mm, workpiece weight (max.): 800 kg, total height: 2,600 mm, total width: 2,160 mm, total length: 2,600 mm, table width: 400 mm, type of input current: three-phase, distance table to quill: 450 mm, table length: 820 mm, warranty duration: 6 months, feed rate X-axis: 5 m/min, feed rate Y-axis: 5 m/min, feed rate Z-axis: 15 m/min, input voltage: 400 V, overall weight: 2,800 kg, table load: 800 kg, input frequency: 50 Hz, Equipment: documentation/manual, EDM312MF30 + AWEX100/5 100 electrode positions 5 pallet positions 320x320mm Operating hours 12,300h Technical data: Travel ranges: 455x300x300mm Workpiece table 820x400mm Tank size 900x520mm Filling height 300mm Distance table/electrode holder 150/450mm Workpiece weight max. 800kg Dielectric fluid max. 700l Dimensions WxDxH 2160x2000x2610mm Machine weight 2500kg Mains connection 3/N/PE 400/230 50Hz Power consumption 6.7 kVA Equipment: Color: Light/Gray Iedpoz I Symofx Ap Dobc Control interface MF30 V3.2 Touch screen display Generator, exogenous 60A Direct measuring system in all axes Cartridge filter Cooling unit integrated CO2 extinguishing system C-axis 100/min., holding brake Manual control panel with accept button Lowering tank, automatic positioning Chuck Erowa Warranty 12 months Transport Commissioning on site Training

Condition: not inspected (used), Year of construction: 1979, functionality: unexamined, total height: 1,860 mm, total width: 1,040 mm, total length: 1,000 mm, overall weight: 1,400 kg, For sale is a used machine from a site closure. Iodpfxszrfawo Ap Dobc Sale is made with the exclusion of any warranty for defects. The machine has not been inspected but was in working order until the end.

Condition: excellent (used), Year of construction: 2011, operating hours: 26,882 h, functionality: fully functional, travel distance X-axis: 310 mm, travel distance Y-axis: 270 mm, travel distance Z-axis: 270 mm, Exeron S 310 MF Year of manufacture: 2011 Generator hours: 26882 Control system: Exowin 20 X, Y, Z travel: 310 x 270 x 270 mm C-axis 3R tool holder in the spindle Erowa chuck on the machine table with magnetic plate Generator: 64 A Ibedpfxezguk Ue Ap Doc C-box for carbide and PKD tools 20-position tool changer Fire extinguishing system Chiller Aluminum clamping plate, Erowa Documentation Machine is connected and available for inspection.

Condition: good (used), Year of construction: 1995, CNC Wire EDM Machine AGIE AGIECUT 270 SF+F HSS Year of manufacture: 1995 Travel in X-axis: 350 mm Travel in Y-axis: 250 mm Travel in Z-axis: 256 mm Travel in U/V axes: ±70 mm Positioning resolution: 0.0001 mm Positioning accuracy: approx. ±3 µm Machining data Max. taper: 30° at a workpiece height of 100 mm Surface finish: up to approx. Ra 0.2 µm with multiple finishing passes Workpiece data Workpiece size, max. dimensions: 750 × 550 × 250 mm Ibedpfx Apozzyhnj Doc Workpiece weight, max.: 450 kg Wire system Wire diameter: 0.10 – 0.33 mm Wire speed: up to approx. 3 m/min Wire tension: CNC-controlled MACHINE DETAILS Control system: AGIEVISION / AGIE HSS Generator: AGIE HSS Mains connection: 3 × 400 V, 50 Hz Connected power: approx. 10.5 kVA Dimensions & Weight Dimensions (L × W × H): approx. 2,215 × 2,215 × 2,220 mm Machine weight: approx. 3,600 kg EQUIPMENT Fully automatic wire threading

Condition: good (used), Year of construction: 1995, NC sinker EDM machine AGIE AGIETRON INTEGRAL 2 Year of manufacture: 1995 Travel in X: 350 mm Travel in Y: 250 mm Travel in Z: 350 mm Rapid traverse: approx. 720 mm/min Axes: 4 (X, Y, Z, C) Work area Table size: 600 × 450 mm Maximum workpiece dimensions: approx. 860 × 620 × 350 mm Maximum workpiece weight: 400 kg Ibjdpfxozzyhuj Ap Dsc Maximum electrode weight: 100 kg Internal dimensions of the work tank: approx. 830 × 590 × 350 mm Distance from table to quill: 170 – 520 mm MACHINE DETAILS Control: AGIEMATIC T Generator: AGIEPULS 60 Power connection: 400 V / 50 Hz Dimensions & Weight Dimensions (L x W x H): approx. 3,000 × 1,700 × 2,580 mm Machine weight: approx. 2,550 kg

Condition: excellent (used), Year of construction: 2024, operating hours: 142 h, functionality: fully functional, machine/vehicle number: 395.900.219.1428, travel distance X-axis: 600 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 400 mm, workpiece weight (max.): 1,000 kg, total height: 2,858 mm, total width: 1,600 mm, total length: 2,845 mm, table width: 800 mm, table length: 400 mm, workpiece length (max.): 1,000 mm, workpiece height (max.): 400 mm, input voltage: 400 V, overall weight: 4,050 kg, year of last overhaul: 2026, Equipment: documentation/manual, For sale: AGIE CHARMILLES FORM E 600 EDM sinker machine (2024) We offer an AGIE CHARMILLES FORM E 600 EDM sinker machine from 2024, in very good technical and visual condition. Machine specifications: Manufacturer: AGIE CHARMILLES Model: FORM E 600 Year of manufacture: 2024 Type: EDM (electro-discharge machining) sinker machine Equipment: FORM E 600 sinker EDM center - System 3R Macro electrode holder - Automatic 6-position electrode changer - High-speed C-axis - Heat exchanger - EMC/CE compliant version - Set of reference balls - Chiller - SPD surge protection system - System 3R 3R-656.21-SP03 measuring probe with a Ø 3 mm measuring ball - System 3R-628.31-S starter kit - Set of transport locks The machine is ready for operation and is an excellent solution for demanding applications in electro-discharge machining. Ibedpjzclpnofx Ap Dsc We provide assistance with machine loading. If you have any questions or would like to obtain additional information, please contact us by phone or email.

Condition: like new (used), Year of construction: 2019, operating hours: 900 h, functionality: fully functional, machine/vehicle number: 395.900.219.1159, travel distance X-axis: 600 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 400 mm, total height: 2,700 mm, table length: 800 mm, overall weight: 4,150 kg, GF AgieCharmilles FORM E 600 – Die-Sinking EDM Year of manufacture: 2019 Operating hours: approx. 900 h The machine is in excellent, fully functional condition. It has been used only for a very limited number of test and trial operations and has never been used for continuous serial production. Technical specifications: X-axis travel: 600 mm Y-axis travel: 400 mm Z-axis travel: 400 mm Table size: 800 x 600 mm Maximum workpiece size: 1,000 x 700 x 400 mm Maximum workpiece weight: 1,000 kg Ibsdpfx Aszyn E Ejp Dsc Positioning resolution: 0.1 μm Best surface finish: Ra 0.2 μm Generator current: 140 A Dielectric tank capacity: 650 l Integrated C-axis Maximum electrode weight on C-axis: 25 kg Maximum C-axis rotation speed: 80 rpm AC FORM HMI with 19" touchscreen ISPG (Intelligent Speed Power Generator) Glass scales on X/Y axes EROWA ITS-50 automatic chuck Electrode changer Fire protection system 6 integrated filter cartridges Power supply: 3 x 400 V, 50/60 Hz Compressed air: 6–8 bar LAN connection: 10/100 Mbit/s Machine dimensions / weight: Machine height: 2,700 mm Machine weight: approx. 4,150 kg The machine is currently located at our facility in Kocaeli, Turkey and is available for inspection. Additional photos, videos, and further information are available upon request.

Condition: like new (used), Year of construction: 2003, TECHNICAL SPECIFICATIONS X axis travel: 1,500 mm Y axis travel: 750 mm Z axis travel: 500 mm Worktable height: 820 mm Open height (clearance): 920 mm Maximum workpiece weight: 100,000 N Maximum load on head: 4,000 N Tank type: Fixed Tank dimensions: 2,300 x 1,300 x 700 mm Worktable size: 1,700 x 1,000 mm Usable dielectric height: 620 mm GENERATOR Standard minimum surface finish: VDI = 0 Power: 60 A MACHINE EQUIPPED WITH Generator with 120 A Expert System Fixed worktable 1,700 x 1,000 mm CNC for simultaneous axis control Integrated ONA C-axis with automatic System 3R Macro Standard chuck Eco-friendly filter with automatic cleaning cycle Dielectric temperature control system Year of manufacture: 2003 MACHINE FEATURES Fixed-table structure ensuring stable operating conditions, equipped with leveling supports Stabilized grey cast iron structure (base, column, tables) X-Y-Z movements via high-precision class A ball screws, driven by three DC motors Motion on prismatic roller guideways Position detection via linear glass scales Improved front accessibility with retractable front door system Fixed working tank Integrated C-Axis (mounted on the head) Maximum speed: 40 rpm Resolution: 0.001° Maximum load (static C-axis): 500 N Maximum load (dynamic C-axis): 120 N Heidenhain encoder Toothed belt transmission Maximum current without rotation: 120 A Maximum current with high-speed rotation: 60 A Maximum current with slow rotation (0–1 rpm): 12 A Moment of inertia: 2,000 kg/cm³ GENERATOR FEATURES Modular design Programmable parameters Iodoxwma Aopfx Ap Dobc Maximum power: 60 A EXPERT SYSTEM Controls the entire erosion cycle, from roughing to final surface finish, automatically adjusting spark parameters to ensure maximum generator efficiency and highest machining speed. Dedicated software for deep ribs Dedicated software for finishing large homogeneous surfaces Fully unattended machining capability with maximum productivity and excellent final quality Process parameter monitoring via screen and control panel display Automatic anti-collision system preventing electrode damage in case of accidental contact with the workpiece TECHNICAL DATA Pulse duration (Ton): continuously adjustable from 1 to 6,500 microseconds Pulse interval (Toff): continuously adjustable from 1 to 6,500 microseconds Copper electrode volumetric wear: 0.2% Graphite electrode volumetric wear: 0.1% Surface finish Ra (CLA): 0.1 micron – VDI = 0 Maximum material removal rate: 600 mm³/min Power consumption: 10.7 kVA Current intensity: adjustable from 1 to 12 (manually or via program) Highly sensitive servo control system High erosion stability

Condition: like new (used), Year of construction: 2014, AGIECHARMILLES FORM 300 wire EDM machine, manufactured in 2014. Travel: X 600, Y 400, Z 450. Table: 750 x 600 mm. Work tank dimensions: 1,220 x 870 x 470 mm. Linear guides. Maximum workpiece weight: 1,600 kg. Isdpszd D Nhofx Ap Dobc ISPG 80 A generator. EROWA ITS head. C-axis. 6-electrode changer. EROWA rotating spindle, 1,150 RPM, with a set of collets. Dielectric fluid tank: 700 liters. Filtration system with 6 paper cartridges.

Condition: refurbished (used), Year of construction: 2021, functionality: fully functional, travel distance X-axis: 600 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 450 mm, workpiece weight (max.): 1,600 kg, total height: 2,780 mm, total width: 2,265 mm, total length: 2,110 mm, quill stroke: 450 mm, workpiece length (max.): 1,220 mm, workpiece width (max.): 870 mm, workpiece height (max.): 470 mm, overall weight: 4,500 kg, GF AgieCharmilles FORM P600 Year of manufacture: 2021 Ijdpfx Aoz D Am Nop Debc Only 8,000 erosion hours! Travel ranges (X/Y/Z): 600 x 400 x 450 mm Maximum workpiece size: 1220 x 870 x 470 mm Maximum workpiece weight: 1,600 kg Maximum electrode weight: 50 kg ISPG generator with 80 amps Best surface roughness: Ra 0.08 µm AC FORM HMI user interface 15" LCD color screen, mouse, touchscreen The FORM P600 is connected to a Workpartner WPT1+ from 3R-Systems. This ensures simple and flexible automation for electrode and pallet changes. 158 electrode positions 8 pallet positions - Erowa UPC Dimensions (machine): 2265 x 2110 x 2780 mm Machine weight: 4500 kg The FORM P600 will be cleaned, serviced, and thoroughly tested after your order to ensure the highest quality and reliability. We would also be happy to offer you the following: - Transportation - Commissioning and training - Clamping devices - Dielectric fluid - Cooling unit

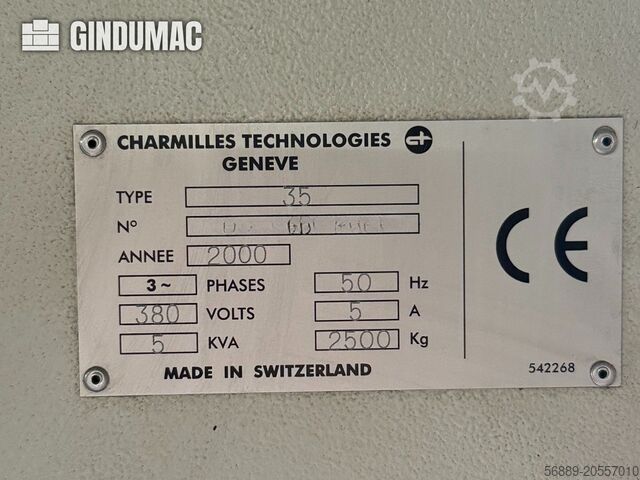

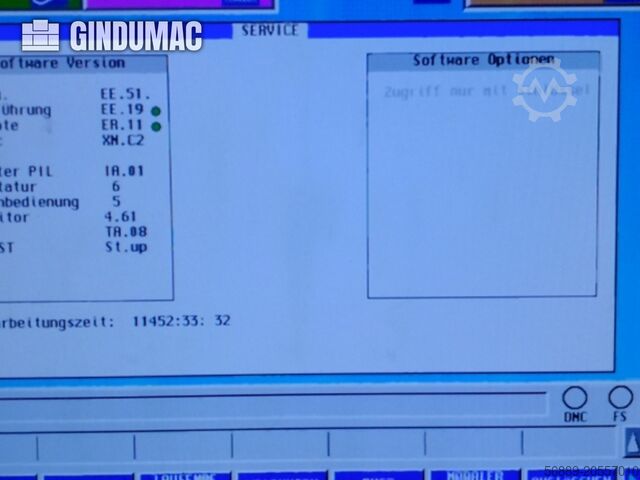

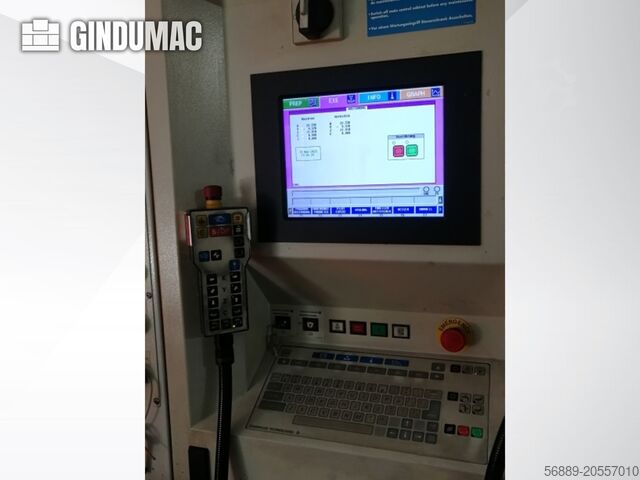

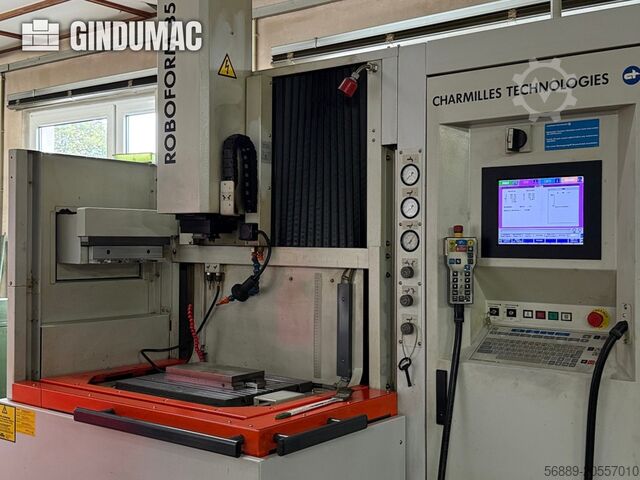

Condition: excellent (used), Year of construction: 2001, operating hours: 27,265 h, functionality: fully functional, Charmilles Roboform 35 with QCRI robot Year of manufacture: 2001 Operating hours: 27,265 X, Y, Z travel: 355 x 255 x 305 mm C-axis with Erowa chuck Iedpfoyh E A Nex Ap Dsbc Erowa chuck on the table Erowa probe Magnet 3 x aluminium Erowa pallets 320 x 320 mm 35 x electrode holders 50 x 50 mm QCRI robot 4 x pallet positions on the table 54 x electrode holder locations Documentation and diskettes Machine powered up for inspection

Condition: used, Year of construction: 2001, operating hours: 17,511 h, functionality: fully functional, machine/vehicle number: 1-5341/641134, travel distance X-axis: 350 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 300 mm, workpiece weight (max.): 500 kg, total height: 2,400 mm, total width: 1,690 mm, total length: 1,900 mm, table width: 600 mm, quill stroke: 400 mm, quill diameter: 100 mm, quill travel distance: 400 mm, type of input current: three-phase, distance table to quill: 400 mm, table length: 800 mm, table height: 340 mm, workpiece length (max.): 500 mm, workpiece width (max.): 400 mm, workpiece height (max.): 320 mm, input voltage: 380 V, overall weight: 2,500 kg, table load: 500 kg, input frequency: 50 Hz, working range: 500 mm, tank capacity: 500 l, input current: 5 A, stroke length: 400 mm, Equipment: documentation/manual, Charmilles Roboform 35P Wire EDM Machine – Year of Manufacture 2001 For sale is a Charmilles Roboform 35P wire EDM machine, manufactured in 2001. The machine is in used condition, commensurate with its age, and is ideally suited for use in tool and mold making, as well as for general EDM applications. Machine Data - Manufacturer: Charmilles - Type: Roboform 35P - Year of Manufacture: 2001 - Machine Type: Wire EDM - Condition: Used - Operation: CNC control with handheld operating device - Work table: 500 x 400 mm - Dimensions (H x L x W): 2400 x 1900 x 1690 mm - Tool changer - Extinguishing system TECHNICAL DETAILS Travel (X, Y, Z): 350, 250, 300 mm Max. manual feed rate: 900 mm/min Electrode weight: max. 20 kg Workpiece weight: max. 40 kg Magazine configuration: 54/8 Ibjdjz Hb Dfopfx Ap Djc Electrodes: 54 pieces Electrode dimensions: 70 x 70 x 200 Workpiece dimensions: (4x) 320 x 320 x 270 mm, (4x) 320 x 320 x 170 mm The machine can be seen in its entirety in the photos. Please refer to the pictures for the optical condition and equipment.

Condition: refurbished (used), Year of construction: 2017, functionality: fully functional, travel distance X-axis: 600 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 450 mm, workpiece weight (max.): 1,600 kg, total height: 2,780 mm, total width: 2,265 mm, total length: 2,110 mm, quill stroke: 450 mm, workpiece length (max.): 1,220 mm, workpiece width (max.): 870 mm, workpiece height (max.): 470 mm, overall weight: 4,500 kg, GF AgieCharmilles FORM 300 Year of manufacture: 2017 Travel ranges (X/Y/Z): 600 x 400 x 450 mm Maximum workpiece size: 1220 x 870 x 470 mm Ibodpez Aq Hwofx Ap Doc Maximum workpiece weight: 1,600 kg Maximum electrode weight: 50 kg ISPG generator with 80 amps Best surface roughness: Ra 0.08 µm AC FORM HMI operating interface 15" LCD color screen, mouse, touchscreen The FORM 300 is connected to a Workpartner WPT1+ from 3R-Systems. This ensures simple and flexible automation for electrode and pallet changes. Minimum 90 electrode positions Minimum 4 pallet positions The FORM 300 will be cleaned, overhauled, and thoroughly tested according to your order to ensure the highest quality and reliability. We would also be pleased to offer you the following: - Transport - Commissioning and training - Clamping devices - Dielectric fluid - Cooling unit

Condition: good (used), Year of construction: 1995, functionality: fully functional, travel distance X-axis: 600 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 400 mm, workpiece weight (max.): 500 kg, total height: 2,700 mm, total width: 2,500 mm, total length: 1,600 mm, workpiece length (max.): 800 mm, workpiece height (max.): 500 mm, feed length X-axis: 600 mm, feed length Y-axis: 400 mm, feed length Z-axis: 400 mm, overall weight: 5,000 kg, tank capacity: 500 l, space requirement width: 3,000 mm, space requirement length: 3,000 mm, The machine is used daily and provides accurate and precise results. All machining operations can be programmed via the control unit, and the automatic electrode change can also be programmed. It includes an EROWA chuck and probe, along with numerous accessories and clamping devices. We can assist with loading the machine onto the transport vehicle using our own crane. Ijdpozc E Dxsfx Ap Debc

Condition: used, Year of construction: 2020, operating hours: 4,800 h, functionality: fully functional, travel distance X-axis: 905 mm, travel distance Y-axis: 705 mm, travel distance Z-axis: 450 mm, workpiece weight (max.): 3,000 kg, total height: 3,400 mm, total width: 2,100 mm, total length: 3,425 mm, table width: 850 mm, quill stroke: 710 mm, type of input current: three-phase, distance table to quill: 250 mm, table length: 1,150 mm, warranty duration: 6 months, feed rate X-axis: 5 m/min, feed rate Y-axis: 5 m/min, feed rate Z-axis: 15 m/min, input voltage: 400 V, overall weight: 7,500 kg, year of last overhaul: 2026, table load: 3,000 kg, input frequency: 50 Hz, rapid traverse X-axis: 5 m/min, rapid traverse Y-axis: 5 m/min, rapid traverse Z-axis: 15 m/min, Equipment: documentation/manual, EDM314MF30 + AWEX50/5 MF30 control panel Year of manufacture: 2020 Operating hours: 4800 h Overhauled Travel ranges XxYxZ: 905/1020 x 705 x 455 mm Work table: 1150 x 850 mm (steel table with T-slots) Work tank: 1200 x 900 mm Filling level of work tank: 500 mm Electrode weight, max.: 50/500 kg Workpiece weight: 3000 kg Machine weight: 7500 kg Machine dimensions (W x D x H): 2100 x 3425 x 3450 mm Equipment: Color: Light/Teal gray Tool changer: 30-position, in-machine Automation: AWEX50/5 50 electrode positions 5 pallets UPC 320x320 Cartridge filter system Quick-change chuck EROWA/3R-Macro C-axis: 100 rpm, direct measurement 0.0001 degrees Holding brake in C-axis CO2 extinguishing system K&B Fire protection flap Smoke extraction with activated carbon filter Iodpjyt Ewgjfx Ap Dsbc Cooling unit integrated in the machine Manual control panel Automatic tank refill Erosion generator: 60 A Option with booster stage for 120 A erosion power Transportation On-site commissioning Training

Condition: good (used), Year of construction: 1991, functionality: fully functional, CNC sinker EDM machine MAHO HANSEN, Type: HS 500 E, Year of manufacture: 1991, with electrode changer (without electrode holders) and accessories. Control system: EROCOM 20 (Heidenhain). Technical data: see data sheets. From a toolmaking department; all documentation available, in good condition. Ibsdpfx Apozcmanj Dec

Condition: excellent (used), Year of construction: 2011, operating hours: 1,703 h, functionality: fully functional, travel distance X-axis: 550 mm, travel distance Y-axis: 850 mm, travel distance Z-axis: 450 mm, workpiece weight (max.): 2,000 kg, tank capacity: 800 l, OPS INGERSOLL Gantry Eagle 800 year of manufacture: 2011 travel: x, y, z 550 x 850 x 450 mm control: Eagle Power Tec electrode changer: 20 pieces 3D probe 3D probe on the table magnet: 400 x 200 mm C-axis EROWA clamping system Ijdpfozgt Rmjx Ap Dsbc fire extinguishing system remote control chiller includes approximately 600/700 liters of dielectric fluid includes drawer cabinet with contents documentation machine is powered on for inspection

Condition: used, Year of construction: 2022, machine/vehicle number: T0616, with CNC control, manufactured by SODICK, type: LN2, travels: X-axis: 350 mm, Y-axis: 250 mm, Z-axis: 270 mm, with automatic tool changer with 4 tool positions, resolution: 0.0001 mm, work table (made of ceramic), size: 600x400 mm, max. workpiece weight: 550 kg, max. electrode weight: 50 kg, dielectric fluid capacity: 400 l, machine dimensions: 2080x1955x2350 mm, machine weight: 3200 kg, with CO2 extinguishing system, operating hours: 1690 h. Isdjz Nhtmspfx Ap Dobc

Condition: excellent (used), Year of construction: 2019, operating hours: 8,255 h, functionality: fully functional, We are offering a system consisting of two ZK Genius 700 wire EDM machines, complete with the associated Chameleon Quad automation system. Isdpfxszwt Erj Ap Dobc Due to changes in our product portfolio, these machines are no longer required for our wire EDM capacity. The complete system is in very good used condition. 1x ZK Genius 700, manufactured in 2015, with 22,056 operating hours 1x ZK Genius 700, manufactured in 2019, with 8,255 operating hours • Travel range: 400 x 350 x 350 mm • Table: 575 x 500 mm • Workpiece weight: 700 kg • 96 Ampere generator capacity • Controlled C-axis and rotating spindle • CO/2 fire extinguishing system from Kraft & Bauer and extraction system • C-module for hard metal, PCD, or etching applications • O-module for very fine surface roughness • CIMCO editor for path-controlled wire EDM 1x Chameleon Quad, manufactured in 2015 • 176 electrode positions • 9 UPC pallet positions with loading drawer • Double rotary gripper for Erowa ITS • Single gripper for UPC pallets

Condition: refurbished (used), Year of construction: 2007, functionality: fully functional, travel distance X-axis: 455 mm, travel distance Y-axis: 300 mm, travel distance Z-axis: 300 mm, workpiece weight (max.): 800 kg, total height: 2,600 mm, total width: 1,900 mm, total length: 2,300 mm, table width: 400 mm, quill stroke: 520 mm, quill travel distance: 300 mm, type of input current: three-phase, distance table to quill: 120 mm, table length: 800 mm, warranty duration: 12 months, feed length X-axis: 455 mm, feed length Y-axis: 300 mm, feed length Z-axis: 300 mm, feed rate X-axis: 5 m/min, feed rate Y-axis: 5 m/min, feed rate Z-axis: 15 m/min, input voltage: 400 V, overall weight: 2,800 kg, year of last overhaul: 2026, table load: 800 kg, input frequency: 50 Hz, working range: 900 mm, input current: 10 A, Equipment: documentation/manual, EDM312MF20/30 Machine: Complete Overhaul 12-Month Warranty Year of Manufacture: 2007/2026 Travel Range X/Y/Z: 450x300x300mm Distance Table/Z-Support: 120/520mm Work Table: 820x400mm Work Tank: 900x520mm Filling Height of Work Tank: 300mm Max. Dielectric Volume: 750l Max. Electrode Weight: 30/150kg Workpiece Weight: 800kg Iodpfx Apoyxlxis Debc Machine Weight: 2800kg Machine Dimensions (W x D x H): 1960x1800x2610mm Equipment: MF20 Operator Interface Optional with MF30 Operator Interface CO² Fire Extinguishing System Cartridge Filter Heat Exchanger Direct Measuring System in X/Y/Z/C Axis C-axis: 100 rpm, Resolution 0.0001° C-axis Holding Brake Generator: 65 Amp EDM Current C-Box for High Removal Rates in Carbide Machining Electrode Changer, 20 Positions Quick-Change Electrode Holder EROWA, Hirschmann, 3R Options: New Control System with MF30 Operator Interface New EDM Generator Fume Extraction with Activated Carbon Filter Training On-site Commissioning Transport

Condition: used, Year of construction: 1994, functionality: fully functional, Equipment: documentation/manual, Charmilles Technology Erosion Machines Ibedpfsz Haz Ajx Ap Dsc Erowa System Type: Roboform 200 Year: 1994

Condition: excellent (used), Year of construction: 2012, functionality: fully functional, AGIECHARMILLES FORM 2000 HP WIRE EDM MACHINE, MANUFACTURED IN 2012 THERMAL STABILIZATION TRAVEL: X 400, Y 300, Z 350 MM Iodpfx Apey Txk Ij Debc EROWA UPC 320 WORKPIECE HOLDER WORK AREA DIMENSIONS: 900 x 630 x 350 MM LINEAR GUIDES AGIEVISION 5 GENERATOR ITS HEAD C-AXIS SUPERFINISH MODULE PREPARED FOR ROBOTIZATION

Condition: excellent (used), Year of construction: 2005, operating hours: 16,000 h, functionality: fully functional, travel distance X-axis: 350 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 350 mm, Control system: AGIEVISION Table dimensions: 600 x 450 mm Max. table load: 400 kg Max. travel ranges: 350 x 250 x 350 mm (X/Y/Z) 28-position tool magazine Ibjdpfx Apjzk Ibzo Djc C-axis integrated: 60 RPM CO2 extinguishing system Year of manufacture: 2005 Approx. 16,000 erosion hours The machine is fully functional, ready for operation, and connected.

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, travel distance X-axis: 350 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 250 mm, workpiece weight (max.): 200 kg, total height: 2,372 mm, total width: 1,731 mm, total length: 1,000 mm, table width: 630 mm, quill stroke: 250 mm, table length: 400 mm, workpiece length (max.): 800 mm, workpiece width (max.): 500 mm, workpiece height (max.): 265 mm, GF AgieCharmilles FORM 20 Year of manufacture: 2008 Travel distances: X = 350 mm, Y = 250 mm, Z = 250 mm Max. workpiece size: X = 800 mm, Y = 500 mm, Z = 265 mm Ibodpfx Apez D Hb Ds Djc Max. workpiece weight: 200 kg Max. electrode weight: 50 kg Distance table - chuck: 230 - 480 mm APG FORM Generator - working current 72 amps Best achievable surface roughness Ra 0.2 µm Includes pneumatic chuck Erowa ITS 50 Includes 4-position electrode changer in magazine Machine weight (net): 2000 kg Machine dimensions (L x W x H): 1300 x 1850 x 2500 mm The machine has already been cleaned, serviced, and thoroughly tested. We would also be happy to commission the machine for you.
