Welding turntable,Turntable,Positioner

Protec KT 1200 KT 1200

Condition: new, Bernardo universal lathe Titan 660 x 2000 Technical Specifications Gbjdpfx Agofbbx Rsgoi Centre distance 2000 mm Centre height 330 mm Swing diameter over bed 660 mm Swing diameter over cranking 900 mm Swing diameter over cross slide 460 mm Bed width 400 mm Spindle bore 105 mm Spindle mounting DIN 55029, D1-8 Speed range (16) 25 - 1600 rpm Range of longitudinal feeds (25) 0.044 - 1.48 mm/U Plan feed range (25) 0.022 - 0.740 mm/U Metric threads (54) 0.45 - 120 mm inch thread (54) 7/16 - 80 Gg/1″ Pinol diameter 90 mm Sleeve travel 235 mm Sleeve holder MK 5 Engine power 7,5 kW (10,0 PS) Machine dimensions (W x D x H) 3630 x 1200 x 1520 mm Weight approx. 2900 kg Features & Benefits Versatile application possibilities in general mechanical engineering, production, single part production, ... Central, handy switch for feeds and threads with guide and feed spindle Prism bed made of grey cast iron, inductively hardened and precision ground Modern main spindle bearings with angular contact roller bearings in precision design Hardened and ground gears and shafts, also in the feed gear Rapid traverse lengthwise and flat as standard to reduce non-productive times Large spindle bore (105 mm) for large diameter workpieces Soft start due to the mechanical multi-disc clutch Electromechanical foot brake to reduce non-productive time Best cutting performance even during face turning For stiffening the bed guide and for minimizing

Condition: like new (used), Year of construction: 2024, load capacity: 1,200 kg, Equipment: foot remote control, 1200 kg load capacity welding positioner, CE certificate. Very robust design. Infinitely variable speed from 0.05 to 0.7 rpm, higher speed available on request. Turntable diameter 1200 mm. Tilting up to 120°. Height horizontal 950 mm, tilted to center 720 mm. Hand and foot remote control. Dimensions: length 1.35 m x width 1.2 m. Gbedpjd A Etujfx Aggoi

Year of construction: 2018, condition: like new (used), Dumeta welding rotary table hydraulic height adjustable 500 Kg load capacity welding turntable height adjustable with through hole 100 - 200mm plate diameter 700mm Height horizontal min. 0,6m, max. 1,2m height tilted min. 0,40m, max. 1,0m Gjdpjhua Dqjfx Aggsbi speed from 0,11 - 1,25 rpm Weight 750 Kg Tilt up to 135 hand and foot remote control with speed indicator very robust

Year of construction: 2022, condition: as good as new (ex-display), Welding rotary table Protec KT 1200 Kg Motor infinitely variable swivel and speed adjustable Gjdpfjcrmyfjx Aggsbi Motor 0,75 KW with remote control Foot switch Table diameter 1200mm height 1000mm length 1400mm width 1500mm Speed from 0,05 to 0,5 rpm

Condition: ready for operation (used), controller manufacturer: Heidenhain TNC 530, empty load weight: 45,000 kg, total length: 11,055 mm, total width: 6,320 mm, total height: 4,140 mm, Type: DMC-4100LH 2800 mm tussen de kolommen!! Zonder freeskop kunt u klassieke verticale bewerkingen uitvoeren. Met de multihoekfrees (MA-25) kunt u veel verschillende vlakken bewerken. MA-25 2-assige freeskop - 30 kW - 2000 tpm - 1500 Nm koppel C-as bereik: 0-360° - 2,5° Bereik van de A-as: +/- 110° - 2,5° Koeling via spindel: 40 bar Totaal vermogen: 67 kW Geen foundation nodig! De Johnford DMC-serie brugfreesmachine met dubbele kolom en beweegbare tafel is vervaardigd uit een brug/kolomconstructie van gegoten Meehanite-ijzer, die naar verluidt 30 procent minder vloeroppervlak in beslag neemt dan vergelijkbare verticale bewerkingscentra met C-frame. De brugfreesmachines zijn verkrijgbaar in uitvoeringen met beweegbare tafel en met schuifkolom (vaste tafel), met afmetingen variërend van 91 x 91 x 76 cm tot 18 x 6 meter. De lange basisconstructie biedt volledige ondersteuning aan de tafel over de gehele Y-asbeweging van 130 cm, waardoor zeer zware werkstukken bewerkt kunnen worden. De Y- en Z-assen dragen te allen tijde een vaste belasting, terwijl de X-as de enige dynamische belasting draagt. Dit maakt nauwkeurige bewerkingen en strakke toleranties mogelijk tijdens bewerkingen met hoge snelheid. Doordat er geen tafeloverhang is, worden de helling en de draaiing van de X-as geëlimineerd. De afstand tussen de hartlijn van de spindel en de kolom is geminimaliseerd, wat de stijfheid verder verhoogt. De zwaar geribbelde gietijzeren constructie van de machine zorgt voor een lange levensduur van het gereedschap en een goede oppervlakteafwerking van het werkstuk. De combinatie van twee schroefbandtransporteurs en een rupsbandtransporteur garandeert een volledige spaanafvoer met minimale handmatige reiniging. Bovendien wordt eindige-elementenanalyse (FEA) gebruikt voor het ontwerp van elke brugfreesmachine, waarbij de effecten van realistische omstandigheden, zoals trillingen, warmte, vloeistofstroming en andere fysieke invloeden, worden gesimuleerd. Longitudinal travel X-axe: 4100 mm Cross travel Y-axe: 2800 mm Travel Z-axe: 800 mm Gjdpfx Agjxp Sk Dsgsbi Dimensions clamping space- table: 4200 x 2400 mm Power on spindle: 30 kW Admission in millinghead (ISO): BT 50 Max speedrange: 6000 rpm

Year of construction: 2000, condition: ready for operation (used), Working area X/Y/Z: 1200mm/1200mm/840mm, dimensions X/Y/Z: 1300mm/1300mm/2010mm, weight: 650kg, sound level: 70dB(A) without blasting, 82dB(A) with blasting at 3 bar, max compressed air: 10bar. Including an electronically infinitely variable steel turntable (diameter: 1000mm), a blasting agent drying system and a second blasting gun unit with carbide blasting nozzle. Documentation available. Gedpfxstk Rwtj Aggobi

Condition: good (used), Year of construction: 2013, machine/vehicle number: KA 046062, Offer 25357 Technical Data: - Max. load capacity including work table: 4000 kg - Faceplate hydraulically tiltable: 0 - 180° - Hydraulic height adjustment of the faceplate - Faceplate with holes D 28 + threaded holes, Ø 1600 mm - Table travels in the last driven tilt angle or in the horizontal position - Rotational movement electrically hydraulically actuated, reversible (right/left rotation) - Min. / max. rotational speed: 0.1 - 1.4 rpm - Min. / max. table height in horizontal position: approx. 1040 / 2140 mm - Welding current transmission: approx. 600 A - Drive: 400 V - Manual remote control + electric footswitch Gsdpfx Agjxufxfogsbi - Space required: approx. W 2000 x H 1100 x D 3200 mm - Weight: approx. 5000 kg

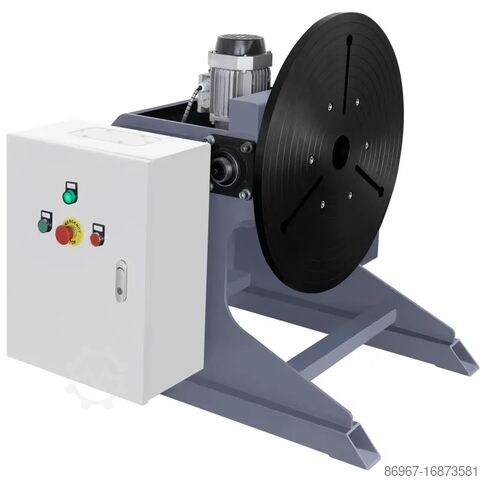

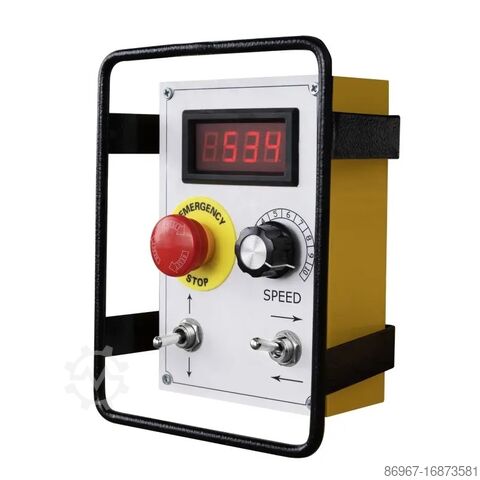

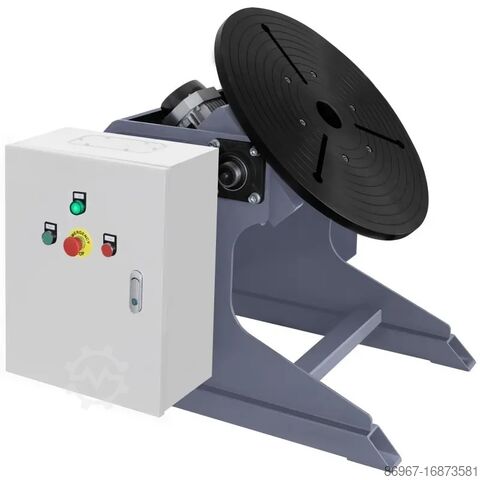

Condition: new, Year of construction: 2026, The main features, functions and advantages of the welding positioner are: Functions: 1. Direction of rotation switch: Allows you to control the direction of rotation of the rotator disc. 2. Direction of rotation switch: Allows you to change the direction of rotation of the disc. 3. Smooth regulation of the plate rotation speed: Thanks to this function, you can adjust the rotation speed of the plate to a specific job. 4. Compact, compact design: The solid construction ensures the durability and strength of the device. 5. Control pedal: Makes it easier to control the operation of the positioner. 6. Thermal fuse: Provides additional safety during operation of the device. 7. Brush motor: A brush motor is a type of DC electric motor that can be effective in various applications. 8. Plate tilt range 0 - 90°: The ability to tilt the rotator disc from 0 to 90 degrees is useful for welding in different positions. 9. Possibility of mounting a centering holder: Allows additional centering of elements. Advantages: 1. Higher work efficiency: The positioner helps increase efficiency in assembly and welding processes. 2. Reduction of production costs: Automation or facilitation of rotation of elements can contribute to lower production costs. 3. Repeatability of made joints: The device helps to maintain the consistency and quality of joints. 4. Flexibility in use: The ability to adjust the speed and direction of rotation makes the device flexible in adapting to various tasks. 5. Improved working conditions for the welder: Allows the welder to work more comfortably and in comfortable positions during welding. The set includes: 1. PS-500 positioner device. 2. Control pedal. 3. Power cable. 4. Operating instructions. Godpfxjrigmgj Aggjbi 5. Mast with welding torch. The PS-500 positioner from CORMAK is a valuable tool in the industry that requires rotation and positioning of elements, especially during welding processes. It helps to increase efficiency, reduce costs and improve the quality of work. Technical parameters: Maximum load 300kg Worktable size φ500mm Tilt angle 0° ~ + 90° Rotation speed 0.2 ~ 2.5 rpm Rotation power 200W Tilting speed manual Voltage 220V-1PH-50HZ Weight support Dimensions 700x650x710 Weight 97kg *three-jaw chuck is not included

Condition: new, Table dimensions 800 x 800 mm table load 1500 Kg swivelling range 0 - 105 Grad Gsdpfx Aefv Azpoggobi turning speeds 0,15 - 1 U/min height adjustment 672 - 1180 mm hollow spindle diameter mm welding current 500 Ampere max. torque on the faceplate 3000 Nm total power requirement 0,75 kW dimensions of the machine ca. 1560x1120x750 m Characteristics: • Made in EU • Self-locking gear, therefore no leading and trailing at eccentric load • Hydraulic height adjustment allows almost limitless positioning • Electronic quality components from Schneider / Siemens / Delta • Frequency-controlled stepless speed of the turntable • High stability through a heavy and compact design • CE certificate • Very good value for money • Standard version comes with remote control and dual foot pedal • 3 years warranty (see warranty conditions) • Hydraulically height adjustable with locking system (for fall protection)

Condition: used, Year of construction: 2019, machine/vehicle number: F 2019-1300-336, Ref. No. 25243 Technical Data: - Applications: - Demoulding blasting, electrode manufacturing, surface priming; - Surface texturing using rapid tooling technology, cleaning blasting (soft blasting) - Negative pressure cabin with viewing window and motorized tilting hood - Tilting hood motorized up to 90° - Blasting chamber accessible manually via two work gloves - Blasting gun Gsdpfxjwy Ukwo Aggsbi - Turntable made of steel, manually rotatable, 1000 mm - Internal blasting chamber height: 500 / 840 mm - Internal blasting chamber width & depth: 1100 mm - Abrasive drying system, electronically and steplessly adjustable - Dust extraction unit: Microfilter unit type IMF-2 - Compressed air connection up to 10 bar - Drive: 400 V / 2.9 kW - Space requirements: approx. W 1400 x H 2300 x D 3100 mm - Weight: approx. 900 kg - Separate work platform with stairs: W 1400 x H 1300 x D 1300 mm - Recorded operating hours: 52 h - Operating manual
