Used gear shaving machines for sale (10)

Condition: good (used), Year of construction: 1993, Equipped with: Ncjdjruahwepfx Ab Ton 9" Cutter Head Power Stocks Crowning Auto Loader Heidenhein Scales Variable Feed/Speed Cutter Head RS232 Serial Port Trabon Lube Coolant W/Magnetic Chip Separator AC Servo Motors Full Splash Guards Stack Light Manuals Specifications: Work Gear Pitch Diameter 9" & 12" Cutter Head: 1-12", 1-8" Work Gear Max. O.D. 9" & 12" Cutter Head: 12 1/2", 8 1/2" Diameter Pitch Range: 4-20 Distance Between Centers: 23" Cutter RPM 9" & 12" Cutter Head" 50-500, 50-400 Max. Table Travel Conventional, Tangential, Diagonal: 5", 2" 5"-2" Diagonal Traverse Angle Straight Shaving: 0 Deg. - 90 Deg. Traverse Angle Crown Shaving: 45 Deg. Max. Approx. Max. Table Angle Crowning: 5 Deg. Max. Table Angle Taper: 1 Deg 30' Max. Cutter Head Crossed Axes Angle Left & Right: 25 Deg. Table Cross Feed Inches Per Minute: .5-35 Table Up-Down Feed Inches Per Minute: .004-12.5 Table Up-Down Travel: 8 1/8" Approx. Weight: 9600 lbs

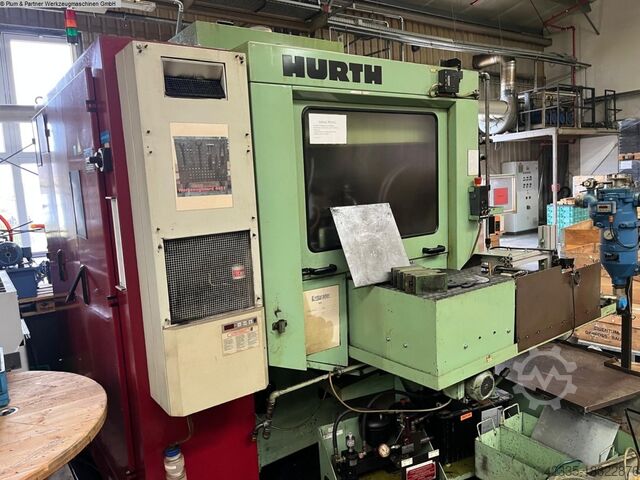

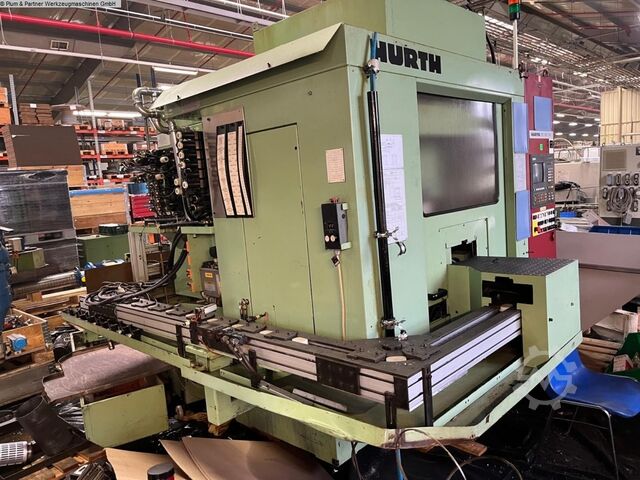

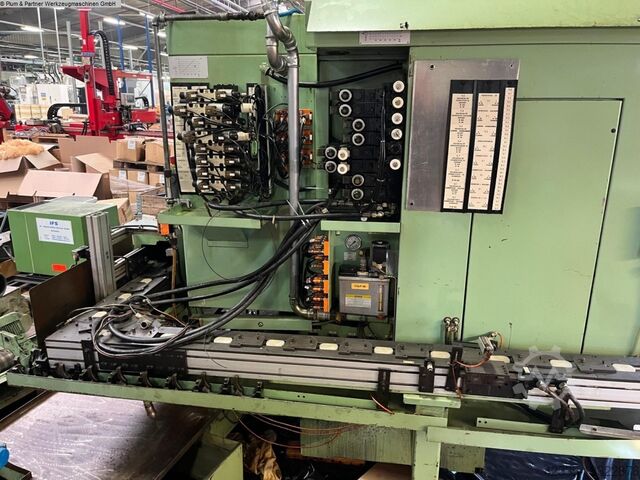

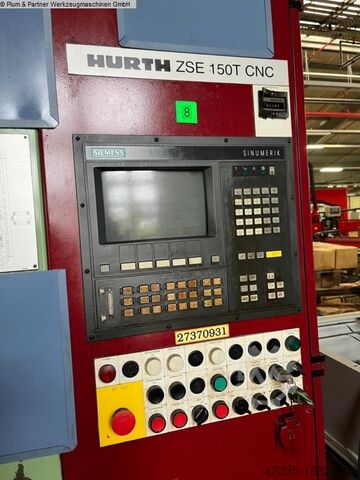

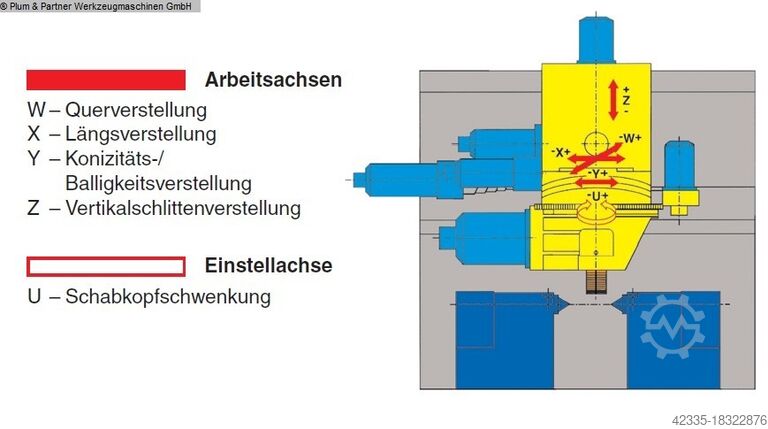

Condition: used, Year of construction: 1998, max. wheel diameter 200 mm gear width 140 mm max. module 5 workpiece length - max. 400 mm external diameter min. 20 mm control Siemens Sinumerik max. tool diameter 270 mm Max. mould width 50,8 mm Ncsdjvtgq Rjpfx Ab Tjn Distance of shafts min/max. 120/230 mm axial cross angle -18 / -21 ° shaving wheel spindle turning speeds max. 400 U/min weight of the machine ca. 5,5 t dimensions of the machine ca. 3,6 x 2,6 x 3,3 m The ZSE 150 scraping machine is used in small and medium series production as a universal scraping machine with a deburring unit on the back. Compact and easily accessible, all operating elements and the work area are easy to reach from the operator's location. A large operator door provides unhindered access to the work area. This enables simple and quick conversion and tool changing processes. This machine is equipped with a pallet ring magazine. Regardless of whether it is for plunge, diagonal or parallel feed or for corrections such as conicity or crowning, all feeds and correction movements are carried out by the scraping head. The simple automatic loading due to the stationary workpiece is also the result of this machine concept and enables the construction of an extremely stable machine bed. This in turn is a basic requirement for achieving the highest gearing qualities. The CNC control controls the axes according to the attached sketch. Machine dealer with own stock of 1600 m².

Condition: ready for operation (used), Year of construction: 2001, operating hours: 55,401 h, functionality: fully functional, machine/vehicle number: A0149, Used gear shaving machine Gleason Hurth ZSE150 Machine number (serial number): A0149 Year of manufacture: 2001 Electrical supply data: Frequency: 50 Hz Line voltage: 400 V Connected load: 17 kW Loading system: Inventory number: 22184 Machine designation: Felsomat automation for 21985 Machine number (serial number): 201067 Year of manufacture: 2002 Attachment parts: measuring station; blow-off station Electrical supply data: Operating voltage: 230 / 400 V Rated current: 17 A Ncjdpfx Ajyklwhob Tsn Fuse protection: max. 25 A Frequency: 50 Hz Control voltage: DC 24 V Connected load: 12 kW

Condition: excellent (used), Year of construction: 2014, max. wheel diameter 20 - 320 mm gear width 150 mm max. module 8 Ncedpfxsv Nrace Ab Tjn min. module 1 surface area 1200 x 190 mm tool diameter 175 - 260 mm turning speeds 45 - 465 U/min Control Siemens total power requirement 13 kW weight of the machine ca. 5,2 t Machine in excellent condition, with many accessories. Retrofitted in 2014, Siemens control system.

Condition: excellent (used), Year of construction: 2004, Technical Specifications – ZS 130 T Gearwheel Shaving Machine Gear Specifications: * Gear diameter: 20 – 145 mm * Tooth width: 40 – 45 mm * Module range: 1.25 – 3.5 Working Area: * Swivel range of the shaving head: -23° to +90° * Taper adjustment (B-axis): +2° / -2° * Horizontal adjustment (X-axis travel): 160 mm * Swivel range of rotary table (E-axis): ±20° * Input resolution for all NC axes: 0.001 mm / degree Slide Travel (Z-Axis): * Travel range (Z-axis): 300 mm * Input resolution: 0.001 mm Shaving Cutter Dimensions: * Outer diameter: 230 – 256 mm * Bore diameter: 63.5 – 100 mm * Shaving cutter width: 50.8 – 0.2 mm Workpiece Parameters: * Outer diameter: 20 – 145 mm * Module: 1.25 – 3.5 * Gear width: up to 40 mm Rotational Speeds: * Tool spindle speed (infinitely adjustable): up to 600 rpm * Workpiece speed (machining): up to 3000 rpm * Workpiece speed (spin): up to 4500 rpm Feed Rates: * A-axis: up to 3.3 rpm * B-axis: up to 0.5 rpm * C0-axis: up to 60 rpm * X-axis feed: 10 – 10,000 mm/min * Z-axis feed: 10 – 10,000 mm/min Machine Weight: * Approx. 5,600 kg --- Machine Description: The ZS 130 T is a high-performance gearwheel shaving machine designed for the precise finishing of cylindrical gears after hobbing or shaping. Shaving is a crucial process in gear manufacturing, used to correct profile and lead deviations and to improve surface finish, ensuring quiet operation and extended gear life. This machine is capable of processing gears with modules from 1.25 to 3.5 and diameters up to 145 mm. With its CNC-controlled axes and flexible swivel and taper adjustment capabilities, the ZS 130 T allows for a wide range of gear geometries and high production efficiency. The machine is ideal for manufacturers requiring high precision, consistency, and productivity in gear finishing processes. Typical Applications: * Finishing of gears for automotive transmissions and gearboxes * Shaving of helical and spur gears Ncsdpfjkwc Tfex Ab Ten * Volume production in automotive and industrial gear manufacturing * Correction of tooth profile and lead errors before heat treatment The ZS 130 T combines robust construction, high-speed capability, and flexible adjustment options, making it a reliable solution for demanding gear shaving applications.

Condition: used, Year of construction: 1966, functionality: fully functional, Equipment: documentation/manual, Good day, I have a Stanko 5A250 gear planing machine for bevel gears for sale. The machine is in very good technical condition and comes complete with all tool setting devices, etc. The price is 6,000 euros. Technical data: Maximum pitch circle diameter: - ratio 10:1: 500 mm - ratio 2:1: 450 mm - ratio 1:1: 350 mm Module: 1.5 - 8 Maximum tooth cutting length: 90 mm Number of gear teeth: 10 - 150 Number of tool speeds: 9 Stroke range of double knife movements: 75 - 472 min-1 Time required for machining one tooth: 8 - 123 sec Power: - main drive: 3 kW - hydraulics: 2.2 kW - cooling: 0.15 kW Machine dimensions: - length: 2200 mm - width: 1600 mm - height: 1800 mm Weight: 8,700 kg Nsdpfx Abexwp Ngj Tocn

Condition: ready for operation (used), Gear Shaper STANKO 5B150 Max gear cutting diameter: 800 mm Max module: 12 mm Max cutter stroke: 200 mm Saddle indexing gear diameter: 360 mm Axis distance (tool to table): 0-700 mm Maximum tool diameter: 200 mm Cutter arbor diameter: 44.443 mm Taper: M5 Table diameter: 800 mm Distance from floor to table: 870 mm Indexing gear diameter: 762 mm Ncjdpfx Aboqcvkve Tjn Table bore diameter: 120A mm Double strokes per minute: 33-188 mm Table feed range per cutter double stroke: -Circular: 0.2-1.5 mm -Radial: 1-5.4 mm Table rapid rotation speed: 1.7 rpm Table rapid traverse speed: 137 mm/min Cutter rapid rotation speed: 3 rpm Main electric motor power: 4.8; 5.7; 7.5 kW Dimensions: 3100x1800x3500 mm Weight: 10,200 kg

Condition: ready for operation (used), Year of construction: 2004, operating hours: 26,583 h, functionality: fully functional, machine/vehicle number: A0248, workpiece diameter (max.): 130 mm, TECHNICAL DETAILS Workpiece diameter (max.): 130 mm Number of axes: X, Z, A, B, C (0–3) Electrical Power consumption: 47 kVA Voltage: 400 V Ncodpfx Abswmc Ido Tsn Frequency: 50 Hz

Condition: excellent (used), Year of construction: 1974, I am selling this machine. It can be tested when connected. Maximum module 25 mm Maximum gear diameter 500 mm Maximum machining length 3,000 mm Maximum table load 4,000 kg Maximum cutter diameter 250 mm Maximum cutter length 300 mm Total power 25 kW Machine height 2,100 mm Ncodpev Nqq Tefx Ab Tsn Machine length 7,600 mm Machine width 2,800 mm Machine weight 27.1 t You can send a video of the machine via whatsapp.

Condition: ready for operation (used), Rack shaping machine EZ-9V Processing length: 1200 mm Max. module: 12 mm Max. rack width: 200 mm Ncedpouw Tvfefx Ab Tsn Length of cut rack: 1100 mm Width of cut rack: 170 mm Cut module: 12 Weight: 10200 kg Rack shaping machine is intended for cutting of teeth of gear racks by using a method of work-piece running with a gear cutter. Rack shaping machine allows to make spur and helical gear racks of up to 1200 mm long and 12 mm maximum modul
