Used bevel gear generators spiral for sale (19)

Condition: used, Year of construction: 1973, machine/vehicle number: 24109, Equipped with: Stock Divider Hydraulic Work Clamping Chip Conveyor Cutter Clamping Bolt Index Plate Change Gears Hydraulic System Coolant System Pgodjxdfa Uepfx Admjw Specifications: Min. Outside Cone Distance: 2.75" Max. Cone Distance: 10" Max. Gear Pitch Dia.: 20" Cutter Diameters Utilized: 9 - 18" Root Angle: 55 - 80 deg. Face Width: 3" Number of Teeth: 20 -75 Diameter of Taper Hole at Large End: 3-27/64" Taper Per Foot: .50" Depth of Taper: .625" Cutter Speeds: 6.8 to 16.5 RPM Feeds (seconds/tooth): 3 to 9 Main Motor: 5hp, 900 rpm Hydraulic Motor: 7.5hp, 1800 rpm Approx. Floor Space: 118" x 86.5" Needed Overall Height: 70" Approx. Net Weight: 16,000 lbs Shipping Weight Boxed for Export: 17,000 lbs

Condition: excellent (used), Year of construction: 2006, operating hours: 53,244 h, functionality: fully functional, Technical Data – Gleason Phoenix II 600HC (CNC Hypoid Gear Cutting Machine) Working Area Max. workpiece diameter: Ø 600 mm Max. tooth depth: 24.6 mm Max. gear width: 110 mm Pgodpoxwzu Iofx Admow Number of teeth: 1–300 Cutterhead size face milling (FM): 18" diameter Cutterhead size hobbing (FH): 210 mm radius Max. cutter spindle speed: 600 min⁻¹ Work Spindle Front taper diameter: Ø 203 mm Taper bore diameter: Ø 181 mm Bore depth: 884 mm Max. work spindle speed: 600 min⁻¹ Dimensions and Weight Footprint L × W × H: 4.4 × 3.5 × 3.5 m (incl. peripherals) Machine weight: 26,000 kg Connection Data Total connected load: 139 kVA Main fuse: 200 A Operating voltage: 400 V Mains frequency: 50 Hz Control voltage: 24 V DC

Condition: used, The Modul KF 250 HSC bevel gear milling machine was designed as a universal machine for flexible machining of gears and is used by manufacturers of gear and transmission technologies for the milling process of bevel gears. Technical data: Psdpfx Adsxz Eg Ajmogw Gear diameter: 300 mm Max. module: 10 Tooth width: 60 mm Space required approx.: 4.2 x 2.6 x 2.2 m Machine weight approx.: 11,000 kg *The image shows the machine in its current condition as a used machine. Upon request, it can be offered partially modernised or as a complete retrofit, fully modernised with new CNC control (SIEMENS ONE).

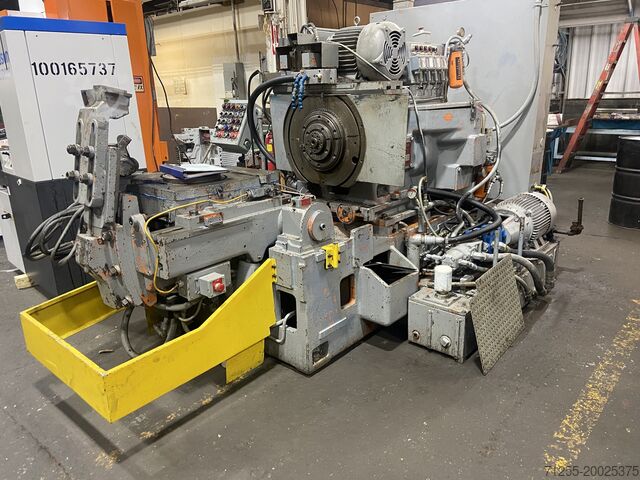

Condition: ready for operation (used), Year of construction: 1988, SARATOV 5C280P Spiral Bevel Gear Generator - 2 machines Max gear diameter: 800 mm Max module: 16 Max gear ring width: 125 mm Number of teeth: 5-150 Spindle speed range: 20-125 rpm Main motor power: 7.5 kW Overall dimensions (LxWxH): 3170x2180x2200 mm Weight: 15 t SARATOV 5C276 Straight Bevel Gear Generators Module (mm): 10 Max. gear wheel diameter: 500 mm Max. bevel gear cone distance: 250 mm Max. gear ring width: 80 mm Min. angle of dividing cone (pitch): 5 degrees Number of gear teeth: 10 – 150 Distance between spindle and machine center: max. (stock angle 5°): 375 mm; min. (stock angle 90°): 75 mm Stroke: 100 mm Slider double stroke: 48 – 400 spm Motor capacity: 4.0 kW Machine weight: 8750 kg Pgodpsum Ez Rjfx Admjw

Condition: used, Year of construction: 1997, max. wheel diameter 275 mm gear width 150 mm max. module 6 min. module 1,5 total power requirement 62 kW weight of the machine ca. 12 t dimensions of the machine ca. 4,7x4,4x2,45 m max. wheel diameter mm gear width mm max. module 6 min. module 1.5 Pgjdpsul Etdefx Admew max. workpiece diameter 275 mm tooth width max. 5.5 mm spiral angle 0 - 60 ° number of teeth 5 - 120 transmission ratio min. 1:1 transmission ratio max. 1:10 milling drive motor 20 kW workpiece drive 14.5 kW total power requirement 62 kVA weight of the machine ca. 12 t dimensions of the machine ca. 4,7 x 4,387 x 2,45 m Tool spindle (D-axis) - workpiece spindle speed (infinitely) 60 to 350 [...] Tool positioning axis (E-axis) - swivel range 0 to 360° - swivel speed max. 19.5°/s Workpiece spindle (B-axis) - mounting diameter outer cone (1: 4) 140 mm - standard internal cone (1:20) 99.218 mm - workpiece spindle speed max. 300 [...] - workpiece spindle passage 90 mm Workpiece positioning axis (Y-axis) - travel 870 mm - speed max. 4.5 m/min Roller rotation axis (A-axis) - swivel range 315° - swivel speed max. 40°/s Axis intersection (Z-axis) - travel range max. +/- 50 mm - speed max. 0.657 m/min Workpiece swivel axis (C-axis) - swivel range -8.5 to 98° - swivel speed max. 21.5 °/s Milling depth axis (X-axis) - travel from -25 to 640 mm - max. speed 6 m/min Machinen distance (V-axis) - travel 150 mm - speed max. 1.6 m/min

Condition: ready for operation (used), Year of construction: 2011, functionality: fully functional, CNC bevel gear milling machine with spiral bevel gearing Gleason No 631 Year of manufacture: 2011 Control: SIEMENS 840d Pjdow Tfb Sopfx Admsgw The machine was completely overhauled in 2011. A new control system and drives were installed.

Condition: used, Year of construction: 1977, machine/vehicle number: 19909, Equipped with: Index Plate Geneva Cam Cutter Body Hydraulic Work Clamping Coolant Pump & Tank Chip Conveyor Additional Cutter Bodies, Index Plates & Geneva Cams Available Specifications: Pgsdpfjxdfazex Admjw Minimum Outside Cone Distance: 2.75" Maximum Cone Distance: 10" Maximum Gear Pitch Dia.: 20" Cutter Diameters Utilized: 9 - 18" Root Angle: 55 - 80 Deg. Face Width: 3" Number of Teeth: 20 -75 Diameter of Taper Hole at Large End: 3-27/64" Taper Per Foot: .50" Depth of Taper: .625" Cutter Speeds: 15.6 to 87.7 RPM Feeds (seconds/tooth): 5 to 34.3 Main Motor: 10hp, 1800 rpm Hydraulic Motor: 7.5hp, 1800 rpm Approximate Floor Space: 118" x 86.5" Needed Overall Height: 70" Approximate Net Weight: 18,820 lbs Shipping Weight Boxed for Export: 20,500 lbs

Condition: excellent (used), Year of construction: 2011, operating hours: 49,000 h, functionality: fully functional, KLINGELNBERG OERLIKON G 27 – Bevel Gear Grinding Machine Manufacturer: KLINGELNBERG AG Brand: KLINGELNBERG OERLIKON Series / Model: G 27 Year of Manufacture: 2012 Pgedpfx Aoxuwmnjdmew Type: Bevel Gear Grinding Machine Condition: Excellent – all tolerances within manufacturer's specifications Location: Bavaria, Germany Nearest Airport: Munich Application Areas - Spiral and hypoid bevel gears - Planetary gears - Passenger car and commercial vehicle transmissions - Agricultural and forklift drive systems - Special gear units - Helicopter gearboxes - ...and many other precision applications Technical Specifications - Max. gear diameter: 300 mm - Max. module: 8 - Min. module: 0.7 - CNC control: Siemens Sinumerik 840D Solution Line - Software: KIMoS5 (Klingelnberg Integrated Manufacturing of Spiral Bevel Gears) - Min./max. bevel angle: −90° / +90° - Workpiece spindle bore: 127 mm - Grinding wheel diameter: 50 – 230 mm - Grinding spindle speed (stepless): up to 7,500 rpm - Workpiece spindle speed: up to 700 rpm - Connected load: 146 kW - Machine weight: approx. 21 t - Machine dimensions (L × W × H): approx. 9.5 × 3.6 × 3.1 m - Integrated probe unit at grinding head - External grinding spindle cooling - ELBARON oil mist extraction system (integrated) - HOFFMANN coolant filtration system

Condition: used, The Samputensili S 500 B bevel gear cutting machine was designed as a universal machine for flexible machining of gears and is used by manufacturers in gear and transmission technology for the milling of bevel gears. Technical data: Gear diameter: 500 mm Pgsdpfx Adexz Ef Sjmsw Module – max.: 5 Tooth width: 100 mm Space requirement approx.: 4.5 x 3.2 x 2.4 m Machine weight approx.: 13,000 kg *The illustration shows the machine in its current used condition. Upon request, it can be supplied partially modernised, or as a completely retrofitted and modernised machine with new CNC control (SIEMENS ONE).

Condition: used, Year of construction: 1997, max. wheel diameter 275 mm gear width 150 mm max. module 6 min. module 1.5 max. workpiece diameter 275 mm tooth width max. 5.5 mm spiral angle 0 - 60 ° number of teeth 5 - 120 transmission ratio min. 1:1 transmission ratio max. 1:10 milling drive motor 20 kW workpiece drive 14.5 kW total power requirement 62 kVA weight of the machine ca. 12 t dimensions of the machine ca. 4,7 x 4,387 x 2,45 m Tool spindle (D-axis) - workpiece spindle speed (infinitely) 60 to 350 r.p.m. Tool positioning axis (E-axis) - swivel range 0 to 360° - swivel speed max. 19.5°/s Workpiece spindle (B-axis) - mounting diameter outer cone (1: 4) 140 mm - standard internal cone (1:20) 99.218 mm - workpiece spindle speed max. 300 r.p.m. - workpiece spindle passage 90 mm Workpiece positioning axis (Y-axis) - travel 870 mm - speed max. 4.5 m/min Roller rotation axis (A-axis) - swivel range 315° - swivel speed max. 40°/s Axis intersection (Z-axis) - travel range max. +/- 50 mm - speed max. 0.657 m/min Workpiece swivel axis (C-axis) - swivel range -8.5 to 98° - swivel speed max. 21.5 °/s Milling depth axis (X-axis) - travel from -25 to 640 mm - max. speed 6 m/min Machinen distance (V-axis) - travel 150 mm Pgedpfed Il R Ajx Admjw - speed max. 1.6 m/min - 13 milling cutters included -

Condition: good (used), Year of construction: 2002, max. wheel diameter 275 mm gear width 55 mm max. module 6 min. module 1 Control 840 C Siemens total power requirement 100 kW weight of the machine ca. 16,7 t Pgsdstumrpepfx Admow dimensions of the machine ca. 5,2 x 2,3 x 2,4 m m

Condition: ready for operation (used), Year of construction: 1998, functionality: fully functional, machine/vehicle number: 291127, wheel diameter: 275 mm, wheel width: 55 mm, controller manufacturer: Siemens, controller model: 840 C, Face Milling - Single Part Process - Continuous Process: - The workpiece and tool (usually Spiron) rotate simultaneously, and all teeth are machined simultaneously in a single operation. - The cutter head has multiple cutter groups (not arranged in a circle) - Parallel tooth height - Conical tooth tip surface Single Part Process: - The workpiece is stationary, and the tool (usually Arcon) rotates and cuts a tooth by plunging the tool. - Once a tooth is cut, the tool moves back out of the tooth, the workpiece continues to cut by one tooth width, and the next tooth is cut until all teeth are finished. - The cutter head has all cutters arranged on a circular path. - Conical tooth height - Parallel tooth tip surface The C28 can handle both gear and pinion. For the single part process, a C28 must be "prepared" - i.e., a direct measuring system + part gear brake, workpiece axis + license file for manufacturing single part processes. TECHNICAL DETAILS Pgjdpfx Adjv I Ud Ijmsw Control: Siemens 840 C Wheel diameter: max. 275 mm Wheel width: 55 mm Module: 1.5 - 6.5 Helix angle: 0-60° Number of teeth: 6-120 mm Gear ratio: 1:10 - 1:1 Cutter head radius: 62 - 110 mm Number of knife groups: 5-19 (Oerlikon) Travel X / Y / Z: 500 / 885 / ±185 mm Motor speed per axis: 2400 rpm Ratio X / Y / Z: 3:1 Spindle pitch per axis: 10 mm Movement range E / V-axis: -5° to 95° / ±7.5° Motor speed E / V-axis: 400 / 900 rpm Travel E/V-axis: 1800 / 1098 °/min E/V-axis gear ratio: 80:1 / 1:1 A/B-axis mounting diameter: 130 / 140 mm A/B-axis spindle speed: 667 / 345 rpm Permissible A/B-axis motor speed: 10,000 / 4,500 rpm A/B-axis gear ratio: 15:1 / 13:1 V1-axis travel: 85 - 225 mm V1-axis travel speed: 6 m/min V1-axis motor speed: 1800 rpm V1-axis spindle pitch: 5 mm U-axis travel: 112 - 258 mm U-axis travel speed: 0.6 m/min U-axis gear ratio: 4.3:1 U-axis motor speed: 3000 rpm U-axis spindle pitch: 5 mm MACHINE DETAILS Weight: 13 t Space requirement: 5.2 x 2.3 x 2.4 mm Power requirements: 3 x 400V, 50 Hz, 90 A Transport weight: 16.5 t

Condition: good (used), gear diameter: 508 mm, total height: 1,780 mm, total length: 2,990 mm, total width: 2,200 mm, MODEL 610 GLEASON GEAR ROUGHER/FINISHER Equipped with: Hydraulic Workholding Pendant Control Chip Conveyor Index Plate Geneva Cam Change Gears Hydraulic System Coolant System Manuals Specifications: Maximum Gear Pitch Diameter: 20" Cutter Diameters: 9", 10.5", 12",14",16", 18" Whole Depth: 1.250" Root Angle: 60 to 80 deg. Pedpfxertryke Admsgw Face Width: 3.0" Extreme Ratio (Minimum): 2.25 to 1 Number of Teeth: 20 to 75 Diameter of Taper Hole at Large End: 3-27/64" Cutter Speeds (Per Minute) for Roughing: 15.6' to 87.7' Feeds (Seconds Per Tooth) for Roughing: 3 to 35 Cutter speeds (Per Minute) for Finishing: 6.8' to 20.5' Feeds (Seconds Per Tooth) for Finishing: 3 to 9 Floor Space: 118" x 86.5" x 70" H Weight: 17,500 lbs.

Condition: excellent (used), Year of construction: 2004, operating hours: 74,322 h, functionality: fully functional, Model Klingelnberg C 27 – CNC Bevel Gear Milling Machine Maximum workpiece diameter: 270 mm Standard module: 1 – 4 mm (continuous) / 1 – 6 mm (single piece process) Maximum tooth width: approx. 55 mm Spiral angle: 0 – 60° Number of teeth: 6 – 180 Maximum transmission ratio: 1 : 10 Minimum transmission ratio: 1 : 1 Cutter head radius: 39 – 105 mm (3" – 7.5") Number of cutter groups (Oerlikon): 5 – 19 A-axis (cutter head spindle) Mounting diameter, Gleason No. 14 – 1:24 Ø 58.34 mm Adapter, Oerlikon short taper 1:4 Ø 130 mm Spindle speed: 1000 rpm B-axis (workpiece spindle) Mounting diameter, Oerlikon external taper 1:4 Ø 140 mm Internal taper No. 39 – 1:16 Ø 99.21 mm Workpiece spindle bore: 90 mm Workpiece spindle speed: 1000 rpm C-axis Swivel range: ± 90° X-axis (milling depth axis) Travel: 350 mm Maximum speed: 10 m/min Y-axis (workpiece positioning axis) Travel: 665 mm Maximum speed: 10 m/min Z-axis (tool positioning axis) Travel: ± 120 mm Maximum speed: 10 m/min Machine equipment: CNC control Siemens 840D or Fanuc 160iT3 Electrical equipment: Oerlikon standard 3 x 400 V 50 Hz, control 24 V DC Work area lighting Control cabinet cooler Swiveling control panel Hydraulic system Impulse lubrication Automatic workpiece clamping with adjustable drawbar Clamping stroke monitoring Foot switch for workpiece clamping Standard tool kit Electrical data: Total connected load: 40 kVA Voltage: 3 x 400 V ±10 % Frequency: 50 Hz ±1 % Protection: 80 A slow blow Power interruption: max. 3 ms Voltage dip: max. 20 % for 20 ms Voltage peaks: max. 200 % of nominal voltage for 1.5 ms Harmonic content: max. 10 % Line symmetry: max. 2 % voltage difference between two phases Control voltage: 24 V DC Compressed air supply: Pressure: min. 7 bar – max. 10 bar Consumption: 100 l/min Pressure dew point: max. 10 °C Pgedoxur U Tjpfx Admew Temperature range: 10 °C – 40 °C Particle size: max. 40 µm Axes of deburring and milling unit: Q milling axis V1 deburrer infeed axis U deburrer positioning axis

Condition: ready for operation (used), The Klingelnberg KNC 60 bevel gear milling machine was designed as a universal machine for the flexible machining of gears and is used by manufacturers of gear and transmission technologies for the process of milling spiral-toothed bevel gear sets. Technical data Klingelnberg KNC 60 CNC Wheel diameter - max 650 mm Largest tooth width 120 mm Module 2.2-12 mm Pgsdpfxovyd Nds Admow Number of teeth 5-120 Hypoid offset +/- 100 mm Usable cutter head radii 55, 100, 135, 170, 210 mm Machine weight Approx. 16,000 kg Dimensions (L x W x H) 5750 x 2800 x 2700 mm *Image shows the machine in its current condition as a used machine and can be offered on request, partially modernized, or as a retrofit completely modernized with a new CNC control (SIEMENS ONE).

Condition: ready for operation (used), Manufacturer MODUL Model ZFTKK 500/2 W Condition Used Tilting of hob spindle 0....8 gradi Pedpsv Rpq Isfx Admjgw Hob spindle speed 45-224 giri/min Max workable diameter 540 mm Maximum module 16 Max tooth range 78 mm Range no. teeth 6....100 Machine weight 12000 Kg *Roughing and finishing machine*

Condition: good (used), max. wheel diameter 1600 mm gear width 250 mm max. module 30 min. module 8 range of tooth size 58 mm tooth width 250 mm weight of the machine ca. 42,3 t dimensions of the machine ca. 4,45 x 6,00 m - Cone spacing in mm. for spiral angle 30° minimum: 150 maximum: 800 - Taper angle, in degrees minimum: 5 maximum: 85 - Tooth angle minimum: 0° maximum: 45° - Number of teeth to be cut minimum: 10 maximum: 150 The machine is complete, fully functional and in good condition. Equipment / accessories: - complete set of change wheels - 4 pcs. cutter heads - various milling cutters - Operating instructions in English Pgjdpfx Asu Dbucodmow

Condition: used, Year of construction: 1996, functionality: fully functional, machine/vehicle number: 25734, Equipped with: Fanuc 150MB Control Hydraulic Chucking Work Spindle Large Bore Work Spindle #80 Taper Stock Divider Helical Motion Modified Roll Hansen Coolant Chiller & Filtration Coolant Tank & Pumps Chip Conveyor Chip Hopper Reven Mist Collector Hydraulic System Pedpfx Aexaqa Sjdmsgw Transformer Cutter Bolt Work Light Operator Platform Hand Tools Documentation Specifications: Extreme Ratio: Face Milling: 10:1, Face Hobbing: 10:1 Full Depth: Maximum: Face Milling:1.25" (31.75mm), Face Hobbing: 0.93" (23.50mm) Face Width: Maximum: Face Milling:6.00" (152.00mm),Face Hobbing: 3.00" (76.20mm) Range of Tooth Numbers: 1-300 Inclusive Gear Pitch Diameter, Maximum: 1000 mm (39.37") Cutter Size, Maximum: 18" (diameter) Face Milling Cutter Size, Maximum: 350 mm (radius) Face Hobbing Root Angle Range (B-Axis) 5 deg.to 90 deg., Face Hobbing:5 deg. to 90 deg. Machine Center to Work Spindle Face:9.00"Fixed, 229mm (Fixed) A-Work Spindle: 0 to 67 RPM, 0 to 333 RPM B-Swinging Base: 0 to 30 deg./sec, N/A C-Cutter: 0 to 500 deg., Same X-Horizontal: +/-305mm (+/-12") Y-Vertical: +/-305 mm (+/-12") Z-Sliding Base: -25/+700mm (-1/+28") B-Root Angle: -5 Degree/+90 Degree Diameter of Taper Hole at Large End: 8" (#80 Taper) to 6" (#60 Taper) Taper Per Foot:3/4", Same Depth of Taper Front:6", 152.40 mm Depth of Bore: 678 mm (26.7") Diameter of Taper Bore: 140 mm (5.5") Diameter Through Spindle of Hole:7.125", 180.98 mm MACHINE DIMENSIONS: Length x Width:233"x 209", 5920 mm x 5310 mm Height: 129", 3280 mm Weight: 65,000 lbs., 29,484 kg

Condition: good (used), Year of construction: 2000, gear diameter: 449 mm, Equipped with: Fanuc 150MB CNC Control Dry Cutting Cutter Shroud Chip Evacuation System Auto Doors Hydraulic System Lubrication System Work light Stack Light Specifications: Largest Speed Ratio: 10:01 Work Area (Continuous): Largest Depth of Teeth: 15.24 mm Largest Width of Tooth Face: 50.8 mm Work Area Axis: Horizontal Movement X Axis: -114 - 178 mm Vertical Movement Y Axis: -178 - 190 mm Movement of the Carriage Baseplate Z-Axis: -10.16 - 500 mm Workpiece Headstock Swiveling Range B-Axis: -3 - 90 Degree Maximum Distance Machine Center to Spindle Side: 165 mm Number of Teeth: 5-200 Inclusive Max. Gear Pitch Dia. of Typical 35 Deg. Spiral Angle Gear Using Max. Cutter Dia. 12" Cutter at the Following Ratios: Face Milling 1 x 1 - 13.5" - 342.9mm 2 x 1 - 16.0" - 406.4mm 5 x 1 - 17.7" - 450.0mm Face Hobbing (210mm Dia. Cutter) 1 x 1 - 10.560" - 268.22mm 2 x 1 - 10.286" - 275.00mm 5 x 1 - 11.810" - 300.00mm Milling Head Diameter: Helixact: 100,125,169,200,250,320mm Continuous Gumption Procedure, Teichloroethylene: 102 - 210 mm Pjdpsruakgsfx Admegw Workpiece Spindle: Drilling of Large Diameters: 5 3/64" Cone Upward Gradient on 304.8 mm (1 Foot): 21/32" Deep One of the Cone: 5.29" Diameter of the Whole Spindle Perforating: 3.35" Speeds: B-Axle Workpiece Headstock Drag Axis: 30 Degrees A-Axle Workpiece Spindle Number of Revolutions: 0 83 min-1 X-Axis Horizontal: 80 mm/sec Y-Axis Vertically: 80 mm/sec Z-Axis Carriage Baseplate: 80 mm/sec Space Requirement L x W x H (Approximate): 4.75 x 3.40 x 2.54m / 188" x 134" x 100" Machine Weight (Approximate): 10980 kg / 24,156#
