Horizontal lathes Monforts KNC5-1500 1999

Monforts KNC5-1500

Condition: ready for operation (used), Year of construction: 2001, functionality: fully functional, machine/vehicle number: 291/01, turning diameter over cross slide: 290 mm, turning diameter over bed slide: 500 mm, center height: 250 mm, spindle speed (max.): 2,800 rpm, distance between centers: 1,500 mm, TECHNICAL DETAILS Swinging diameter over bed: 500 mm Swinging diameter over slide: 290 mm Spindle speed range: 2 – 2,800 rpm Spindle bore: 70 mm Center height: 250 mm Distance between centers: 1,500 mm Bed width: 365 mm MACHINE DETAILS Control system: Teach-in Connected power: 15 kW Dimensions & Weight Transport dimensions (L × W × H): 3,700 × 1,650 × 1,900 mm (?) Transport weight: 3,300 kg EQUIPMENT Fsdpozrmq Djfx Apwogf Documentation Documentation CE marking

Condition: used, Year of construction: 1996, Technical details: turning diameter: 500 mm turning length: 1500 mm turning diameter over bed slide: 290 spindle bore: 71 mm Fgedpfx Apewwlvljwjf turning speed range: 3 - 2800 U/min rapid speed: 10 / 5 m/min feed speeds: 1 - 2000 mm/min total power requirement: 22 kW weight of the machine ca.: 3,2 t dimensions of the machine ca.: 3,0 x 1,6 x 2 m with Teach In controll R&D MTC-K PARAT toolpost 1 fixed steday dia. 100 mm 4 jaw face plate dia. 500 mm coolant attachment *

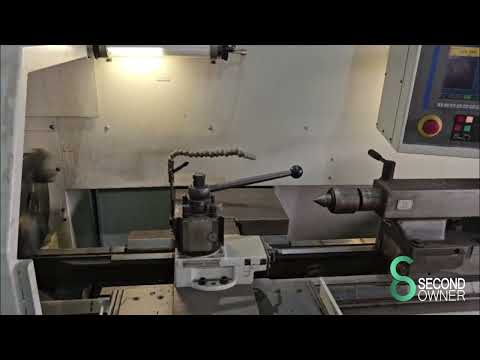

Condition: good (used), functionality: fully functional, spindle bore: 70 mm, turning length: 1,500 mm, turning diameter: 500 mm, overall weight: 3,300 kg, Monforts KNC5-1500 Lathe in good condition for sale. The machine operates perfectly. Included accessories comprise all documentation, a quick-change toolholder, and a chip conveyor as shown in the photos. Inspection under power is gladly possible. Loading can be arranged by forklift or crane. Working area: Distance between centers: 1,580 mm Swing over bed: 500 mm Swing over cross slide: 290 mm Cross slide travel: 265 mm Top slide travel: 140 mm Bed width: 360 mm Cross slide width: 220 mm Bed slide guide length: 615 mm Turning tool shank size: 32x25 mm Spindle diameter at front bearing: 100 mm Spindle nose as per DIN 55027, Size 8 Bar capacity: 70 mm Spindle taper (metric): 80 Main drive: steplessly variable, three-phase AC motor Drive power (50/100% duty cycle): 15/11 kW Total speed range: 2-2,800 rpm Gear stage I: 2-280 rpm Gear stage II: 7-1,120 rpm Gear stage III: 28-2,800 rpm Three-phase servo drive with mechanical safety clutch Rapid traverse speed longitudinal/cross: 10/5 m/min Thread cutting range: longitudinal and taper threads, pitch 0.001-500 mm Tailstock: quill diameter 80 mm Quill stroke 160 mm Internal taper MK5 Tool system: Multifix quick-change toolholder, size C Coolant system: pressure/delivery rate 0.4 bar / 10 l/min Machine dimensions (LxWxH): 3,330 x 1,550 x 1,790 mm Weight (transport unit): approx. 3,300 kg Bed: – Torsion-resistant bed, guideways hardened and ground Gearbox: 3-stage with limit switch monitoring Spindle: – Front spindle bearing: double-row cylindrical roller bearing with tapered bore combined with double-row angular contact bearing – Electric holding brake in main drive motor – Full-length cross slide with adjustable gib Longitudinal and cross feed driven by variable-speed three-phase AC motor via precision ball screw Feed and rapid traverse operated via cross selector lever Longitudinal and cross movements via electronic handwheels Increment selector switch in combination with electronic handwheel Fodpfsypbcdjx Apwogf Additional contour handwheel Automatic central lubrication for guideways and ball screws Clampable top slide – Quick-change toolholder – Bedway clamping by excenter lever – Additional clamping via tension bolts for heavy workpieces – Quill adjustment by handwheel – Quill tip holder MK5 Connection voltage: 3 x 400 Volt +/-10%, 50 Hz for TN-S or TN-C networks without RCD Total connected load: 16 kVA Transistor-controlled three-phase main drive with speed monitoring If you have any questions, please feel free to contact us at any time.

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, center width: 1,500 mm, center height: 250 mm, swing diameter over bed slide: 500 mm, spindle speed (max.): 2,800 rpm, controller model: Monforts Control System MTC K, The machine was overhauled in 2017! The corresponding invoices are available upon request. TECHNICAL DETAILS Fedjzdfzaopfx Apwogf Swinging diameter over bed: 500 mm Swinging diameter over slide: 290 mm Distance between centers: 1,500 mm Spindle bore: 70 mm Center height: 250 mm Spindle speed: 2 - 2,800 rpm MACHINE DETAILS Control system: Monforts Control System MTC K Control method: Teach-in Dimensions & Weight Dimensions (L x W x H): 3,350 x 1,550 x 1,800 mm Net weight: 3,300 kg Transport packages: 1 EQUIPMENT Fixed steady rest 3-jaw chuck Documentation CE marking

Condition: used, Year of construction: 2000, turning diameter 500 mm turning length 1500 mm control MONFORTS CONTROL control SYSTEM MTC-K turning diameter over bed slide 290 mm spindle bore 70 mm Fgjdpfevh Ncrsx Apwjf spindle turning speed range 3 - 2800 U/min spindle power 15 kW max. torque on the spindle 1530 Nm spindle head DIN 55027 Gr. 8 feed power X/Z axis 11300 N rapid travel - longitudinal/face 10 / 5 m/min bed width 360 mm travel of cross-slide 265 mm upper slide travel 140 mm turning tool - shaft cross cut 32 x 25 mm tailstock quill diameter 80 mm tailstock quill stroke 160 mm tailstock taper MT 5 weight of the machine ca. 3,3 t dimensions of machine L x W x H 3,45 x 1,65 x 1,93 m Accessories: 3-jaw chuck ROTA-S plus 250 mmø, 4 pos. toolholder PARAT, coolant

Condition: ready for operation (used), Year of construction: 1995, functionality: fully functional, machine/vehicle number: 198/04, turning length: 1,500 mm, turning diameter: 500 mm, swing diameter over cross slide: 290 mm, spindle speed (min.): 3 rpm, spindle speed (max.): 2,800 rpm, bed width: 360 mm, total length: 3,325 mm, total width: 1,550 mm, total height: 1,740 mm, type of input current: three-phase, overall weight: 3,800 kg, torque: 1,520 Nm, spindle diameter: 70 mm, workpiece length between centers: 1,500 mm, Well-maintained Monforts KNC 5 with extensive accessories. Can be inspected under power. Please refer to the pictures for the complete equipment. 3-jaw chuck 4-jaw chuck Faceplate Fgedpfxeyn U T Te Apwof Collet chuck 173 E Chip tray Coolant pump Tailstock

Year of construction: 1996, condition: ready for operation (used), Center distance: 1500mm, rotational speed: 3-2800/min, max. swing over bed/ slide: 500/ 290mm, controls: Monforts Control-System K, weight: 3.3t, with accessories, without tools. Fedpfx Ajip D Rhopwegf
