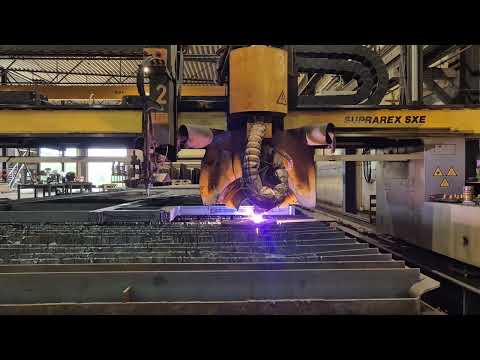

Plasma and flame-cutting machine

ESAB SXE HD 5500

Year of construction: 2007, condition: ready for operation (used), A CNC profile drilling machine Voortman with a movable drilling cabin is available. Working height range: 30mm-1050mm, positioning speed: 40m/min, table width: 300mm, max. working width: 1800mm, support depth: 1500mm, tool stations: 5, max. travel speed: 40m/min, tool holder: SK40, drilling diameter range: 5mm-40mm, thread cutting range: M6-M30, working length: 16200mm. Documentation available. On-site inspection possible. Kdodpfoxp Rb Ijx Aafjt

Condition: excellent (used), Year of construction: 2021, operating hours: 140 h, functionality: fully functional, feed length X-axis: 3,050 mm, feed length Y-axis: 1,250 mm, feed length Z-axis: 80 mm, input frequency: 50 Hz, input current: 29 A, working width: 3,050 mm, We offer this very good HOMAG DRILLTEQ V-500 throughfeed drilling machine, year of construction 2021. Working dimension X 3.050 mm Working dimension Y 1.250 mm Working dimension Z 80 mm Number of milling spindles 1 Main motor power 10 kW Rotation speed max 24.000 rpm Tool clamping system HSK-F63 Tool changer positions 4 Vertical drilling spindles 15 Horizontal drilling spindles in X 6 Horizontal drilling spindles in Y 4 Groove saw 90° turnable Vertical working surface Machine table Feed-through technology Special workpiece clamping system clamp gripper Barcode reader Safety device enclosed cabin Control Homag powerTouch, HOMAG POWER CONTROL Software HOMAG WOODWOP 7.2 Conformity marking CE mark Category: Machining centre Type designation: DRILLTEQ V-500 Subtype: OPTIMAT BHX200 Machine number: 0-250-73-7195 Wiring diagram: 0-250-73-7195 Kodpfx Aaeylp Slsfjdt Supply voltage: 400Y/230 V Neutral conductor: yes Phases: 3 Frequency: 50 Hz Maximum operating full load current: 29 A Fuse rating: 35 A Control voltage: 24 V If you have any questions or need more information, feel free to send us a message or give us a call.

Condition: used, Year of construction: 2008, operating hours: 9,950 h, functionality: fully functional, type of input current: three-phase, Handfeed station – 14 x feeder - 12 Clamp Binding Unit - Milling & Spine Preparation Units - Hot Melt Side Glue with pre-melter – Hot Melt Spine Glue with pre-melter - Drum Cover Feeder - Nipping & Pressing Station - Exit Raceway & Laydown Delivery - Conveyor System with Reject Gate - Muller Martini Esprit Trimmer Binding thickness 2 mm - 50 mm Ksdpfx Aextau Esafjdt Cover size max. 640 mm Cover size min. 202 mm Max. speed 900 to 4,000 cycles/hr. Max. book size 380x320 mm Min. book size 120x100 mm

Condition: used, Year of construction: 1982, Technical details: faceplate diameter: 2600 mm turning diameter over support: 2500 mm turning length: - mm centre distance: 1600 mm turning diameter over bed: 2900 mm spindle bore: 100 mm revolution per minute: gear steps U/min feed range: Überdrehen 0,12-31,5 Plandrehen 0,12-45 mm/min bed guideways length: 2900 mm max. workpiece weight between centres: 400.000 kgs total power requirement: 45 kW weight of the machine ca.: alle Komponenten zusammen: ca. 29,0 t machine dimensions LxWxH: 5.2 x 5,0 x 3,1 m Kdsdpfx Aaowtctyefjt 3-way measuring system with digital display RSF electronics Control panel Cooling unit for Rittal electric cabinet *

Condition: used, Year of construction: 2019, functionality: fully functional, table length: 8,000 mm, table width: 2,540 mm, overall weight: 8,000 kg, sheet thickness steel (max.): 100 mm, cutting length (max.): 8,000 mm, cutting width (max.): 2,540 mm, drill diameter: 40 mm, FICEP TIPO G25LG - CNC PLATE PROCESSING LINE (DRILLING, MILLING, THERMAL CUTTING) | YEAR 2019 The Ficep Tipo G25LG is a CNC plate processing line for combined drilling, milling, tapping and thermal cutting of steel plates in structural steel fabrication. Built in 2019 - a young machine in its class on the used market. All processes run in a single pass on a rigid double-bridge gantry frame. CONDITION & REFURBISHMENT Refurbished and inspected by a certified technician, ready for operation. - The exact scope of reconditioning varies from machine to machine and is disclosed individually upon serious interest. - Viewing possible by arrangement (machine reconditioned - no demonstration under power). FUNCTION & APPLICATION The vertical mono drilling unit with automatic tool changer (ISO 40) performs drilling, milling, tapping, centre-punching and countersinking. The Hypertherm XPR300 plasma torch and the integrated oxy-fuel cutting unit handle thermal cutting - from thin sheet to heavy plate. The line is operated via the Ficep Pegaso CNC control. Infeed and outfeed roller conveyors with material transfer (8 m each) ensure continuous material flow. Typical applications: structural steel fabrication, steel trading and plant engineering. TECHNICAL DATA - Manufacturer: Ficep | Model: Tipo G25LG | Year: 2019 | Serial number: 36098 - Machine type: CNC plate processing line (drilling / milling / thermal cutting) - Condition: used, refurbished by certified technician - Frame design: double-bridge gantry frame, welded | Machine weight: 8,000 kg - Plate width: max. approx. 2,540 mm, min. 200 mm - Plate thickness: max. 45 mm (plasma cutting), max. 100 mm (drilling) - Drilling heads: 1 (vertical mono drilling unit) | Tool holder: ISO 40 - Max. drilling diameter: 40 mm | Max. drilling/milling depth: 100 mm - Max. spindle speed: 7,000 rpm | Spindle power: 15 kW - Plasma cutting torch (straight): 1 | Plasma source: Hypertherm XPR300 | 300 A - Oxy-fuel cutting unit: included - CNC control: Ficep Pegaso CNC - Processes: drilling, milling (incl. straight/curved slots, Y/J weld-edge preparation), tapping, centre-punching, countersinking, marking, scribing, straight plasma cutting, oxy-fuel cutting On request (to be confirmed bindingly during inspection): processing length, tool magazine stations, min. plate thickness for drilling, min. drilling diameter, pass line height, longitudinal and cross positioning speeds, connected load and machine dimensions. SCOPE OF DELIVERY - 1 x Ficep Tipo G25LG CNC drilling, milling and thermal cutting line (year 2019) - 1 x Ficep Pegaso CNC control - 1 x Vertical mono drilling unit with automatic tool changer (ISO 40) - 1 x Plasma cutting torch (straight) | 1 x Hypertherm XPR300 plasma source (300 A) - 1 x Oxy-fuel cutting unit - 1 x Infeed roller conveyor with material transfer (8 m) | 1 x Outfeed roller conveyor (8 m) - 1 x Extraction system for plasma cutting LOGISTICS & LOCATION Kjdpfou Dw I Eox Aafsdt Location: Ulft (Netherlands), directly at the German border. Dismantling, transport, installation and commissioning by ASM by arrangement - individually calculated upon request. ABOUT ASM Arendsen Steel Machinery (ASM): specialist for refurbished Ficep structural-steel machinery. Further machines on request. CONTACT / INQUIRY Viewing by arrangement | Price on request. Sale exclusively to commercial customers (B2B).

Condition: like new (used), Year of construction: 2008, travel distance X-axis: 650 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 500 mm, rapid traverse X-axis: 45 m/min, rapid traverse Y-axis: 45 m/min, rapid traverse Z-axis: 45 m/min, controller model: Heidenhain iTNC530, table width: 960 mm, table length: 600 mm, overall weight: 9,000 kg, spindle speed (max.): 40,000 rpm, operating hours of spindle: 22,800 h, spindle nose: HSK E 40, number of spindles: 1, number of slots in tool magazine: 38, input voltage: 400 V, Equipment: documentation/manual, rotational speed infinitely variable, This machine has been used exclusively for copper processing. The coolant water supply is present but has not been used to date. In other words, a superb machine that has always done very light machining, has never seen coolant, and is equipped with a Weiss spindle running at 40,000 rpm. The machine comes as standard including: - Original documentation for the machine and the Weiss spindle - BLUM tool laser - Heidenhain TS-440 3D probe - Spindle and emulsion cooler - Lockable roof (harmonica style) Kdsdpfx Aasxgukbefot The machine can be inspected under power by appointment.

Year of construction: 2009, condition: like new (used), Press with container Engine 5,5 kW 400 V Kodpfx Aaofhb Tiefedt

Condition: ready for operation (used), Slideway grinding machine SFBZ 1800x4000 Length of grinding max, mm 4000 Width of grinding max, mm 1800 Dstance between column mm 2200 Height of grinding max, mm 1250 Table size, mm 4000 x 1800 Grinder wheel size max, mm 630 x 100 x 305 Weight of workpiece max, kg 15000 Kjdpfx Aaeuug A Ejfsdt Weight of machine, kg 56.000

Condition: good (used), Year of construction: 2011, machine/vehicle number: 2212.287, Automatic panelsaw Schelling Typ:FH 6 430 Maskin nr:221.287 År:2011 Panel beam saw Schelling with automatic, rear-feed,lifting table. For sawing board material, chipboard, MDF, Plywood, Board, Laminate etc. Techn info: Software MCS Evolution 2.0, SPS, Soft-SPS-Siemens WinAC Operating system WINDOWS XP PC with keyboard and mouse TFT monitor 17" Cutting length 4300mm, automatic detection of the start of the plate Cutting width 4300mm Machine accuracy of the cut length 3m +-0.1mm Positioning accuracy measured at input +-0.1mm Max diameter saw blade 460mm, spindle 30mm Pre-scoring blade 200mm, spindle 20mm motor operation is set from the control console Max panel thickness 120mm Panel stack aligner Main saw blade motor 27kw Saw blade over table 135mm Kdodpfxjtk It Sj Aafjt Safety curtain Air cushion table with 3pcs air ball nozzles, radial ventilator fan Table sizes 2650x850mm 620x850mm 2650x2550mm Pressure beam with automatic adjustment of pressure to cut length and package height Package straightener before and after the pressure beam Max package height 120mm (incl. sum of curvature and board thickness tolerance) Pusher with 12 grippers Max clamp opening (gripper) 133mm Min-max force package straightener 400/2000N Speed saw carriage forward 6-150m/min Speed saw carriage back 150m/min Forward feed speed (pusher) up to 25m/min (according to EC Europa EN1870-13) other countries 80m/min Speed feeding back up to 80m/min Push-off device 3 pcs Lift table length x width 4350x2550mm Hydraulic unit Standard version 1600mm lifting height 1.25/2.5m/min raising speed, 1.25/5m/min lowering speed Maximum load 1200 kg/m2 total 9 tons Roller track driven rollers, frequency controlled for stack on lifting table 4100x2600mm Max stack weight 6500 kg Max stack length 1060mm Slots for forklift 4 pcs, distance in the middle 1200mm, slot width 300mm Light curtain for personal protection Roller conveyor driven for package frequency controlled input to lifting table left 5600x2600mm max load 6500kg Roller conveyor driven for packages frequency controlled input to lifting table right 5600x2600mm max load 6500kg Slots for forklift 2 pcs, center distance 900mm, slot width 400mm 2 positioning stops with roller for stack alignment Light curtain (double beam) for personal protection Roller table after saw depth 4300mm, free-running ployamide rollers Angle stop at the rolling table Infeed guide two-lane (beam length 7200mm) 2-sided hardened precision guides rack and pinion drive, two-sided Input carriage (pusher) gear rack servo drive, non-contact measuring system Gripper, (scissor clamps) in pusher 12 pcs Automatic adaptation of the clamping force to the package height (progressive clamping force) can be set to 0 Pusher for panels thickness greater than 6mm,material thinner than 6mm is fed manually Central cleaning system feed trough (pusher) Compressed air 6-8 bar, approx. 1600l/min Power 38 kw, 70 A. 3x400 volts, 50 Hz, operating voltage 24 VDC Dust extraction 4000m/h, air speed 30m/s Diameter connection 80mm (angle connection), 120mm /pressure beam), 150mm (sawdust channel) Total setup area without driven roller conveyors including protective grid approx: 11650x7300mm Driven roller tracks left-right 5500+5500mm Stock no: 2002125BXACEO Subject to incorrect technical data presented

Condition: excellent (used), functionality: fully functional, Year of construction: 2020, load capacity: 6,300 kg, For sale is a nearly new overhead crane system from Konecranes. The crane is the CXTS model (single-girder bridge crane / profile girder) and is in excellent condition. ATTENTION: The crane shown in the listing photos has already been sold. However, an identical model is still available, but will not be ready for delivery until the end of 2026. TECHNICAL DETAILS - Capacity: 6,300 kg - Span: 18,600 mm - Lifting height: 6.00 m - Year of manufacture: 2020 - Lifting speed: 4.0 / 0.7 m/min (2-speed) - Trolley travel speed: 20.0 m/min (stepless) - Crane travel speed: 32.0 m/min (stepless) MACHINE DETAILS - Weights: Trolley weight: 440 kg; Crane weight without trolley: 1,832 kg - Classification: Crane Class: S3 (DIN 15018); Hoist mechanism group: FEM 2m (ISO M5), Crane drive group: FEM 1Am (ISO M4) - Electrical data: Power supply: 400 V / 48 V / 50 Hz, Rated power: 4.9 kW EQUIPMENT - Radio remote control with push-button transmitter - Additional mobile pendant control (emergency control) - Overload protection and load data memory - Pre-limit and end-limit switches for crane and trolley travel - Signal horn, charging station, and spare battery - Hook collision protection Transport dimensions of the bridge: Kodpfx Aaoykbimsfsdt - Total length: 19,328 mm - Profile height of girder: 622 mm - End carriage width (wheel base): 2,200 mm Transport and loading can be organised across Europe at additional cost if required. Prices excl. VAT Inspection by prior appointment possible. Please contact us—our team will be happy to assist you. Trade-in or exchange possible! Machinery Trading - Purchase/Sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES, AND MORE. Are you looking for a high-quality yet affordable metalworking machine for your production? Or are you looking to sell your own? For more information or to contact us, please visit our website.
