Portal press
Hidrobrasil Portal-Richtpresse

Name: Hidrobrasil Portal-Richtpresse
Brand: Hidrobrasil
Availability: InStock

Year of construction

2024

Condition

Used

Location

Gelsenkirchen Germany

Portal press Hidrobrasil Portal-Richtpresse

Show map

Machine data

Machine type:: Portal press

Manufacturer:: Hidrobrasil

Model:: Portal-Richtpresse

Year of construction:: 2024

Condition:: like new (used)

Price & Location

Location:: Hertener Strasse 108, 45892 Gelsenkirchen, Deutschland

Call

Technical details

Pressing force:: 200 t

Details about the offer

Listing ID:: A20383585

Reference number:: 200T 4000 × 2000

Update:: 02.04.2026

Description

Portal Straightening Press – Manufacturer: Hidrobrasil – 200 t Gantry Press – Table 4,000 × 2,000 mm

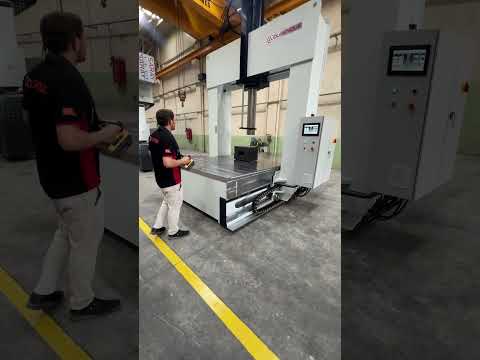

For sale is a versatile portal straightening press from Hidrobrasil featuring a pressing force of 200 t. The machine is equipped with a large table area of 4,000 × 2,000 mm, a laterally movable cylinder, and a longitudinally adjustable bridge structure, making it ideal for large-format straightening, assembly, and special applications.

====

Technical Data + Information:
Portal Straightening Press Hidrobrasil – 200 t Gantry Press

==== General Specifications
- Manufacturer: Hidrobrasil
- Model: Portal Straightening Press
- Design: Gantry press
- Pressing force: 200 t
- Operating pressure: max. 285 bar

==== Working Area
- Table size: 4,000 × 2,000 mm
- Clear width / height: 1,500 mm
- Column spacing: 2,050 mm
- Stroke: 1,500 mm

==== Movements & Travel Paths
- Lateral cylinder adjustment: max. 1,450 mm
- Longitudinal bridge movement: max. 2,800 mm
- Approach speed: 20 mm/s
- Working speed: 2 mm/s

==== Construction & Equipment
- Hydraulic power unit mounted on top of the press
- Hydraulic block and valves by Bosch Rexroth
- Air and oil filters by Filtrec
- Combination air and water cooling
- Stroke cylinder integrated in the worktable
- Machine control via wireless remote (2-button system)
- Anti-rotation device for the cylinder
- Machine status and diagnostics system with touchscreen

==== Auxiliary Stroke Cylinder System
- Number of stroke cylinders: 10 units
- Rod diameter: 25 mm
- Stroke: 80 mm
- Controlled via hydraulic system or control unit

==== Control & Operation
- Siemens PLC: S7-1200
- Siemens Touchscreen: KTP900 – 9"
- Up to 99 programs storable
- Functions:
- Setting stroke, pressure, and hold time
- Decompression time
- Piece counter
- Alarm management
- Real-time monitoring of all parameters
- Positioning accuracy: ± 0.1 mm

==== Safety & Monitoring
- Emergency stop system
- Two-hand/wireless operation with safety release
- Safety stripe on gantry columns
- Hydraulic oil temperature monitoring
- Automatic shutdown at overtemperature (> 65°C)
- Filter monitoring
- CE compliant

==== Hydraulics
- Main drive power: 5.5 kW
- Oil volume: not supplied
- Oil temperature control with automatic cooling

==== Electrical
- Main supply: 400 V AC
- Control voltage: 24 V DC
- Components: Siemens, Allen Bradley, Phoenix

=====

Nwjdpjxrb Nbefx Akcjf
Straightening work, large components, assembly work, special purpose machine construction, steel construction, maintenance, press-fitting applications

Gantry press, straightening press, hydraulic press, industrial press, special machine, tool matching press, tryout press, tool tryout press

Are you looking for a hydraulic press tailored to your specific application? Contact us for an individual offer. Our hydraulic presses are manufactured in accordance with German Machinery Guidelines as well as European Machinery Directives (Directive 2006/42/EC), EC standards, and EU safety regulations. Furthermore, our presses exceed both Canadian and European safety requirements, as they comply with all aspects of the Brazilian national safety guideline NR 12, which builds upon them. Our core expertise lies in special purpose machine construction and press automation. The hydraulic systems of our presses primarily utilize components from leading European manufacturers.

The listing was translated automatically. Translation errors are possible.
