Lincoln submerged arch column

Lincoln IDEALARC DC-600

Condition: good (used), Year of construction: 1975, Meuser horizontal boring and milling machine model M 76 BF 5.5 kw Drilling depth 76 mm Spindle holder MK 5 Table 1000 x 1000 Lodpot T Rkdofx Agperp

Year of construction: 1998, condition: good (used), Make: UNION Type: Ti 1800 Lrsdpfx Agokwcdbjpop Year: 1998 Specifications Metric US Standard Table Length 2000 mm Table Width 1800 mm Table load 16000 Movement V-axis 1250 mm Rotation B-Axis 360.000 ° Rotation speed B-Axis 1,35 Omw/min. Movement speed V-axis 4000 mm/min. Dimensions (Estimate) Length 3400 mm Width 2000 mm Height 920 mm Weight 6500 kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: new, Year of construction: 2026, Drilling and milling machine Kudu with CNC control and tool changer (3-axis) drilling and milling machine with movable processing unit - the table remains stationary, the drill head moves. The drilling machine can be used both manually and fully automatically. After each drilling process, the processing unit moves to the next drilling position fully automatically in the X and Y axes. Operation is kept very simple. The data can be transferred to the machine control using the file formats DXF./DWG. be carried out via a programming station. Alternatively, the system can also be programmed directly on the machine control. The system is very robust and consists of proven machine components. Technical data: • Measuring length: 6,000 mm • Total length: 8,050 mm • Stable machine base • Drilling head speed: up to 2500 rpm (standard version), is supplied with the right speed for your application. • Tool holder: SK 40 • Drive of the X, Y and Z-axes via servomotors • Rapid traverse in the X-axis: 20 m/min • Rapid traverse in the Y-axis: 5 m/min • Distance from upper edge of table to lower edge of tool holder 400 mm • Table width 480 mm • Working height: 1050 mm • Drilling diameter: 3 to 30 mm in St. 50 (depending on the tool) • Tapping: M4 - M30 (with compensating chuck) • Machining path in the Y axis: 300 mm • Tolerance in the X axis: + - 0.1 mm • Tolerance in the Y-axis: 0.06 mm • Tolerance in the Z-axis: 0.06 mm • Drill head drive motor: 5.5 kW • System weight: 2300 kg • System dimensions: 8050 mm x 3000 mm x 2388 mm (see layout plan) • Power connection: 32 A • Air connection: 8 bar • Protection of the system at the front via light barrier • Access protection at the rear, machine fence • Control touch screen panel 21.5", reinforced front glass • Easy programming on the Machine • Milling of long holes and circles • Lubrication takes place using a minimum quantity spray system • without material vices • Remote maintenance possible using Teamviewer (LAN interface) • Tool memory for drilling tools, with dimensions, speed • Simulation of work processes • Digital hand wheel Your advantages • The surface of the workpieces is protected • Clear, graphic surface • Machining directly at the end of the workpiece is not difficult • 50% space saving compared to pushing machining • Chips are collected in the chip tray • Simplest programming & operation • Minimum quantity spray system (standard) • Programming errors are prevented by CAD /CAM excluded Lodpfx Agofu Ivzepjrp

Condition: new, Year of construction: 2026, No matter what job you need to cut A700 is the only saw you will ever need. With the largest capacity in its class and massive ±75º mitre angle range capability, it is designed for genuine high mitre angle cutting without compromising on the size of the aluminium profiles you may need to cut. Suitable for bundle-cutting many profiles at once and with high-precision. High-speed aluminium processing with precision PLC controlled motion. Pneumatic actuated safety guard, opening and closing with a press of a button for a full unimpeded saw table access. Safety switch disabling the saw on lifting of the guard. Optional CNC controlled saw mitre angle positioning with touch-pad screen control. • Ø700 mm TCT saw blade with 4 kW drive motor • AS / NZS 4024:2014 safety standard, two hand press cut operation • Overhead safety guard with safety tunnels 900 mm each side of the saw • Safety guard pneumatically liftable on a press of a button • Safety switch disabling the saw operation on guard up • 2x vertical and optional 2x horizontal clamps with adjustable clamp pressure • Mitre angle ±75° with pin locating at 0°, ±15°, ±22.5°, ±30°, ±45°, ±60°, ±75° • Spray-mist blade lubrication system • Air gun and LED interior light • 2× Ø100 mm attachment points for chip collection • Optional 2.2 kW chip vacuum extractor • Optional automated mitre control system Highly suitable for: • Bulk aluminium manufacture • Mitered aluminium structures manufacture Lodsmb U Tujpfx Agperp • Windows and doors manufacture • Blinds, shades and furniture manufacture • Fabricated aluminium structures manufacture • Aluminium facades manufacture

Condition: good (used), Hydraulic power unit, hydraulic pump, universal power unit, hydraulic station Manufacturer: Rexroth/Hydraudyne, hydraulic station with oil cooler / accumulator / filter ... -Type: 03 HDJ Lodpfxjgz Irve Agpjrp -Engine power: 22 kW/1460 rpm -Tank capacity: approx. 240 liters -Pressure gauge: up to 250 bar -Individual components: pressure accumulator/hydraulic tank/filter/valves (see pictures) -Number: 2 units available Price: per piece -Dimensions: 1060/820/H1530 mm -Weight: 738 kg

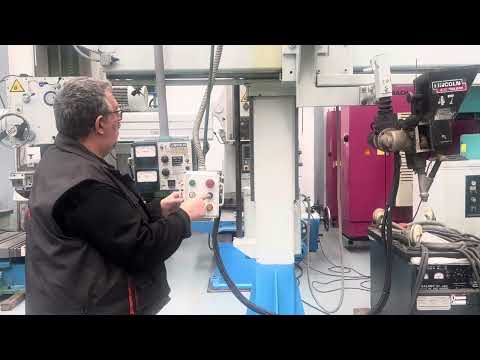

Condition: excellent (used), Motorized 3x3 welding column with movement control by pushbutton panel. Useful capacity: 3x3m Wire spool dispenser Lincoln Idealarc DC-1000 submerged arc equipment with torch and flux holder + Lincoln NA-3N Amps and Volts regulation panel. Lodou Afttepfx Agpjrp Submerged arc duty factor: 1000 Amps at 100%. Idealarc® DC-1000 Submerged Arc Welder Input voltage: 230/460 Input current: 193/96.5A Input Hertz: 60 Input phase: 3 Input power: 230/460/3/60 Mode icon: DC/DC Output range: 150-1300A DC,16-46V Polarity: DC Nominal output: 1000A/44V/100%

Condition: new, Year of construction: 2025, load capacity: 5,000 kg, Complete set including hand and double-foot remote control Ledpfel Dq U Ujx Agporp Digital speed display Hydraulic height adjustment Dimensions: Tilt height min: 800mm Tilt height max: 1900mm Horizontal height min: 1050mm Horizontal height max: 2000mm Clamping disc diameter 1500mm Length 2900mm, width 1400mm Weight 3200 kg Speed from 0.01 to approx. 0.9 rpm. CE certified

Condition: new, Boring power 35 mm turning speeds max. 810 U/min core drilling diameter max. 35 mm tool taper Weldon 19,05 mm bore stroke 210 mm weight 11 kg connected load frequency 230 V engine output 1,6 kW Dimensions (LxWxH) 0,4 x 0,25 x 0,275 m Magnetic drill with: 2-speed motor. Coolant system. Lrjdpfxjidabvs Agpjp Robust mobile storage / carrying bag. MAGNET HOLDING FORCE 1800 kg

Condition: used, Magnetic drill, hand drill -Magnetic base: Magnetor type PS 32 L -Drilling machine: AEG type HBE-IV - Recording: MK2 -Max. Drill: Ø 23 mm -Connection: 265V/200Hz -Dimensions: 700/300/H670 mm Lrodpsfc R D Aefx Agpop -Weight: 49 kg

Year of construction: 2007, condition: ready for operation (used), A CNC profile drilling machine Voortman with a movable drilling cabin is available. Working height range: 30mm-1050mm, positioning speed: 40m/min, table width: 300mm, max. working width: 1800mm, support depth: 1500mm, tool stations: 5, max. travel speed: 40m/min, tool holder: SK40, drilling diameter range: 5mm-40mm, thread cutting range: M6-M30, working length: 16200mm. Documentation available. On-site inspection possible. Lrjdpfx Aoxp Rb Isgpep
