Gear grinding machines for sale

Identified location: Ashburn (US) (Edit)
max. wheel diameter:180 mm max. module:5 Bed7nuofx7 min. module:1 weight of the machine ca.:14 t dimensions of the machine ca.:4,5 x 2,84 x 2,8 m min. number of teeth:7 toolpiece turning speed range:4000-10000 U/min tool length:210 mm With tail stock No dressing device Only CBN more
max. wheel diameter 700 mm gear width 250 mm max. module 7 min. module 0,5 Number of teeth 10- 600 St. max. helix angle +/- 30 ° slide stroke 290 mm clamping length 256 - 570 mm grinding worm dia. 280 - 400 mm width of grinding worm 84/104 mm pressure angle 14° 30' - 30° root circle dia. min. 34 / 52 mm tip circle diameter 700 mm grinding worm turning speeds: at grinding 1650 U/min return speed of the worm to workpiece change 60 mm workpiece weight 300 kg electrics - voltage/frequency 380 / ... more
max. wheel diameter 400 mm gear width 0 - 300 mm max. module 8 min. module 0,3 number of teeth 5 - 999 tooth width (Z1- grinding slide travel) 0 - 300 mm centre distance 60 - 700 mm max. helix angle +/- 45 ° Ci22jt3q workpiece weight max. 300 kg tip circle diameter 10 - 400 mm Equipment/Accessories: - incl. workpiece magazine with robot REISS - Hoffmann filter/coolant unit year 2011 - CNC dresser REISHAUER with 1 set of diamond wheels - 2 pcs. wheel flanges with grinding wheels - 7 pcs. e... more
Steuerung Siemens 840 C Technische Details Raddurchmesser - max. 600 mm Radbreite 600 mm Profiltiefe 35 mm Schwenkwinkel max. +/- 45 Grad Schleifscheibendrehzahl 600-6000 U/min Muifck Raumbedarf ca. 5,1 x 6,5 x 3,7 m Gewicht 17 t Vorschübe X-Achse 10000 mm/min Vorschübe Y-Achse 5000 mm/min Vorschübe Z-Achse 10000 mm/min Tischdrehzahlbereich 0 - 14 U/min more
max. wheel diameter 360 mm gear width 175 mm max. module 7 9zfa2q7a min. module 0,5 Control Reishauer min. number of teeth 6 max. number of teeth 600 max. workpiece weight 60,0 kg grinding wheel width 104 mm grinding wheel diameter 280 - 350 mm Spindle Speed 1.100 - 2.300 min/-1 grinding spindle turning speeds at profiling 50 - 95 min/-1 root circle diameter 10 mm total power requirement 26 kVA weight of the machine ca. 6,0 t dimensions of the machine ca. 6,0 x 4,0 x 3,0 m Coolantsystem ... more
CNC-Profile Gear Grinding Machine for grinding external spur and helical gears Hydrostatic guideways in rotary table, column, stroke saddle max. wheel diameter 2000 mm Bft9kqre3i gear width 980 mm max. module 34 Control KAPP D300 max. helix angle -35° / +35° °/deg. stroke length max. 1000 mm rotary table dia. 1365 mm table load 20 t max. dia. of grinding wheel 400 mm profile depth max. 75 mm power capacity 25 kW weight of the machine ca. 20 t dimensions of the machine ca. 7,9 x 6,0 m Equipm... more
max. wheel diameter:500 mm gear width:* mm max. module:16 min. module:* total power requirement:63 kW weight of the machine ca.:10,5 t Fq0c97cj dimensions of the machine ca.:5,88 x 3,15 x 2,65 m max. number of teeth:999 min. number of teeth:2 grinding wheel motor:20 kW more
max. wheel diameter 700 mm gear width 250 mm max. module 7 min. module 0,5 Number of teeth 10- 600 St. max. helix angle +/- 30 ° slide stroke 290 mm U7pp979n clamping length 256 - 570 mm grinding worm dia. 280 - 400 mm width of grinding worm 84/104 mm pressure angle 14° 30' - 30° root circle dia. min. 34 / 52 mm tip circle diameter 700 mm grinding worm turning speeds: at grinding 1650 U/min return speed of the worm to workpiece change 60 mm workpiece weight 300 kg electrics - voltage/freque... more
9
Unterschleißheim, Germany Germany
dealership location
6833 km
1975
used
thread dia. 200 mm grinding length 450 mm Beoldqok2s thread pitch 3-80 mm clamping length 700 mm grinding wheel diameter 275 - 350 mm grinding wheel speeds 1850 U/min spindle speeds 1 - 48 U/min return speed 500 mm/min max. module 10 grinding wheel width 35 - 40 mm total power requirement 17,5 KW weight of the machine ca. 4 t dimensions of the machine ca. 4,5 x 2,4 x 1,8 m Coolant belt filter system BEDA Bj.1986 was operated with grinding oil Oil mist suction / high stand change gears vario... more
max. wheel diameter 400 mm gear width 0 - 300 mm max. module 8 min. module 0,3 number of teeth 5 - 999 tooth width (Z1- grinding slide travel) 0 - 300 mm centre distance 60 - 700 mm max. helix angle +/- 45 ° workpiece weight max. 300 kg tip circle diameter 10 - 400 mm Equipment/Accessories: - workpiece magazine with loader and 1 set of grippers - coolant/filter device Novotecnic Vsqylq - CNC dressing device REISHAUER with 1 set of diamond wheels - collet chuck Ø 30 mm for the clamping of ... more

New machines via email!

Yes, send news from this list to my inbox!
Stay updated!
You can create a label.
How often do you want to be notified about new listings?
max. wheel diameter 145 mm gear width 600 mm max. module 8 min. module 4 grinding length 600 mm workpiece height 660 mm control Siemens 840 D table diameter 125 mm table turning speeds 1200 U/min toolpiece turning speed range 3500 - 12000 U/min Nm2hp total power requirement 49 kW weight of the machine ca. 6,9 t dimensions of the machine ca. m more
max. wheel diameter 150 mm gear width 100 mm max. module 3 Bszrjwg8 min. module 1 x-travel 190 mm y-travel 160 mm z-travel 100 mm turning speeds 5200 U/min swivel angle for work spindle +/- 40 ° more
5
Staufenberg, Germany Germany
dealership location
6532 km
2004
used
max. wheel diameter:240 mm gear width:450 mm max. module:5 min. module:1 weight of the machine ca.:13 t Bcnzckvn2d dimensions of the machine ca.:7,93 x 4,85 x 2,52 m tip circle diameter:250 mm module range:0,5-10 Profilschleifen [...] angle:-+45 ° Gear Grinding Machine in good condition equipped with: - Loading- Unloading Unit - Workpiece Belt Conveyor - DITTEL Grinding Wheel Balancing Device - REISHAEUR Motor-driven Diamond-Wheel Profiling Device Model RP-1+2SW, built onto the dressing - ... more
max. wheel diameter 400 mm gear width 200 mm max. module 10 min. module 2 control CNC Dialog total power requirement 12 kW weight of the machine ca. 7 t dimensions of the machine ca. 4,2x3x2,2 m We have got 2 similar machines on stock. 1 machine comes with a CNC-dressing device flanges and discs Mgxvn90d more
max. wheel diameter 360 mm min. module 0,5 max. module 7 root circle diameter 10 mm slide stroke 175 mm clamping length max. 515 mm workpiece weight 60 kg number of teeth 10 - 600 pressure angle 10 - 45 ° helix angle -/+ 45 ° grinding worm dia. 280 - 350 mm width of grinding worm 84 / 104 mm Bfflhiwqbs total power requirement 32 kW weight of the machine ca. 5 t dimensions of the machine ca. 10,1 x 6,6 x 3,5 m incl. Promot Loader more
CNC-Profile-Grinding-Machine Manufacturer GLEASON PFAUTER Type PE 1600 G Control SINUMERIK 840 C built 1997 Working Area Max. workpiece diameter 1.600 mm Max. Radial travel (X axis) 970 mm Max. Tangential travel (Y axis) 300 mm Max. Axial travel (Z axis) 1.000 mm Max. Tread depth 80 mm Grinding spindle swivel angle (A-axis) +/- 45 degrees Max. Module 20 mm Workpiece table Outer diameter 1.200 mm Bore diameter x depth Ø 300 x 875 mm Max. permissible load 15.000 kg Max. Table speed 4,... more
Maag HSS10 gear grinder. Maximum wheel diameter: 150 mm Small base circle: 28 mm Greatest engine: 5 Bdkdh927lx Smallest module 1.5 Greatest tooth bevel angle: 45 degrees Largest tooth number 75 Minimum number of teeth: 10 Lots of accessories wheels more
max. wheel diameter 1000 mm gear width 300 mm max. module 10 min. module 0,5 Control Siemens 840 SL total power requirement 42 KVA kW weight of the machine ca. 17 t Bfnknwsdb3 dimensions of the machine ca. ca. 3804x2760x2500 mm m more
max. wheel diameter:360 mm gear width:175 mm max. module:7 min. module:0,5 I20wcni0o weight of the machine ca.:5 t dimensions of the machine ca.:6,6 x 10,1 x 3,5 m number of teeth:6-600 root circle diameter:10 mm clamping length:515 mm workpiece weight:60 kg grinding worm dia.:280-350 mm width of grinding worm:84/104 mm more
max. wheel diameter 400 mm Bd3ydbx8s gear width 200 mm max. module 10 min. module 2 control CNC Dialog total power requirement 12 kW weight of the machine ca. 7 t dimensions of the machine ca. 4,2x3x2,2 m We have got 2 similar machines on stock. 1 machine comes with a CNC-dressing device flanges and discs more
10
max. wheel diameter 280 mm gear width 330 mm max. module 5 min. module 1 Beok7ifuw7 Control LH 90 LIEBHERR min. number of teeth 7 toolpiece turning speed range 4.000 - 10.000 U/min workpiece diameter 145 - 175 mm tool length - max. 210 mm V-axis 200 mm Shift travel +/- 100 mm grinding head swing angle +/- 35 ° total power requirement 25 kW weight of the machine ca. 12 t dimensions of the machine ca. 5,20 x 3,00 x 3,90 m more
MAX DIAM 800 No08h MAX MODUL 16 MACHINE DISMALED FOR TRANSPORT more
2
Hwasung, South Korea South Korea
11197 km
1984
ready for operation (used)
Gear diameter 300 mm Bfsdq7dipt more
max. wheel diameter 250 mm gear width 320 mm max. module 10 min. module 0,1 number of teeth 2 - 999 [...] angle +/- 90 ° grinding wheel diameter max 200 mm Bs3qswsy x-axis 320 mm y-axis 150 mm z-axis +/- 81,5 mm a- axis 360 ° b-axis +/- 90 ° control total power requirement Kapp D 200 CNC weight of the machine ca. 9,5 t dimensions of the machine ca. 5,1 x 4,3 x 2,6 m with complete cooling system more
max. wheel diameter:300 mm max. module:7 min. module:1 weight of the machine ca.:15 t toolpiece turning speed range:4000-10000 U/min tool length:210 mm Bed7n79ll8 Diameter of the table:140 mm power requirement:28 kW With tail stock No dressing device Only CBN more
Tooth flank grinding machine for internal and external gearing. Vfbg83hy The machine is in very good condition, as it was used in prototype construction, operating hours only about 40,000. This machine is equipped with an internal grinding device. Control cabinet, large coolant system etc. are available and included in the price. Machine: 5 CNC axes ( X,Y,Z,A and B ) Max diameter 500mm Max length workpiece 1100mm Module 16 Tooth width 350mm Number of teeth 1 to 999 Swivel angle 90° Diameter ... more
max. wheel diameter 400 mm gear width 300 mm max. module 8 min. module 0,3 control Sinumerik 840 D Dwl7sy number of teeth 5 - 999 pressure angle 14 - 30 ° helix angle -45 / +45 ° workpiece weight max. 300 kg x-axis 490 mm rapid traverse X-axis 15 m/min y-axis 220 mm rapid traverse Y-axis 5 m/min z-axis 300 mm rapid traverse Z-axis 5 m/min grinding wheel diameter 205 - 300 mm grinding wheel width max. 125 mm boring diameter 160 H7 mm number of starts 1 - 5 total power requirement 42 kW weig... more
Workpiece diameter 280 mm Table diameter 140 mm For more technical data see photo Nneof more
Max. Workpiece diameter. 1600mm Min. foot Circle. 80mm Module. 1.5-30 Grinding height. 1000mm Pressure angle. 14.-30 Bdhoaps3nx Helix angle +/- 35° Max. Workpiece load . 8 ton CNC Control. Siemens 840C Machine is under Power in Excellent Condition. For Further Information, please feel free to call or write su. more
GENERAL CARACTERISTICS Maximum diameter rectify 800 mm Ø least rectify 30 mm Module min / max 1,5 / 14 Manufacturing No. 444 Max width to Rectify 240 mm I87ayecw No. of teeth min 12 / max 372 Weight of the part to be rectified 800 Kg Wheel speed Max 35 m/seg. Ø hole table 150 mm Ø max wheel 350 mm Ø the table 650 mm ELECTRICAL CARACTERISTICS Total Power 14 Kva voltage 220/380 V DIMENSIONS AND WEIGHT Higth 3.300 mm long 4.400 mm Weight 10.500 Kg width 4.700 mm OTHER CHARACTERISTICS Year 1990 more
max. wheel diameter:2000 mm gear width:980 mm max. module:34 weight of the machine ca.:20 t dimensions of the machine ca.:7,9 x 6,0 m max. helix angle:-35° / +35° °/deg. ° stroke length max.:1000 mm rotary table diameter:1365 mm table load:20 t grinding wheel diameter:400 mm profile depth:75 mm power capacity:25 kW DESCRIPTION CNC-Profile Gear Grinding Machine for grinding external spur and helical gears Hydrostatic guideways in rotary table, column, stroke saddle Equipment: * CNC-control K... more
Reisehauer Licensed OBP 32 Dia: 320.mm Lenght: 170.mm Bflkz7cean Modul: 6 more
max. wheel diameter 400 mm gear width 300 mm max. module 8 min. module 0,3 control Sinumerik 840 D number of teeth 5 - 999 pressure angle 14 - 30 ° helix angle -45 / +45 ° workpiece weight max. 300 kg x-axis 490 mm rapid traverse X-axis 15 m/min y-axis 220 mm rapid traverse Y-axis 5 m/min z-axis 300 mm rapid traverse Z-axis 5 m/min grinding wheel diameter 205 - 300 mm grinding wheel width max. 125 mm boring diameter 160 H7 mm number of starts 1 - 5 total power requirement 42 kW weight of th... more
Max. gear dia: 1000 mm Max. gear width: 590 mm Max. module: 25 Min. module: 1 Workpiece weight: 2500 kg Table diameter: 720 mm Table bore dia: 150 mm Table bore depth: 160 mm Grinding wheel dia: 270/350 mm Grinding spindle: 11 KW Machine weight: aprox. 14-15 Tonnes 7ugdhzllg Machine is delivered with grinding wheel flanges and grinding wheels. more
3
St.Leon-Rot, Germany Germany
dealership location
6594 km
1990
good (used)

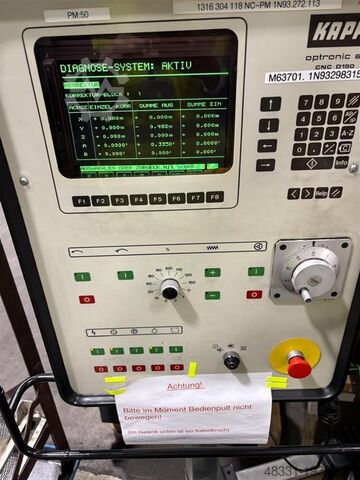

CNC gear grinder Manufacturer KAPP Model VAS 531 Built in 1990 Machine no. 077.0363 CNC OPTRONIC D 150 Tip height 260 mm Workpiece diameter of Max 322 mm Grinding tooth number 2-999 Module max 16 Procedures: X-axis: grinding slide stroke 700 mm Cnz8kw2e3 Y-axis: stroke table sled 290 mm Z-axis: Z slide the sanding head +/-81 mm A-axis: dividing head workpiece 360 B-axis: grinding head swivel +/-90° Resolution: X -, Y -, and Z-axis 0.001 mm A-axis (rotary encoder) 0.0005 mm B-axis (rotary e... more
Max. Outside Diameter Of Gear 300mm Min. Pitch Diameter Of Gear 35mm Max. Face Width For Spur Gears 230mm Max./Min. Pitch 2.5/17 D.P. Max./Min. Pitch 10/1.5 Module Max. Helix Angle 45º Max./Min. Number Of Teeth 120/10 No. Of Sgl Generating Motions Per Min 90-300 Max. Length Of Fixing Mandrel 360mm Diameter Of Grinding Wheel 220mm Net Weight Of Machine 4500 kg Lot of accessories. Beo30bzr09 more
10
max. wheel diameter 180 mm max. module 5 Etbn8wf min. module 1 Control LH 90 min. number of teeth 7 toolpiece turning speed range 4.000 - 10.000 U/min tool diameter 145 - 175 mm total power requirement 25 kW grinding head swing angle +/- 35 ° Shift travel +/- 100 mm V-axis 200 mm tool length - max. 210 mm weight of the machine ca. 12 t dimensions of the machine ca. 5,20 x 3,00 x 3,90 m Only CBN No dressing turnable Tailstock Workpiece changer on Tailstock No Automation awaylable external... more
6
Bucharest, Romania Romania
dealership location
8006 km
1976
used
Reishauer ZB Specification: Gear diameter: 54-700 mm Max gear width: 280 mm Distance between centres: 256-570 mm L3hzd Number of teeth: -Min: 16 -Max: 240 Module: -Min: 1.5 -Max: 7 Pressure angle: -Min: 14 degrees 30 min -Max: 30 degrees Max helix angle: +/- 30 degrees Helical pitch with 30 teeth: -Min: 404 -Max: 7725 mm Slide stroke: 290 mm Max longitudinal crowning with a pressure angle of 20 degrees: 0,022 mm Max work-piece weight incl. fixing: 300 kg (approx.) Max diameter of grin... more
Precision Gear Grinding with Topological Flank Modification. Retrofit 2008 by Donner and Pfister AG. Applications:Shaving Cutters, high-precision Diamond Dressing Gears (DDG), , Prototype Gears, Master Gears, etc. Lots of accessories and new spare parts. CBN Dressing attachment. Max diam 360mm Max module 12 Cx2892k2 Face width 210mm Max weight of work pice and mandrell 60kg more
KAPP Spline shaft grinding machine Bflismh7y7 Dia :240 Lenght:2500.mm Full accesroies more
