Used Spiral bevel gear cutting machines for sale (11)

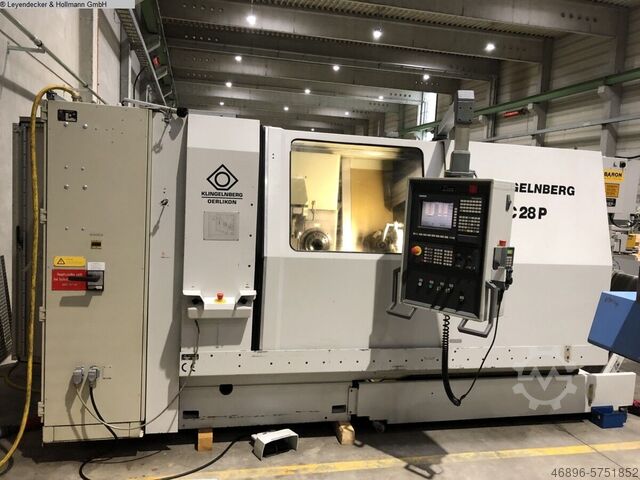

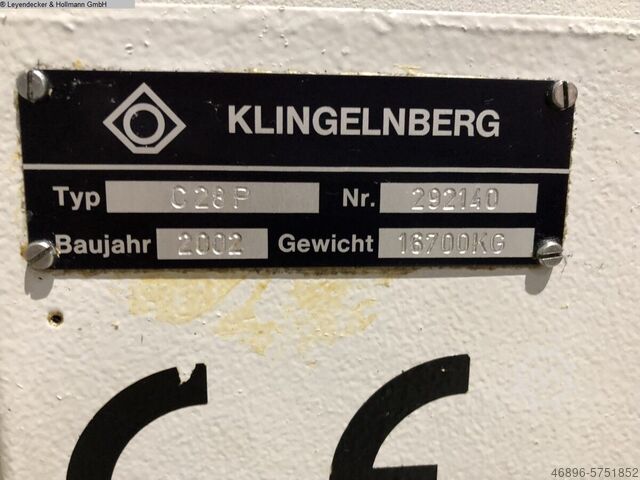

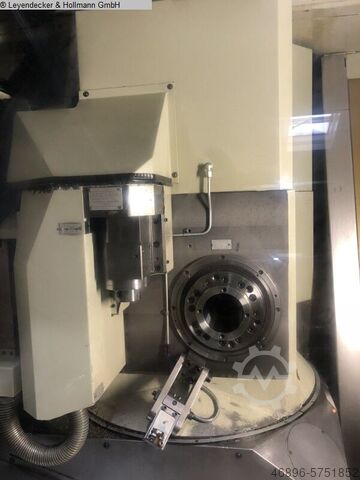

Condition: ready for operation (used), Year of construction: 2002, Functionality: fully functional, spindle speed (max.): 110 rpm, module thread tooth pitch (max.): 6, module thread tooth pitch (min.): 1.5, wheel diameter: 275 mm, TECHNICAL DETAILS Max. gear diameter: 275 mm Module range: min. 1.5 / max. 6 Tooth width: 5.5 mm Helix angle: min. 0° / max. 60° Number of teeth: min. 5 / max. 120 Gear ratio: min. 1:1 / max. 1:10 Drive & Control Control: SINUMERIK 840 C Max. workpiece spindle speed: 110 rpm Cutter head speeds: 20 - 110 rpm Total power requirement: 100 kW Machine weight & dimensions Machine weight: approx. 16.7 t Space requirement: approx. 5,200 x 2,300 x 2,400 mm Cd29Ke88No EQUIPMENT - Deburring device U-axis / Q-spindle - Chip conveyor - Coolant system - ELBARON electrostatic air cleaner - No tools or workpiece clamping devices

Condition: excellent (used), Year of construction: 2011, operating hours: 49,000 h, Functionality: limited functionality, Technical Data – Klingelnberg Oerlikon C 29 Machine Type: CNC Spiral Bevel Gear Milling Machine CNC Type: Siemens 840 D Power Line (NC572.5) Manufacturer: Klingelnberg Model: Oerlikon C 29 Maximum Gear Diameter: 290 mm Module Range: Continuous Indexing: 1.5 - 4.5 mm Single Indexing: 1.5 - 6.5 mm Cutter Radius: 39 - 105 mm (3.25" - 7.7") Location Diameter (Oerlikon Outer Taper 1:4): Ø 140 mm Inner Taper: No. 39 Ø 99.21 mm Space Requirement (L x W x H): 3270 x 2400 x 3250 mm Net Weight: Approx. 18,000 kg Machine Connected to Power: 112,000 h Machine Operating Hours: 49,000 h Spindle Hours ON: 37,000 h Machine Description – Oerlikon C 29 The Oerlikon C 29 is a state-of-the-art CNC spiral bevel gear milling machine, designed for the precise and cost-effective production of spiral and hypoid gears. It is being sold with immediate effect. Included in the price is a portal loader from the manufacturer FELSOMAT, also from the year 2011. The Oerlikon C 29 spiral bevel gear hobbing machine is designed exclusively for dry machining. In combination with Oerlikon high-performance tools ARCON® and SPIRON®, this hobbing machine can manufacture all common spiral bevel gears using both the continuous indexing method and the single indexing method. The vertical design of the Oerlikon C 29 and the direct drives for the tool drive, workpiece drive, and basic angle drive are specifically tailored for dry cutting with coated carbide cutters. It is suitable for all common machining processes from Klingelnberg and Gleason. Information on the standard module and workpiece diameter can be found in the Technical Data section. Drgrfh Key Features of the Oerlikon C 29: The machine is exclusively designed for dry cutting. Its vertical machine bed and direct drive for the tool and workpiece enable high-precision machining. Supports both single indexing and continuous indexing. Compatible with high-performance tools such as Oerlikon ARCON® and SPIRON®. Fully integrated into the KIMoS calculation and database system, allowing for not only Oerlikon-specific machining but also nearly all commonly used cutting processes. Closed-loop production: Networking with Klingelnberg P-series measuring machines allows for precise manufacturing according to nominal data, including automatic machine corrections. Application Area: The Oerlikon C 29 is ideal for modern gear manufacturing in the automotive and transmission industry, where maximum precision and efficiency are required. Thanks to optimized dry machining, it significantly reduces coolant consumption and lowers operating costs.

Condition: like new (used), Year of construction: 2002, max. wheel diameter 275 mm gear width 58 mm max. module 13 min. module 2 control SINUMERIK 840 D min. number of teeth 5 max. number of teeth 2000 transmission ratio 1:10 b-axis -5 / +90 ° total power requirement 75 kW voltage 400 V voltage 230 V weight of the machine ca. 9,4 t dimensions of the machine ca. 4,7 x 3,6 x 2,82 m Gleason-Pfauter 275 HC - NC bevel gear milling machine - Year of manufacture: 2002 - Equipped for milling with oil - Integrated magnetic chip conveyor, without cutter head + holders Technical data 275 HC: (workpiece) - Maximum transmission ratio --> 1:10 - Minimum number of teeth --> 5 - Maximum number of teeth --> 2 Maximum tooth height / full tooth depth --> 20 mm - Maximum tooth width --> 58 mm - Maximum pitch circle diameter --> 275 mm (tool) - Smallest permissible milling head Ø --> 2.5 inch Bpkfsb2Iwk - Largest permissible milling head Ø --> 9 inch (machine) -> slide path 325 mm - Vertical workpiece slide (Y-axis) --> 350 mm - Milling slide (Z-axis) --> 475 mm -> Largest basic angle 90° - Direction -B --> -5° -> Workpiece table 212.71 mm (speeds) -> feeds 1 - 6,000 mm/min -> rapid traverse 10,000 mm/min - B-axis --> 40 °/s -> Speeds min/-1 - Workpiece table --> min/-1 Translated with (free version)

Condition: used, Year of construction: 2004, max. wheel diameter 425 mm max. module 8,5 min. module 1,5 Control SINUMERIK 840 D tooth width 65 mm spiral angle min. 0 / max. 60 ° Dq9Kzb max. number of teeth 6-180 min. number of teeth 6 transmission ratio min. 1:1 transmission ratio max. 1:10 blade cutter head diameter 62 - 160 mm blade head turning speeds 750 U/min work piece spindle speed 400 U/min total power requirement 60 kVA weight of the machine ca. 16 t dimensions of the machine ca. 5,5 x 2,5 x 2,5 m

Year of construction: 2002, Condition: used, max. wheel diameter 275 mm gear width 55 mm max. module 6 min. module 1,5 Pvmvrm control Sinumerik 840C tooth width 5,5 mm spiral angle 0/60 ° max. number of teeth 120 min. number of teeth 5 transmission ratio max. 1:10 transmission ratio min. 1:1 spindle speeds max. 110 mm blade head turning speeds 20-110 1/min total power requirement 100 kW weight of the machine ca. 16700 kg dimensions of the machine ca. 5200x2300x2400 mm

Condition: ready for operation (used), Year of construction: 1951, overall weight: 9,000 kg, Oerlikon Spiromatic 2 Dqqem9 Fiat Mammano Cutter heads Tpl 120,150,180,260 Cutter Inspection Tool cabinet with change gear and accessory

Condition: used, Year of construction: 1998, workpiece diameter with ratio 1:10 300 mm Cccmnz8 workpiece diameter with ratio 1:1 212 mm max. number of teeth 200 min. number of teeth 6 x-travel 300 mm X - Axis speed 0,1-5.000 mm/sec. y-travel 400 mm Y - Axis speed 0,1-5.000 mm/sec. A - axis -170 / +170 ° control Siemens Sinumerik 840 C total power requirement 38 kW weight of the machine ca. 10 t dimensions of the machine ca. 4,20 x 2,20 x 2,10 m incl. suction

Condition: used, Year of construction: 2003, max. wheel diameter 275 mm Bkqecluuqi gear width 58 mm max. module 13 min. module 2 Control SINUMERIK 840 D number of teeth 5 - 200 ratio of transmission 10:1 cutter diameter max. 228 mm x-axis 25 - 350 mm y-axis +/- 175 mm z-axis 125 - 600 mm b-axis -5 / +90 ° total power requirement 75 kW weight of the machine ca. 11,7 t dimensions of the machine ca. 12,5 x 3,0 x 3,0 m Equipped for dry milling Pressure deburrer Deburring device with driven brush Integrated magnetic chip conveyor Promot Cellmaster Cartridge pulse filter system User interface control works with Gleason Summary

Condition: used, amount 1 STK Mikron 120 bevel gear milling machine Year of construction approx. 1960 Application -> face gear cutting 95°Re to 90° Li Dpoern With interchangeable wheels for feed & number of teeth Power: 380V, 50Hz, 2,51A, 0,61kW - max. outer wheel Ø : 40 [mm] - max. milling length : 30 [mm] - max. wheel module : 1 - tapered/cylindrical milling cutter dimensions : Ø 28 / 24 [mm] - milling head inclination : 0 - 10 [°] - work spindle holder swivelling : 0 - 90 [°] - Milling spindle speed : 250 - 1830 [rpm] - Blank turning feeds : 0.01 - 0.26 [mm] - Number of teeth : 6 - 260 - Motor power : 0.75 [CV] - Pliers type : W20 - Dimensions : 70 x 80 x 139 [cm] - Weight with base : 278 [kg]

Condition: used, max. wheel diameter 53 mm gear width 25 mm max. module 3 min. module 0,1 Cnzlmnswji total power requirement 0,8 kW weight of the machine ca. 0,21 t dimensions of the machine ca. 600x460x1200 mm Resharpening machine MIKRON 121

Condition: used, Year of construction: 1972, dimensions of the machine ca. - m Bevel gear cutting machine Mikron 120.01 Dpob8T Application -> Face gear cutting
